Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Disassembly/Repair of the mobile device Samsung Galaxy Tab 3 8.0'' SM-T311 (Samsung T310, T315) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 1/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 1/2

Step 1.

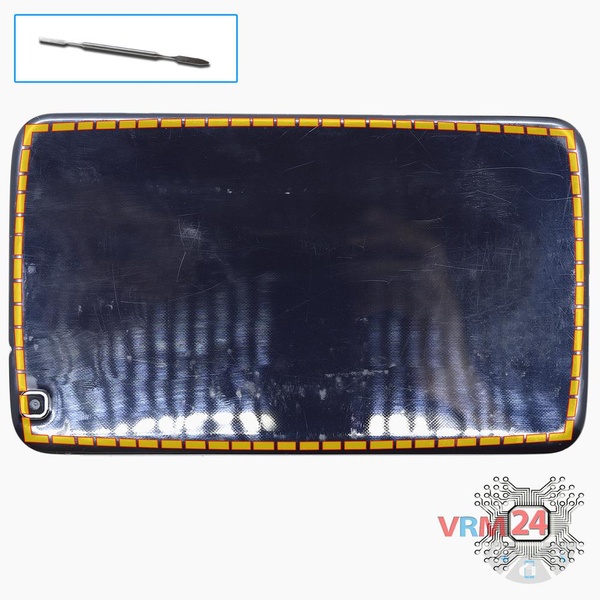

Open the back cover.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 2/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 2/2 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 2/3

Step 2.

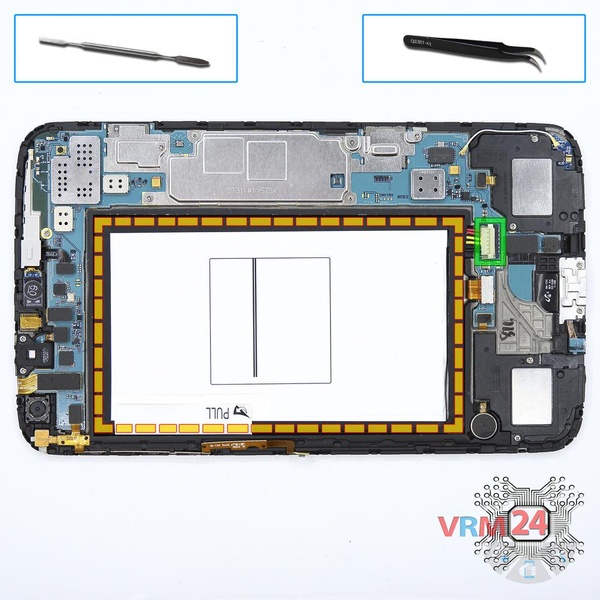

Lift and remove the battery.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 3/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 3/2

Step 3.

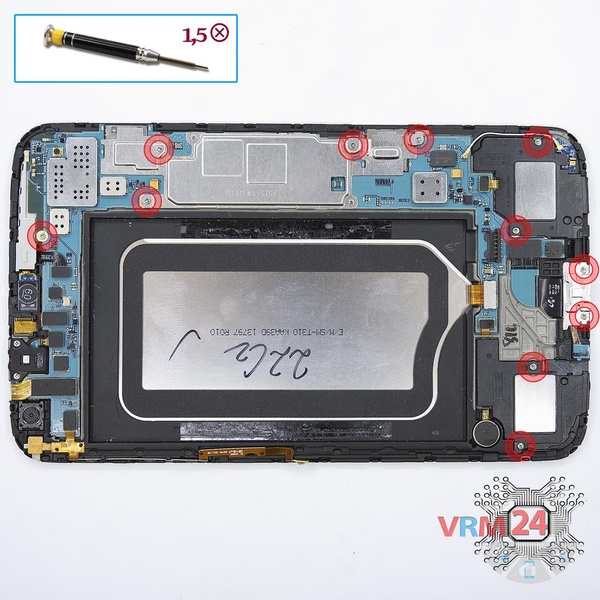

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 4/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 4/2 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 4/3

Step 4.

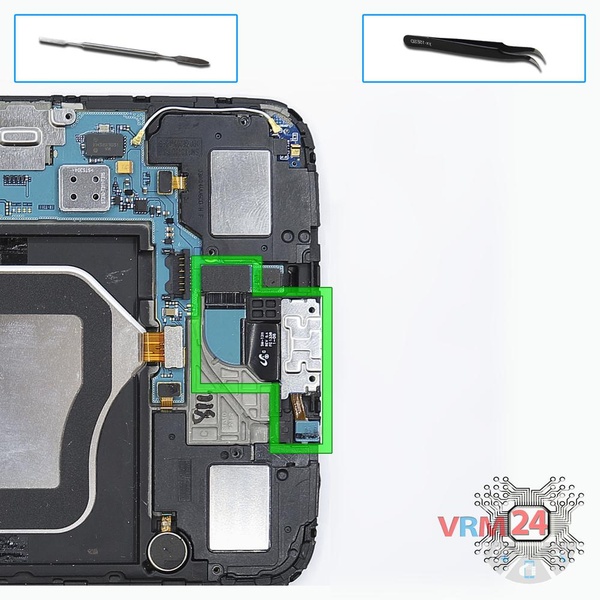

Pry up the connector and remove the cable with a charging port and microphone.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 5/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 5/2 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 5/3 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 5/4

Step 5.

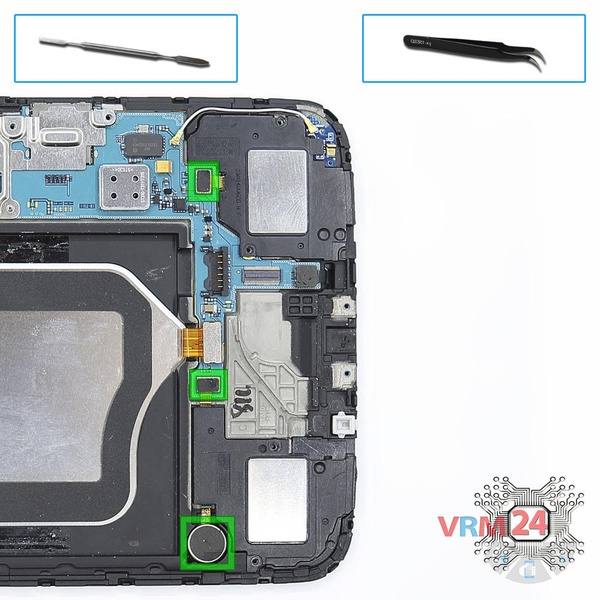

Disconnect connectors on the PCB and remove two assemblies. The first one with a buzzer (speaker) and another one with a buzzer (speaker) and vibration motor.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 6/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 6/2 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 6/3

Step 6.

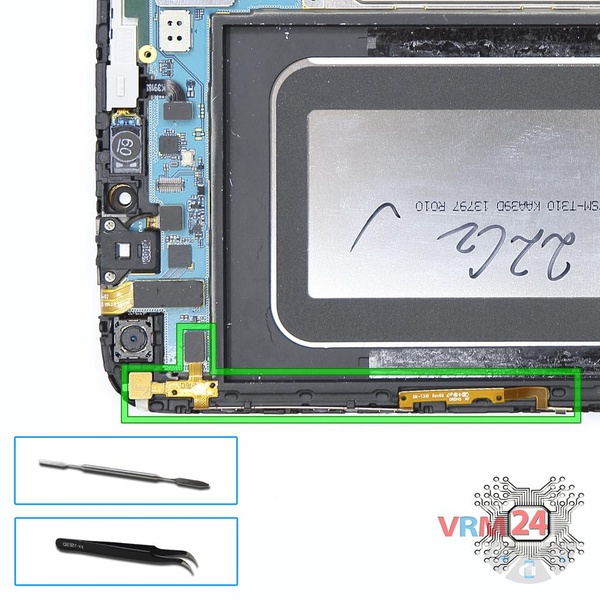

Pry up the connector and remove the cable with power & volume buttons flex cable.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 7/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 7/2 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 7/3 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 7/4 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 7/5 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 7/6

Step 7.

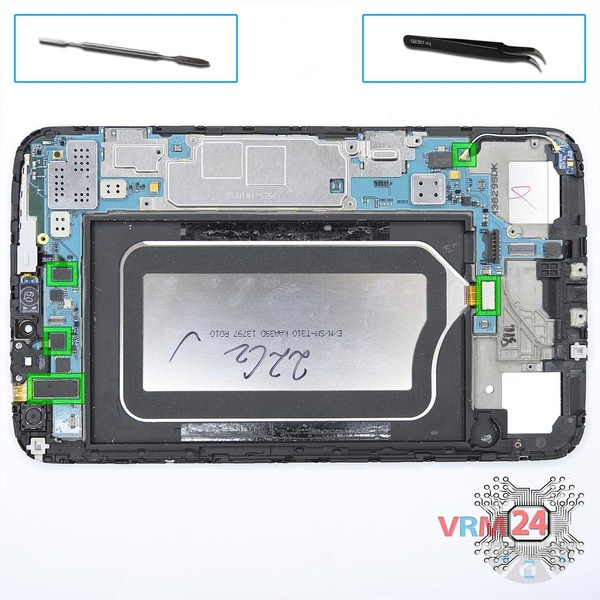

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 8/1 How to disassemble Samsung Galaxy Tab 3 8.0'' SM-T311, Step 8/2

Step 8.

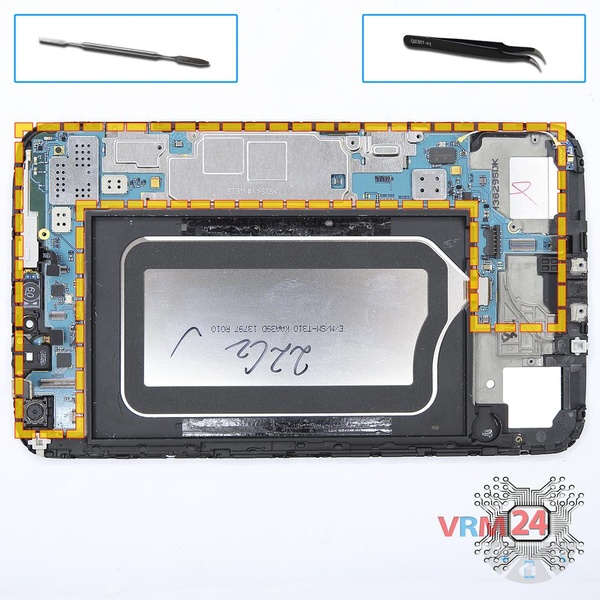

Remove the PCB.

Detailed disassembly instructions of Samsung Galaxy Tab 3 8.0'' SM-T311 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab 3 8.0'' SM-T311 — Samsung T310, T315 released for markets in different countries.
