Teardown difficulty:
Moderate
Duration:
16 min

Recommended tools

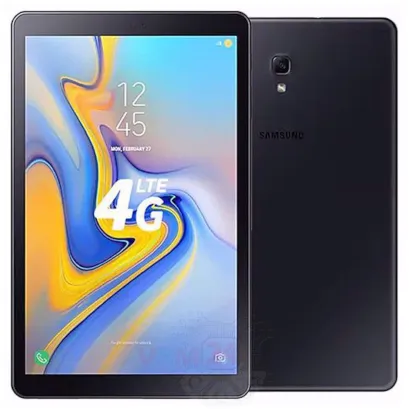

Disassembly/Repair of the mobile device Samsung Galaxy Tab A 10.5'' SM-T595 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 1/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 2/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 2/2

Step 2.

Open the back cover.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 3/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 3/2

Step 3.

Disconnect the connectors.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 4/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws securing two loudspeaker assemblies.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 5/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 5/2

Step 5.

Pry up the connectors and remove the two loudspeaker assemblies.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 6/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws securing the charging port.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 7/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 7/2

Step 7.

Remove the daughterboard with an inter-board cable.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 8/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 screws securing the battery.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 9/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 9/2

Step 9.

Remove the battery. The battery model of Samsung Galaxy Tab A is EB-BT595ABE.


How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 10/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 10/2

Step 10.

Disconnect the connector and remove the SIM and Micro SD cards tray.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 11/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 11/2

Step 11.

Remove the docking station cable.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 12/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws securing two loudspeakers assemblies.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 13/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 13/2

Step 13.

Pry up the connectors and remove two loudspeaker assemblies.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 14/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 14/2

Step 14.

Disconnect the connectors and remove the PCB with antennas and coaxial cables.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 15/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 15/2

Step 15.

Remove the protective films.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 16/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 16/2

Step 16.

Pry up the headphone jack/socket connector.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 17/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 17/2

Step 17.

Pry up the touchscreen sensor connector.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 18/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 18/2

Step 18.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 19/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 19/2

Step 19.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 20/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 20/2

Step 20.

Pry up the connector and remove the microphone.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 21/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 21/2

Step 21.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 screws.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 22/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 22/2

Step 22.

Remove the PCB.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 23/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 23/2

Step 23.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws, and remove the headphone jack/socket.

How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 24/1 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 24/2 How to disassemble Samsung Galaxy Tab A 10.5'' SM-T595, Step 24/3

Step 24.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab A 10.5'' SM-T595 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 16 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab A 10.5'' SM-T595 — released for markets in different countries.
