Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

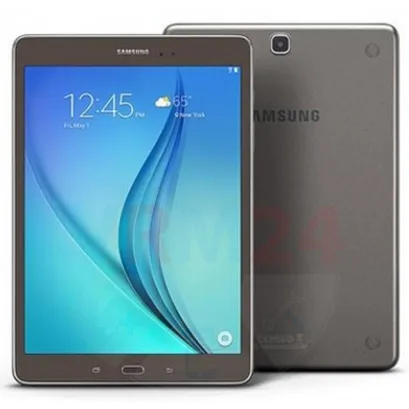

Disassembly of the mobile device Samsung Galaxy Tab A 9.7'' SM-T555 with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 1/1

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 2/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 2/2

Step 2. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 3/1

Step 3. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The Samsung Galaxy Tab A 9.7'' SM-T555 model has a battery EB-BT550ABE with 6000 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 4/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 4/2

Step 4. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 screws securing the battery.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 5/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 5/2

Step 5. Remove the battery

Carefully remove the battery.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 6/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 6/2

Step 6. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw securing the loudspeaker.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 7/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 7/2

Step 7. Remove the loudspeaker

Pry up the coaxial cable connector and remove the loudspeaker.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 8/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 8/2

Step 8. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws securing the loudspeaker.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 9/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 9/2

Step 9. Remove the loudspeaker

Disconnect the coaxial cable connector and remove the loudspeaker.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 10/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 10/2

Step 10. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 screws securing the charging port and headphone jack socket.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 11/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 11/2

Step 11. Remove the daughterboard

Disconnect the connector and remove the sub-board.

ℹ️️ The board contains a charging port (Micro USB), headphone jack socket, spring contacts for an antenna unit.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 12/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 12/2

Step 12. Remove the coaxial cable

Pry up the connectors and remove the coaxial cable.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 13/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 13/2

Step 13. Unscrew the screws

Using a screwdriver (Philips 1.5 mm PH000), unscrew three screws securing the PCB.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 14/1

Step 14. Disconnect the connectors

Pry up the connectors of the display, touchscreen, vibration motor.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 15/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 15/2

Step 15. Remove the PCB

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 16/1 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 16/2 How to disassemble Samsung Galaxy Tab A 9.7'' SM-T555, Step 16/3

Step 16. In the display frame remained

ℹ️️ In the display frame remained: small boards, vibration motor, coaxial cable.

Detailed disassembly instructions of Samsung Galaxy Tab A 9.7'' SM-T555 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 10 minutes in time. Our manual is suitable for all models Samsung Galaxy Tab A 9.7'' SM-T555 released for markets in different countries.
