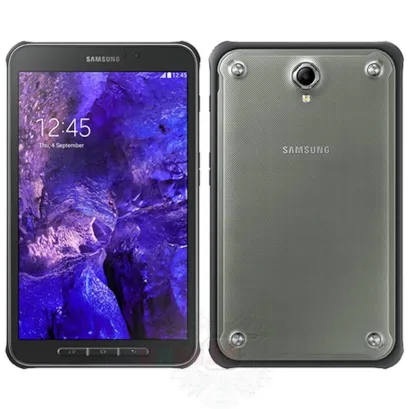

Disassembly/Repair of the mobile device Samsung Galaxy Tab Active 8.0'' SM-T365 with each step description and the required set of tools.

8298

Views

—

Share

3

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover
Open the protective case.
Open the back cover

Step 2.

Open the back cover
Open the back cover.
Remove the battery

Step 3.

Remove the battery

Remove the battery. The battery model of the Samsung Galaxy Tab Active is EB-BT365BBE.

Unscrew the screws

Step 4.

Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws.
Disconnect the connector

Step 5.

Disconnect the connector
Open the hatch and disconnect the connector.
Open the display

Step 6.

Open the display

Separate the display module from the cover.

âš  Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Open the cover

Step 7.

Open the cover
Open the cover hiding the connectors.
Open the display module

Step 8.

Open the display module
Pry up the connectors and remove the display module.
Unscrew the screws

Step 9.

Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 screws.
Unscrew one screw

Step 10.

Unscrew one screw
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 short screw.
Open the mid-frame

Step 11.

Open the mid-frame
Remove the middle cover.
Remove the sub-board

Step 12.

Remove the sub-board

Pry up the connector and remove the daughterboard, also known as sub-board.

In the middle cover

Step 13.

In the middle cover
The middle cover.
Unscrew the screws

Step 14.

Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws in the PCB.
Remove the rear camera

Step 15.

Remove the rear camera
Disconnect the connector on PCB, and remove the main camera.
Disconnect the connector

Step 16.

Disconnect the connector
Disconnect the connector on PCB.
Remove the motherboard

Step 17.

Remove the motherboard
Remove the PCB.
Remove the front camera

Step 18.

Remove the front camera
Disconnect the connector on PCB, and remove the front (selfie) camera and proximity sensor.
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has hard complexity and takes about 15 minutes in time. Our manual is suitable for all models Samsung Galaxy Tab Active 8.0'' SM-T365 released for markets in different countries.
#instructions #Samsung #Samsung Galaxy Tab Active 8.0'' SM-T365
Detailed disassembly instructions of Samsung Galaxy Tab Active 8.0'' SM-T365 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
