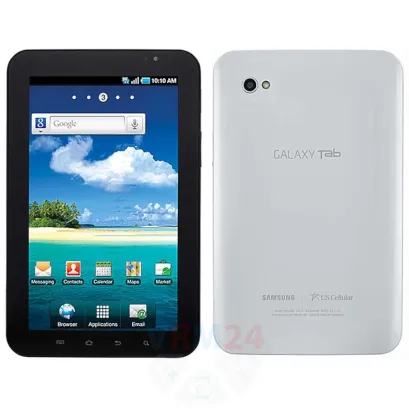

Samsung Galaxy Tab GT-P1000
Samsung Galaxy Tab GT-P1000
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Screwdriver Tri-point Y000 Screwdriver tri-point y000
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab GT-P1000 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Tab GT-P1000, Step 1/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 1/2

Step 1.

Using a screwdriver (Tri-Wing #000), unscrew 2 bolts on the end of the phone.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 2/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 2/2

Step 2.

Open the back cover.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 3/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the battery.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 4/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 4/2 How to disassemble Samsung Galaxy Tab GT-P1000, Step 4/3

Step 4.

Disconnect the connector on PCB and remove the battery.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 5/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 6/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 6/2 How to disassemble Samsung Galaxy Tab GT-P1000, Step 6/3 How to disassemble Samsung Galaxy Tab GT-P1000, Step 6/4 How to disassemble Samsung Galaxy Tab GT-P1000, Step 6/5

Step 6.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 7/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 7/2

Step 7.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 8/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 9/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holding the headphone jack/socket.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 10/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 10/2

Step 10.

Remove the cable with headphone jack/socket and microphone.

How to disassemble Samsung Galaxy Tab GT-P1000, Step 11/1 How to disassemble Samsung Galaxy Tab GT-P1000, Step 11/2 How to disassemble Samsung Galaxy Tab GT-P1000, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab GT-P1000 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Tab GT-P1000
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab GT-P1000 released for markets in different countries.
