Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

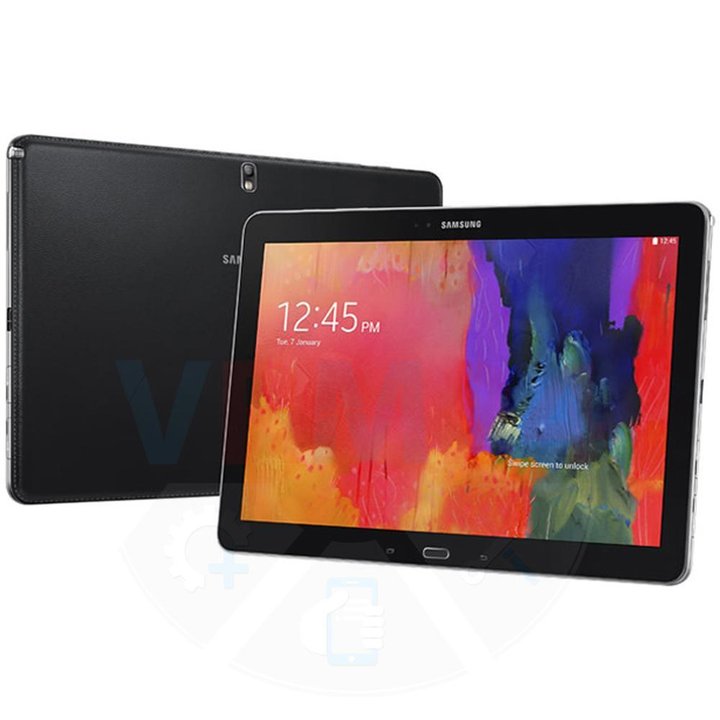

Disassembly of the mobile device Samsung Galaxy Tab Pro 10.1'' SM-T525 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 1/1

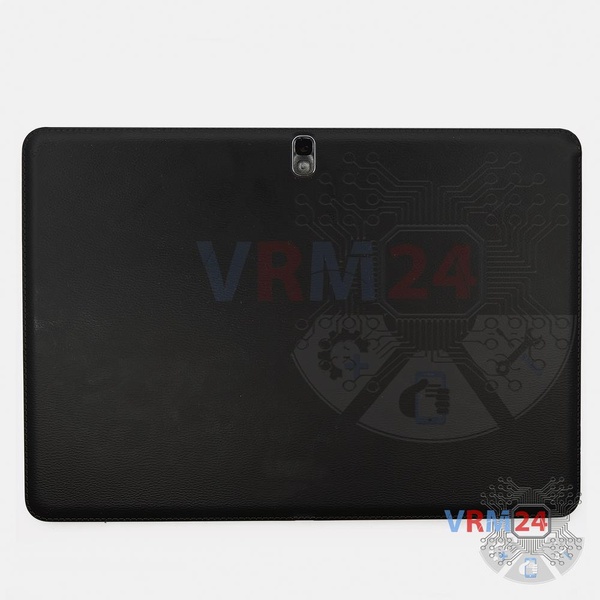

Step 1.

⚠ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 2/1

Step 2.

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠ī¸ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 3/1

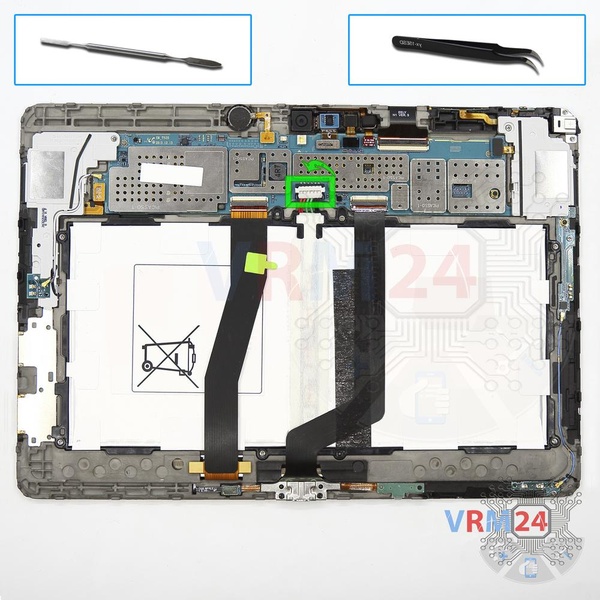

Step 3.

Disconnect the battery connector as soon as possible.

ℹī¸ī¸ The Samsung Galaxy Tab Pro 10.1'' SM-T525 model has a battery T8220E with 8220 mAh capacity (aka rechargeable battery).

⚠ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 4/1 How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 4/2

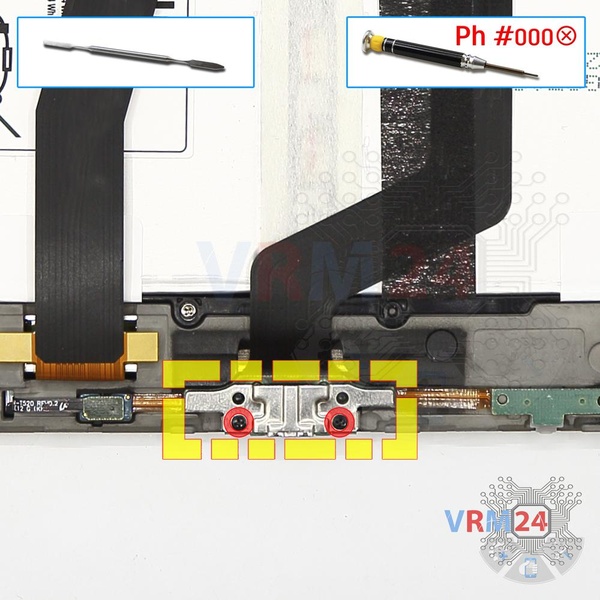

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws and remove the bracket holding the charging port.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 5/1 How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 5/2

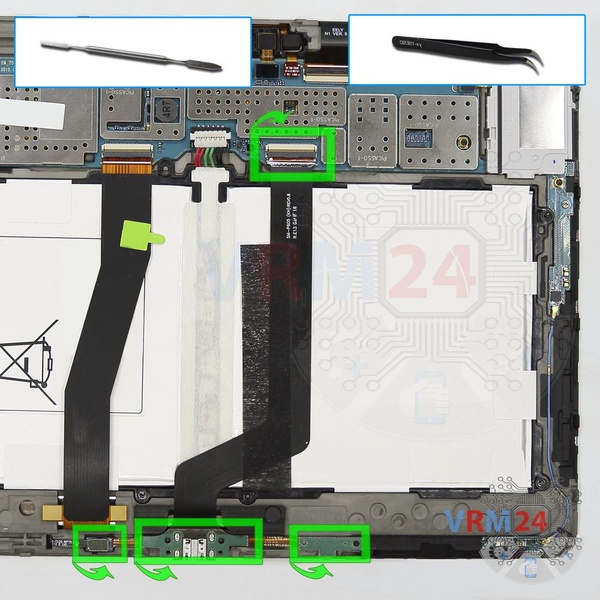

Step 5.

Pry up the connector and remove the sub-board with the microphone and charging port.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 6/1 How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 6/2

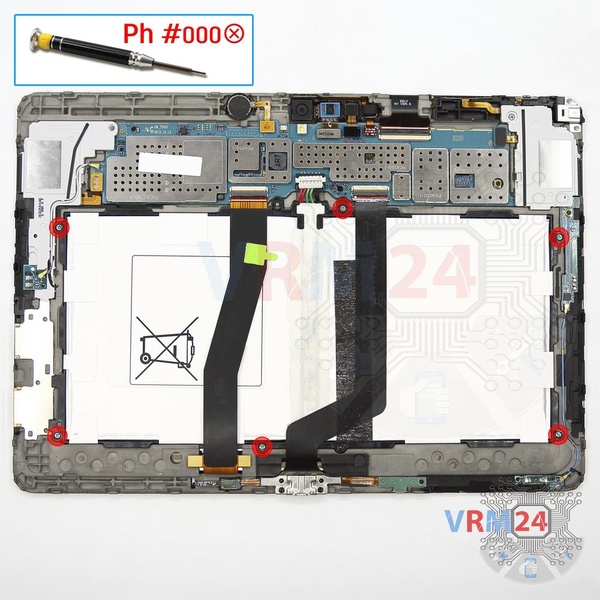

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 screws securing the battery.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 7/1 How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 7/2

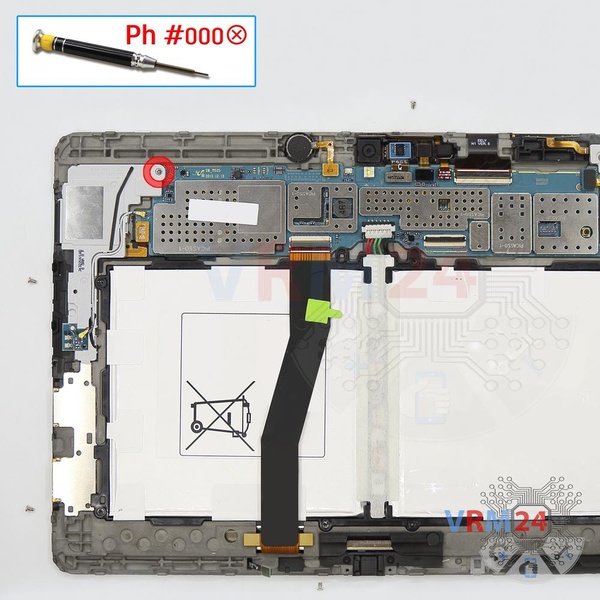

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw securing the loudspeaker.


How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 8/1 How to disassemble Samsung Galaxy Tab Pro 10.1'' SM-T525, Step 8/2

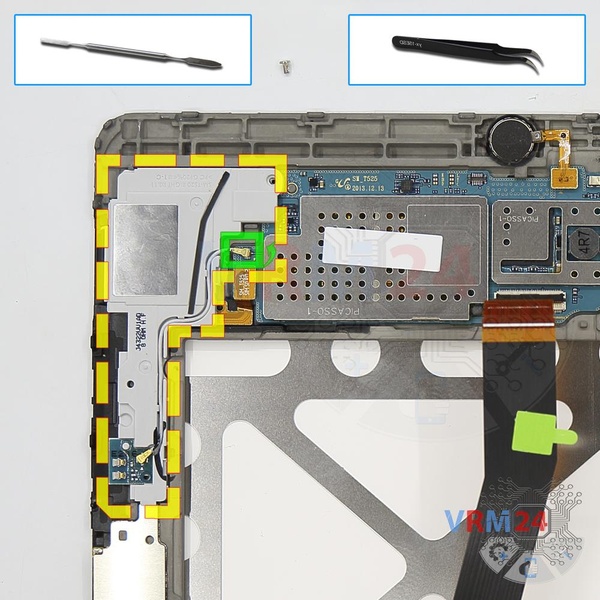

Step 8.

Pry up the coaxial cable connector and remove the loudspeaker.

Detailed disassembly instructions of Samsung Galaxy Tab Pro 10.1'' SM-T525 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 10 minutes in time. Our manual is suitable for all models Samsung Galaxy Tab Pro 10.1'' SM-T525 released for markets in different countries.
