Samsung Galaxy Tab Pro 8.4'' SM-T325
Samsung Galaxy Tab Pro 8.4'' SM-T325
Teardown difficulty:
Easy
Duration:
14 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab Pro 8.4'' SM-T325 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 1/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 1/2

Step 1.

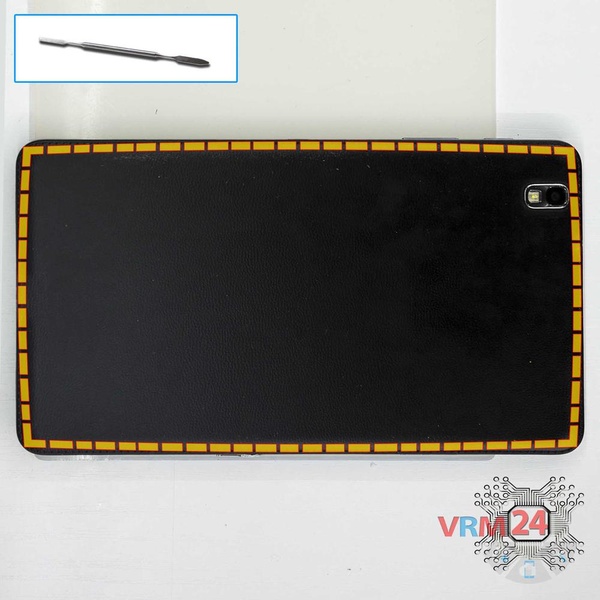

Open the back cover.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 2/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 2/2

Step 2.

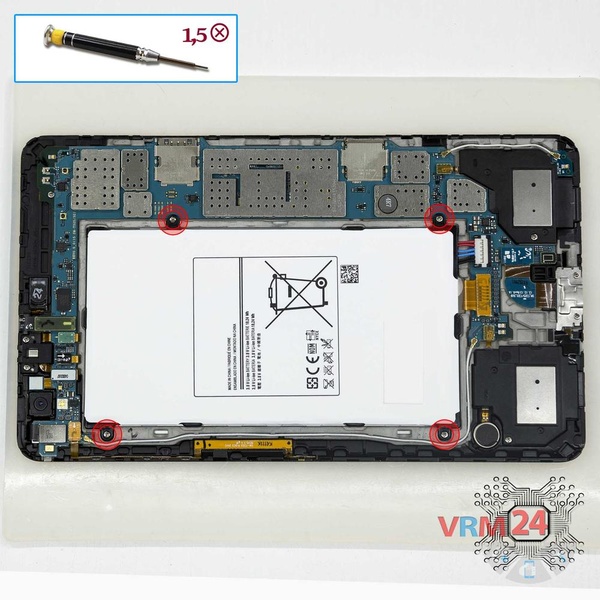

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts securing the battery.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 3/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 3/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 3/3

Step 3.

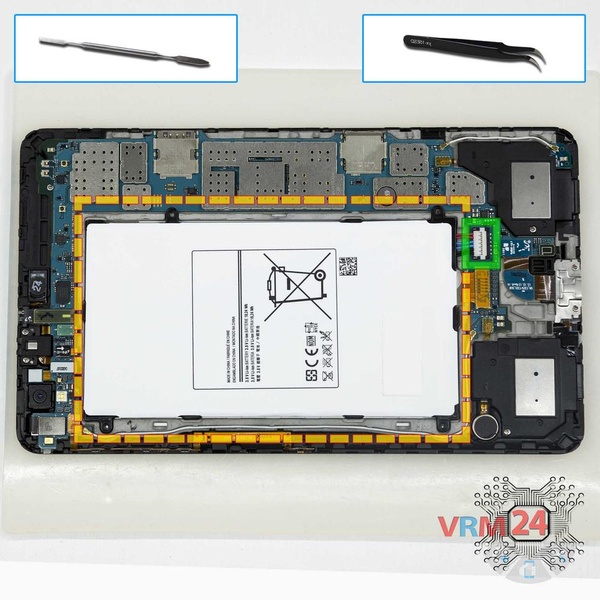

Disconnect the connector on PCB and remove the battery.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 4/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 4/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 4/3

Step 4.

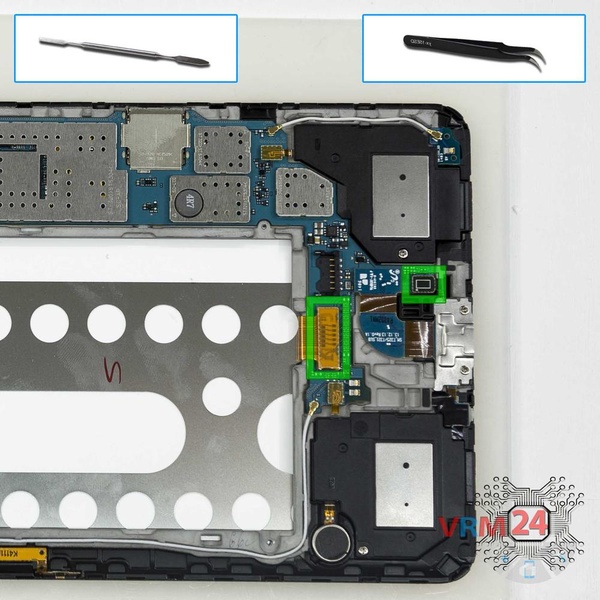

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 5/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 5/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 5/3

Step 5.

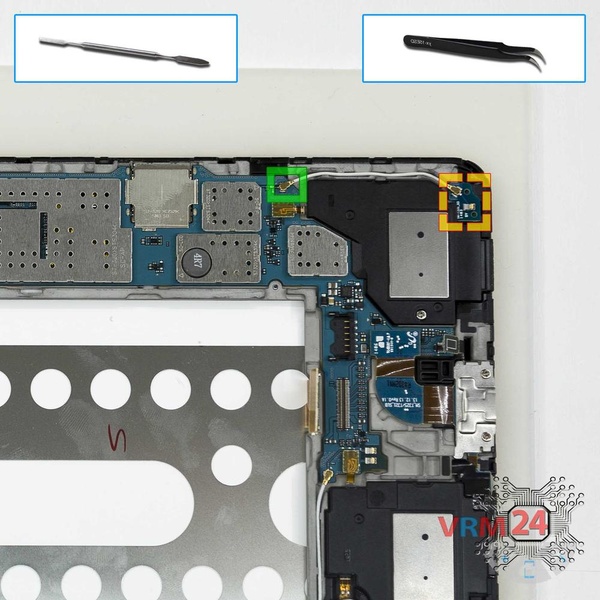

Pry up the coaxial cable connector and remove the small PCB.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 6/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the buzzer (speaker) & vibration motor assembly.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 7/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 7/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 7/3

Step 7.

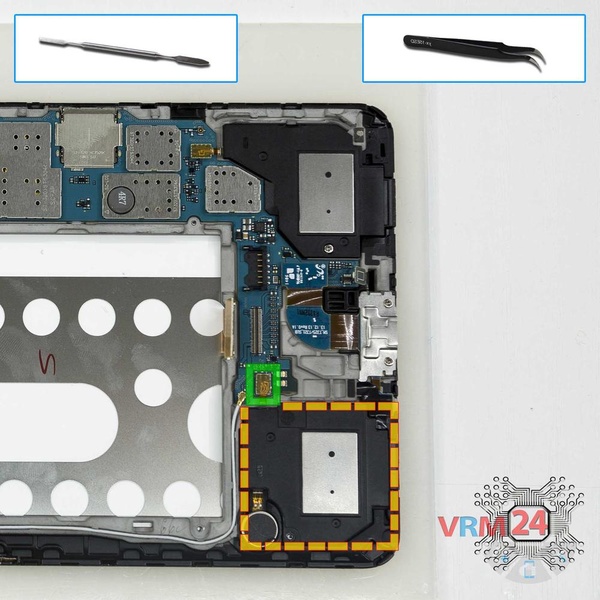

Remove the buzzer (speaker) & vibration motor assembly.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 8/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 8/2

Step 8.

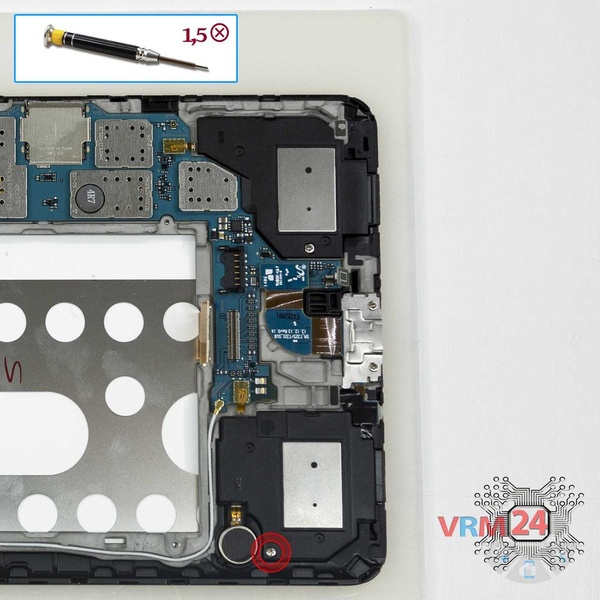

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the buzzer (speaker) assembly.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 9/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 9/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 9/3

Step 9.

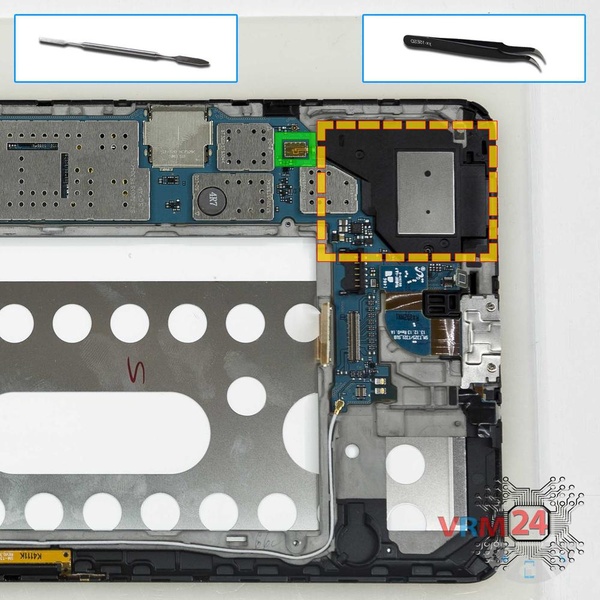

Pry and remove the buzzer (speaker) assembly.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 10/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 10/2

Step 10.

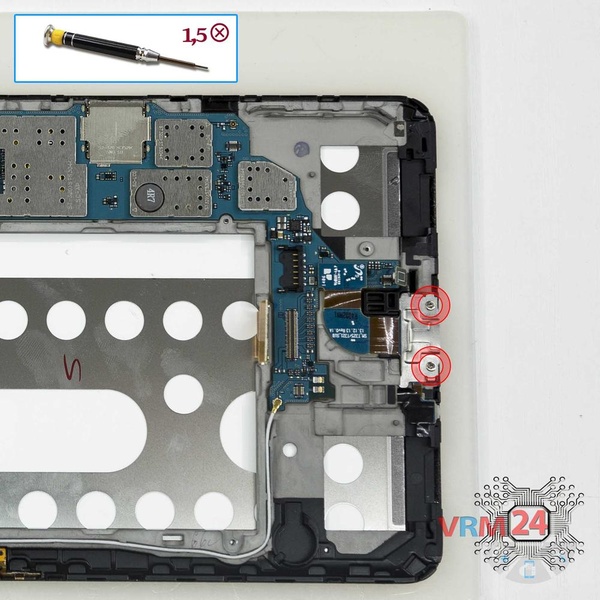

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the charging port.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 11/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 11/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 11/3

Step 11.

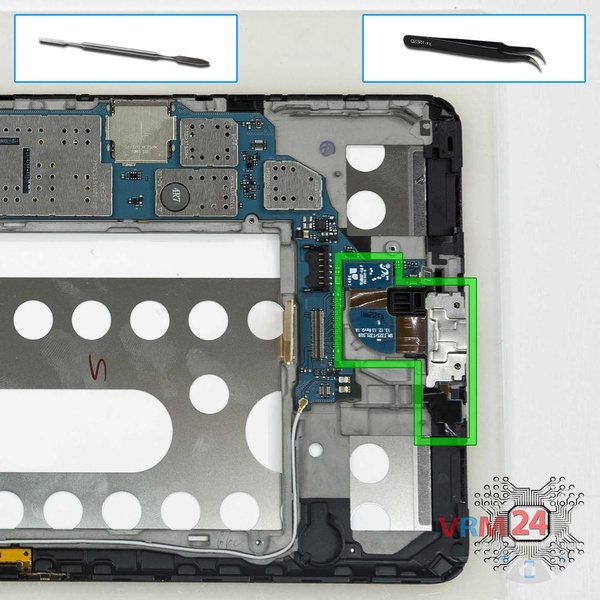

Disconnect the connector on PCB, and remove the cable with charging port.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 12/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 12/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 12/3

Step 12.

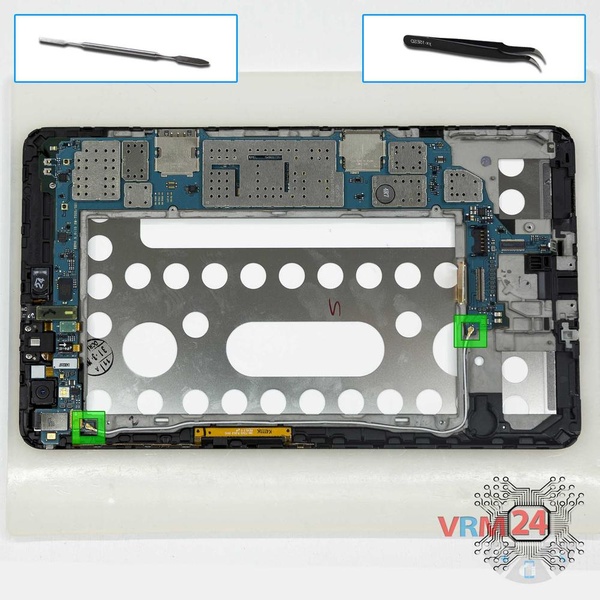

Disconnect connectors and remove the coaxial cable.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 13/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 13/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 13/3 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 13/4

Step 13.

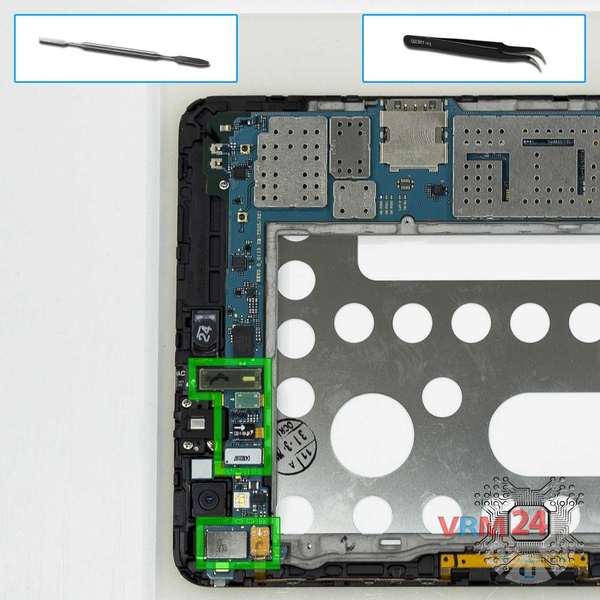

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 14/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 14/2

Step 14.

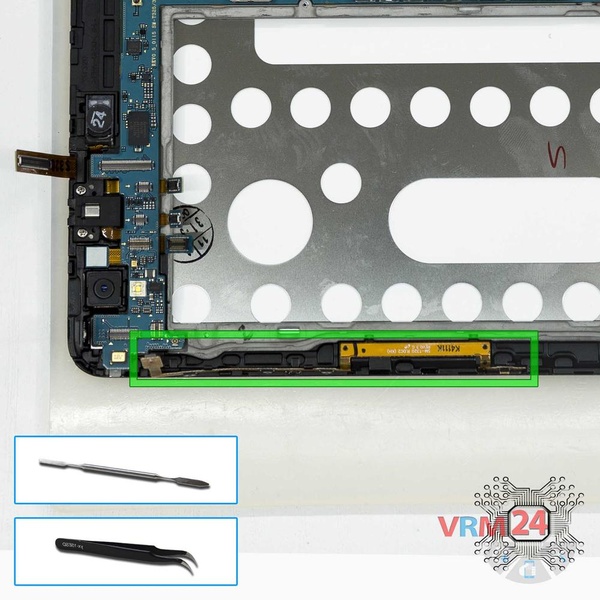

Remove the power & volume buttons flex cable.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 15/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 15/2

Step 15.

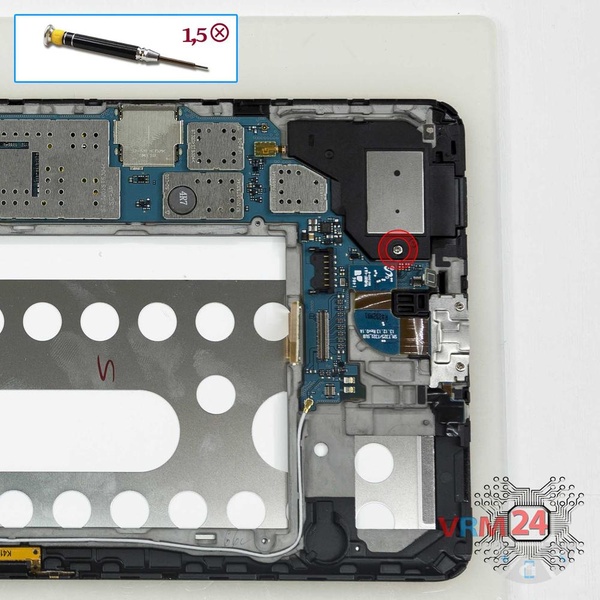

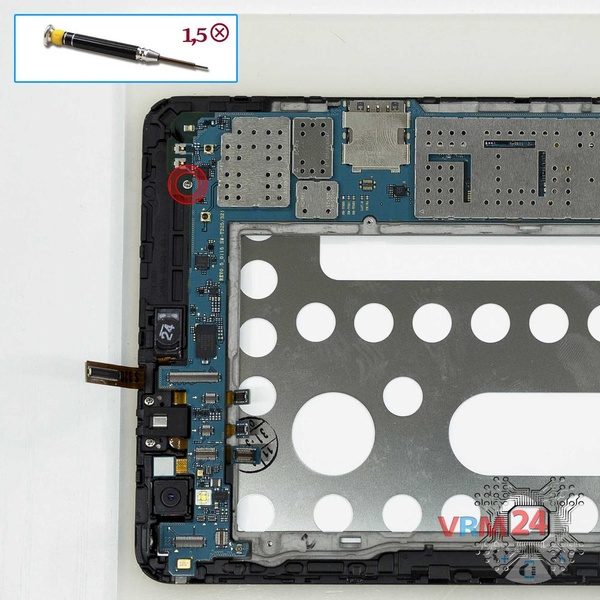

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 16/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 16/2

Step 16.

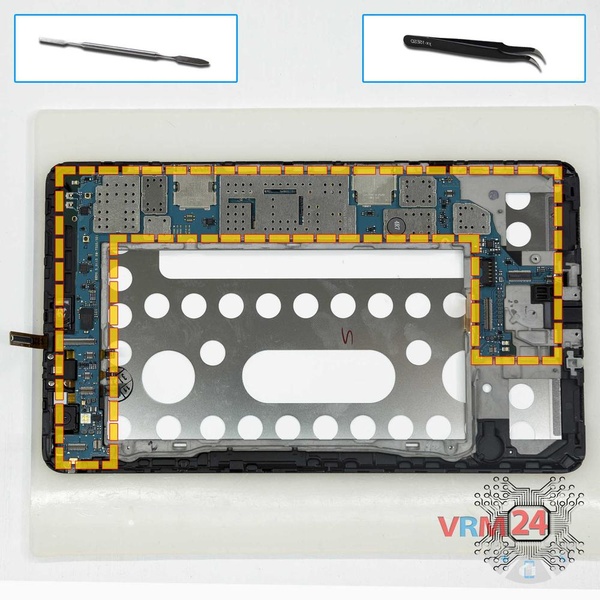

Remove the PCB.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 17/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 17/2

Step 17.

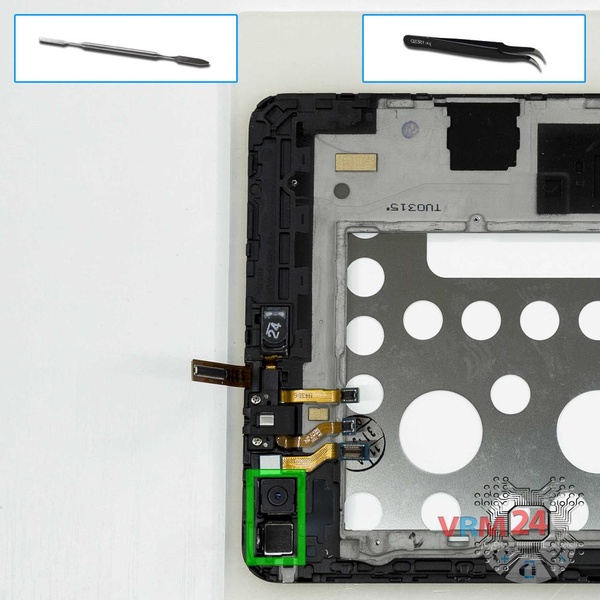

Remove the main camera.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 18/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 18/2

Step 18.

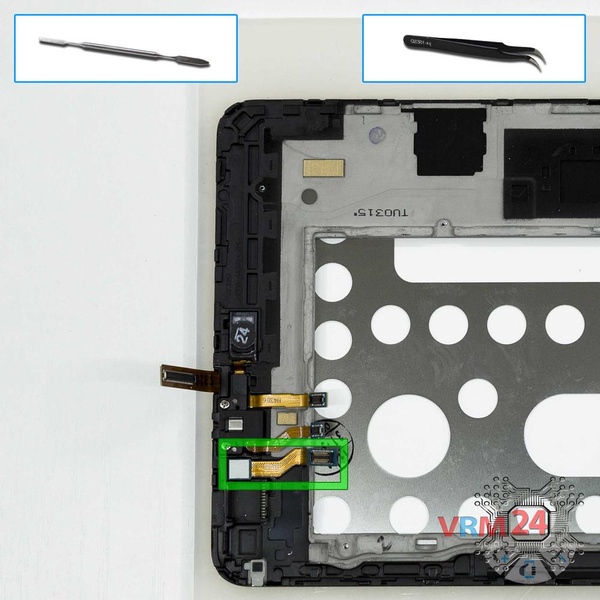

Pry and remove the front (selfie) camera.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 19/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 19/2

Step 19.

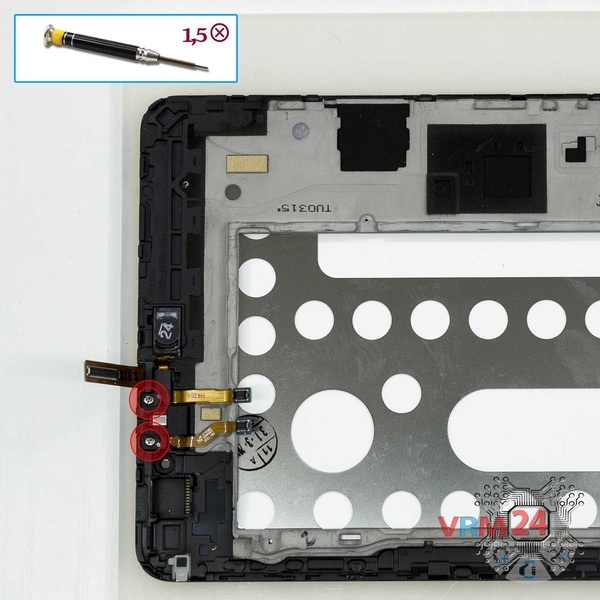

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the headphone jack/socket.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 20/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 20/2

Step 20.

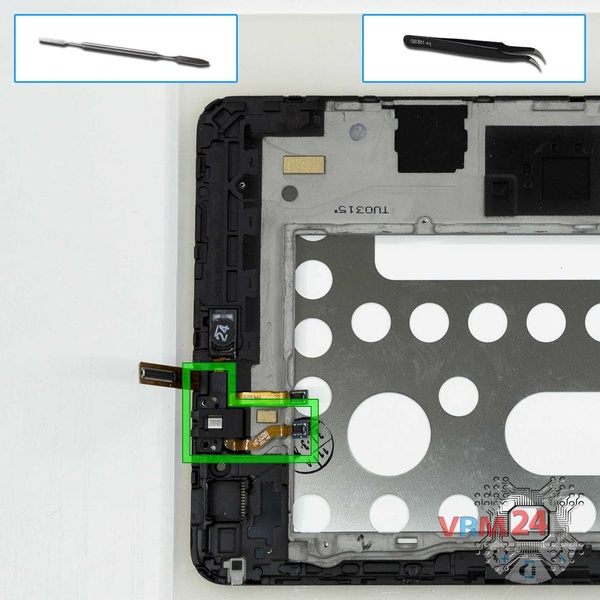

Remove the headphone jack/socket.

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 21/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 21/2

Step 21.

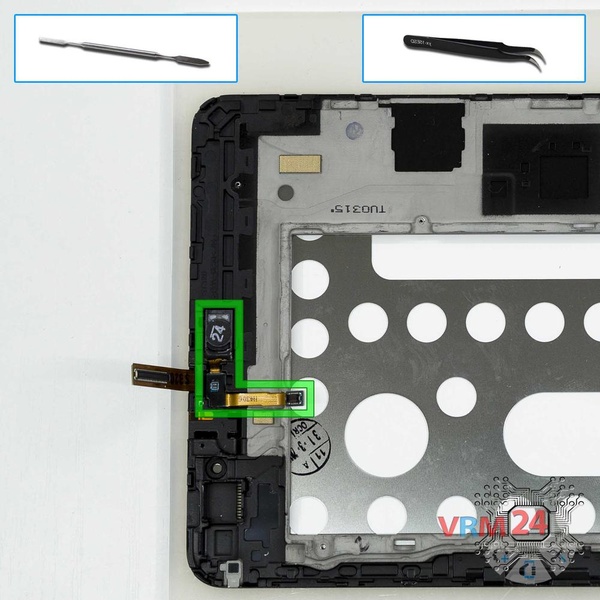

Pry and remove the earpiece (speaker).

How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 22/1 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 22/2 How to disassemble Samsung Galaxy Tab Pro 8.4'' SM-T325, Step 22/3

Step 22.

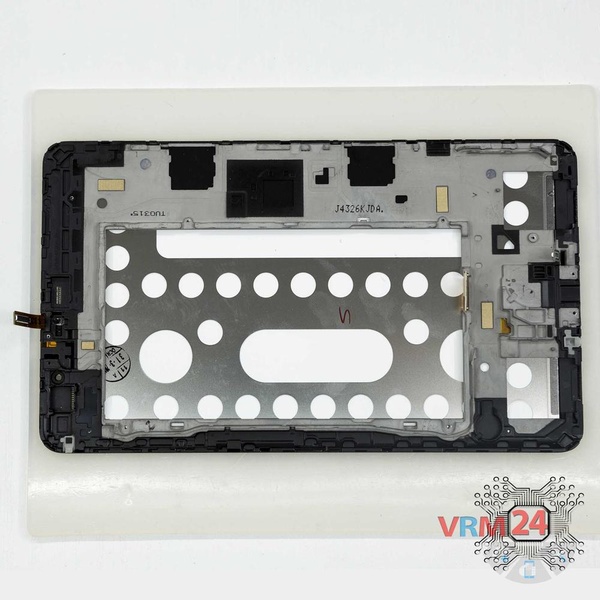

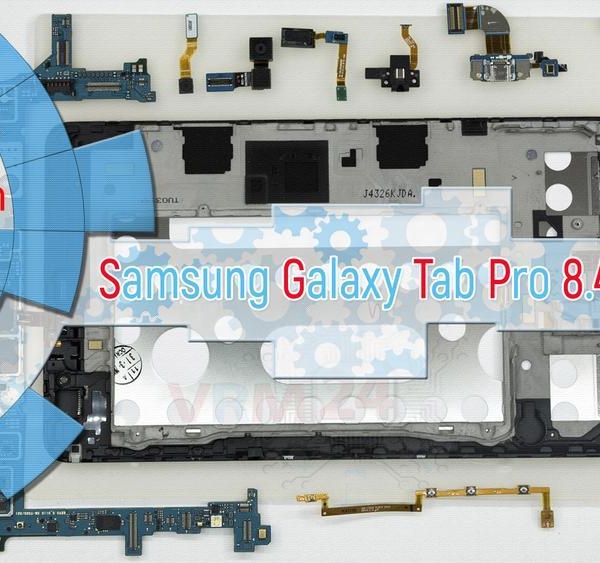

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab Pro 8.4'' SM-T325 in the video, made by our mobile repair & service center:
