Samsung Galaxy Tab S 8.4'' SM-T705
Samsung Galaxy Tab S 8.4'' SM-T705
Teardown difficulty:
Moderate
Duration:
12 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab S 8.4'' SM-T705 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 1/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 1/2

Step 1.

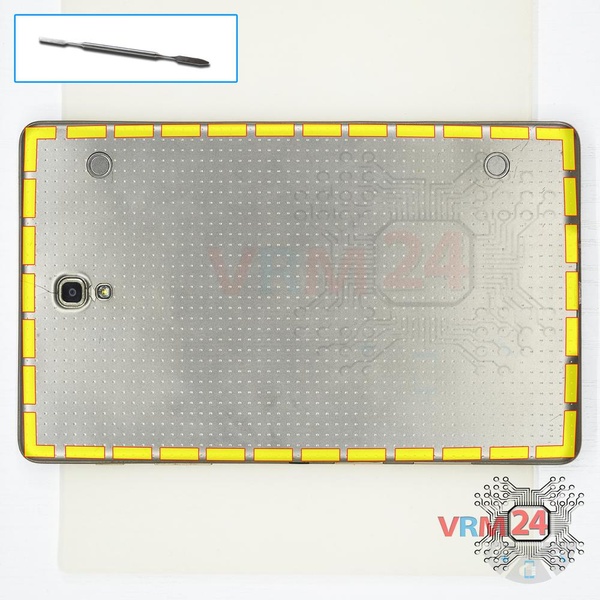

Open the back cover.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 2/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 2/2

Step 2.

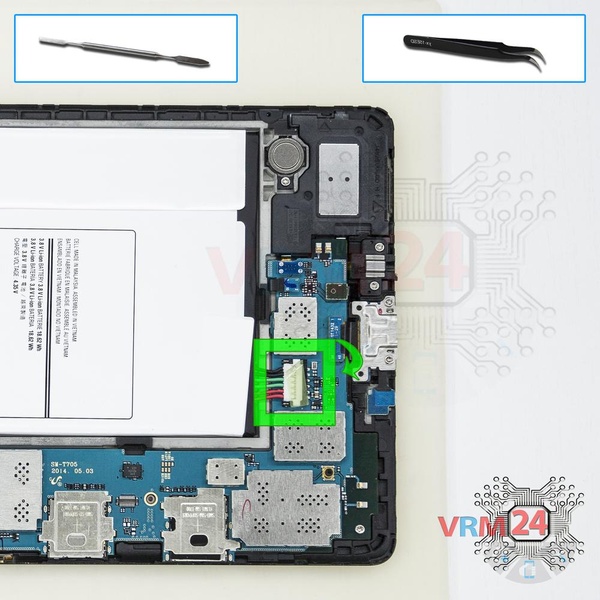

Disconnect the battery connector. The battery model of Samsung Galaxy Tab S 8.4'' is EB-BT705FBE.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 3/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 3/2

Step 3.

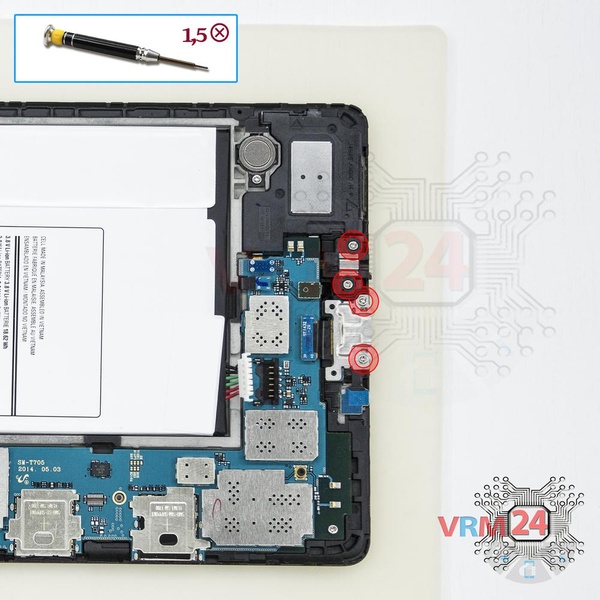

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 screws.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 4/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 4/2

Step 4.

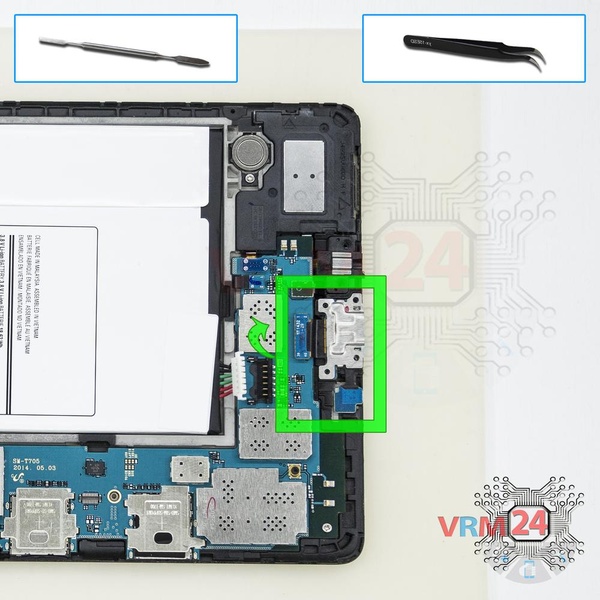

Pry up the connector and remove the cable with a microphone and charging port.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 5/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 5/2

Step 5.

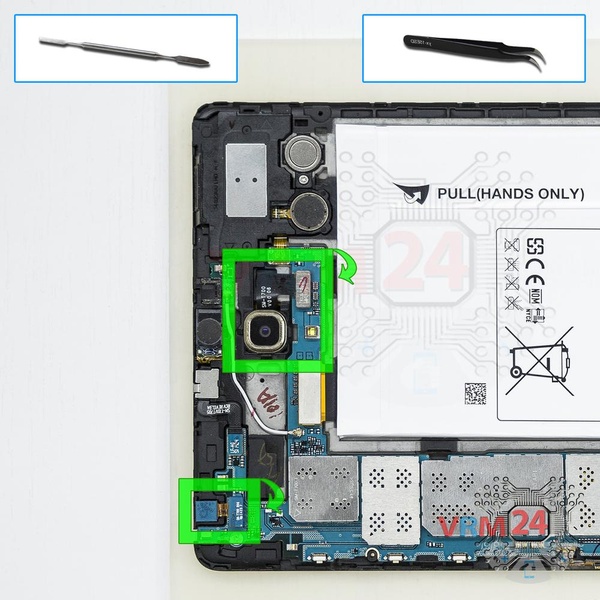

Disconnect connectors on PCB and remove the main and front (selfie) cameras.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 6/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 6/2

Step 6.

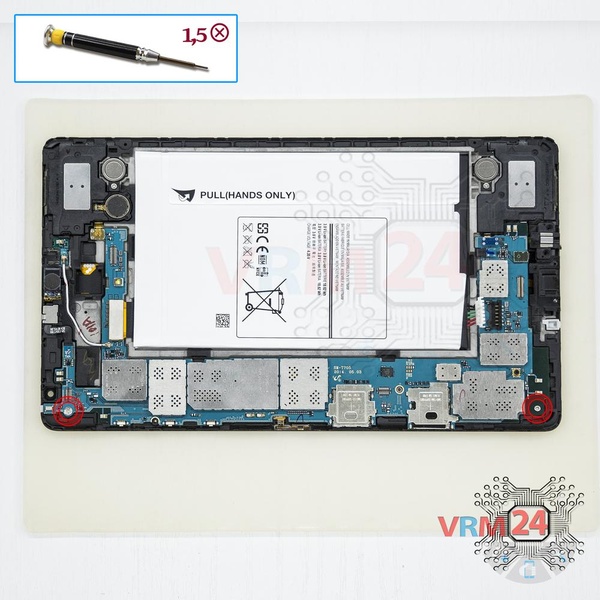

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws in the PCB.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 7/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 7/2

Step 7.

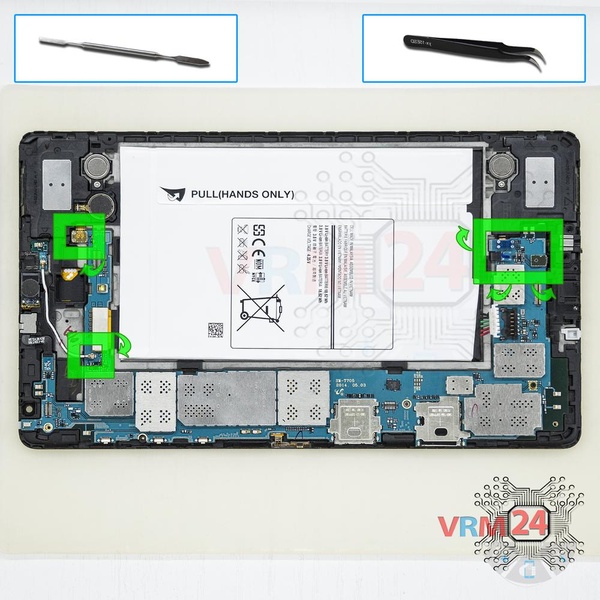

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 8/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 8/2

Step 8.

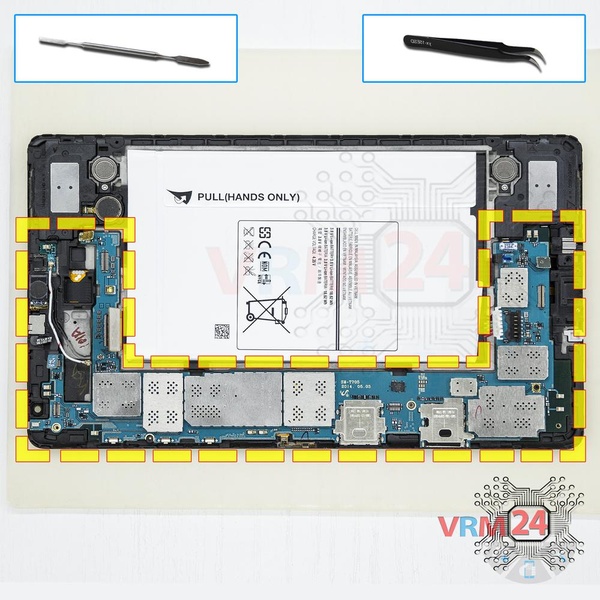

Remove the PCB.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 9/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 9/2

Step 9.

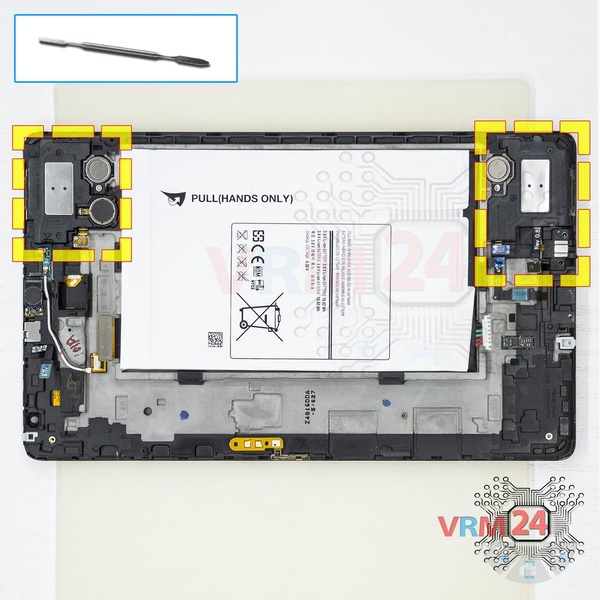

Remove the assemblies of loudspeakers with a vibration motor and a headphone jack/socket.

How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 10/1 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 10/2 How to disassemble Samsung Galaxy Tab S 8.4'' SM-T705, Step 10/3

Step 10.

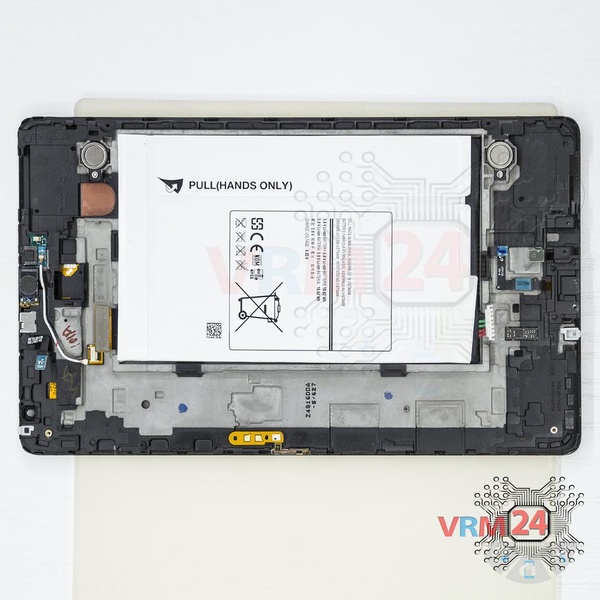

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Tab S 8.4'' SM-T705 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Tab S 8.4'' SM-T705
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 12 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab S 8.4'' SM-T705 released for markets in different countries.
