Teardown difficulty:
Hard
Duration:
13 min

Recommended tools

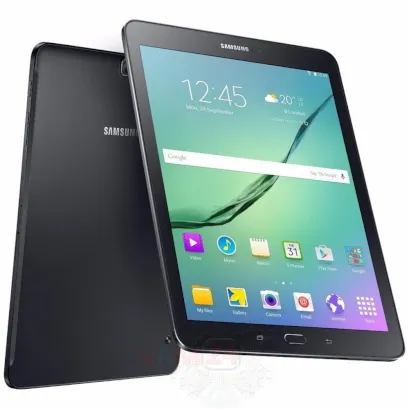

Disassembly/Repair of the mobile device Samsung Galaxy Tab S2 9.7'' SM-T819 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 1/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 1/2

Step 1.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 2/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 2/2

Step 2.

Using the key tool, open the SIM card and Micro SD card trays and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 3/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 4/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 4/2

Step 4.

Open and remove the back cover.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 5/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 5/2

Step 5.

Disconnect the battery connector. The battery model of Samsung Tab S2 T819 is EB-BT810ABE.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 6/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 6/2

Step 6.

Disconnect connectors and remove the inter-board cable.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 7/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 7/2

Step 7.

Disconnect connectors and remove the coaxial cable.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 8/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts securing the battery.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 9/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 9/2

Step 9.

Remove the battery.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 10/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 10/2

Step 10.

Pry up the connector and remove the board with Sim and Micro SD card holders.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 11/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the headphone jack/socket.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 12/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 12/2

Step 12.

Pry up the connector on PCB and remove the headphone jack/socket.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 13/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 13/2

Step 13.

Pry up the connectors and remove the buzzer (loudspeaker) assembly.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 14/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 14/2

Step 14.

Pry up the connector and remove the assembly of a buzzer (loudspeaker) and vibration motor.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 15/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 15/2

Step 15.

Disconnect connectors on the daughterboard.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 16/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 16/2

Step 16.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the daughterboard.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 17/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 17/2

Step 17.

Remove the daughterboard, also known as sub-board.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 18/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 18/2

Step 18.

Disconnect connectors on PCB and remove the main and front (selfie) cameras.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 19/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 19/2

Step 19.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 20/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 20/2 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 20/3

Step 20.

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 21/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 21/2

Step 21.

Remove the PCB.


How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 22/1 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 22/2 How to disassemble Samsung Galaxy Tab S2 9.7'' SM-T819, Step 22/3

Step 22.

Parts are in the frame.

Detailed disassembly instructions of Samsung Galaxy Tab S2 9.7'' SM-T819 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has hard complexity and takes about 13 minutes in time.
Our manual is suitable for all models Samsung Galaxy Tab S2 9.7'' SM-T819 released for markets in different countries.
