Samsung Galaxy Tab S3 9.7'' SM-T820
Samsung Galaxy Tab S3 9.7'' SM-T820
Teardown difficulty:
Hard
Duration:
26 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

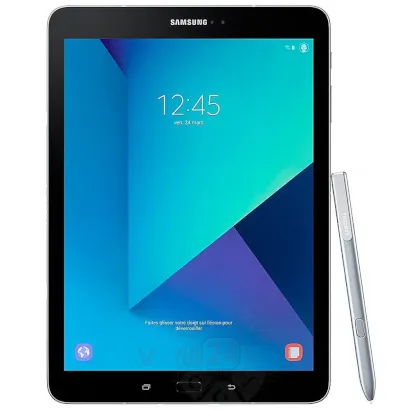

Disassembly/Repair of the mobile device Samsung Galaxy Tab S3 9.7'' SM-T820 (Samsung Galaxy Tab S3 SM-T825) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 1/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 1/2

Step 1.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 2/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 2/2 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 2/3

Step 2.

Peel back the protective films and disconnect the display and touchscreen connectors.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 3/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 3/2

Step 3.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 4/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 4/2

Step 4.

Turn over the Tab and using the key tool, open the SIM and Micro SD cards tray, and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 5/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 22 screws in the frame of the phone.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 6/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 6/2

Step 6.

Pry and remove the middle frame.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 7/1

Step 7.

Disconnect the battery connector. The battery model of Samsung Galaxy Tab S3 is EB-BT825ABE.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 8/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 8/2

Step 8.

Pry up the flashlight connector and remove the frame.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 9/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 9/2

Step 9.

Disconnect connectors and remove the inter-board cable.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 10/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws securing the battery.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 11/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 11/2

Step 11.

Remove the battery.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 12/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 12/2

Step 12.

Pry and remove assemblies of two buzzers (loudspeakers).
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 13/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 13/2

Step 13.

Disconnect connectors and remove the coaxial cables.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 14/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 14/2

Step 14.

Pry and remove assemblies of two buzzers (loudspeakers). The upper one connects with a vibration motor.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 15/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 15/2

Step 15.

Disconnect connectors on the daughterboard.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 16/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 16/2

Step 16.

Remove the daughterboard, also known as sub-board.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 17/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 17/2

Step 17.

Remove the headphone jack/socket.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 18/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 18/2

Step 18.

Disconnect connectors on PCB and remove the main and front (selfie) cameras.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 19/1

Step 19.

Disconnect connectors on the PCB.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 20/1 How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 20/2

Step 20.

Remove the PCB.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 21/1

Step 21.

The housing/case.
How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 22/1

Step 22.

The frame.

How to disassemble Samsung Galaxy Tab S3 9.7'' SM-T820, Step 23/1

Step 23.

The display module.

Detailed disassembly instructions of Samsung Galaxy Tab S3 9.7'' SM-T820 in the video, made by our mobile repair & service center:
