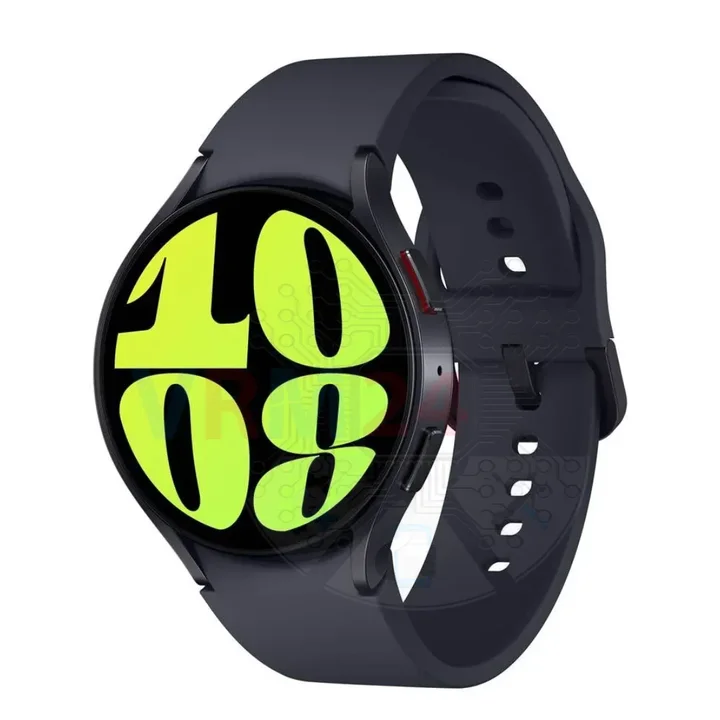

Disassembly/Repair of the mobile device Samsung Galaxy Watch 6 SM-R930 with each step description and the required set of tools.

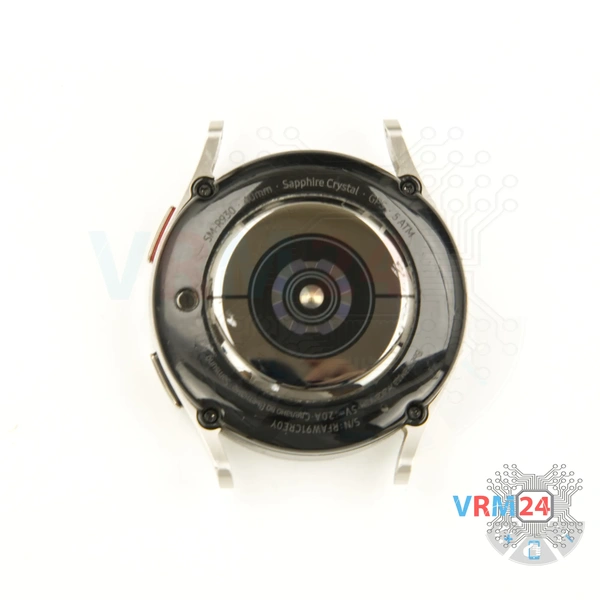

⚠️️ Before disassembling, do not forget to turn your phone off.

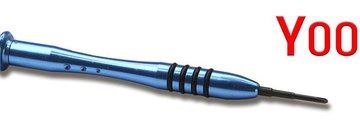

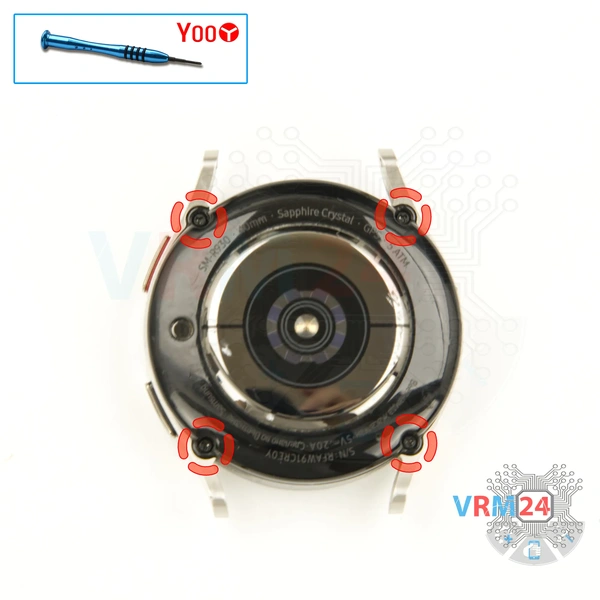

So, after heating, we need to unscrew the four screws that secure the back cover. For this, we’re using a 2mm Tri-Wing screwdriver.

⚠️️ Please note that this is not a typical Tri-Wing screwdriver. It’s a special one designed for Samsung watches. If you try to use a regular Tri-Wing screwdriver, you might damage the screw threads.

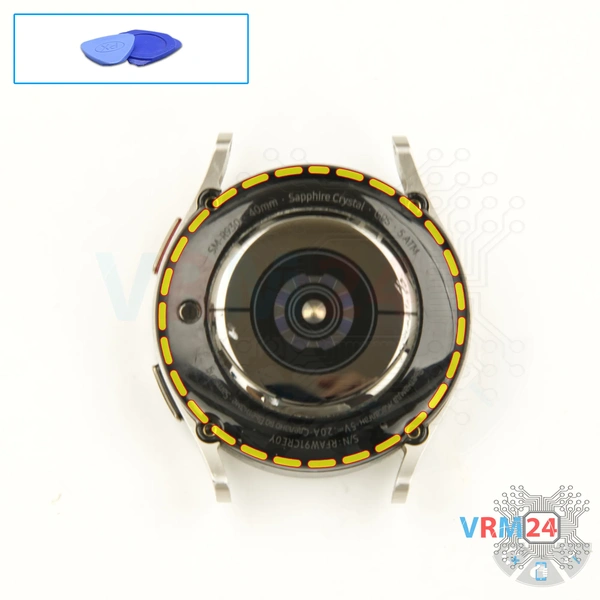

After that, we need to separate the back cover.

The back cover is firmly glued on. For this, we can use a thin plastic tool or a thin plastic film. Carefully insert it into the gap between the case and the back cover, and gently slide it along to cut through the adhesive.

⚠️️ It’s quite challenging to insert the thin plastic film because, as I mentioned, the cover is firmly glued.

This film can be from a new display protector or a film from a stationery store.

⚠️️ Be careful not to insert the tool too deeply to avoid accidentally damaging the cable that runs from the back cover to the motherboard.

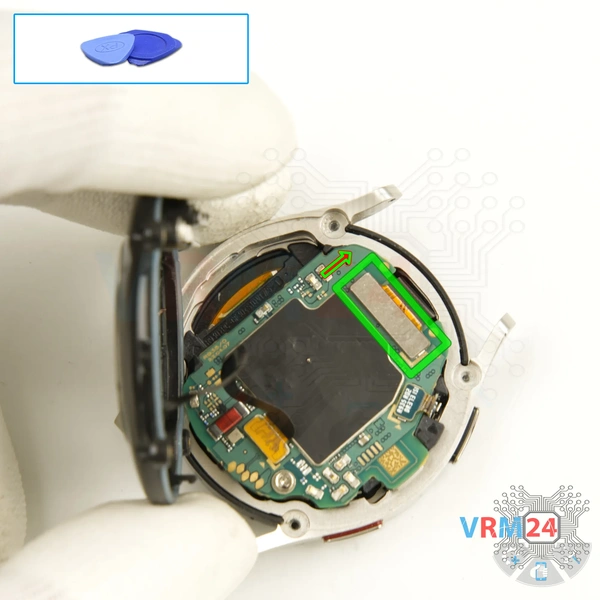

Then, we use a non-metallic tool to disconnect the sensor connector and remove the back cover

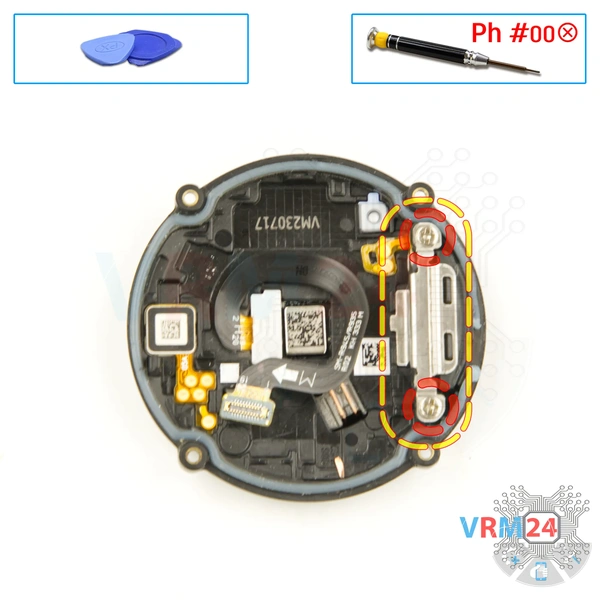

Using a screwdriver Phillips 1.5 mm (PH #000), unscrew the two screws and remove the bracket holding the speaker.

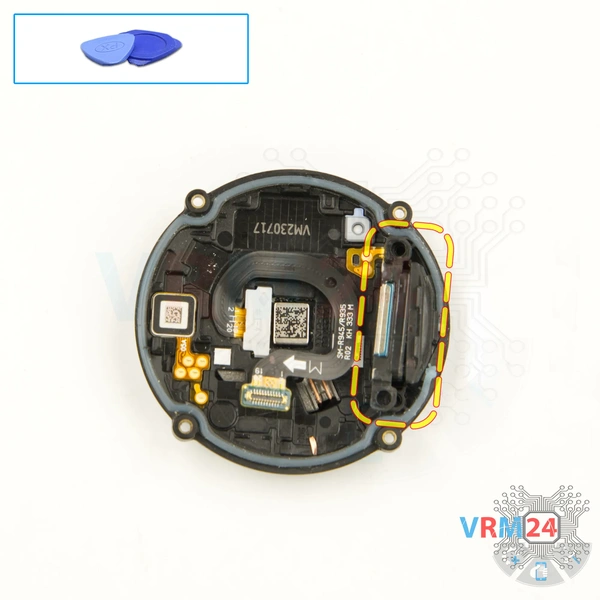

Carefully remove the speaker.

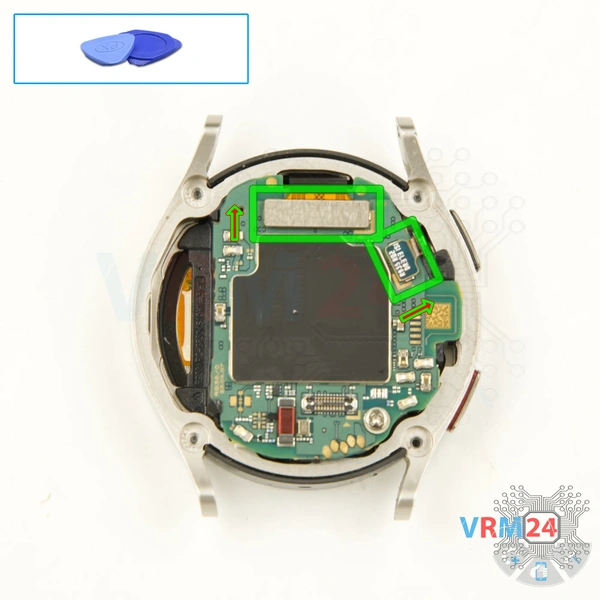

We disconnect the side button connector, and disconnect the display cable connector with a non metallic tool.

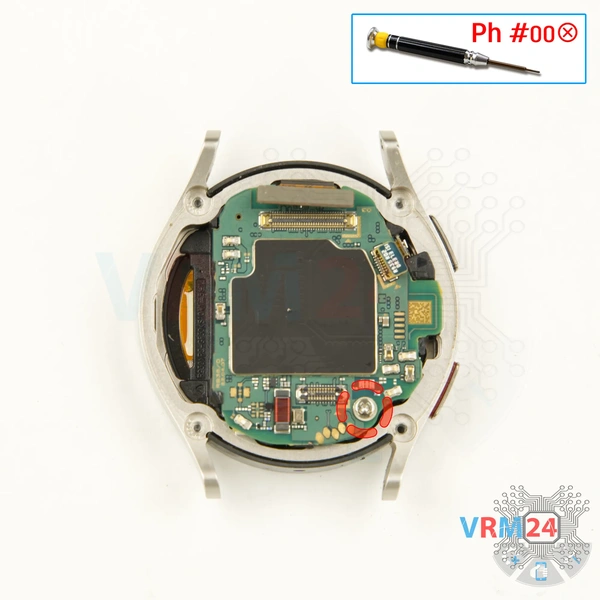

And after that, we need to unscrew one screw that secures the motherboard to the frame (bracket).

For this, we’re using a 1.5mm Phillips screwdriver or a #000 Phillips screwdriver.

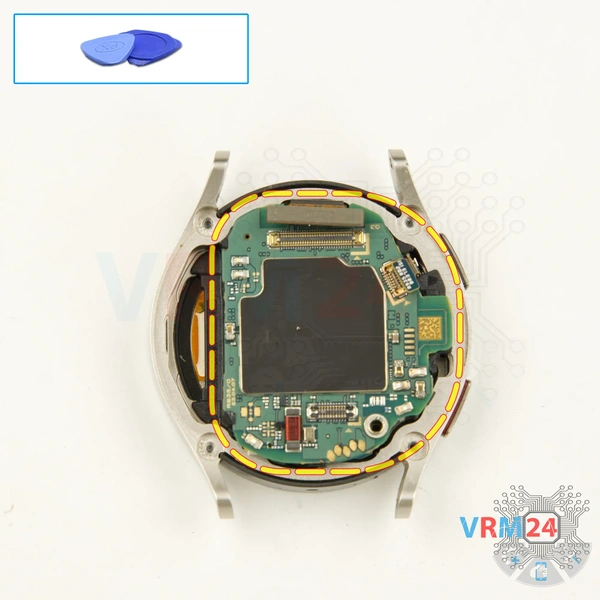

Now, we can carefully remove the motherboard — take it out and set it aside.

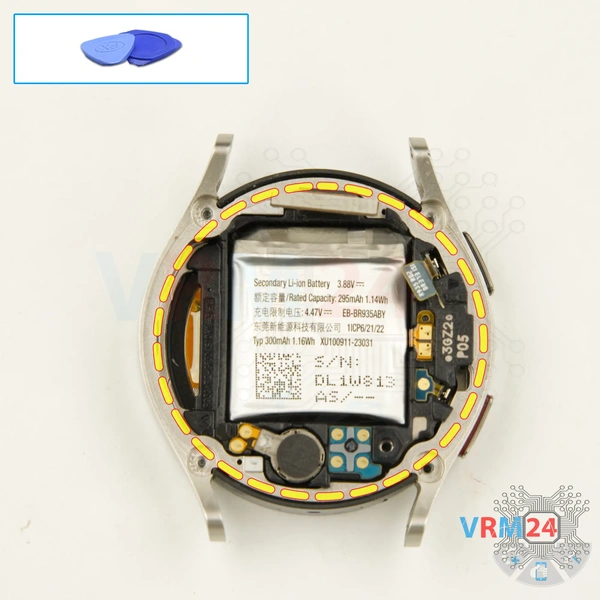

We can also remove the frame (bracket).

Gently lift and remove the frame.

Inside the frame, we have the battery.

ℹ️️ The Samsung Galaxy Watch 6 SM-R930 model has a battery EB-BR935ABY with a capacity of 295 mAh (also known as a rechargeable battery).
