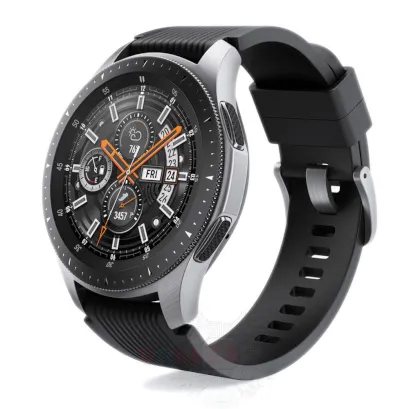

Samsung Galaxy Watch SM-R800
Samsung Galaxy Watch SM-R800
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Tri-point Y00 Screwdriver tri-point y00
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Watch SM-R800 (Samsung Galaxy Watch (46mm) SM-R800) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Watch SM-R800, Step 1/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 1/2

Step 1.

Using a screwdriver (Tri-point Y00 / Precision Screwdriver 2.0mm), unscrew the 4 screws.
How to disassemble Samsung Galaxy Watch SM-R800, Step 2/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 2/2

Step 2.

Open the hatch hiding the system connector.
How to disassemble Samsung Galaxy Watch SM-R800, Step 3/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 3/2

Step 3.

Open the back cover and turn it over carefully.
How to disassemble Samsung Galaxy Watch SM-R800, Step 4/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 4/2

Step 4.

Pry up the sensor connector and remove the cover.
How to disassemble Samsung Galaxy Watch SM-R800, Step 5/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 5/2

Step 5.

Disconnect connectors on the PCB.
How to disassemble Samsung Galaxy Watch SM-R800, Step 6/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 6/2

Step 6.

Remove the cover with the PCB.
How to disassemble Samsung Galaxy Watch SM-R800, Step 7/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw.
How to disassemble Samsung Galaxy Watch SM-R800, Step 8/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 8/2

Step 8.

Turn over this assembly and using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw.
How to disassemble Samsung Galaxy Watch SM-R800, Step 9/1 How to disassemble Samsung Galaxy Watch SM-R800, Step 9/2

Step 9.

Separate the PCB from the cover.

Detailed disassembly instructions of Samsung Galaxy Watch SM-R800 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Watch 4 SM-R800
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 9 minutes in time. Our manual is suitable for all models Samsung Galaxy Watch SM-R800 released for markets in different countries.
