Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

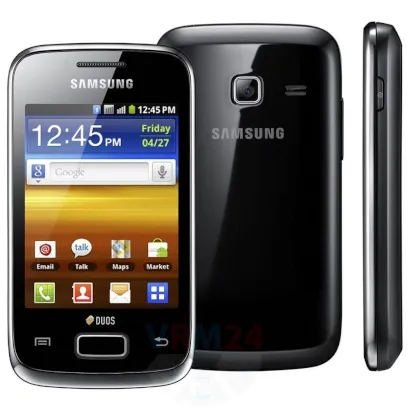

Disassembly/Repair of the mobile device Samsung Galaxy Y Duos GT-S6102 (Samsung GT-S6102, Samsung GT-S6102B) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 1/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 1/2

Step 1.

Open the back cover.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 2/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 3/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the frame of the phone.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 4/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 5/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 5/2 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 5/3

Step 5.

Disconnect connectors on the PCB.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 6/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 6/2

Step 6.

Remove the PCB.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 7/1

Step 7.

Parts are in the frame of the display module.


How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 8/1 How to disassemble Samsung Galaxy Y Duos GT-S6102, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts and remove the protective cover/shield.

Detailed disassembly instructions of Samsung Galaxy Y Duos GT-S6102 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Samsung Galaxy Y Duos GT-S6102 — Samsung GT-S6102, Samsung GT-S6102B released for markets in different countries.
