Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

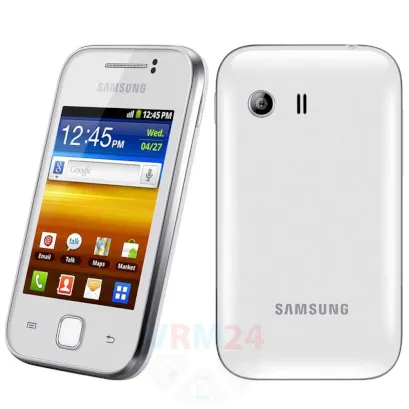

Disassembly/Repair of the mobile device Samsung Galaxy Y GT-S5360 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Y GT-S5360, Step 1/1

Step 1.

Open the back cover.


How to disassemble Samsung Galaxy Y GT-S5360, Step 2/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Samsung Galaxy Y GT-S5360, Step 3/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the frame of the phone.


How to disassemble Samsung Galaxy Y GT-S5360, Step 4/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Samsung Galaxy Y GT-S5360, Step 5/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 5/2 How to disassemble Samsung Galaxy Y GT-S5360, Step 5/3

Step 5.

Disconnect the display connector.


How to disassemble Samsung Galaxy Y GT-S5360, Step 6/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 6/2 How to disassemble Samsung Galaxy Y GT-S5360, Step 6/3

Step 6.

Overturn the board, disconnect the connector from the inside and remove it.


How to disassemble Samsung Galaxy Y GT-S5360, Step 7/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.


How to disassemble Samsung Galaxy Y GT-S5360, Step 8/1 How to disassemble Samsung Galaxy Y GT-S5360, Step 8/2

Step 8.

Remove the protective cover/shield.

Detailed disassembly instructions of Samsung Galaxy Y GT-S5360 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Galaxy Y GT-S5360 released for markets in different countries.
