Teardown difficulty:
Moderate
Duration:
9 min

Recommended tools

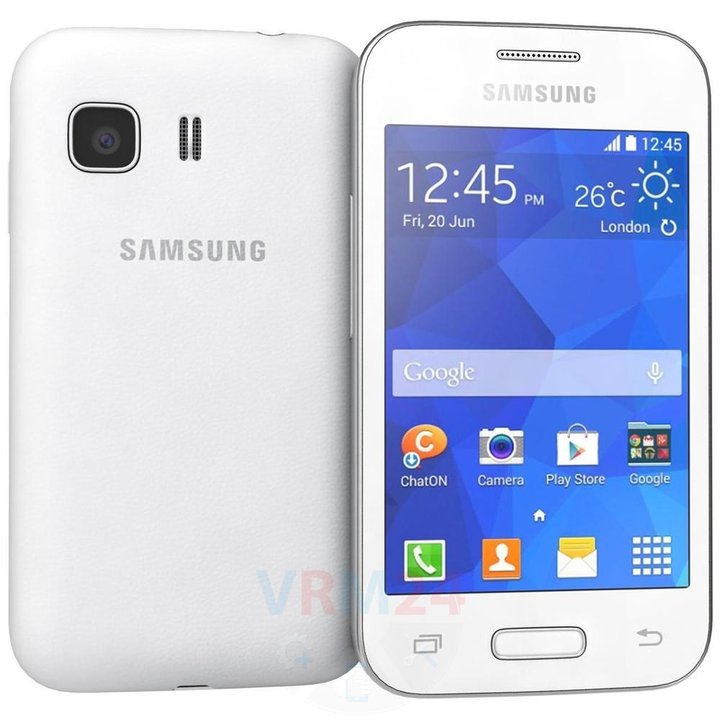

Disassembly/Repair of the mobile device Samsung Galaxy Young 2 SM-G130 (Samsung Galaxy Young 2 G130H) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 1/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 1/2

Step 1.

Open the back cover.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 2/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 3/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 3/2

Step 3.

Pry and remove the cover.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 4/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 4/2 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 4/3 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 4/4

Step 4.

Pry up the display connector.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 5/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 5/2

Step 5.

Warm the display surface and separate the display and touch screen from the frame of the case.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 6/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 7/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 7/2

Step 7.

Remove the cover with Home button key.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 8/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 8/2

Step 8.

Remove the PCB.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 9/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 9/2

Step 9.

Remove the PCB protective cover.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 10/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 10/2 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 10/3

Step 10.

Pry up the contacts. Turn over the case and remove the earpiece (speaker).


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 11/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 11/2

Step 11.

Pry and remove the buzzer (speaker) and vibration motor.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 12/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 12/2

Step 12.

Remove the part with contacts.


How to disassemble Samsung Galaxy Young 2 SM-G130, Step 13/1 How to disassemble Samsung Galaxy Young 2 SM-G130, Step 13/2

Step 13.

The case.

Detailed disassembly instructions of Samsung Galaxy Young 2 SM-G130 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about 9 minutes in time.
Our manual is suitable for all models Samsung Galaxy Young 2 SM-G130 — Samsung Galaxy Young 2 G130H released for markets in different countries.
