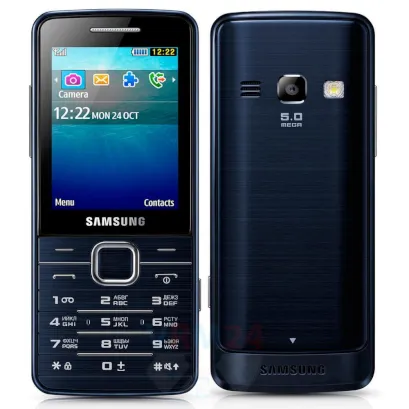

Samsung Utopia GT-S5611
Samsung Utopia GT-S5611
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Utopia GT-S5611 with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Utopia GT-S5611, Step 1/1 How to disassemble Samsung Utopia GT-S5611, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Utopia GT-S5611, Step 2/1 How to disassemble Samsung Utopia GT-S5611, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Utopia GT-S5611, Step 3/1 How to disassemble Samsung Utopia GT-S5611, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Samsung Utopia GT-S5611, Step 4/1 How to disassemble Samsung Utopia GT-S5611, Step 4/2 How to disassemble Samsung Utopia GT-S5611, Step 4/3

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Utopia GT-S5611, Step 5/1 How to disassemble Samsung Utopia GT-S5611, Step 5/2

Step 5.

Pry and remove the speaker, vibration motor and part with copper contacts.

How to disassemble Samsung Utopia GT-S5611, Step 6/1 How to disassemble Samsung Utopia GT-S5611, Step 6/2 How to disassemble Samsung Utopia GT-S5611, Step 6/3

Step 6.

Disconnect the connector on PCB.

How to disassemble Samsung Utopia GT-S5611, Step 7/1 How to disassemble Samsung Utopia GT-S5611, Step 7/2

Step 7.

Remove the PCB.

How to disassemble Samsung Utopia GT-S5611, Step 8/1 How to disassemble Samsung Utopia GT-S5611, Step 8/2

Step 8.

Separate the display module from the front frame.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Utopia GT-S5611, Step 9/1 How to disassemble Samsung Utopia GT-S5611, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the cover hiding the chips and remove it.

How to disassemble Samsung Utopia GT-S5611, Step 10/1 How to disassemble Samsung Utopia GT-S5611, Step 10/2

Step 10.

Disconnect connectors on the PCB, and remove the main camera and flash.

Detailed disassembly instructions of Samsung Utopia GT-S5611 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Utopia GT-S5611
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Utopia GT-S5611 released for markets in different countries.
