Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Disassembly of the mobile device Samsung Wave 3 GT-S8600 with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Samsung Wave 3 GT-S8600, Step 1/1 How to disassemble Samsung Wave 3 GT-S8600, Step 1/2

Step 1

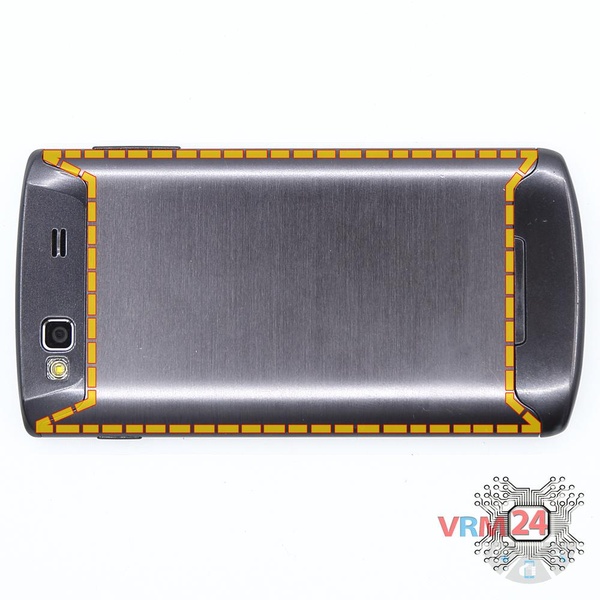

Slide up the back cover.


How to disassemble Samsung Wave 3 GT-S8600, Step 2/1 How to disassemble Samsung Wave 3 GT-S8600, Step 2/2

Step 2

Lift and remove the battery.


How to disassemble Samsung Wave 3 GT-S8600, Step 3/1 How to disassemble Samsung Wave 3 GT-S8600, Step 3/2

Step 3

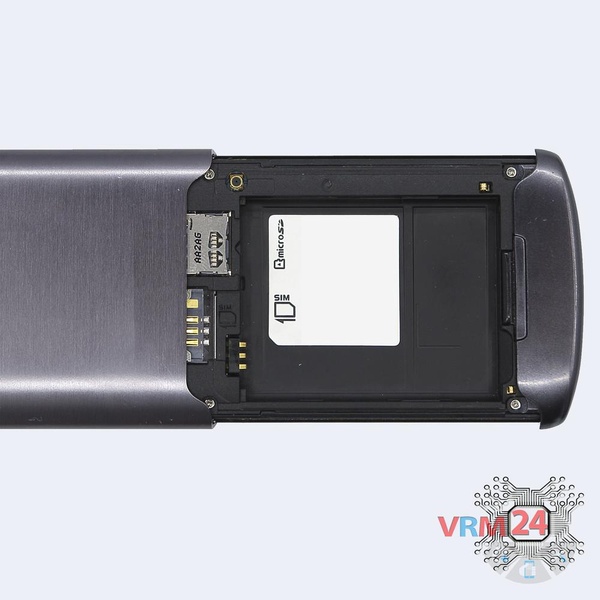

Open the back cover.


How to disassemble Samsung Wave 3 GT-S8600, Step 4/1 How to disassemble Samsung Wave 3 GT-S8600, Step 4/2

Step 4

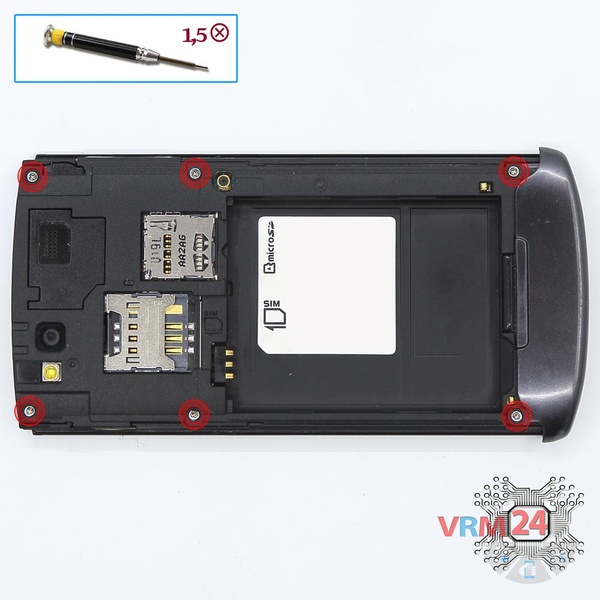

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.


How to disassemble Samsung Wave 3 GT-S8600, Step 5/1 How to disassemble Samsung Wave 3 GT-S8600, Step 5/2

Step 5

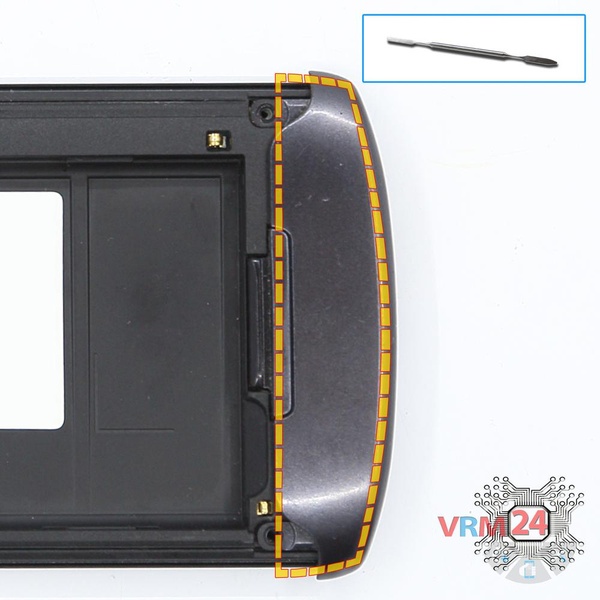

Remove the bottom cover.


How to disassemble Samsung Wave 3 GT-S8600, Step 6/1 How to disassemble Samsung Wave 3 GT-S8600, Step 6/2

Step 6

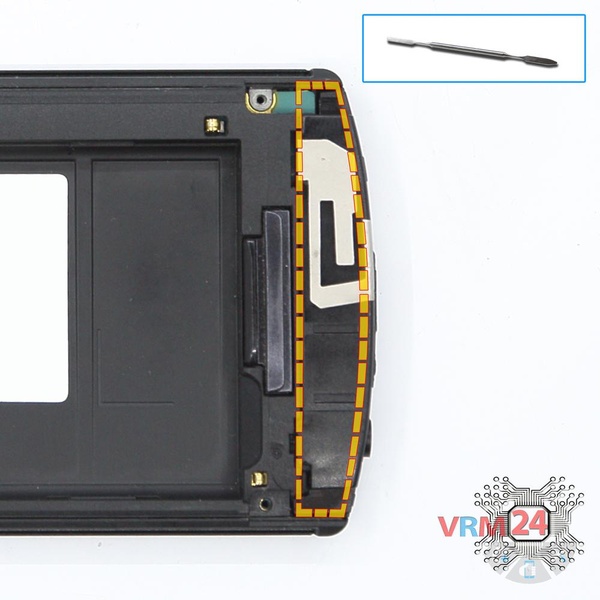

Remove the cover with antennas.


How to disassemble Samsung Wave 3 GT-S8600, Step 7/1 How to disassemble Samsung Wave 3 GT-S8600, Step 7/2

Step 7

Pry and remove the middle frame.


How to disassemble Samsung Wave 3 GT-S8600, Step 8/1 How to disassemble Samsung Wave 3 GT-S8600, Step 8/2

Step 8

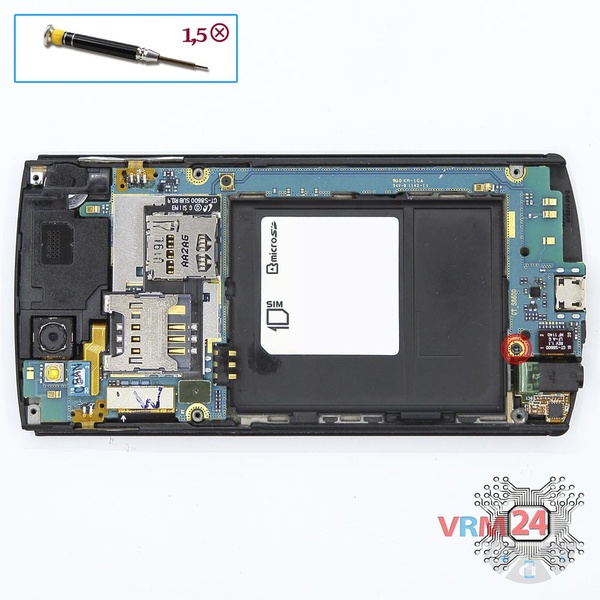

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.


How to disassemble Samsung Wave 3 GT-S8600, Step 9/1 How to disassemble Samsung Wave 3 GT-S8600, Step 9/2 How to disassemble Samsung Wave 3 GT-S8600, Step 9/3

Step 9

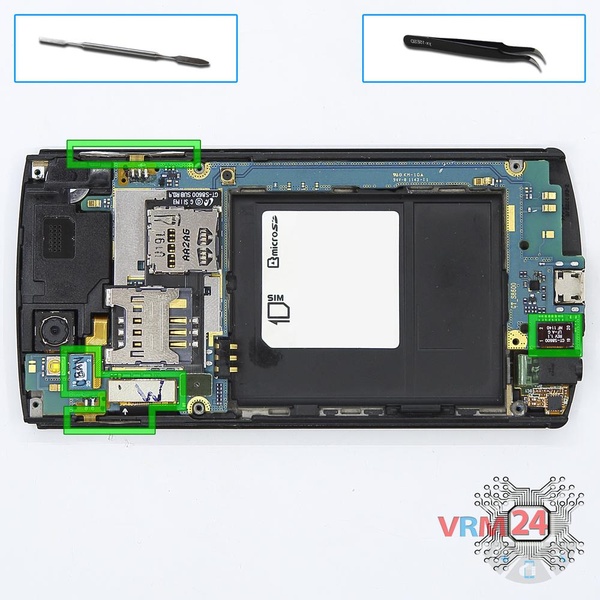

Disconnect connectors on the PCB and pry up the cables with a power & volume buttons.


How to disassemble Samsung Wave 3 GT-S8600, Step 10/1 How to disassemble Samsung Wave 3 GT-S8600, Step 10/2

Step 10

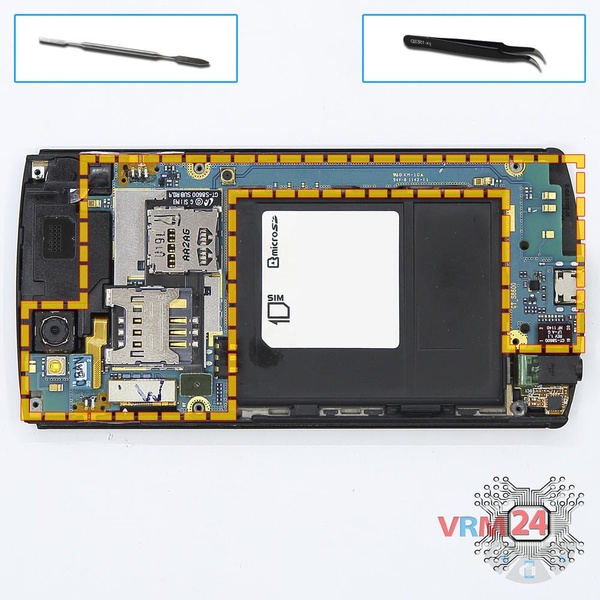

Remove the PCB.


How to disassemble Samsung Wave 3 GT-S8600, Step 11/1 How to disassemble Samsung Wave 3 GT-S8600, Step 11/2

Step 11

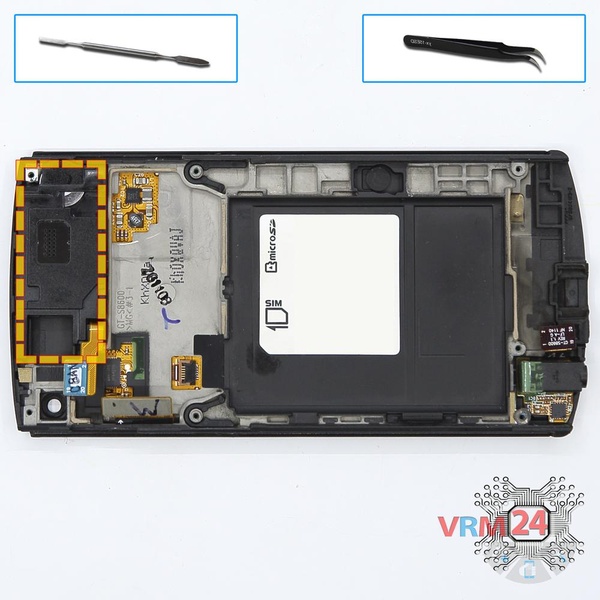

Pry and remove the buzzer (speaker) assembly.


How to disassemble Samsung Wave 3 GT-S8600, Step 12/1 How to disassemble Samsung Wave 3 GT-S8600, Step 12/2 How to disassemble Samsung Wave 3 GT-S8600, Step 12/3

Step 12

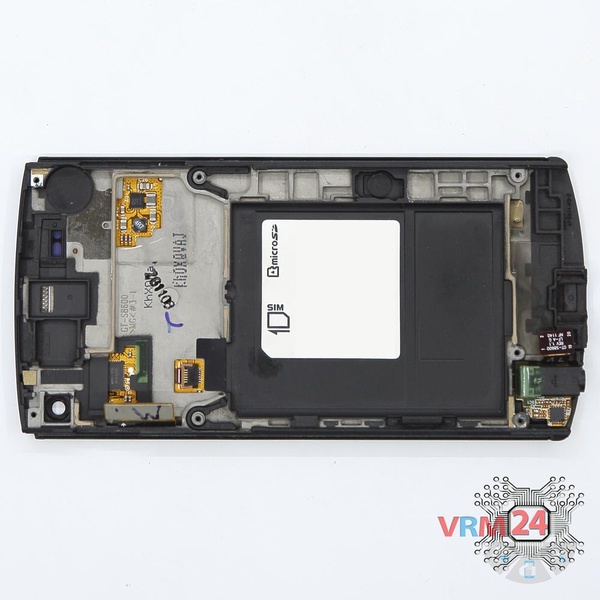

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Wave 3 GT-S8600 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Samsung Wave 3 GT-S8600 released for markets in different countries.
