Samsung Wave 525 GT-S5250
Samsung Wave 525 GT-S5250
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

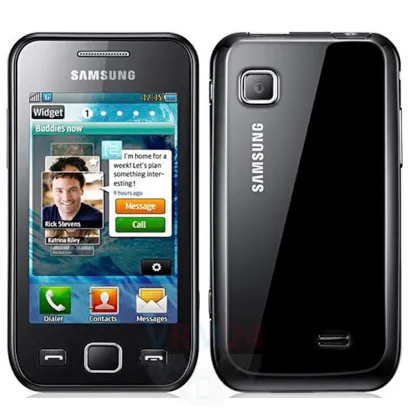

Disassembly/Repair of the mobile device Samsung Wave 525 GT-S5250 (Samsung Wave 2) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Wave 525 GT-S5250, Step 1/1 How to disassemble Samsung Wave 525 GT-S5250, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Wave 525 GT-S5250, Step 2/1 How to disassemble Samsung Wave 525 GT-S5250, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Wave 525 GT-S5250, Step 3/1 How to disassemble Samsung Wave 525 GT-S5250, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Samsung Wave 525 GT-S5250, Step 4/1 How to disassemble Samsung Wave 525 GT-S5250, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Wave 525 GT-S5250, Step 5/1 How to disassemble Samsung Wave 525 GT-S5250, Step 5/2

Step 5.

Pry and remove the part with copper contacts.

How to disassemble Samsung Wave 525 GT-S5250, Step 6/1 How to disassemble Samsung Wave 525 GT-S5250, Step 6/2 How to disassemble Samsung Wave 525 GT-S5250, Step 6/3 How to disassemble Samsung Wave 525 GT-S5250, Step 6/4 How to disassemble Samsung Wave 525 GT-S5250, Step 6/5

Step 6.

Disconnect connectors on the PCB.

How to disassemble Samsung Wave 525 GT-S5250, Step 7/1 How to disassemble Samsung Wave 525 GT-S5250, Step 7/2

Step 7.

Remove the PCB.

How to disassemble Samsung Wave 525 GT-S5250, Step 8/1 How to disassemble Samsung Wave 525 GT-S5250, Step 8/2

Step 8.

Remove the frame with android navigation control buttons.

How to disassemble Samsung Wave 525 GT-S5250, Step 9/1 How to disassemble Samsung Wave 525 GT-S5250, Step 9/2 How to disassemble Samsung Wave 525 GT-S5250, Step 9/3

Step 9.

Disconnect the touchscreen connector.

How to disassemble Samsung Wave 525 GT-S5250, Step 10/1 How to disassemble Samsung Wave 525 GT-S5250, Step 10/2

Step 10.

Remove the display and navigation control button keys.

How to disassemble Samsung Wave 525 GT-S5250, Step 11/1

Step 11.

The front frame with touch screen.

Detailed disassembly instructions of Samsung Wave 525 GT-S5250 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Wave 525 GT-S5250
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Wave 525 GT-S5250 — Samsung Wave 2 released for markets in different countries.
