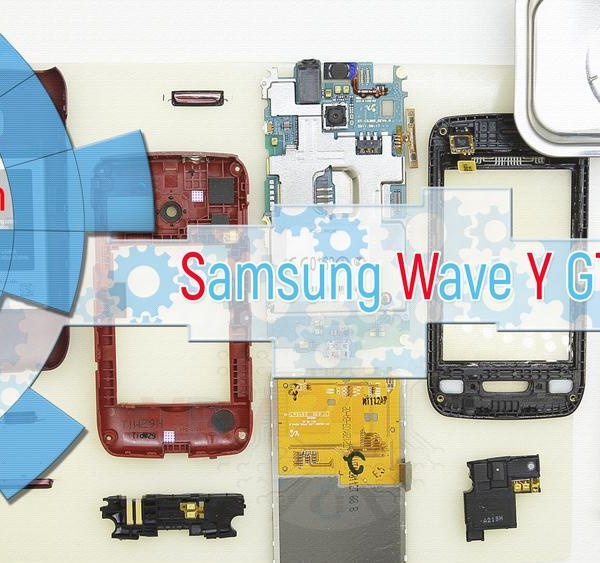

Disassembly/Repair of the mobile device Samsung Wave Y GT-S5380 (Samsung Wave538, Samsung Wave Y LaFleur edition) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Samsung Wave Y GT-S5380, Step 1/1

Step 1.

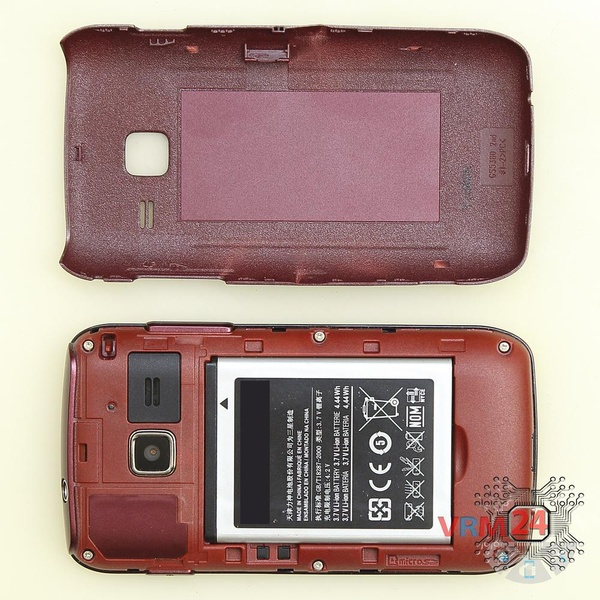

Open the back cover.

How to disassemble Samsung Wave Y GT-S5380, Step 2/1 How to disassemble Samsung Wave Y GT-S5380, Step 2/2

Step 2.

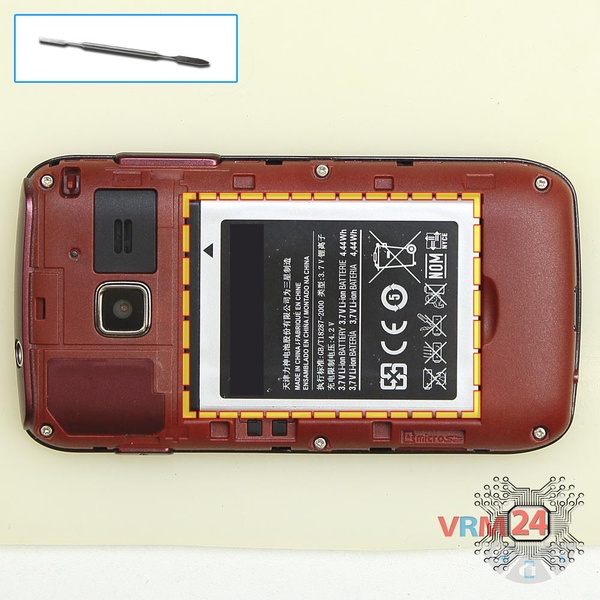

Lift and remove the battery.

How to disassemble Samsung Wave Y GT-S5380, Step 3/1 How to disassemble Samsung Wave Y GT-S5380, Step 3/2

Step 3.

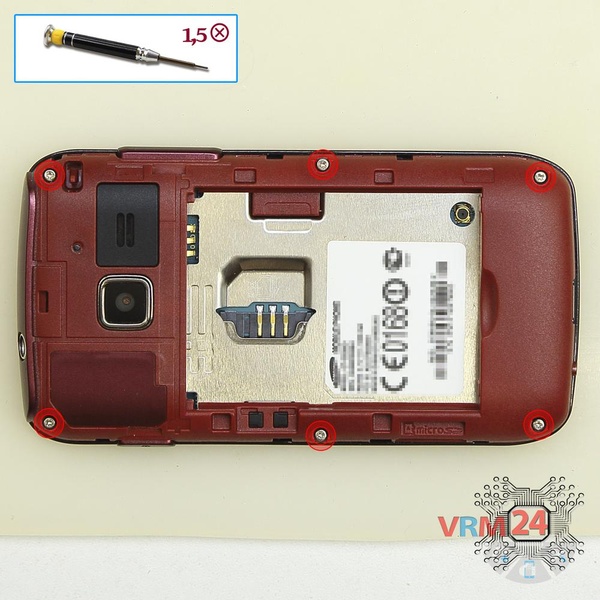

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble Samsung Wave Y GT-S5380, Step 4/1 How to disassemble Samsung Wave Y GT-S5380, Step 4/2

Step 4.

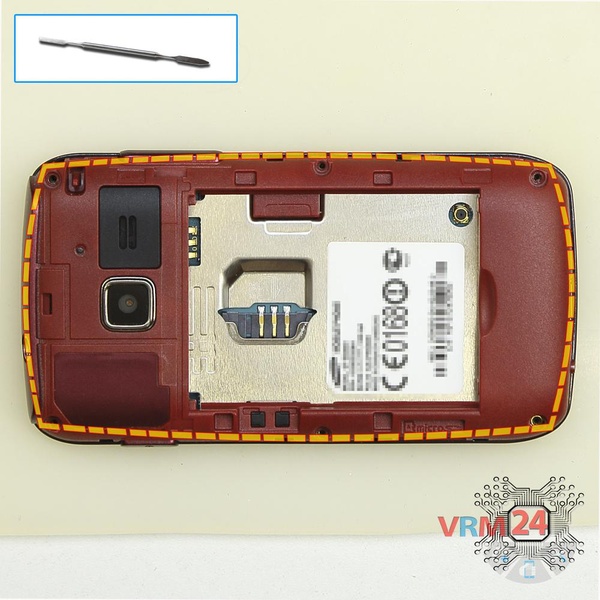

Pry and remove the middle frame and keys of the volume and power buttons.

How to disassemble Samsung Wave Y GT-S5380, Step 5/1 How to disassemble Samsung Wave Y GT-S5380, Step 5/2

Step 5.

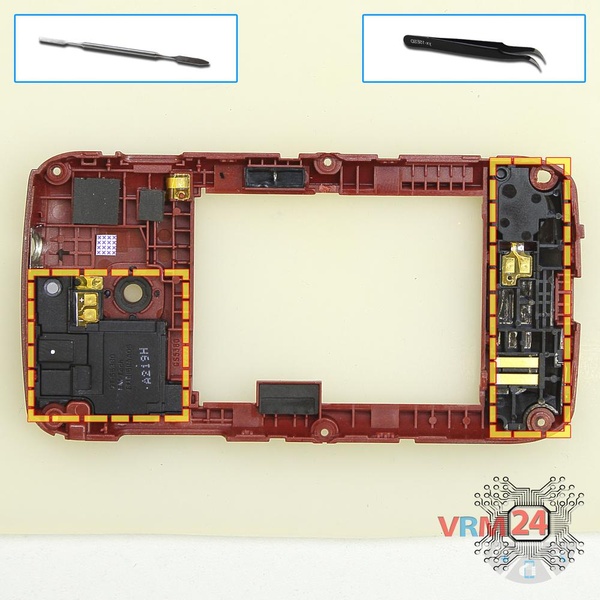

Remove the assemblies with buzzer (speaker) and vibration motor.

How to disassemble Samsung Wave Y GT-S5380, Step 6/1 How to disassemble Samsung Wave Y GT-S5380, Step 6/2

Step 6.

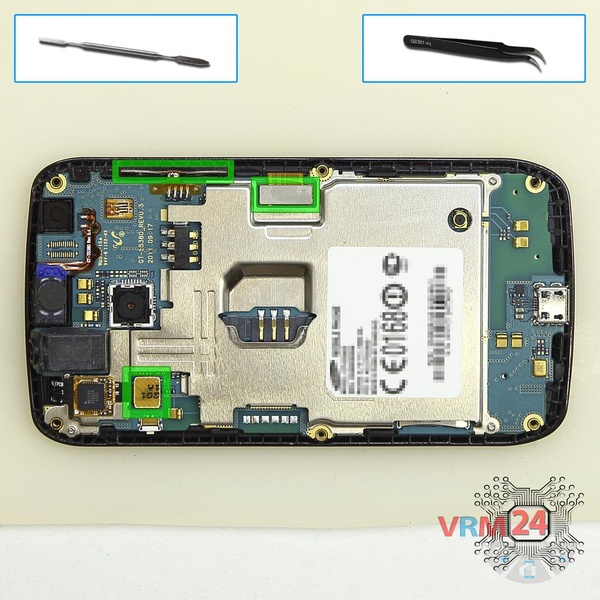

Disconnect connectors on the PCB.

How to disassemble Samsung Wave Y GT-S5380, Step 7/1 How to disassemble Samsung Wave Y GT-S5380, Step 7/2

Step 7.

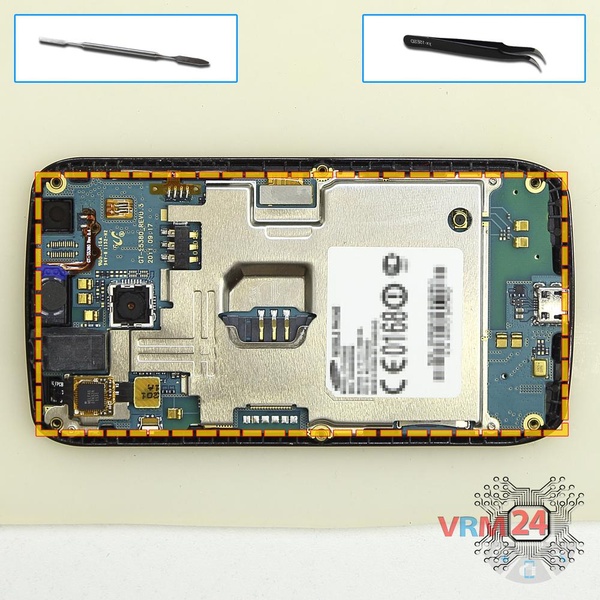

Remove the PCB.

How to disassemble Samsung Wave Y GT-S5380, Step 8/1 How to disassemble Samsung Wave Y GT-S5380, Step 8/2

Step 8.

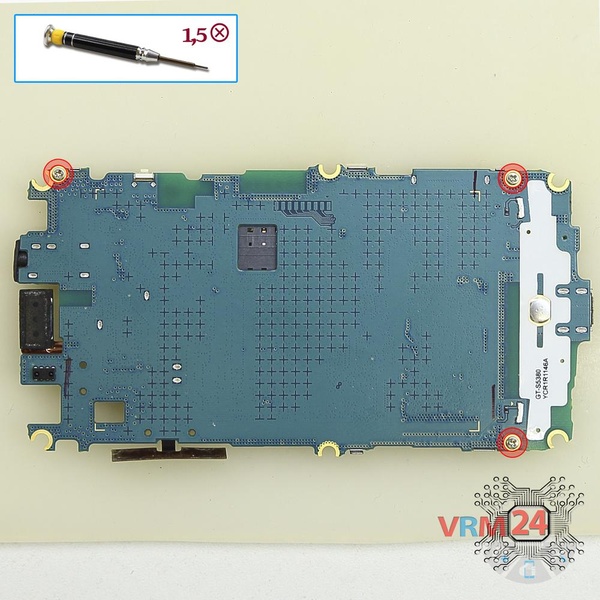

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts securing the protective cover.

How to disassemble Samsung Wave Y GT-S5380, Step 9/1

Step 9.

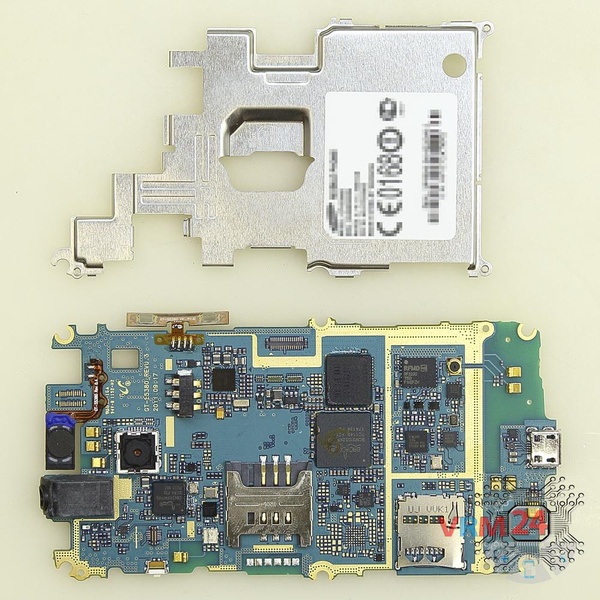

Remove the protective cover.

How to disassemble Samsung Wave Y GT-S5380, Step 10/1 How to disassemble Samsung Wave Y GT-S5380, Step 10/2

Step 10.

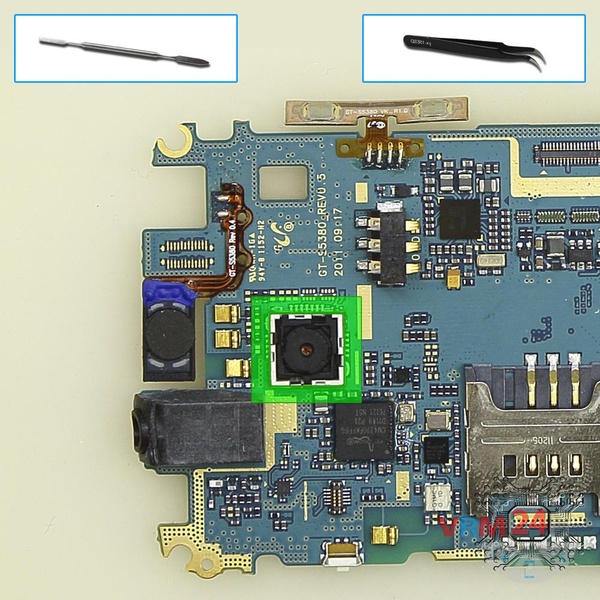

Remove the camera.

How to disassemble Samsung Wave Y GT-S5380, Step 11/1 How to disassemble Samsung Wave Y GT-S5380, Step 11/2

Step 11.

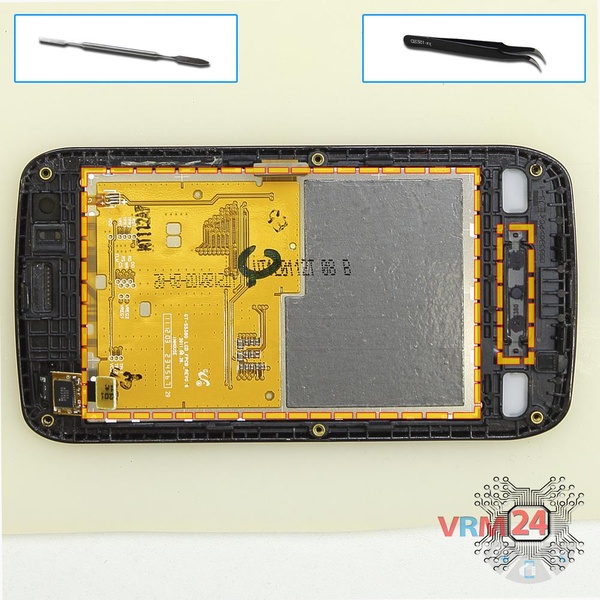

Remove the display and Home button key.

Detailed disassembly instructions of Samsung Wave Y GT-S5380 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Wave Y GT-S5380
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Wave Y GT-S5380 — Samsung Wave538, Samsung Wave Y LaFleur edition released for markets in different countries.
