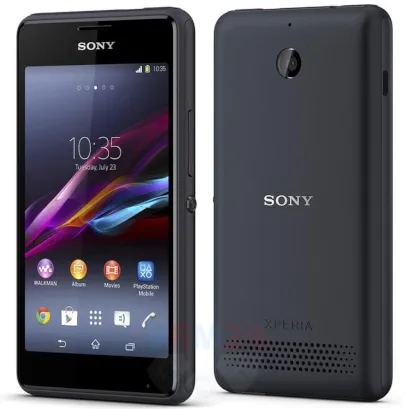

Disassembly/Repair of the mobile device Sony Xperia E1 (Sony Xperia E1 D2005 D2105) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Sony Xperia E1, Step 1/1 How to disassemble Sony Xperia E1, Step 1/2

Step 1.

Open the back cover.


How to disassemble Sony Xperia E1, Step 2/1 How to disassemble Sony Xperia E1, Step 2/2

Step 2.

Lift and remove the battery.


How to disassemble Sony Xperia E1, Step 3/1 How to disassemble Sony Xperia E1, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and a screwdriver (hex T5), unscrew 4 bolts in the frame of the phone.


How to disassemble Sony Xperia E1, Step 4/1 How to disassemble Sony Xperia E1, Step 4/2

Step 4.

Pry and remove the middle frame.


How to disassemble Sony Xperia E1, Step 5/1 How to disassemble Sony Xperia E1, Step 5/2

Step 5.

Pry and remove the buzzer (speaker).


How to disassemble Sony Xperia E1, Step 6/1 How to disassemble Sony Xperia E1, Step 6/2

Step 6.

Disconnect the connector on PCB, and remove the main camera.


How to disassemble Sony Xperia E1, Step 7/1 How to disassemble Sony Xperia E1, Step 7/2 How to disassemble Sony Xperia E1, Step 7/3

Step 7.

Disconnect connectors on the PCB.


How to disassemble Sony Xperia E1, Step 8/1 How to disassemble Sony Xperia E1, Step 8/2

Step 8.

Remove the PCB.


How to disassemble Sony Xperia E1, Step 9/1 How to disassemble Sony Xperia E1, Step 9/2

Step 9.

Separate the display from the frame.


How to disassemble Sony Xperia E1, Step 10/1 How to disassemble Sony Xperia E1, Step 10/2

Step 10.

Pry and remove the earpiece (speaker).


How to disassemble Sony Xperia E1, Step 11/1

Step 11.

The touchscreen.

Detailed disassembly instructions of Sony Xperia E1 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Sony Xperia E1 — Sony Xperia E1 D2005 D2105 released for markets in different countries.
