Disassembly of the mobile device Sony Xperia E4 (Sony Xperia E4 E2104, E2105, E4 Dual, E2115) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Sony Xperia E4, Step 1/1 How to disassemble Sony Xperia E4, Step 1/2
Step 1

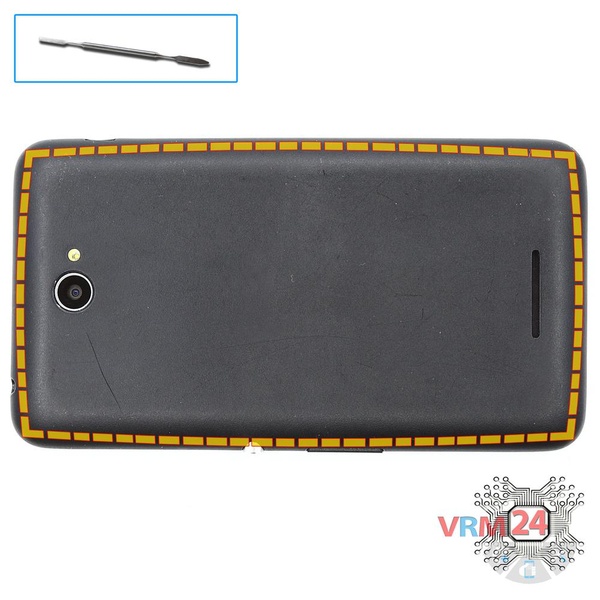

Open the back cover.

How to disassemble Sony Xperia E4, Step 2/1 How to disassemble Sony Xperia E4, Step 2/2 How to disassemble Sony Xperia E4, Step 2/3 How to disassemble Sony Xperia E4, Step 2/4
Step 2

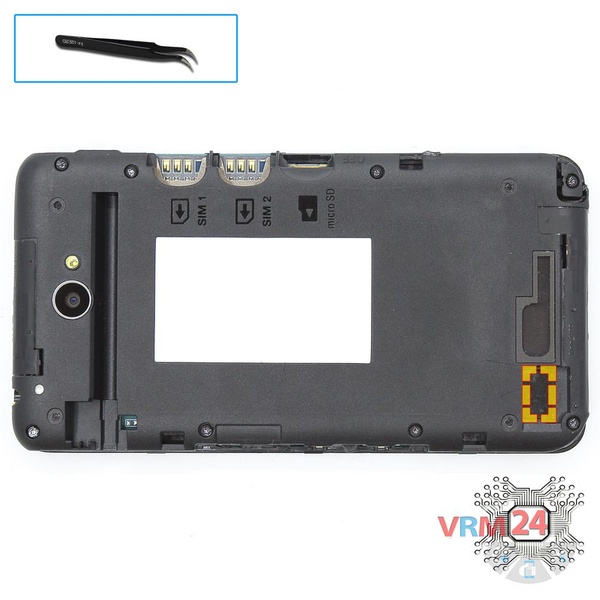

Remove hte cover and pry up the connector.

How to disassemble Sony Xperia E4, Step 3/1 How to disassemble Sony Xperia E4, Step 3/2
Step 3

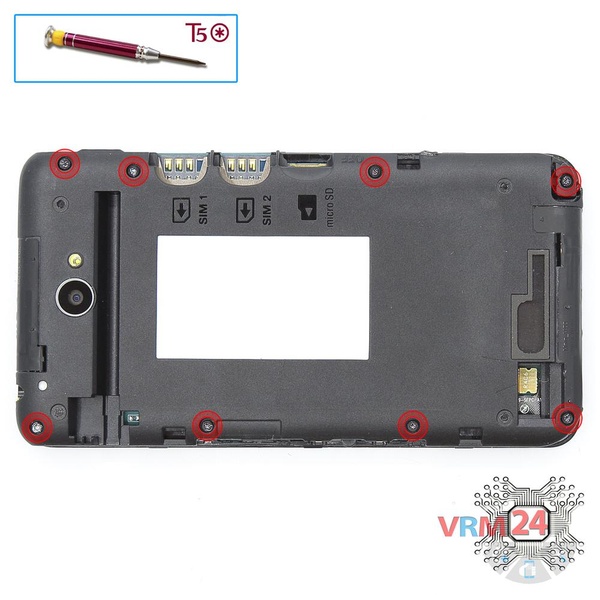

Using a screwdriver (hex T5), unscrew 8 bolts in the frame of the phone.

How to disassemble Sony Xperia E4, Step 4/1 How to disassemble Sony Xperia E4, Step 4/2
Step 4

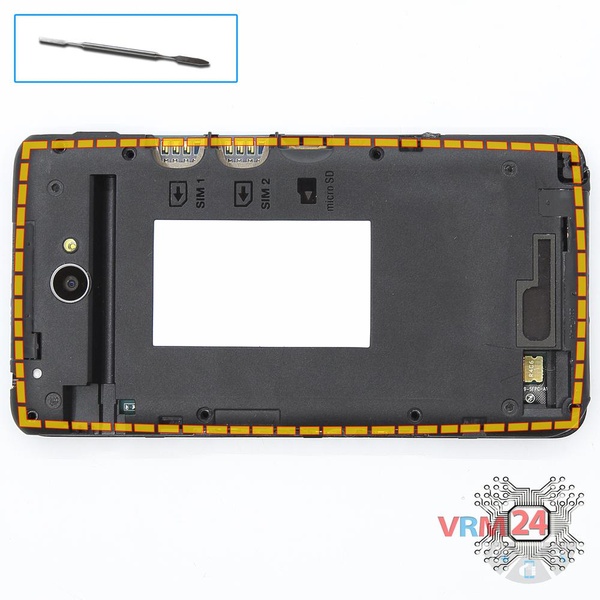

Pry and remove the middle cover.

How to disassemble Sony Xperia E4, Step 5/1
Step 5

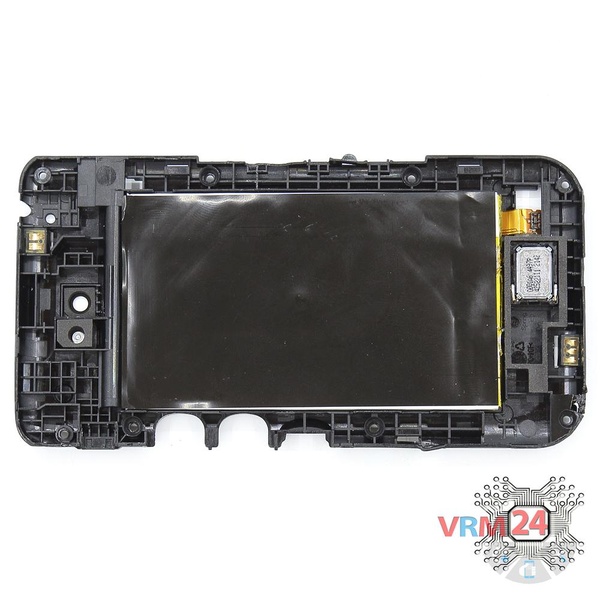

The middle cover with a battery and buzzer (speaker).

How to disassemble Sony Xperia E4, Step 6/1 How to disassemble Sony Xperia E4, Step 6/2
Step 6

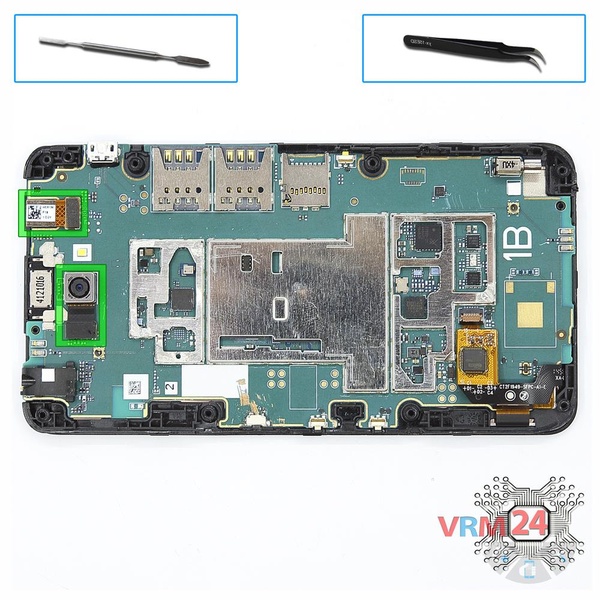

Disconnect connectors on PCB and remove the main and front (selfie) cameras.

How to disassemble Sony Xperia E4, Step 7/1 How to disassemble Sony Xperia E4, Step 7/2
Step 7

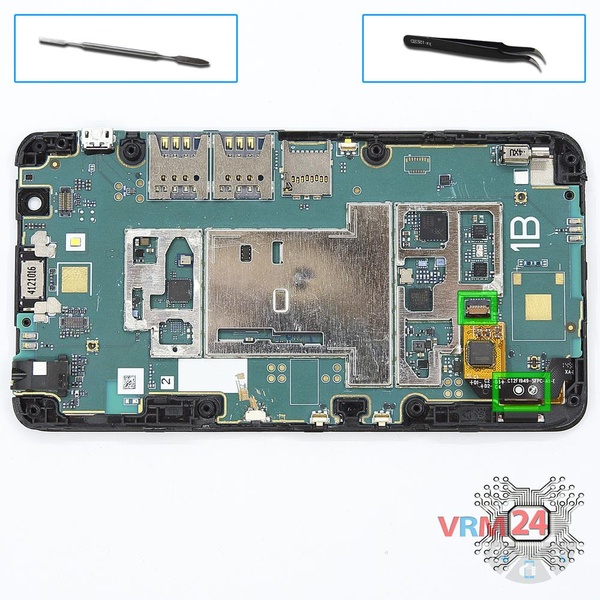

Disconnect connectors on the PCB.

How to disassemble Sony Xperia E4, Step 8/1 How to disassemble Sony Xperia E4, Step 8/2
Step 8

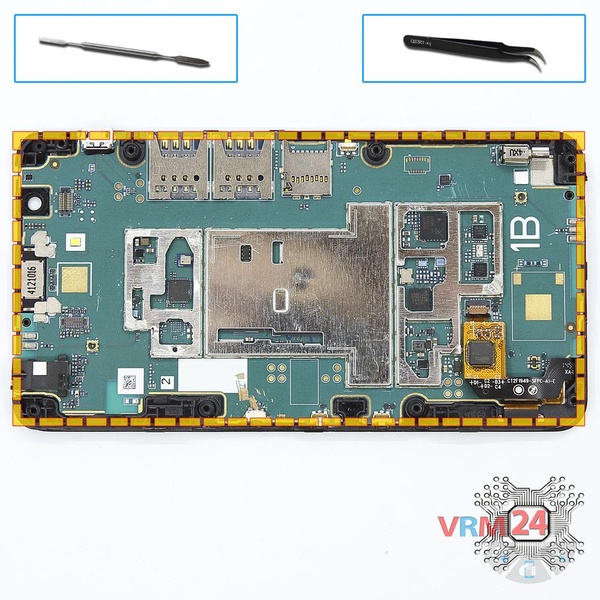

Remove the PCB.

How to disassemble Sony Xperia E4, Step 9/1 How to disassemble Sony Xperia E4, Step 9/2 How to disassemble Sony Xperia E4, Step 9/3
Step 9

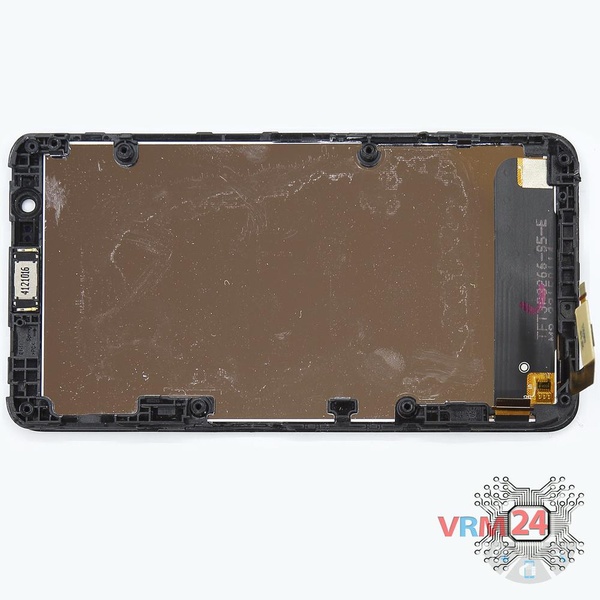

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia E4 in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 2 minutes in time.
Our manual is suitable for all models Sony Xperia E4 — Sony Xperia E4 E2104, E2105, E4 Dual, E2115 released for markets in different countries.
