Sony Xperia E5
Sony Xperia E5
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia E5 (Sony Xperia E5 F3311, F3313) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Sony Xperia E5, Step 1/1 How to disassemble Sony Xperia E5, Step 1/2

Step 1.

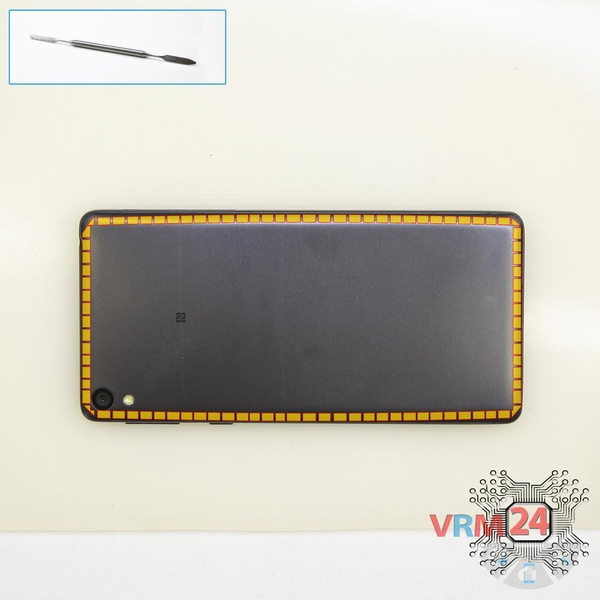

Open the back cover.

How to disassemble Sony Xperia E5, Step 2/1 How to disassemble Sony Xperia E5, Step 2/2

Step 2.

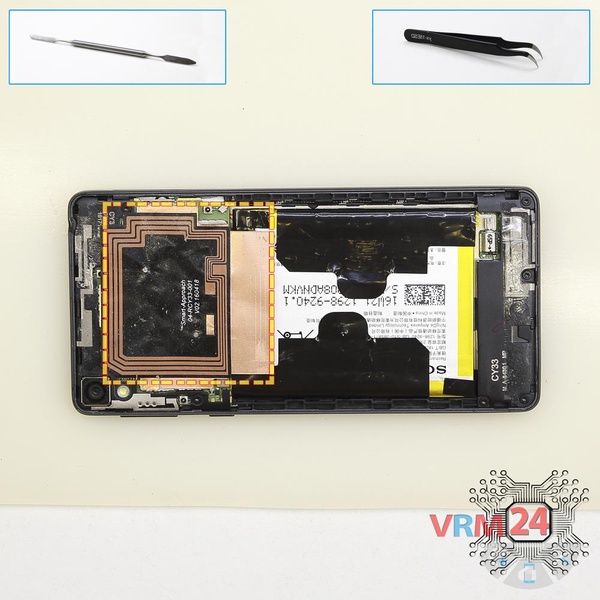

Remove the NFC tag with copper layer.

How to disassemble Sony Xperia E5, Step 3/1 How to disassemble Sony Xperia E5, Step 3/2 How to disassemble Sony Xperia E5, Step 3/3

Step 3.

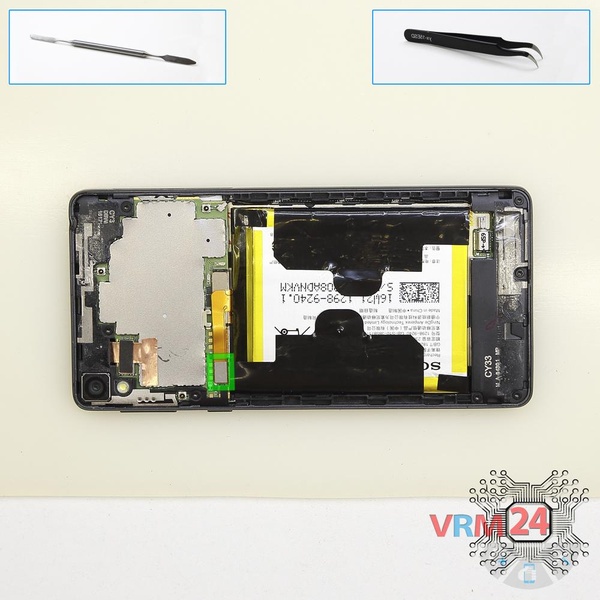

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Sony Xperia E5, Step 4/1 How to disassemble Sony Xperia E5, Step 4/2

Step 4.

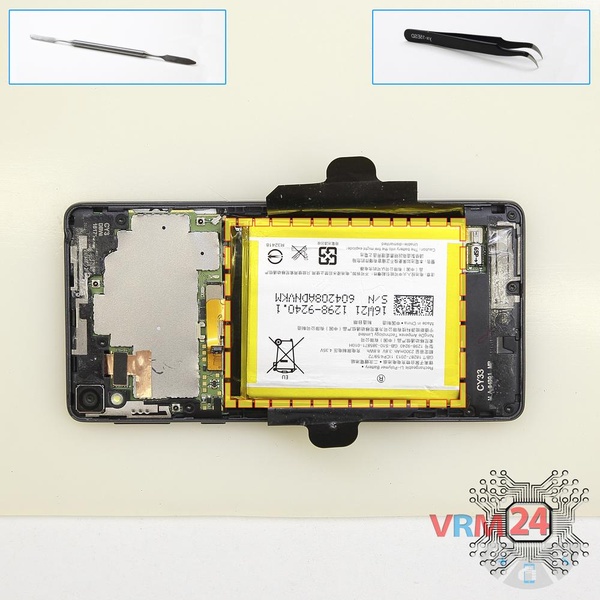

Peel back the tags and remove the battery.

How to disassemble Sony Xperia E5, Step 5/1 How to disassemble Sony Xperia E5, Step 5/2 How to disassemble Sony Xperia E5, Step 5/3

Step 5.

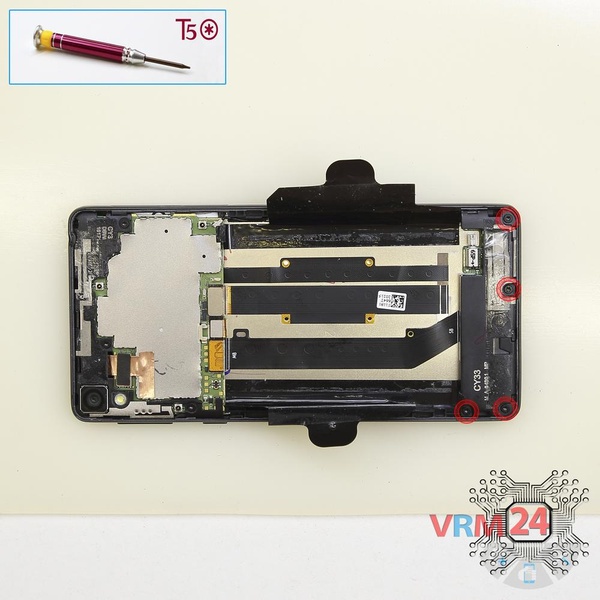

Using a screwdriver (hex T5), unscrew 4 bolts.

How to disassemble Sony Xperia E5, Step 6/1 How to disassemble Sony Xperia E5, Step 6/2

Step 6.

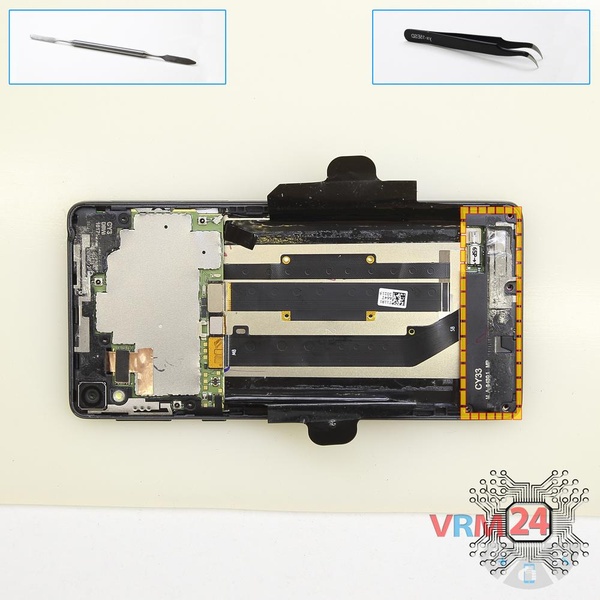

Pry and remove the buzzer (speaker) assembly.

How to disassemble Sony Xperia E5, Step 7/1 How to disassemble Sony Xperia E5, Step 7/2 How to disassemble Sony Xperia E5, Step 7/3 How to disassemble Sony Xperia E5, Step 7/4 How to disassemble Sony Xperia E5, Step 7/5

Step 7.

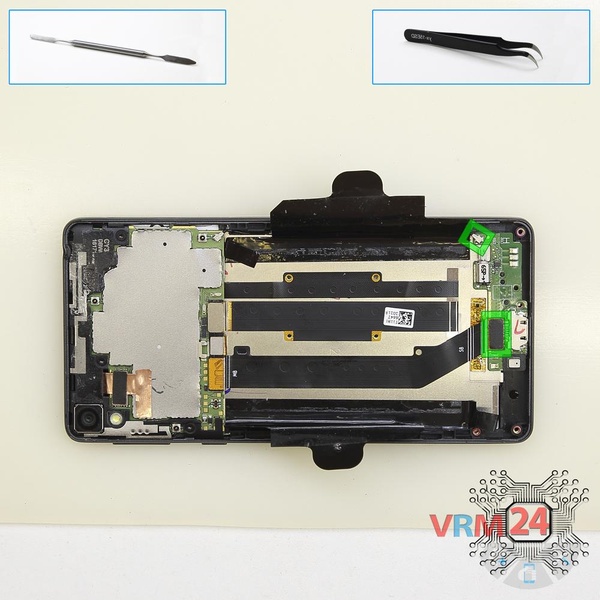

Disconnect connectors on the lower PCB and remove it.

How to disassemble Sony Xperia E5, Step 8/1 How to disassemble Sony Xperia E5, Step 8/2 How to disassemble Sony Xperia E5, Step 8/3

Step 8.

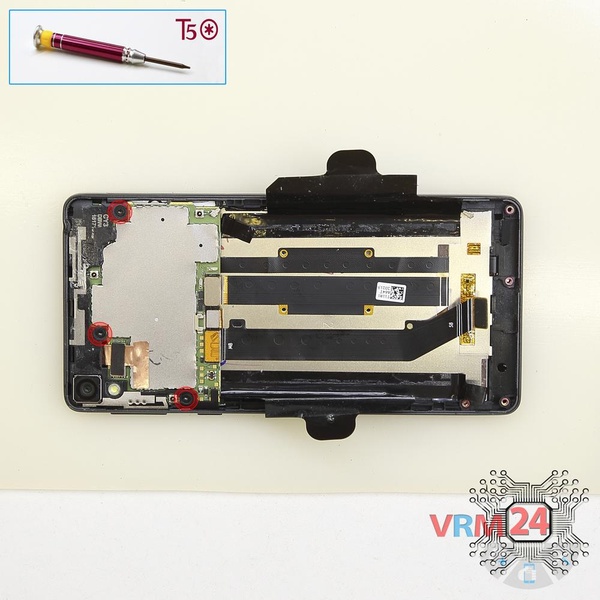

Using a screwdriver (hex T5), unscrew 3 bolts in the PCB.

How to disassemble Sony Xperia E5, Step 9/1 How to disassemble Sony Xperia E5, Step 9/2

Step 9.

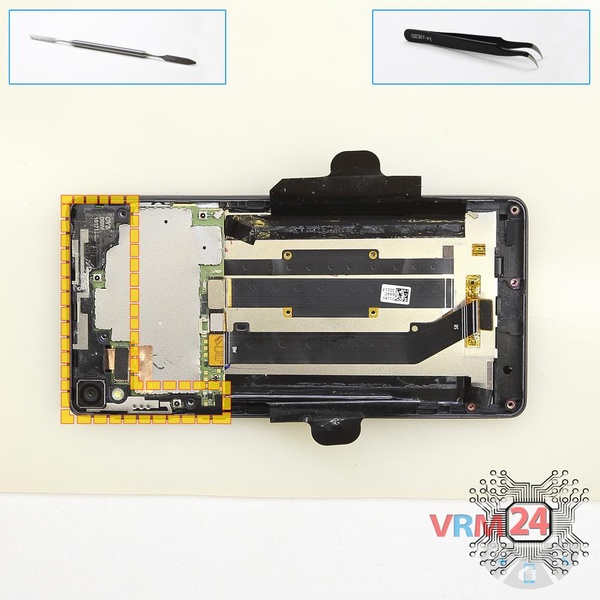

Remove the frame.

How to disassemble Sony Xperia E5, Step 10/1 How to disassemble Sony Xperia E5, Step 10/2 How to disassemble Sony Xperia E5, Step 10/3 How to disassemble Sony Xperia E5, Step 10/4

Step 10.

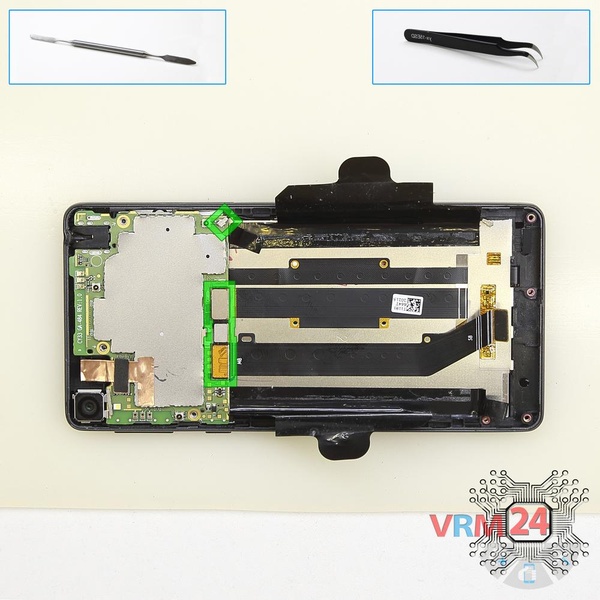

Disconnect connectors on the PCB.

How to disassemble Sony Xperia E5, Step 11/1 How to disassemble Sony Xperia E5, Step 11/2

Step 11.

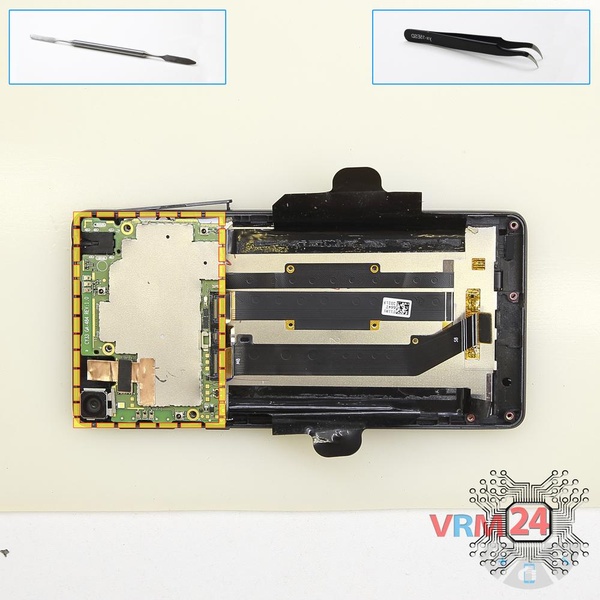

Remove the PCB.

How to disassemble Sony Xperia E5, Step 12/1 How to disassemble Sony Xperia E5, Step 12/2 How to disassemble Sony Xperia E5, Step 12/3

Step 12.

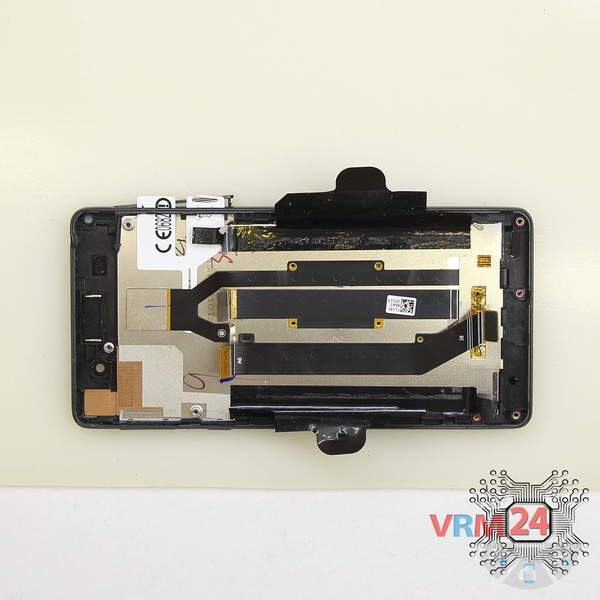

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia E5 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia E5
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Sony Xperia E5 — Sony Xperia E5 F3311, F3313 released for markets in different countries.
