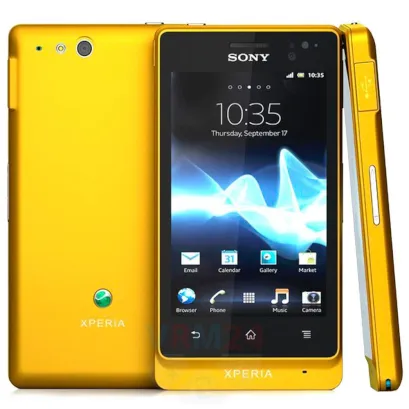

Sony Xperia GO
Sony Xperia GO
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Torx T6 Screwdriver torx t6
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia GO (Sony ST27i, Sony ST27a) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Sony Xperia GO, Step 1/1 How to disassemble Sony Xperia GO, Step 1/2

Step 1.

Open the back cover.

How to disassemble Sony Xperia GO, Step 2/1

Step 2.

Using the key tool, open the SIM cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Sony Xperia GO, Step 3/1 How to disassemble Sony Xperia GO, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts and a screwdriver (hex T6), unscrew 1 bolt in the frame of the phone.

How to disassemble Sony Xperia GO, Step 4/1 How to disassemble Sony Xperia GO, Step 4/2 How to disassemble Sony Xperia GO, Step 4/3 How to disassemble Sony Xperia GO, Step 4/4

Step 4.

Separate the display module from the cover.

⚠️ Warning!

The display module connected with the PCB via an FFC cable.

How to disassemble Sony Xperia GO, Step 5/1 How to disassemble Sony Xperia GO, Step 5/2

Step 5.

Disconnect the connector on PCB and remove the battery.

How to disassemble Sony Xperia GO, Step 6/1 How to disassemble Sony Xperia GO, Step 6/2

Step 6.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Sony Xperia GO, Step 7/1 How to disassemble Sony Xperia GO, Step 7/2

Step 7.

Disconnect connectors on the PCB.

How to disassemble Sony Xperia GO, Step 8/1 How to disassemble Sony Xperia GO, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Sony Xperia GO, Step 9/1 How to disassemble Sony Xperia GO, Step 9/2 How to disassemble Sony Xperia GO, Step 9/3

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket with Power button and headphone jack/socket.

How to disassemble Sony Xperia GO, Step 10/1 How to disassemble Sony Xperia GO, Step 10/2 How to disassemble Sony Xperia GO, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia GO in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia GO
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Sony Xperia GO — Sony ST27i, Sony ST27a released for markets in different countries.
