Sony Xperia M2
Sony Xperia M2
Teardown difficulty:
Moderate
Duration:
9 min

Recommended tools

Heat gun Heat gun
Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia M2 (Sony Xperia M2 D2303, D2305, D2306) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Sony Xperia M2, Step 1/1 How to disassemble Sony Xperia M2, Step 1/2

Step 1.

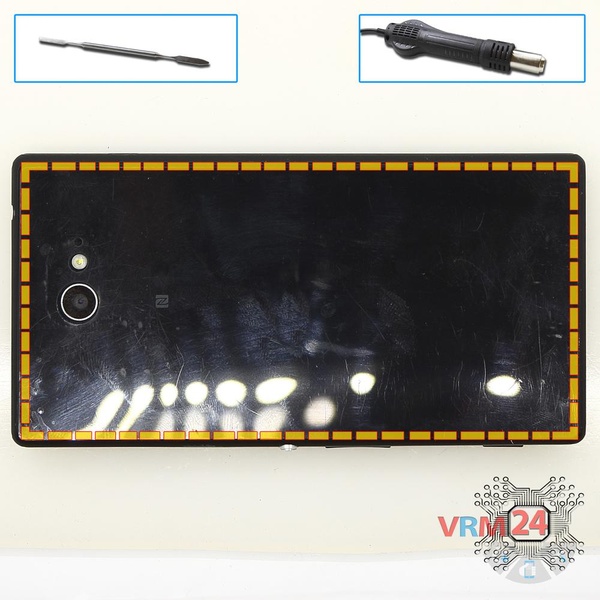

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Sony Xperia M2, Step 2/1 How to disassemble Sony Xperia M2, Step 2/2

Step 2.

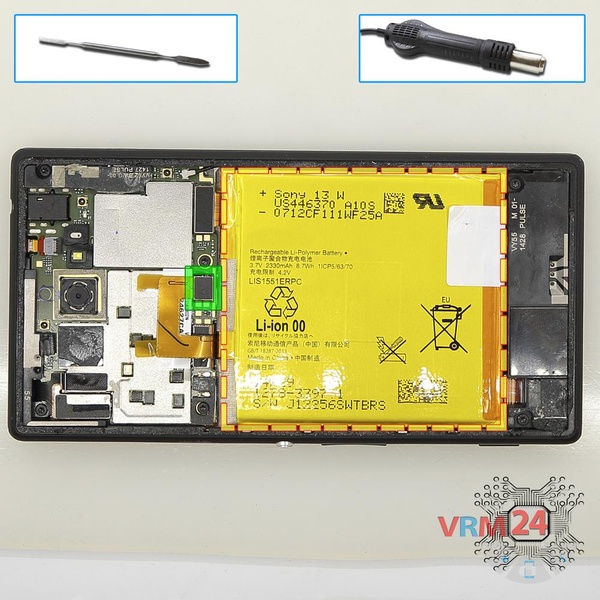

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Sony Xperia M2, Step 3/1 How to disassemble Sony Xperia M2, Step 3/2

Step 3.

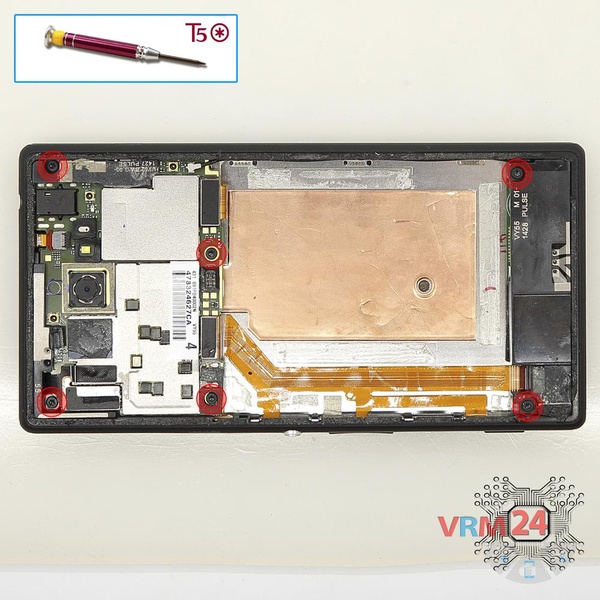

Using a screwdriver (hex T5), unscrew 6 bolts in the frame of the phone.

How to disassemble Sony Xperia M2, Step 4/1 How to disassemble Sony Xperia M2, Step 4/2

Step 4.

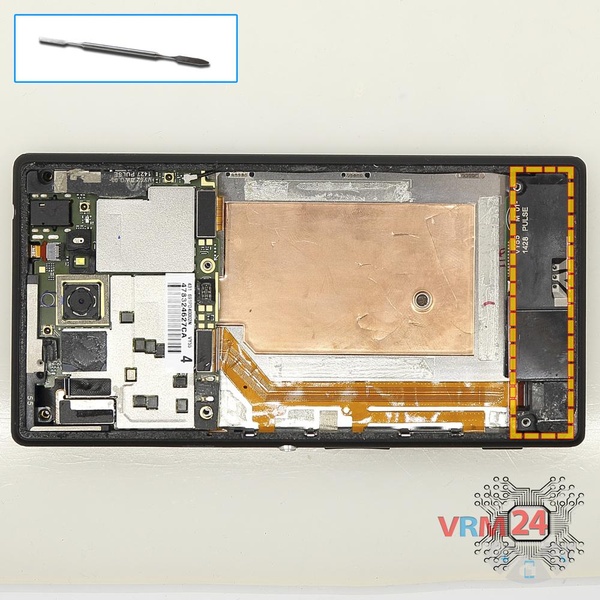

Pry and remove the buzzer (speaker) assembly.

How to disassemble Sony Xperia M2, Step 5/1 How to disassemble Sony Xperia M2, Step 5/2 How to disassemble Sony Xperia M2, Step 5/3 How to disassemble Sony Xperia M2, Step 5/4

Step 5.

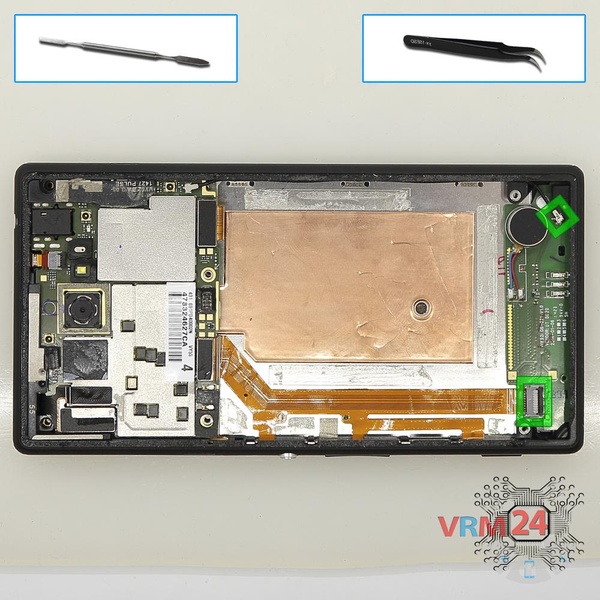

Disconnect connectors on the lower PCB and remove it.

How to disassemble Sony Xperia M2, Step 6/1 How to disassemble Sony Xperia M2, Step 6/2 How to disassemble Sony Xperia M2, Step 6/3 How to disassemble Sony Xperia M2, Step 6/4 How to disassemble Sony Xperia M2, Step 6/5 How to disassemble Sony Xperia M2, Step 6/6

Step 6.

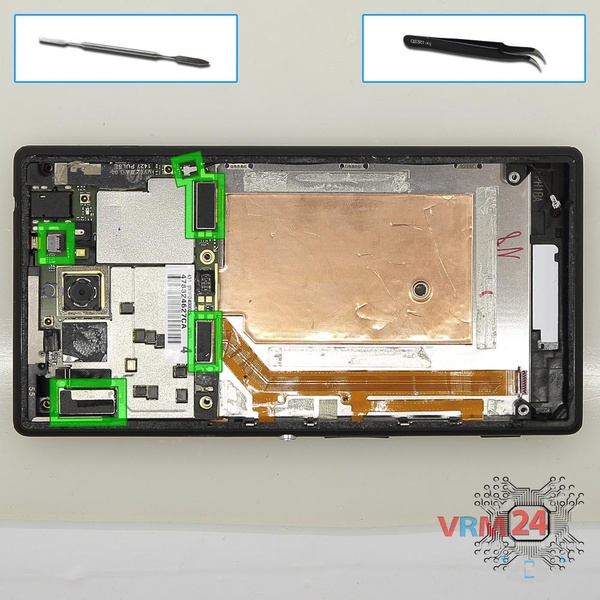

Disconnect connectors on the PCB.

How to disassemble Sony Xperia M2, Step 7/1 How to disassemble Sony Xperia M2, Step 7/2

Step 7.

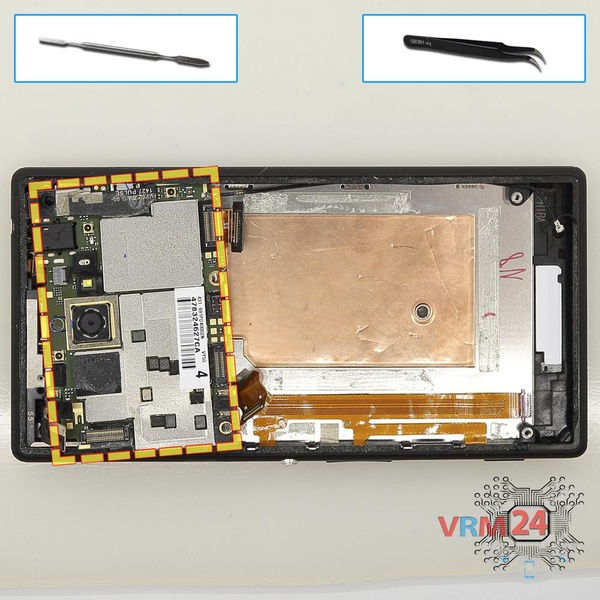

Remove the PCB.

How to disassemble Sony Xperia M2, Step 8/1 How to disassemble Sony Xperia M2, Step 8/2 How to disassemble Sony Xperia M2, Step 8/3

Step 8.

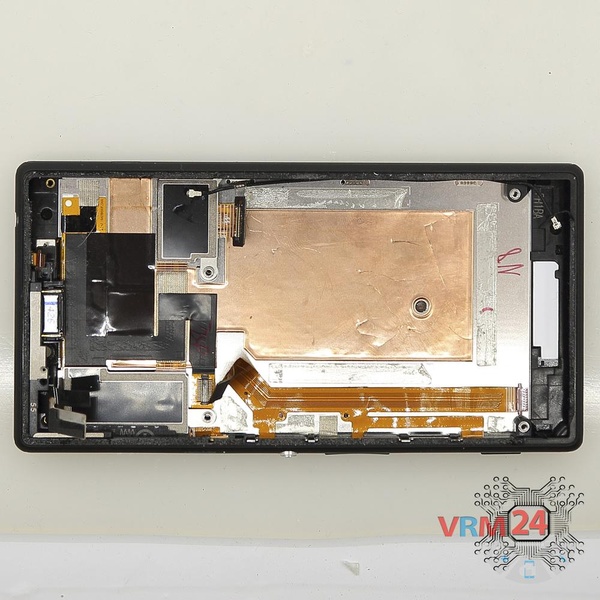

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia M2 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia M2
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 9 minutes in time.
Our manual is suitable for all models Sony Xperia M2 — Sony Xperia M2 D2303, D2305, D2306 released for markets in different countries.
