Disassembly of the mobile device Sony Xperia XA (Sony Xperia XA F3111, F3112) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Sony Xperia XA, Step 1/1
Step 1

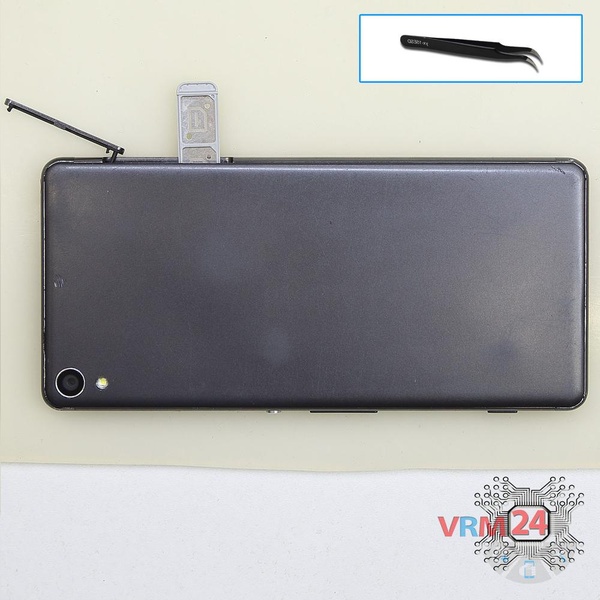

Using the key tool, open the SIM cards tray and remove it.

How to disassemble Sony Xperia XA, Step 2/1 How to disassemble Sony Xperia XA, Step 2/2
Step 2

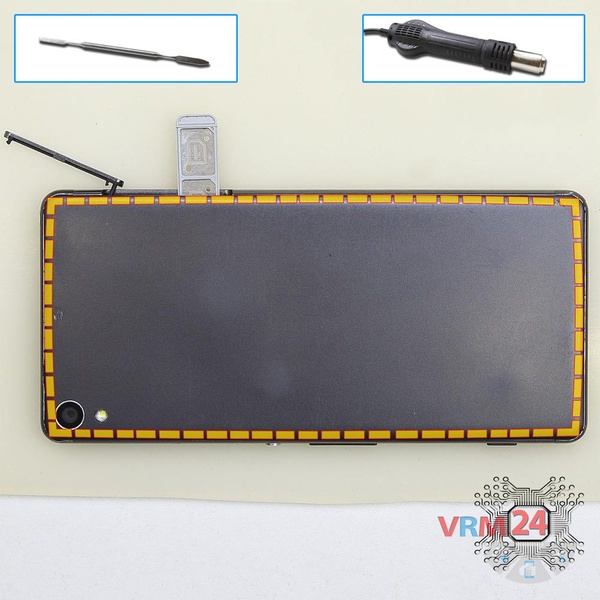

Open the back cover.

How to disassemble Sony Xperia XA, Step 3/1 How to disassemble Sony Xperia XA, Step 3/2 How to disassemble Sony Xperia XA, Step 3/3 How to disassemble Sony Xperia XA, Step 3/4
Step 3

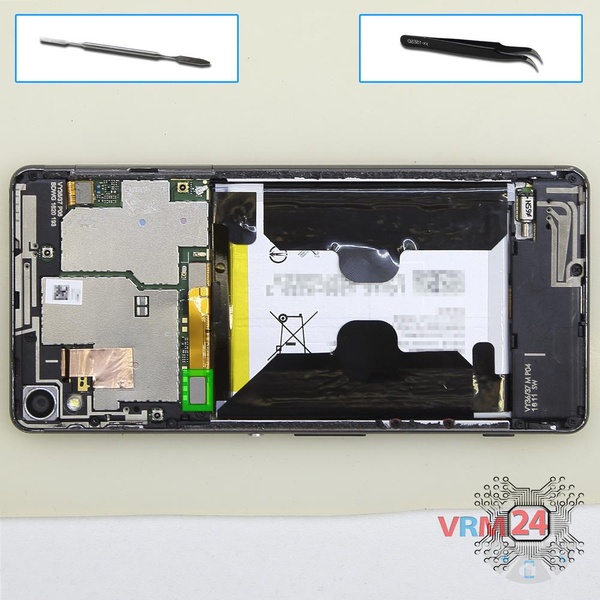

Disconnect the battery connector.

Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Sony Xperia XA, Step 4/1 How to disassemble Sony Xperia XA, Step 4/2
Step 4

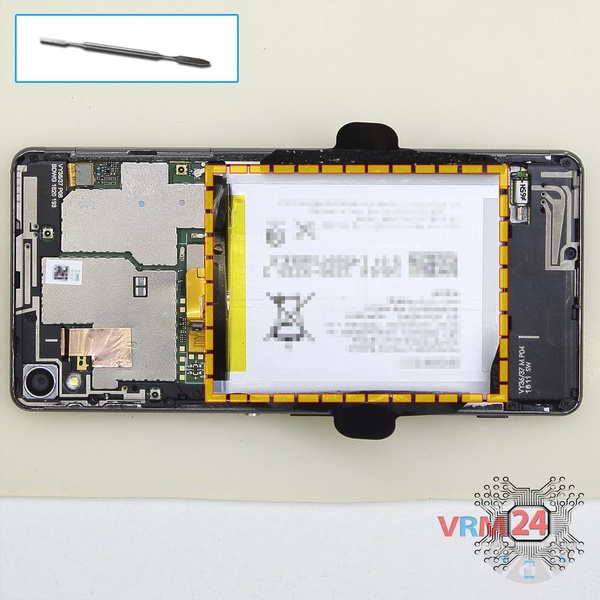

Peel back the tags and remove the battery.

How to disassemble Sony Xperia XA, Step 5/1 How to disassemble Sony Xperia XA, Step 5/2
Step 5

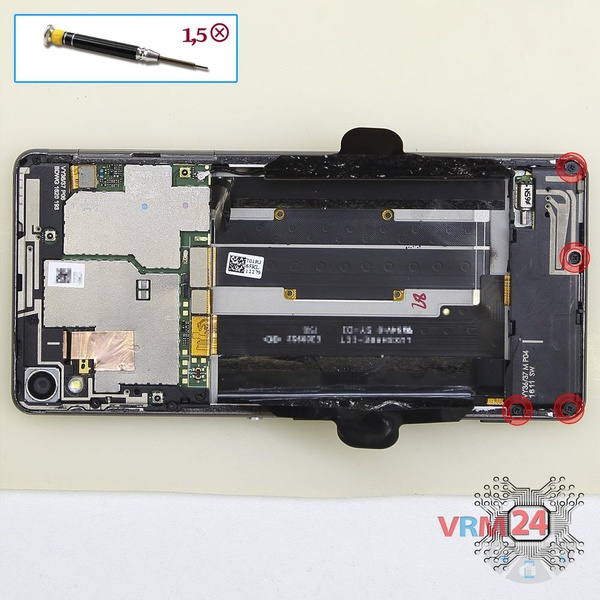

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Sony Xperia XA, Step 6/1 How to disassemble Sony Xperia XA, Step 6/2
Step 6

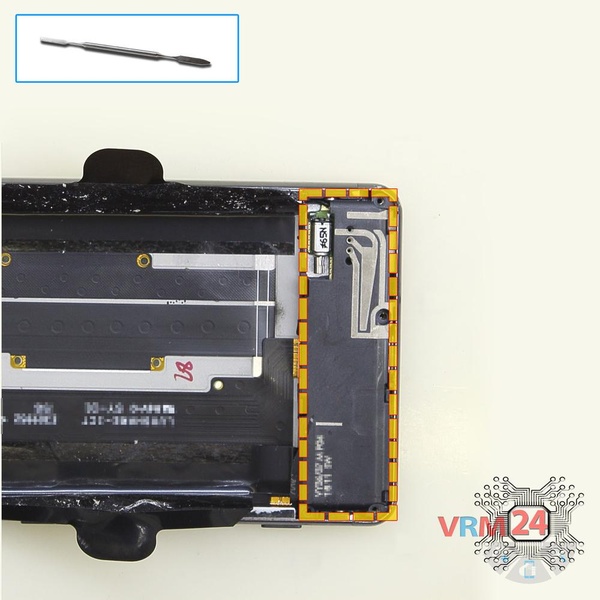

Pry and remove the buzzer (speaker) assembly.

How to disassemble Sony Xperia XA, Step 7/1 How to disassemble Sony Xperia XA, Step 7/2 How to disassemble Sony Xperia XA, Step 7/3
Step 7

Disconnect connectors on the lower PCB.

How to disassemble Sony Xperia XA, Step 8/1 How to disassemble Sony Xperia XA, Step 8/2
Step 8

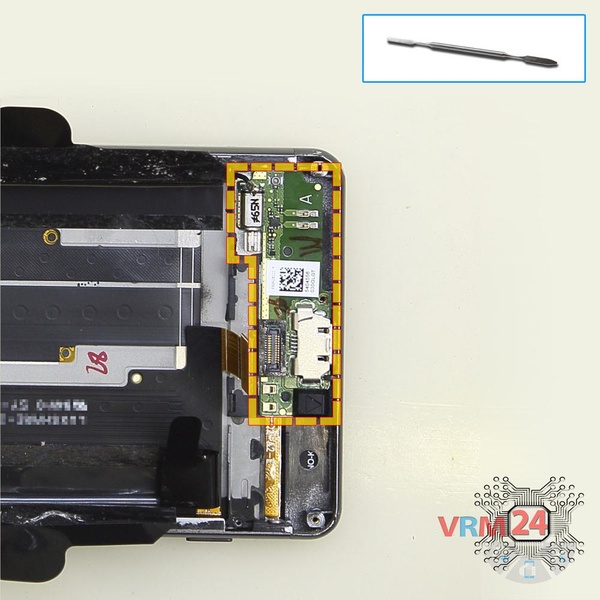

Remove the PCB.

How to disassemble Sony Xperia XA, Step 9/1 How to disassemble Sony Xperia XA, Step 9/2
Step 9

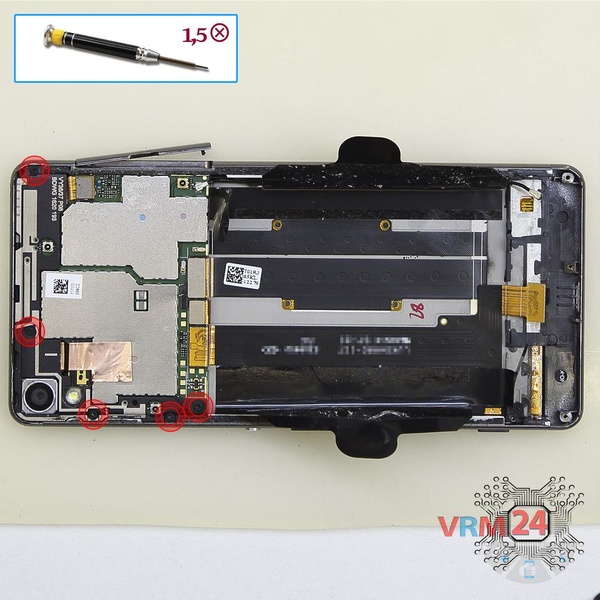

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.

How to disassemble Sony Xperia XA, Step 10/1 How to disassemble Sony Xperia XA, Step 10/2
Step 10

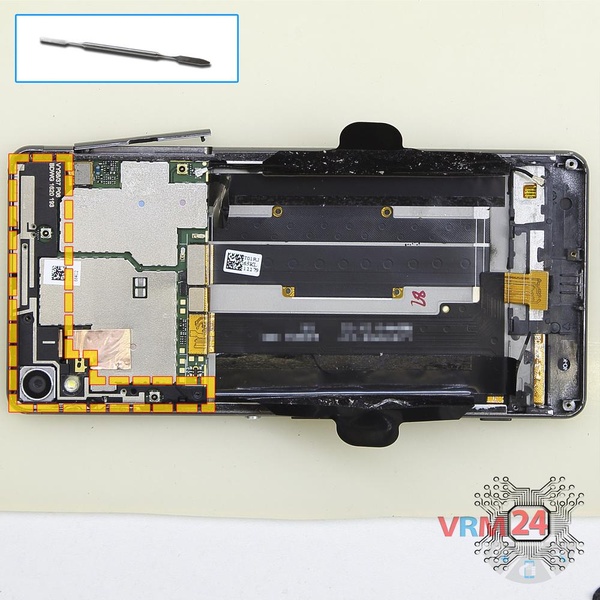

Remove the frame.

How to disassemble Sony Xperia XA, Step 11/1 How to disassemble Sony Xperia XA, Step 11/2 How to disassemble Sony Xperia XA, Step 11/3 How to disassemble Sony Xperia XA, Step 11/4
Step 11

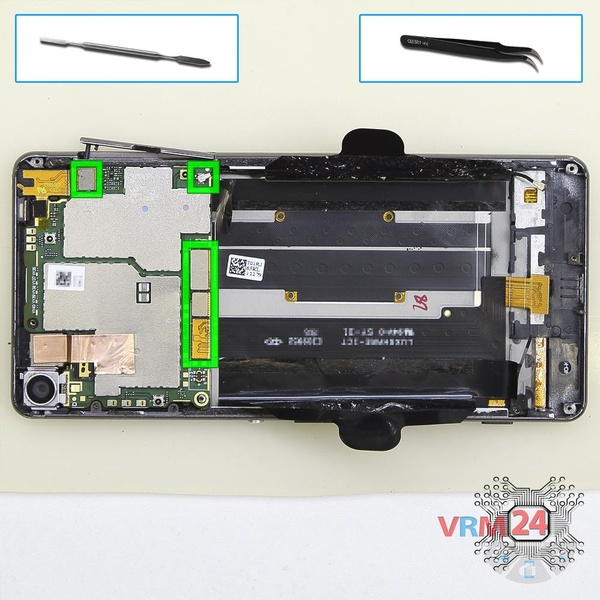

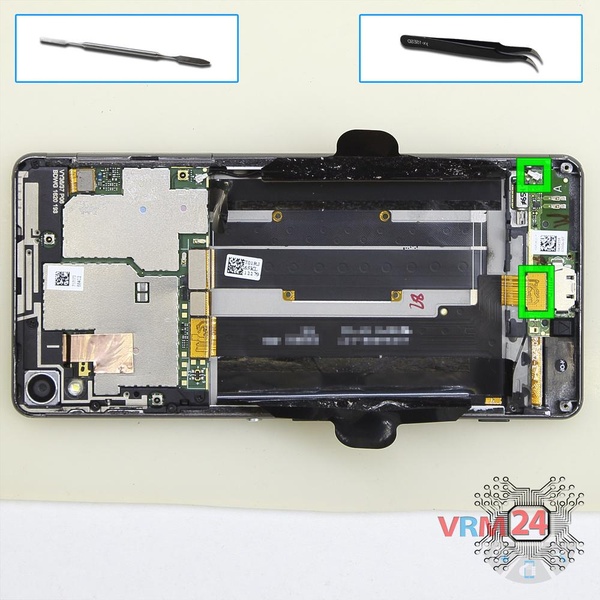

Disconnect connectors on the PCB.

How to disassemble Sony Xperia XA, Step 12/1 How to disassemble Sony Xperia XA, Step 12/2
Step 12

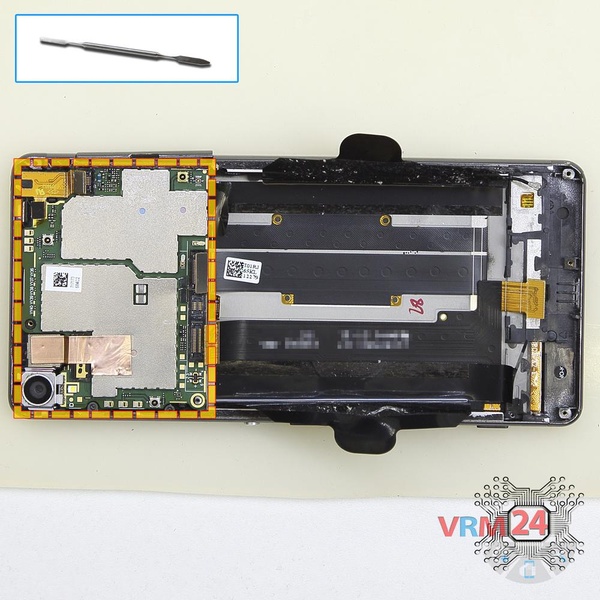

Remove the PCB.

How to disassemble Sony Xperia XA, Step 13/1 How to disassemble Sony Xperia XA, Step 13/2
Step 13

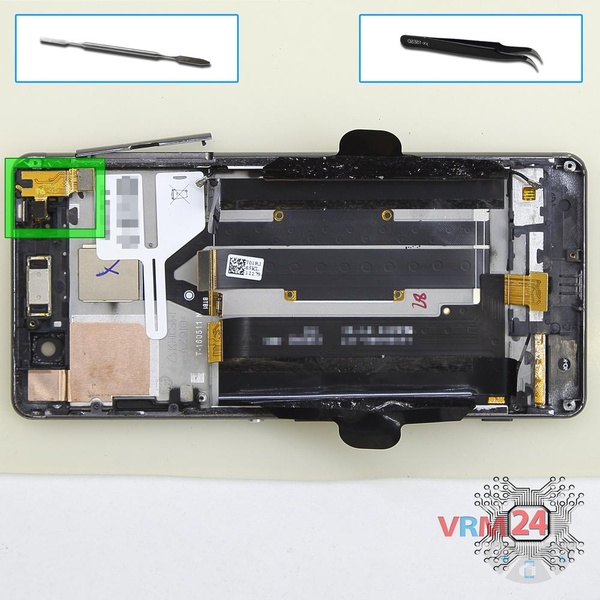

Pry and remove the cable with a headphone jack/socket and proximity sensor.

How to disassemble Sony Xperia XA, Step 14/1 How to disassemble Sony Xperia XA, Step 14/2
Step 14

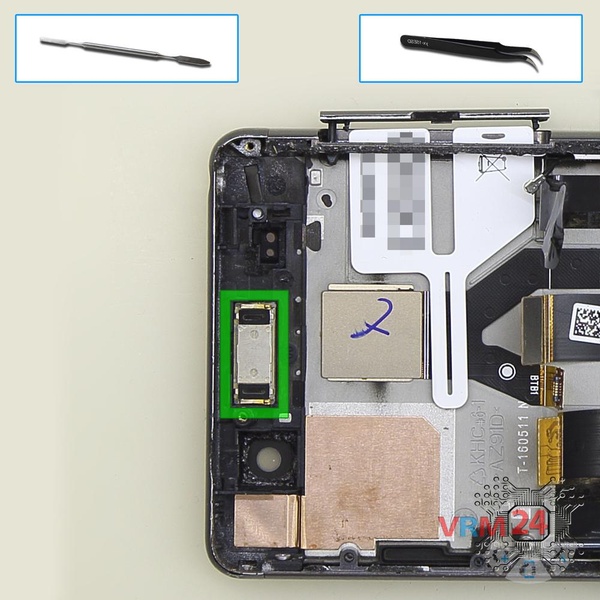

Pry and remove the earpiece (speaker).

How to disassemble Sony Xperia XA, Step 15/1 How to disassemble Sony Xperia XA, Step 15/2 How to disassemble Sony Xperia XA, Step 15/3
Step 15

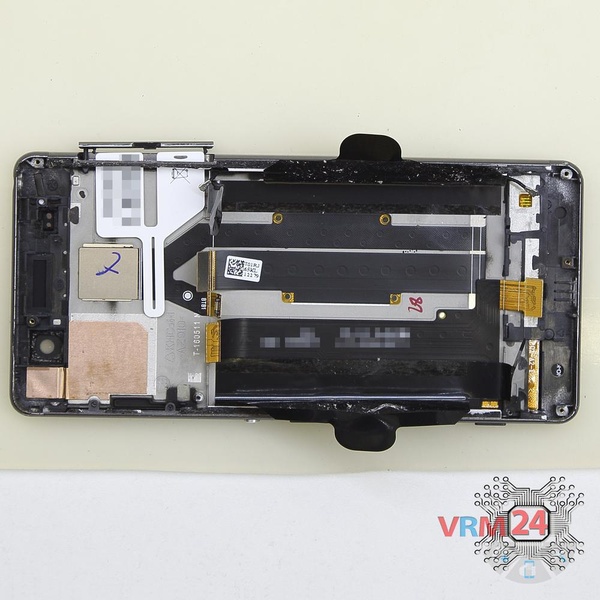

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia XA in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Sony Xperia XA — Sony Xperia XA F3111, F3112 released for markets in different countries.
