Teardown difficulty:
Hard
Duration:
14 min

Recommended tools

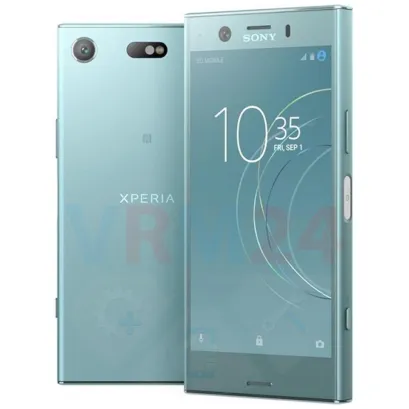

Disassembly of the mobile device Sony Xperia XZ1 Compact (Sony Xperia XZ1 Compact G8441) with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Sony Xperia XZ1 Compact, Step 1/1 How to disassemble Sony Xperia XZ1 Compact, Step 1/2

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Sony Xperia XZ1 Compact, Step 2/1 How to disassemble Sony Xperia XZ1 Compact, Step 2/2 How to disassemble Sony Xperia XZ1 Compact, Step 2/3

Step 2. Open the trays

Open the hatch hiding the trays of the SIM and Memory cards (Micro SD), and remove them.

ℹ️️ Remember the location for the SIM and Memory card (Micro SD) trays so that nothing is mixed up when reassembling.


How to disassemble Sony Xperia XZ1 Compact, Step 3/1 How to disassemble Sony Xperia XZ1 Compact, Step 3/2 How to disassemble Sony Xperia XZ1 Compact, Step 3/3 How to disassemble Sony Xperia XZ1 Compact, Step 3/4 How to disassemble Sony Xperia XZ1 Compact, Step 3/5 How to disassemble Sony Xperia XZ1 Compact, Step 3/6

Step 3. Open the display module

⚠️ Pay attention! Disassembly has a maximum 3rd difficulty because the process begins with the disassembly of the display module. If you have no experience or are not sure of your skills, we strongly recommend that you contact a specialized service center.

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the display module must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

The process can be seen in our video entirely so as well as in detail, at the end of the instructions.

⚠️ It is important not to get a film between the touchscreen/glass and the display module, this will damage the module.

⚠️ Look in advance at the picture of the places where the touchscreen and display cables pass under the display module to avoid accidental damage.


How to disassemble Sony Xperia XZ1 Compact, Step 4/1 How to disassemble Sony Xperia XZ1 Compact, Step 4/2 How to disassemble Sony Xperia XZ1 Compact, Step 4/3

Step 4. Remove the bracket

Remove the bracket holding the display module connector.


How to disassemble Sony Xperia XZ1 Compact, Step 5/1 How to disassemble Sony Xperia XZ1 Compact, Step 5/2 How to disassemble Sony Xperia XZ1 Compact, Step 5/3 How to disassemble Sony Xperia XZ1 Compact, Step 5/4

Step 5. Disconnect the connector

Disconnect the connector and remove the display module with an earpiece speaker.


How to disassemble Sony Xperia XZ1 Compact, Step 6/1 How to disassemble Sony Xperia XZ1 Compact, Step 6/2

Step 6. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 3 screws.


How to disassemble Sony Xperia XZ1 Compact, Step 7/1 How to disassemble Sony Xperia XZ1 Compact, Step 7/2 How to disassemble Sony Xperia XZ1 Compact, Step 7/3 How to disassemble Sony Xperia XZ1 Compact, Step 7/4

Step 7. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 9 black screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Sony Xperia XZ1 Compact, Step 8/1 How to disassemble Sony Xperia XZ1 Compact, Step 8/2 How to disassemble Sony Xperia XZ1 Compact, Step 8/3

Step 8. Open the cover

Remove the middle cover.


How to disassemble Sony Xperia XZ1 Compact, Step 9/1

Step 9. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The Sony Xperia XZ1 Compact model has a battery LIP1648ERPC with 2700 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Sony Xperia XZ1 Compact, Step 10/1 How to disassemble Sony Xperia XZ1 Compact, Step 10/2 How to disassemble Sony Xperia XZ1 Compact, Step 10/3

Step 10. Disconnect the connector

Disconnect the front (selfie) camera connector.


How to disassemble Sony Xperia XZ1 Compact, Step 11/1 How to disassemble Sony Xperia XZ1 Compact, Step 11/2 How to disassemble Sony Xperia XZ1 Compact, Step 11/3 How to disassemble Sony Xperia XZ1 Compact, Step 11/4

Step 11. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 2 screws.


How to disassemble Sony Xperia XZ1 Compact, Step 12/1 How to disassemble Sony Xperia XZ1 Compact, Step 12/2

Step 12. Remove the bracket

Remove the bracket holding the front camera.


How to disassemble Sony Xperia XZ1 Compact, Step 13/1 How to disassemble Sony Xperia XZ1 Compact, Step 13/2 How to disassemble Sony Xperia XZ1 Compact, Step 13/3

Step 13. Remove the bracket

Remove the charging port bracket.


How to disassemble Sony Xperia XZ1 Compact, Step 14/1 How to disassemble Sony Xperia XZ1 Compact, Step 14/2 How to disassemble Sony Xperia XZ1 Compact, Step 14/3

Step 14. Open the cover

Remove the cover with antennas.


How to disassemble Sony Xperia XZ1 Compact, Step 15/1 How to disassemble Sony Xperia XZ1 Compact, Step 15/2 How to disassemble Sony Xperia XZ1 Compact, Step 15/3

Step 15. Disconnect the connectors

Pry up the connectors of the power and volume buttons cable, headphone jack socket, charging port.


How to disassemble Sony Xperia XZ1 Compact, Step 16/1 How to disassemble Sony Xperia XZ1 Compact, Step 16/2 How to disassemble Sony Xperia XZ1 Compact, Step 16/3

Step 16. Remove the PCB

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Sony Xperia XZ1 Compact, Step 17/1 How to disassemble Sony Xperia XZ1 Compact, Step 17/2 How to disassemble Sony Xperia XZ1 Compact, Step 17/3 How to disassemble Sony Xperia XZ1 Compact, Step 17/4

Step 17. Remove the loudspeaker

Carefully remove the assembly with a charging port and loudspeaker.


How to disassemble Sony Xperia XZ1 Compact, Step 18/1 How to disassemble Sony Xperia XZ1 Compact, Step 18/2 How to disassemble Sony Xperia XZ1 Compact, Step 18/3

Step 18. Remove the charging port

Carefully remove the charging port.


How to disassemble Sony Xperia XZ1 Compact, Step 19/1 How to disassemble Sony Xperia XZ1 Compact, Step 19/2

Step 19. Remove the front camera

Disconnect the connector and remove the front (selfie) camera.


How to disassemble Sony Xperia XZ1 Compact, Step 20/1 How to disassemble Sony Xperia XZ1 Compact, Step 20/2

Step 20. Remove the frame

Remove the frame securing the rear camera.


How to disassemble Sony Xperia XZ1 Compact, Step 21/1 How to disassemble Sony Xperia XZ1 Compact, Step 21/2 How to disassemble Sony Xperia XZ1 Compact, Step 21/3

Step 21. Remove the rear camera

Disconnect the connector and remove the rear camera.

Detailed disassembly instructions of Sony Xperia XZ1 Compact in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has hard complexity and takes about 14 minutes in time. Our manual is suitable for all models Sony Xperia XZ1 Compact — Sony Xperia XZ1 Compact G8441 released for markets in different countries.
