Disassembly/Repair of the mobile device Sony Xperia Z5 Compact (Sony Xperia Z5 Compact E5823, E5803) with each step description and the required set of tools.
Views
Likes
Share
Questions
Step 1.

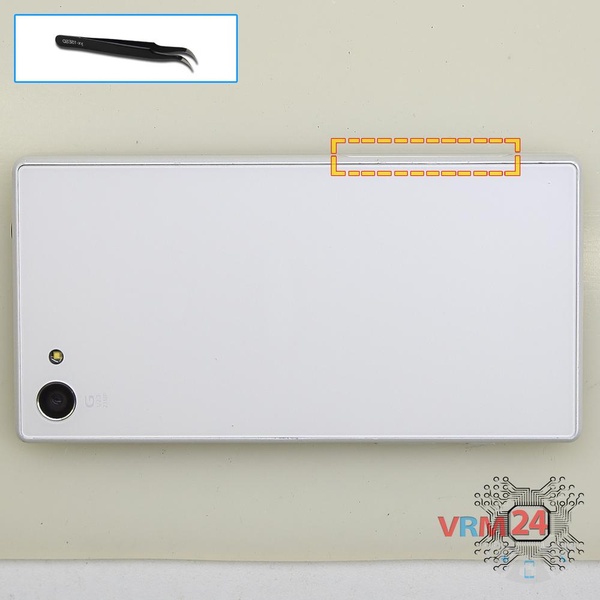

Open the hatch hiding the trays of the SIM and Memory cards (Micro SD), and remove them.

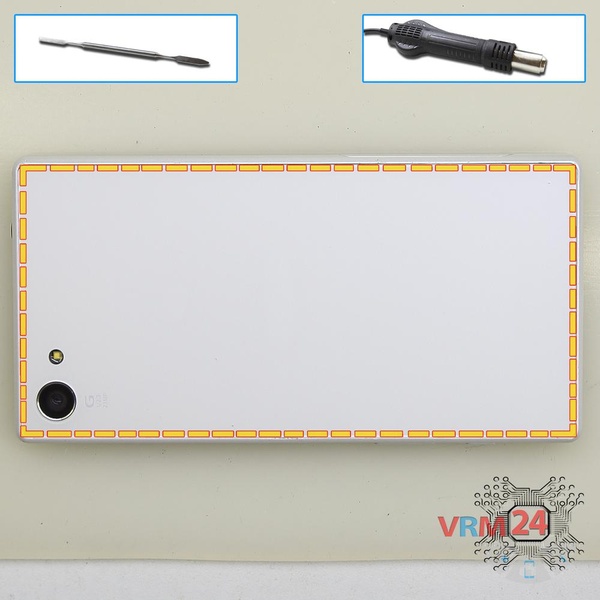

Step 2.
We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.
ℹ️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.
Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.
Do not use a lever or any force for separation that could damage the elements inside.

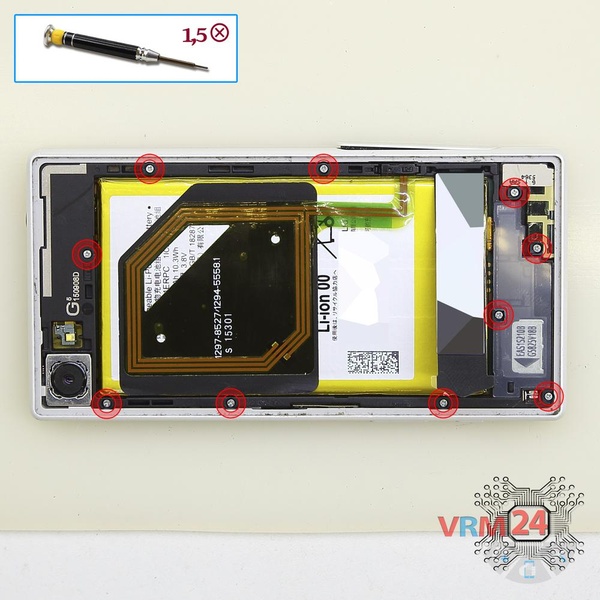

Step 3.
Using a screwdriver Phillips 1.5 mm (PH #000), unscrew the ten screws.
Step 4.

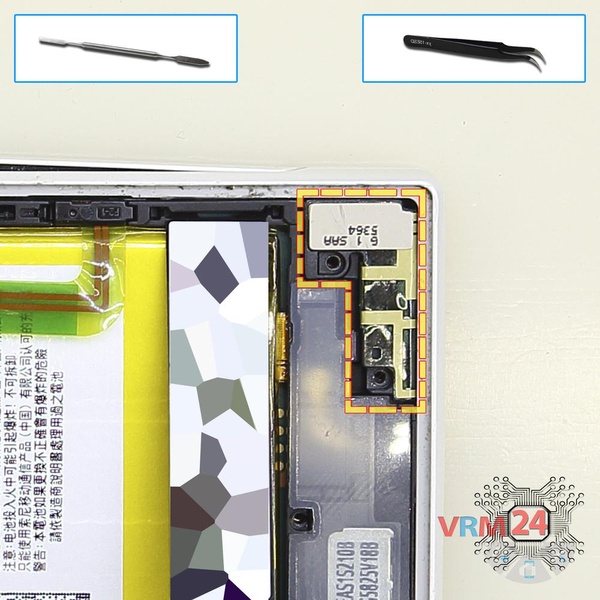

Pry over the edge and remove the cover with antenna tracks.

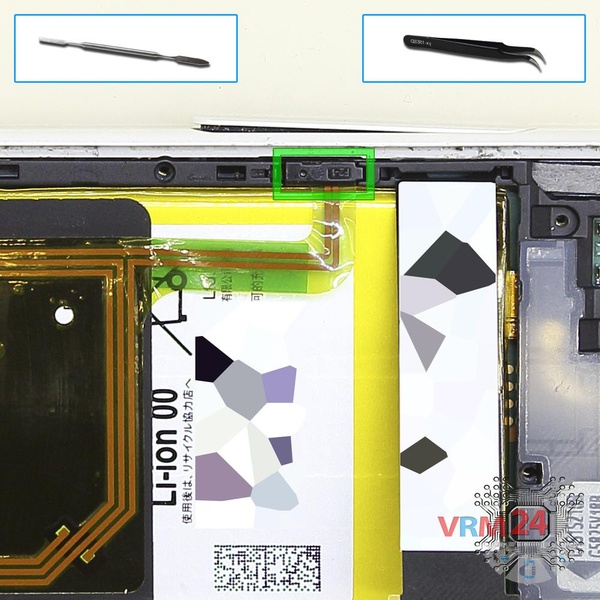

Step 5.
Pry up the NFC cable connector.
Step 6.

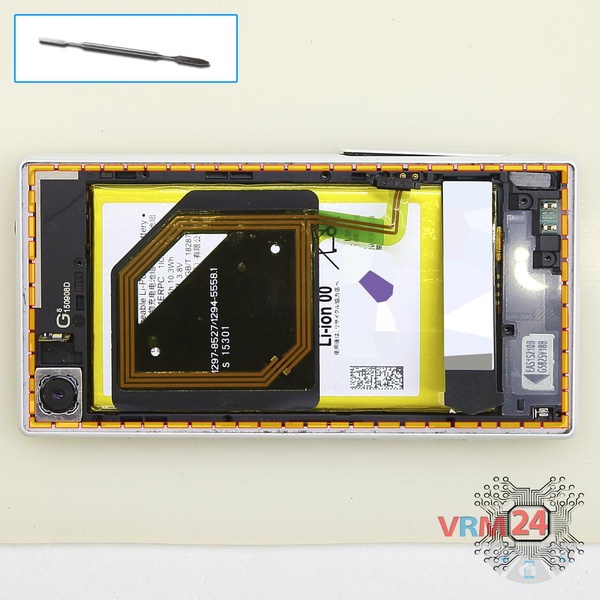

Pry over the edges. Move an opening tool along the edge detach the clips and remove the middle cover. The middle cover protects the printed circuit board (PCB).
Try to lift the cover by the edges and don't push anything too far inside, so as not to accidentally break or short-circuit anything on the circuit board.
Step 7.

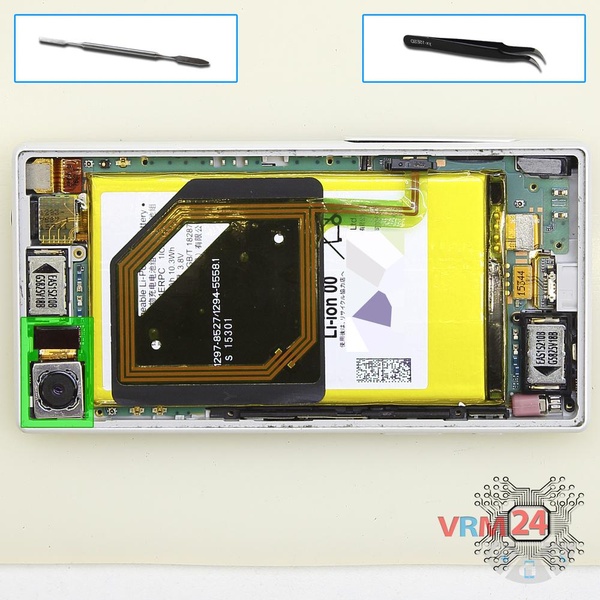

Disconnect the connector on the motherboard , and remove the main camera.

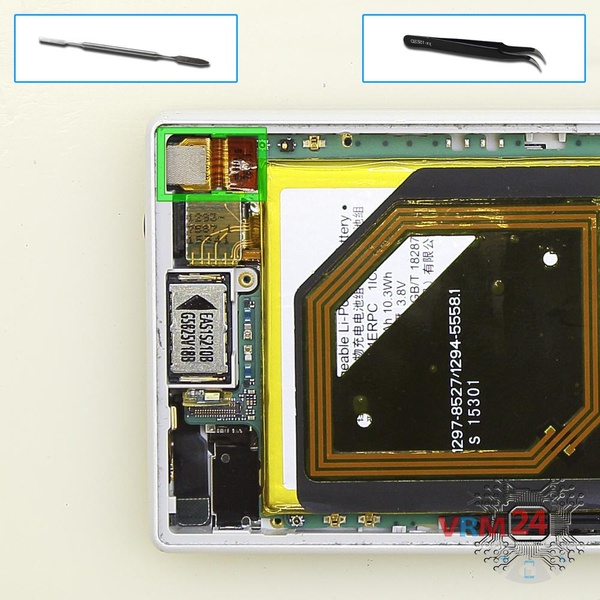

Step 8.
Disconnect the connector on the motherboard, and remove the front (selfie) camera.
Step 9.

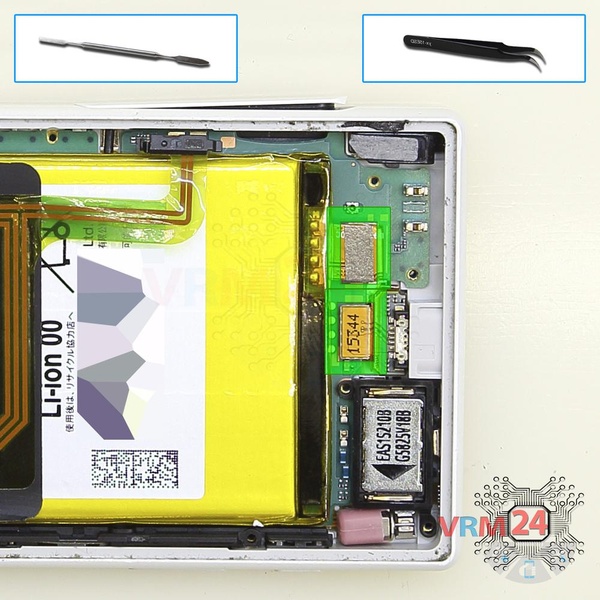

Disconnect the connectors of the charging port and and battery.
Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.
ℹ️ The Sony Xperia Z5 Compact model has a battery LIS1594ERPC with 2600 mAh capacity (aka rechargeable battery).

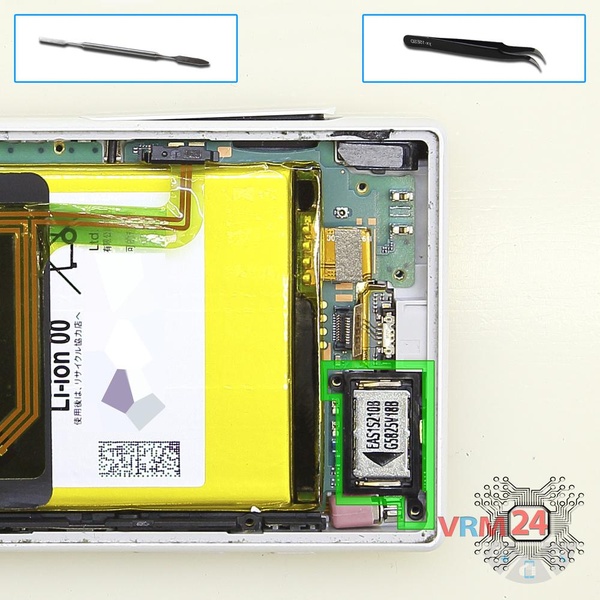

Step 10.
Pry over the edge and remove the loudspeaker.
Step 11.
Hook at the edge and remove the side bar.

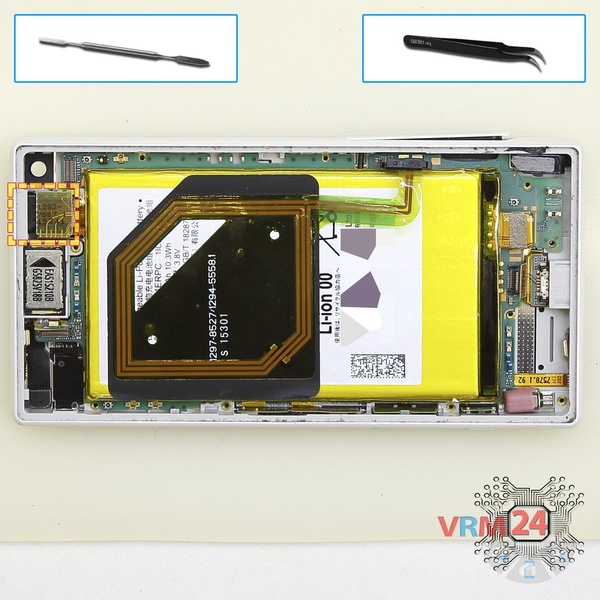

Step 12.
Pry out the headphone jack socket.

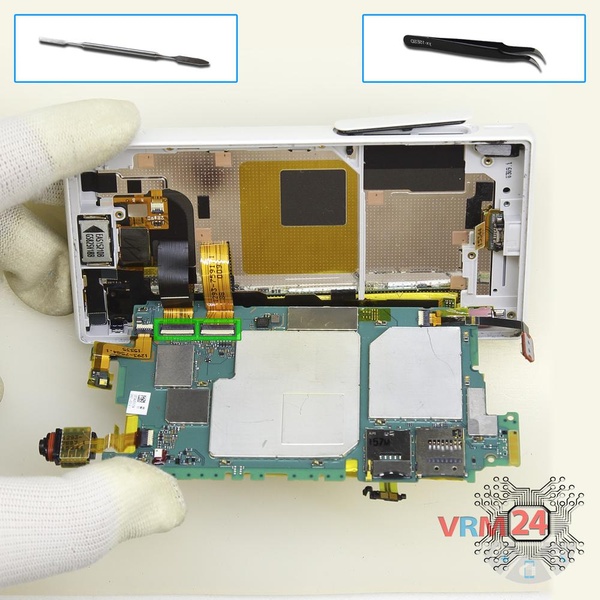

Step 13.
Turn over the motherboard, disconnect the connectors of the display cable, under-screen cable from the inside and remove the motherboard.
Step 14.

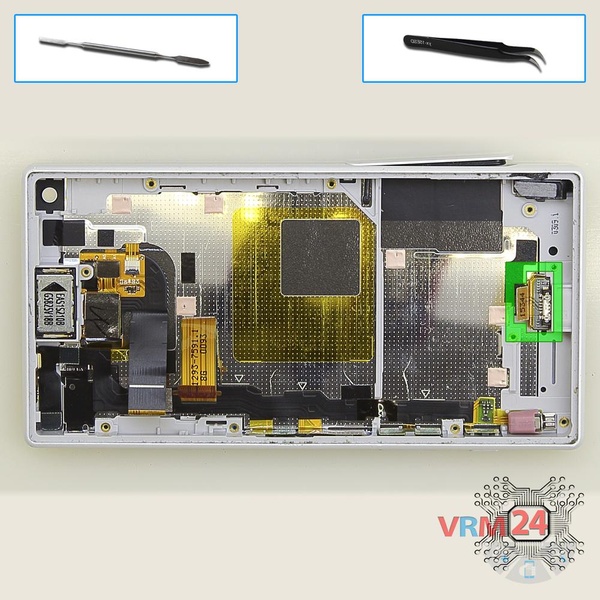

Pry over the edge and remove the charging port.
Step 15.

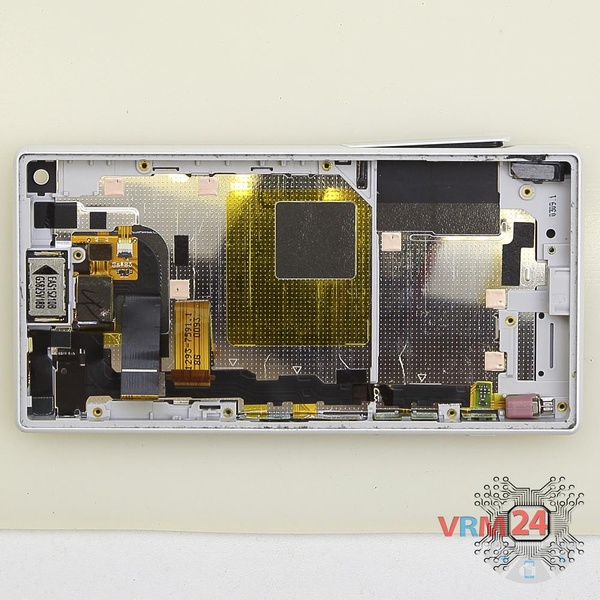

ℹ️ In the display frame remained: the earpiece speaker, vibration motor.
