Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

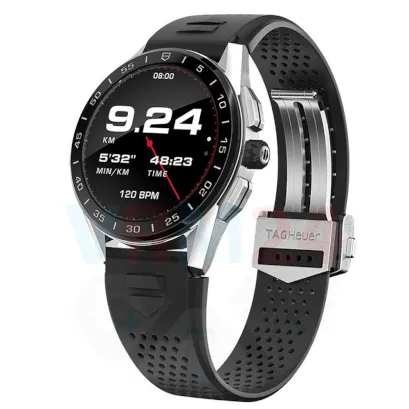

Disassembly of the mobile device TAG Heuer Connected 2020 with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble TAG Heuer Connected 2020, Step 1/1 How to disassemble TAG Heuer Connected 2020, Step 1/2

Step 1. Before disassembling!

⚠ī¸ Before disassembling, do not forget to turn your watch off.


How to disassemble TAG Heuer Connected 2020, Step 2/1 How to disassemble TAG Heuer Connected 2020, Step 2/2 How to disassemble TAG Heuer Connected 2020, Step 2/3

Step 2. Unfasten the strap

Unfasten the metal bracelet.


How to disassemble TAG Heuer Connected 2020, Step 3/1 How to disassemble TAG Heuer Connected 2020, Step 3/2 How to disassemble TAG Heuer Connected 2020, Step 3/3

Step 3. Unscrew the screws

Using a flat-head screwdriver, unscrew the 4 screws.


How to disassemble TAG Heuer Connected 2020, Step 4/1 How to disassemble TAG Heuer Connected 2020, Step 4/2 How to disassemble TAG Heuer Connected 2020, Step 4/3 How to disassemble TAG Heuer Connected 2020, Step 4/4 How to disassemble TAG Heuer Connected 2020, Step 4/5

Step 4. Open the back cover

Open the back cover.

⚠ī¸ Look in advance in the picture for the location of the cables for inter-board, touchscreen, display, buttons (if any) under the cover to not damage them accidentally.


How to disassemble TAG Heuer Connected 2020, Step 5/1 How to disassemble TAG Heuer Connected 2020, Step 5/2 How to disassemble TAG Heuer Connected 2020, Step 5/3 How to disassemble TAG Heuer Connected 2020, Step 5/4

Step 5. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹī¸ī¸ The TAG Heuer Connected 2020 SBG8A model has a battery B810 with 430 mAh capacity (aka rechargeable battery).

⚠ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

Disconnector the sensor connector and remove the back cover.


How to disassemble TAG Heuer Connected 2020, Step 6/1 How to disassemble TAG Heuer Connected 2020, Step 6/2 How to disassemble TAG Heuer Connected 2020, Step 6/3

Step 6. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 2 screws.


How to disassemble TAG Heuer Connected 2020, Step 7/1 How to disassemble TAG Heuer Connected 2020, Step 7/2 How to disassemble TAG Heuer Connected 2020, Step 7/3

Step 7. Remove the bracket

Bend the bracket cable with the microphone back.


How to disassemble TAG Heuer Connected 2020, Step 8/1 How to disassemble TAG Heuer Connected 2020, Step 8/2

Step 8. Disconnect the connectors

Disconnect two connectors (one of them to the display).


How to disassemble TAG Heuer Connected 2020, Step 9/1 How to disassemble TAG Heuer Connected 2020, Step 9/2

Step 9. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws.


How to disassemble TAG Heuer Connected 2020, Step 10/1 How to disassemble TAG Heuer Connected 2020, Step 10/2 How to disassemble TAG Heuer Connected 2020, Step 10/3

Step 10. Remove the PCB

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble TAG Heuer Connected 2020, Step 11/1 How to disassemble TAG Heuer Connected 2020, Step 11/2 How to disassemble TAG Heuer Connected 2020, Step 11/3

Step 11. Remove the buttons

Disconnect the connector and remove the side buttons assembly.

Detailed disassembly instructions of TAG Heuer Connected 2020 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 12 minutes in time. Our manual is suitable for all models TAG Heuer Connected 2020 released for markets in different countries.
