Disassembly/Repair of the mobile device uleFone T1 with each step description and the required set of tools.

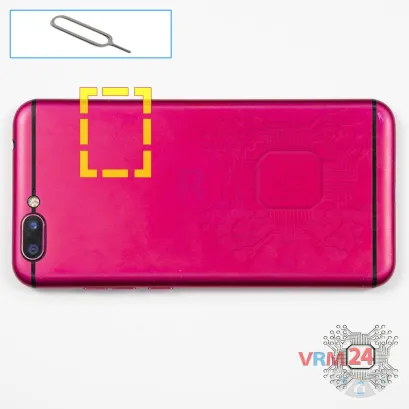

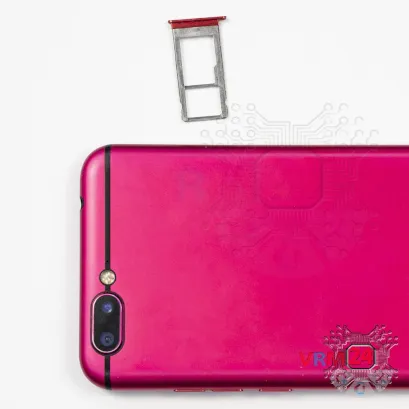

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

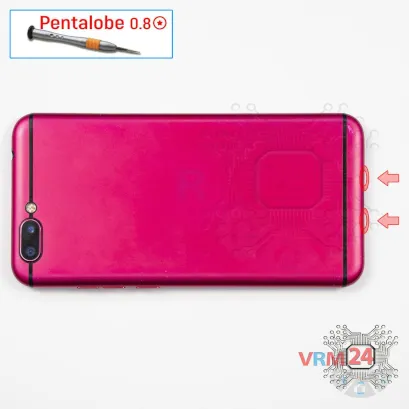

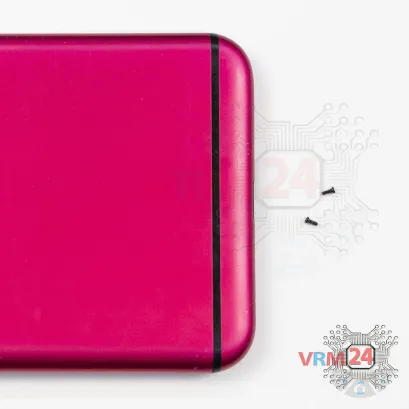

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive two screws out at the end of the phone.

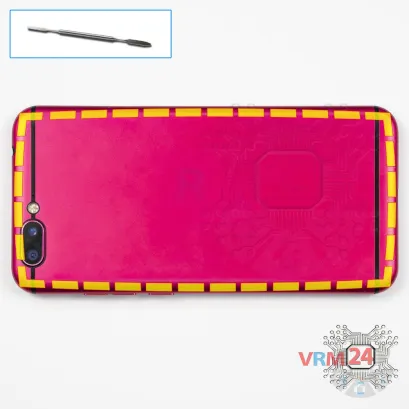

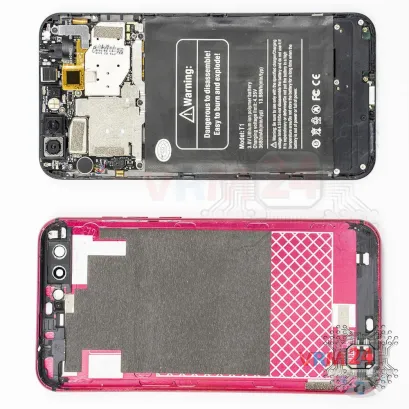

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

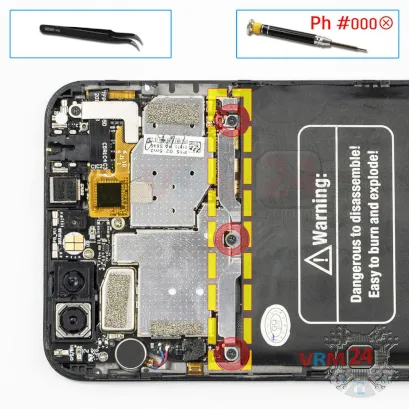

Using a Phillips 1.5 mm screwdriver (PH #000), unscrew the three screws and remove the bracket holding the connectors.

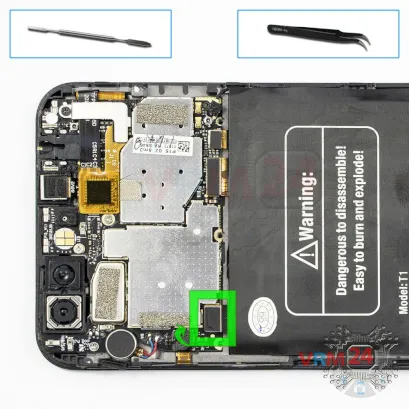

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The uleFone T1 model has a battery with 3680 mAh capacity (aka rechargeable battery).

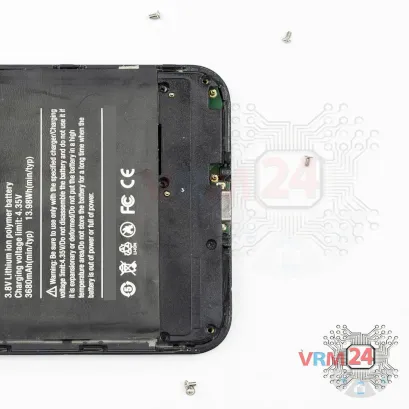

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the five screws.

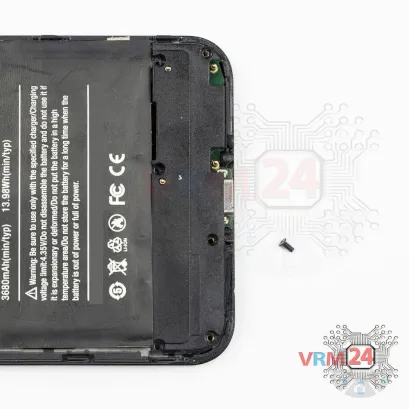

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew one large screw.

If the screws are different: ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

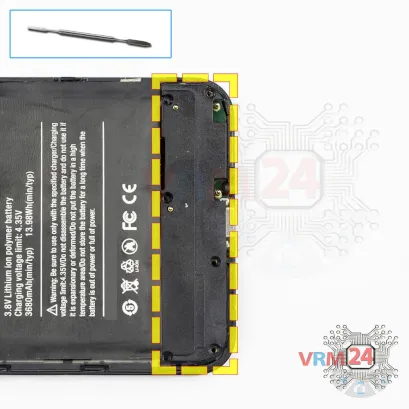

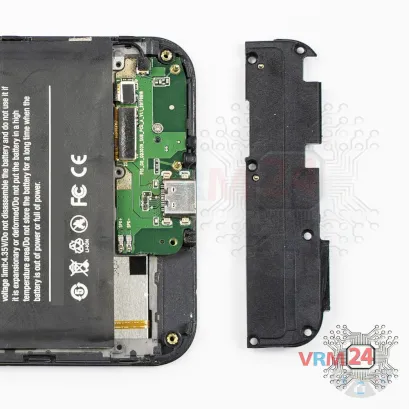

Pry over the edge and remove the cover with a loudspeaker.

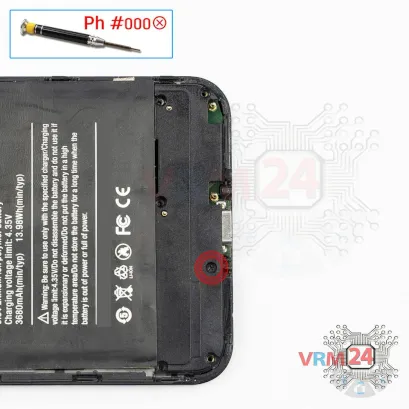

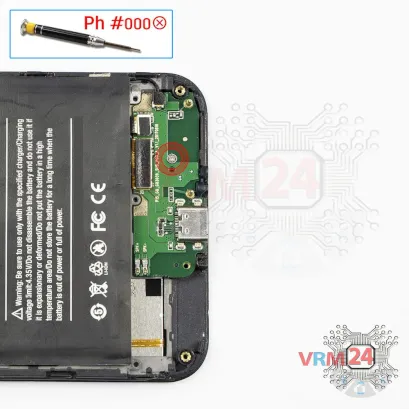

Using a Philips 1.5 mm screwdriver (PH #000), unscrew one screw securing the sub-board.

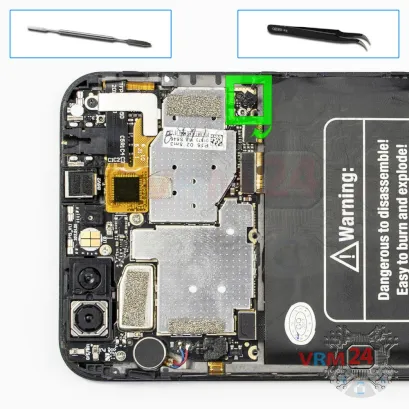

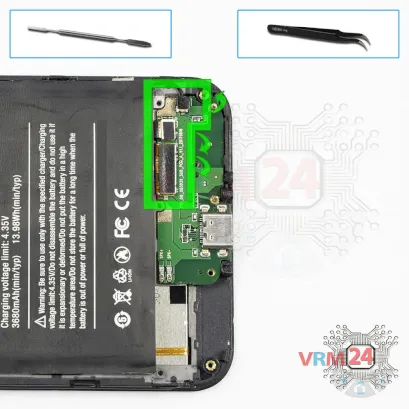

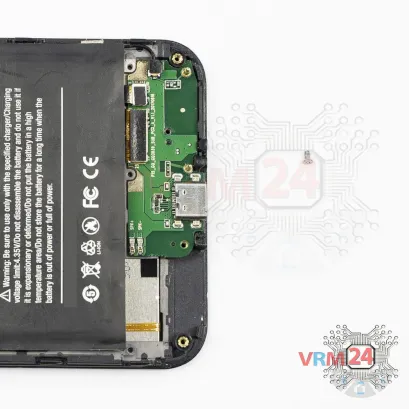

Disconnect the coaxial cable connector, two inter-board cable connectors.

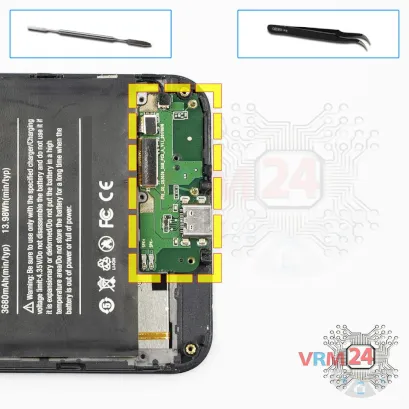

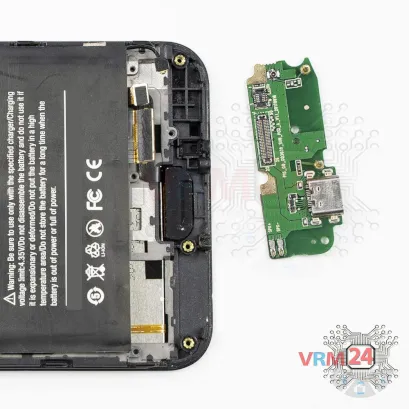

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

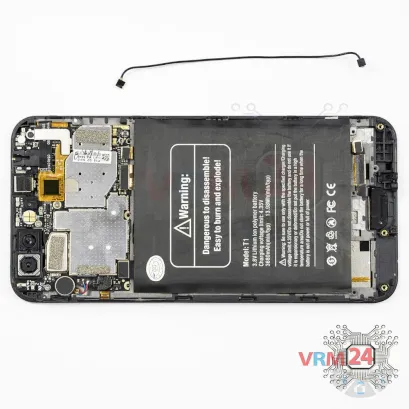

Pry up the connector and remove the coaxial cable.

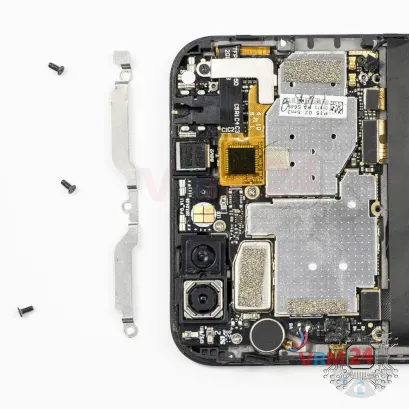

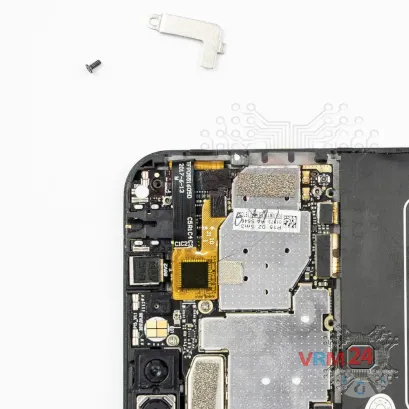

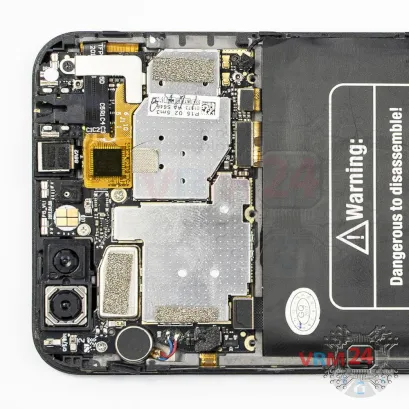

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew one screw and remove the bracket.

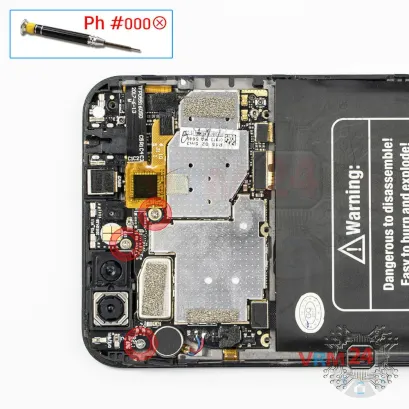

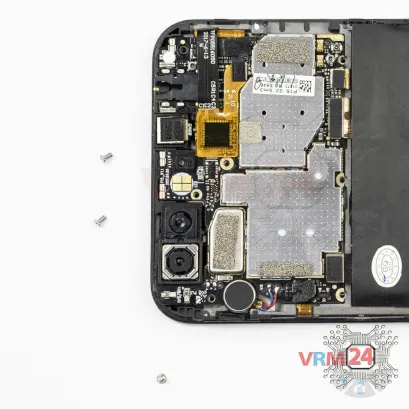

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the three screws securing the motherboard.

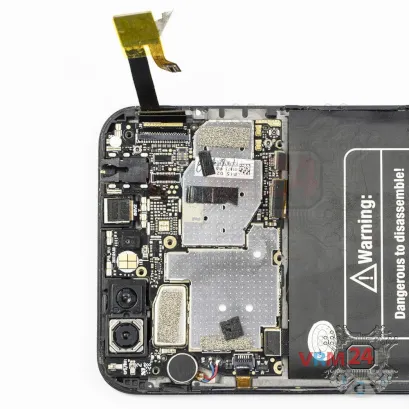

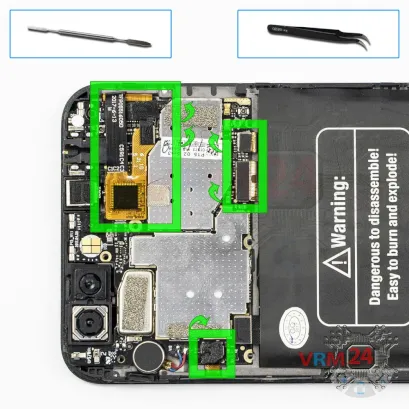

Pry up the connectors of the side buttons cable, display cable, touchscreen cable, two inter-board cables.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

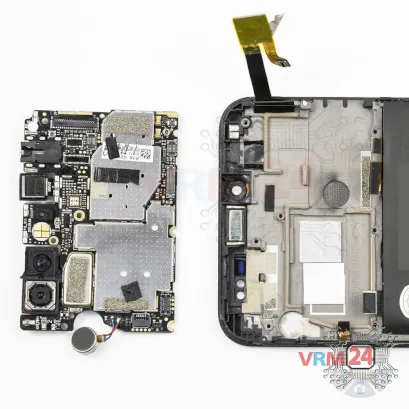

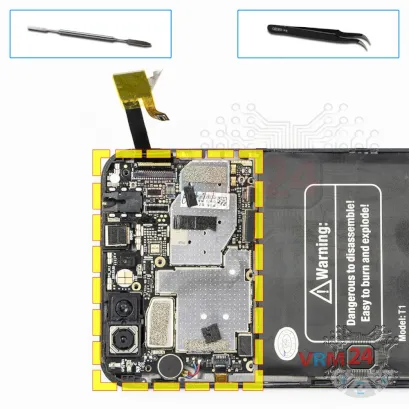

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

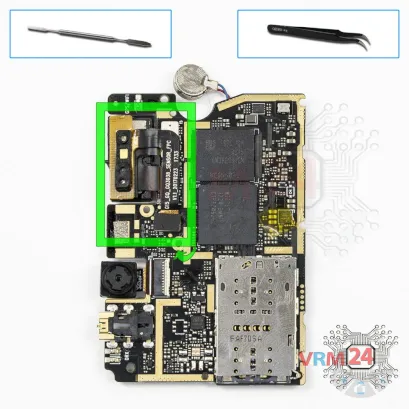

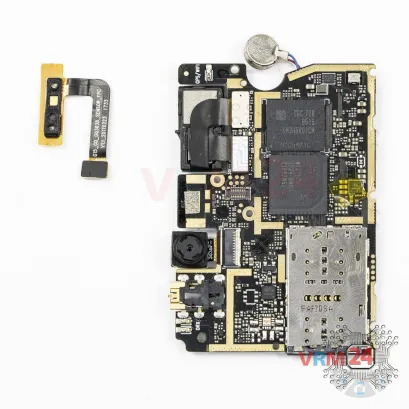

Pry up the connector and remove the proximity sensor.

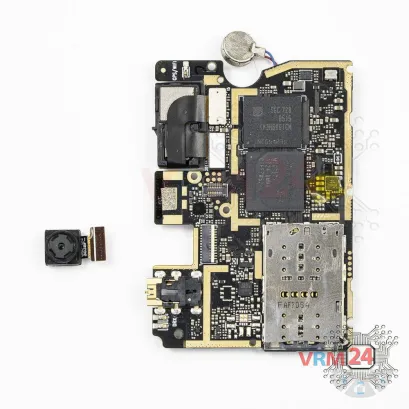

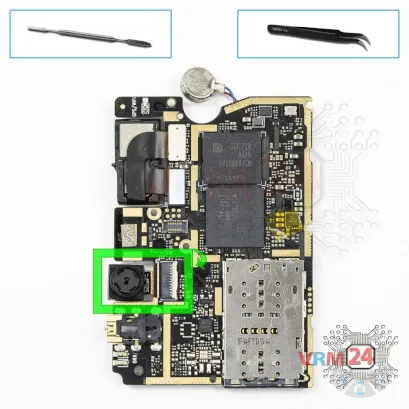

Disconnect the connector on the motherboard, and remove the front (selfie) camera.

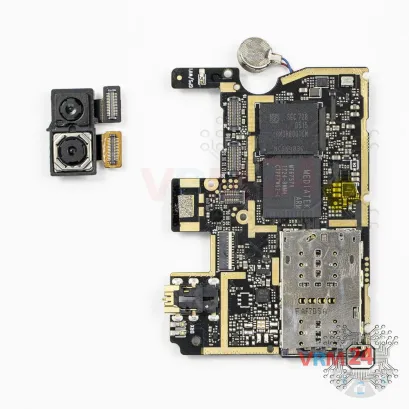

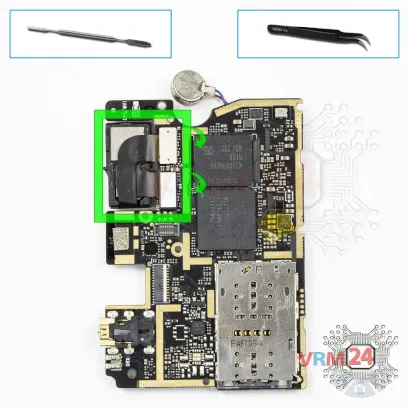

Disconnect connectors on the motherboard, and remove the assembly of the two rear cameras.
