Disassembly/Repair of the mobile device vivo V9 Youth with each step description and the required set of tools.

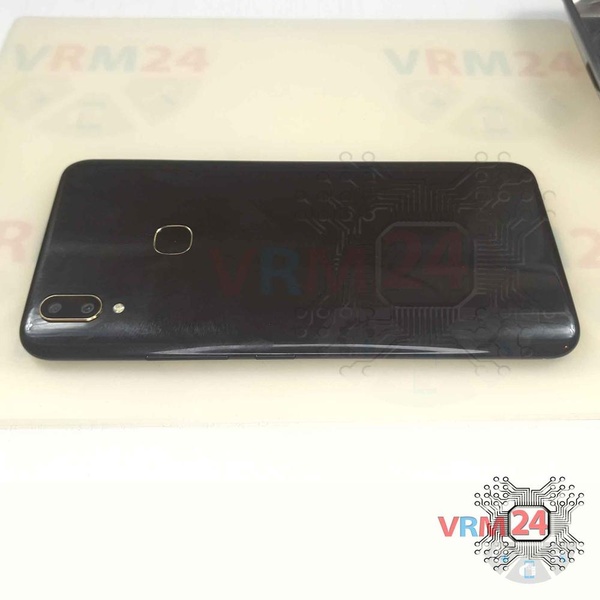

⚠️ Before disassembling, do not forget to turn your phone off.

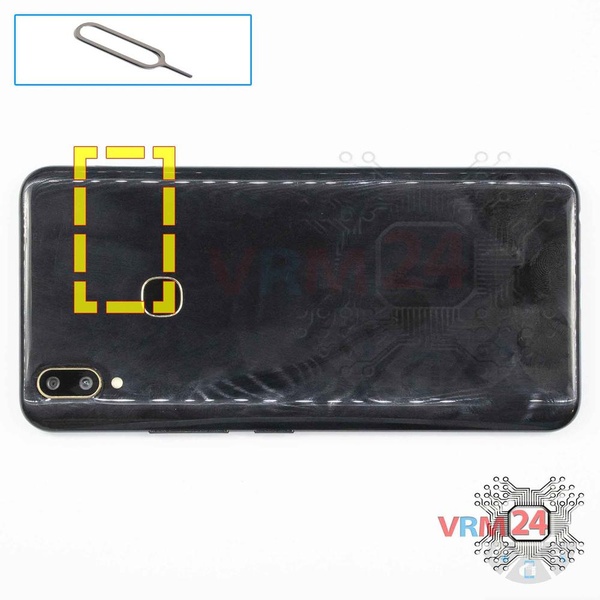

Use an ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

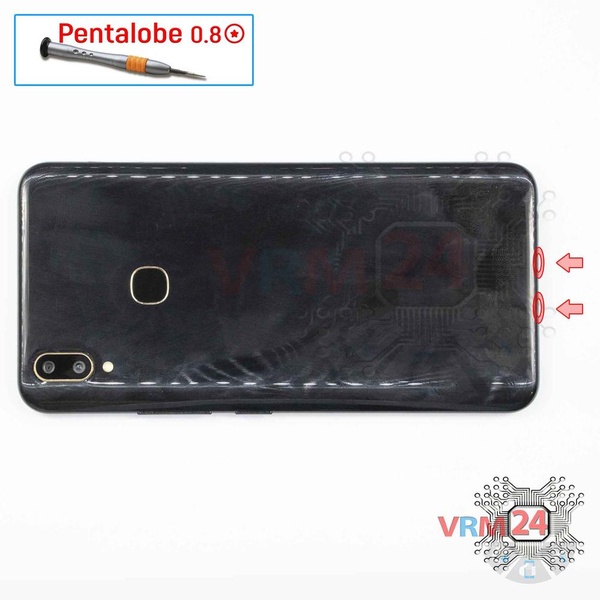

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive 2 screws out at the end of the phone.

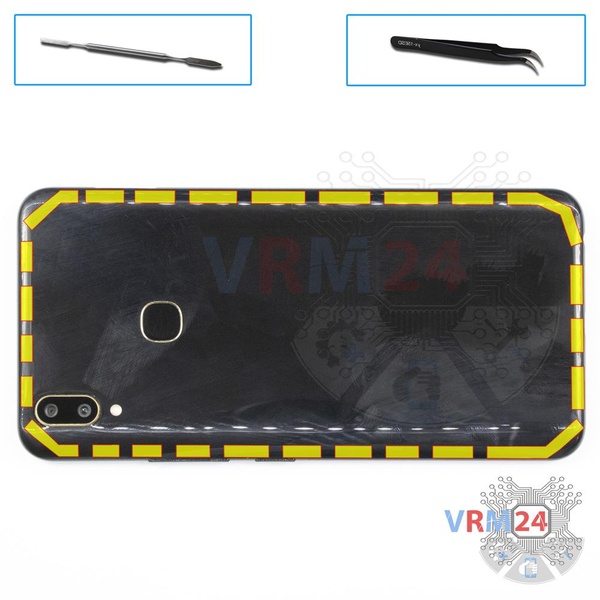

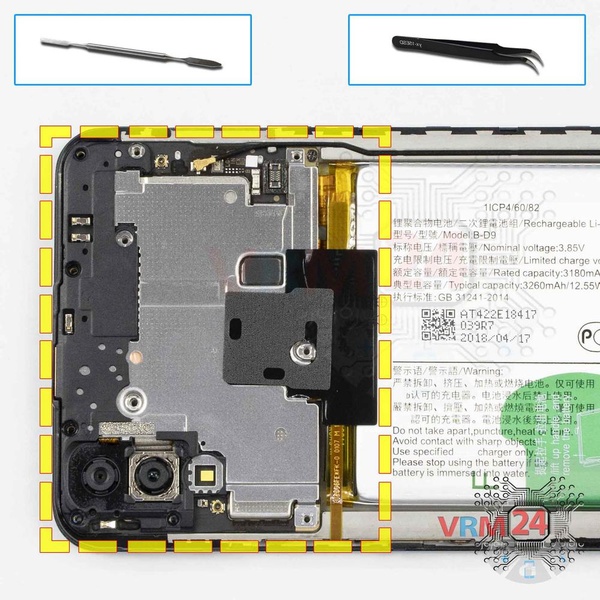

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

⚠️ Look in advance in the picture for the cables’ location for inter-board, touchscreen, display, buttons (if any) under the cover to not damage them accidentally.

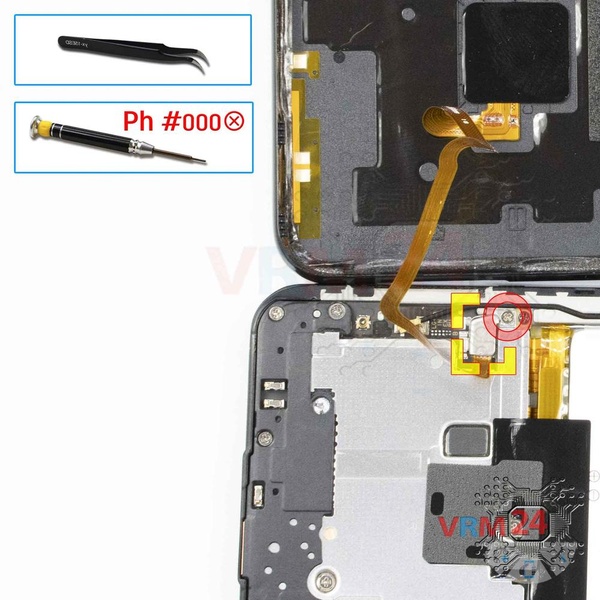

Using a screwdriver (Phillips 1.5 mm PH000), unscrew one screw and remove the bracket holding the connector.

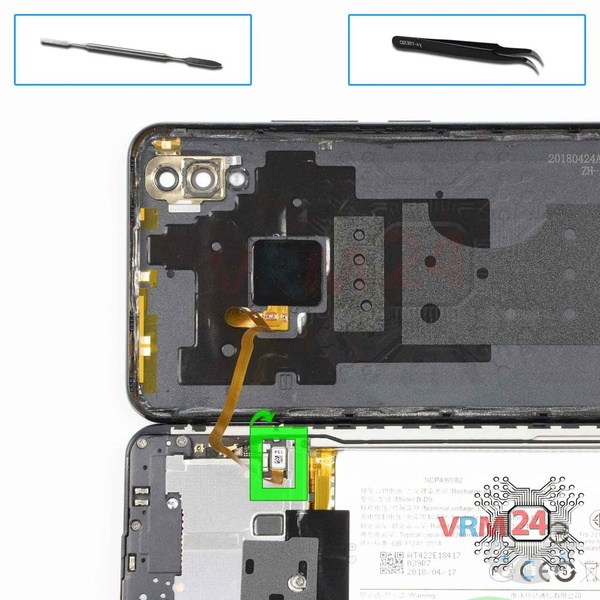

Disconnect the fingerprint sensor connector and remove the cover.

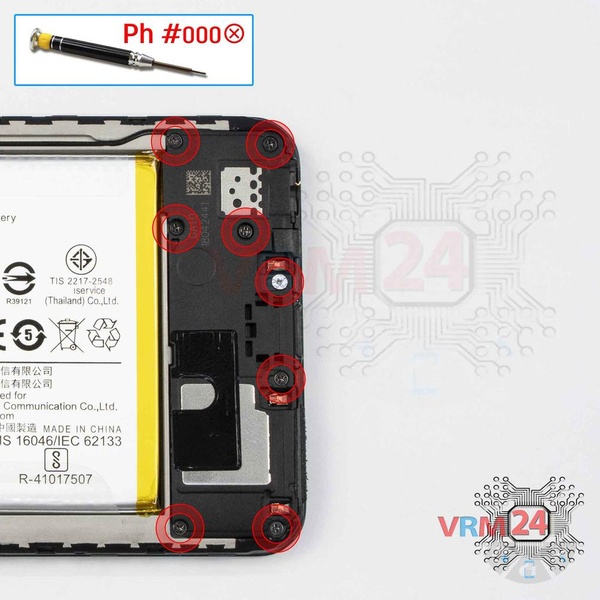

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 screws.

Remove the cover with antennas that protect the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.

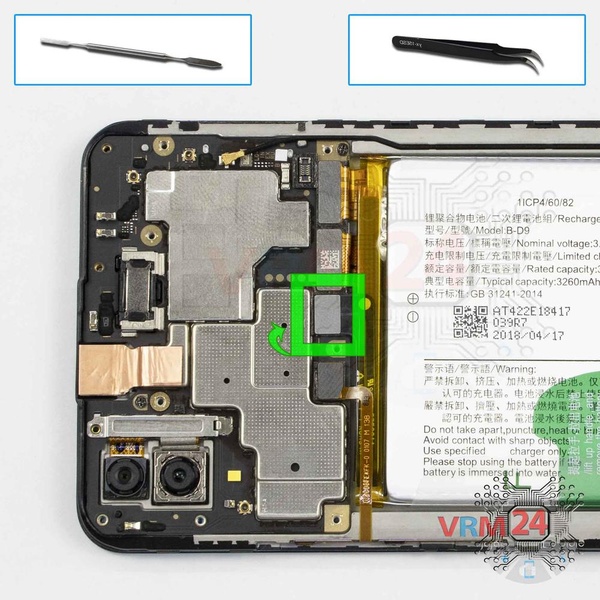

Disconnect the battery connector as soon as possible.

ℹ️️ The vivo V9 Youth model has a battery B-D9 with 3260 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

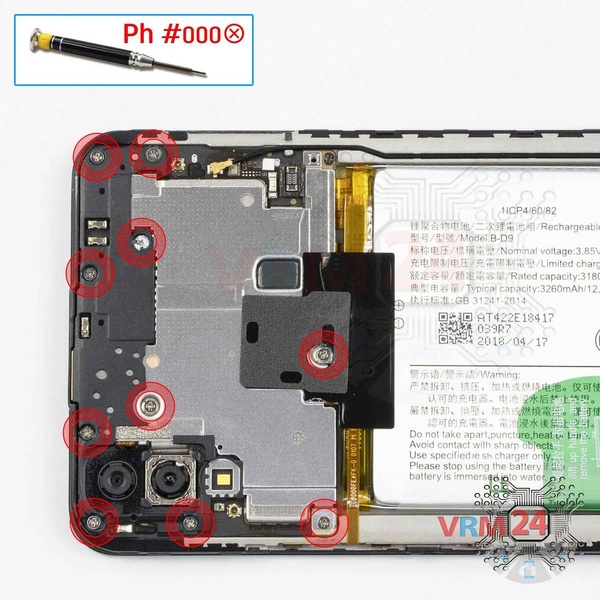

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 screws.

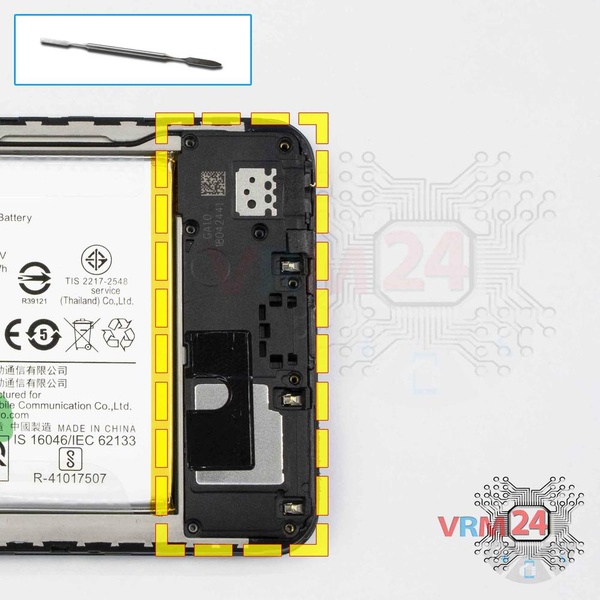

Remove the loudspeaker assembly with antennas.

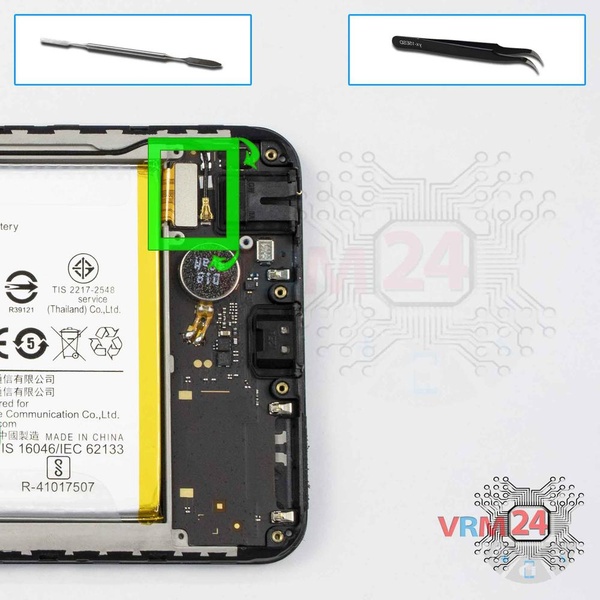

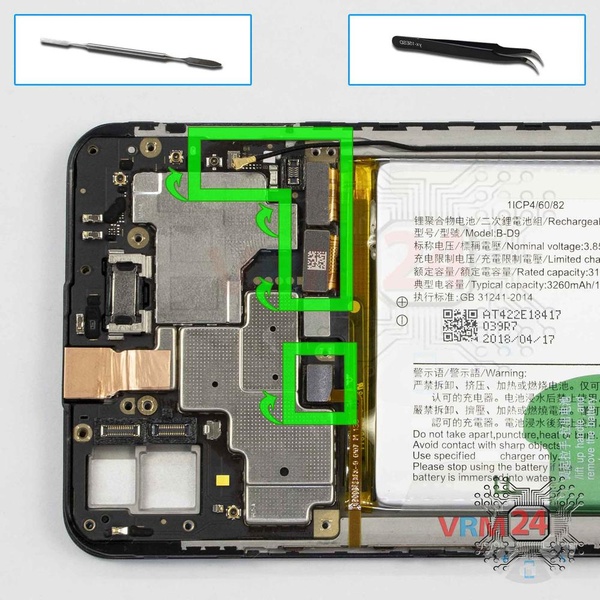

Disconnect the coaxial cable connector, cables to the mainboard, on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

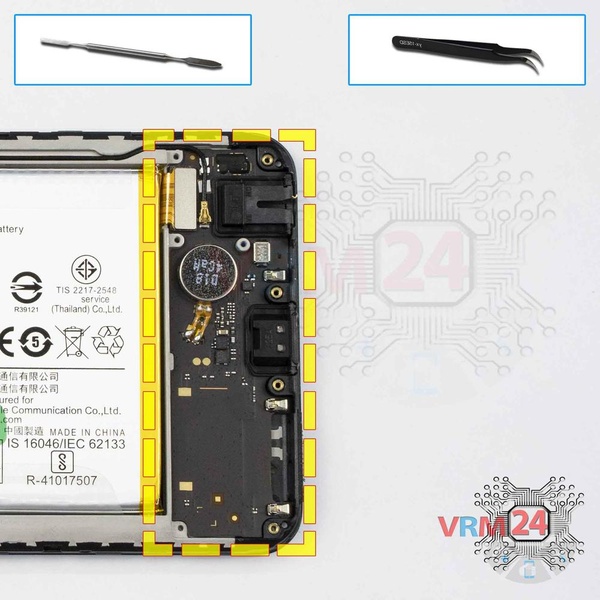

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹ️️ The board contains a charging port (Micro USB), microphone, vibration motor, headphone jack socket, spring contacts for the speaker, and an antenna unit.

⚠️ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.

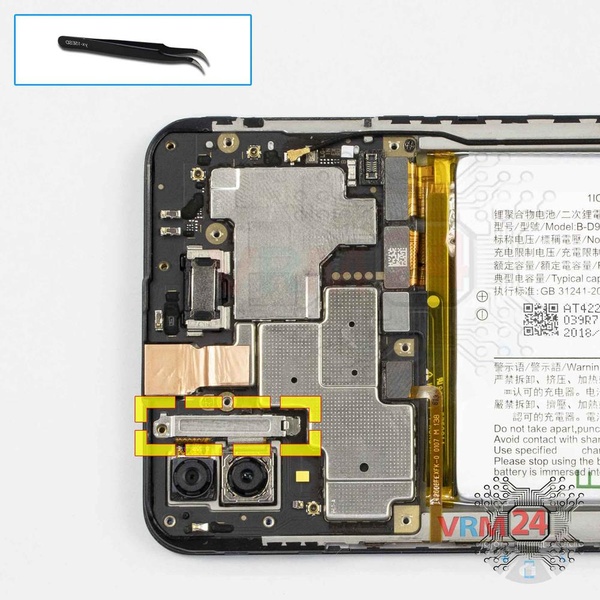

Remove the bracket holding camera connectors.

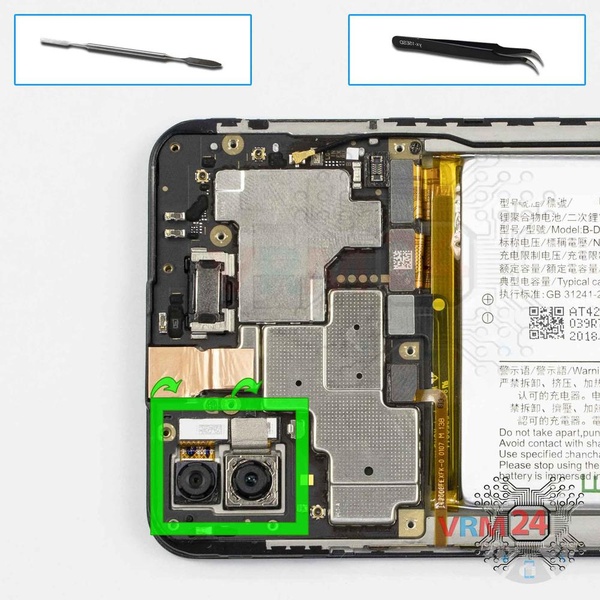

Disconnect the connectors and remove two rear cameras.

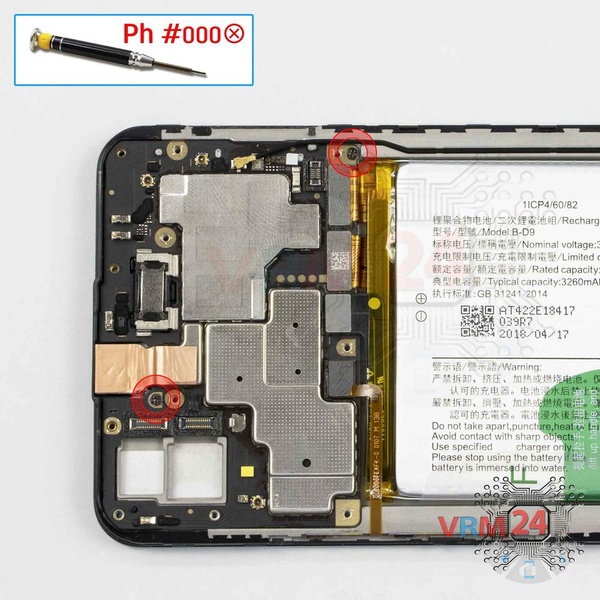

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws.

Disconnect the coaxial cable connector, side buttons cable connector, connector to the mainboard, and inter-board sub-screen cable connector on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

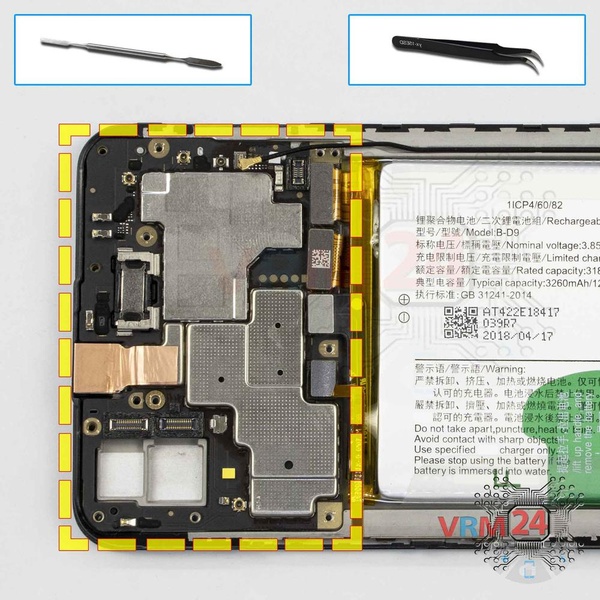

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

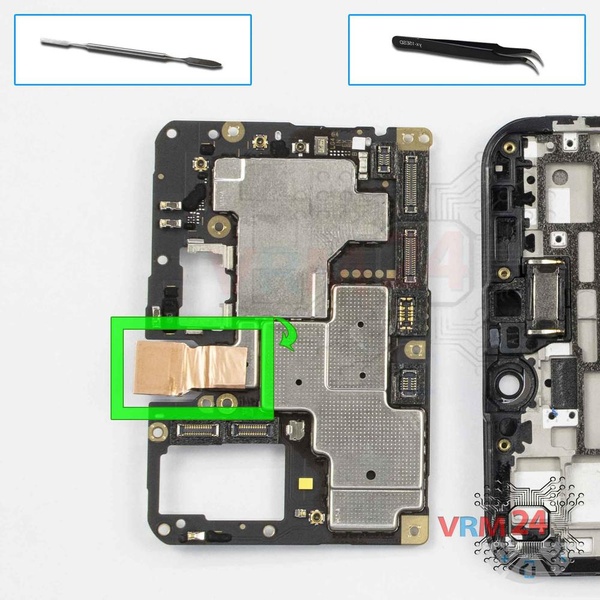

Disconnect the connector and remove the front (selfie) camera.
