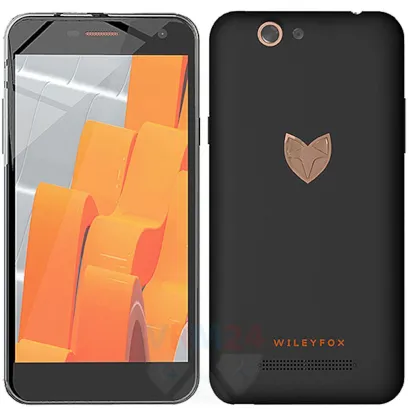

Wileyfox Spark
Wileyfox Spark 920 0
Teardown difficulty:
Easy

Recommended tools

Disassembly of the mobile device Wileyfox Spark with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Wileyfox Spark, Step 1/1 How to disassemble Wileyfox Spark, Step 1/2
Step 1

Open the back cover.

How to disassemble Wileyfox Spark, Step 2/1 How to disassemble Wileyfox Spark, Step 2/2
Step 2

Lift and remove the battery.

How to disassemble Wileyfox Spark, Step 3/1 How to disassemble Wileyfox Spark, Step 3/2
Step 3

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Wileyfox Spark, Step 4/1 How to disassemble Wileyfox Spark, Step 4/2
Step 4

Pry and remove the middle frame.

How to disassemble Wileyfox Spark, Step 5/1 How to disassemble Wileyfox Spark, Step 5/2
Step 5

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Wileyfox Spark, Step 6/1 How to disassemble Wileyfox Spark, Step 6/2
Step 6

Peel back the protective layer.

Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Wileyfox Spark, Step 7/1 How to disassemble Wileyfox Spark, Step 7/2
Step 7

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble Wileyfox Spark, Step 8/1 How to disassemble Wileyfox Spark, Step 8/2
Step 8

Disconnect connector on the PCB and remove the main camera.

How to disassemble Wileyfox Spark, Step 9/1 How to disassemble Wileyfox Spark, Step 9/2 How to disassemble Wileyfox Spark, Step 9/3 How to disassemble Wileyfox Spark, Step 9/4
Step 9

Disconnect connectors on the PCB.

How to disassemble Wileyfox Spark, Step 10/1 How to disassemble Wileyfox Spark, Step 10/2 How to disassemble Wileyfox Spark, Step 10/3
Step 10

Remove the PCB.

How to disassemble Wileyfox Spark, Step 11/1 How to disassemble Wileyfox Spark, Step 11/2 How to disassemble Wileyfox Spark, Step 11/3
Step 11

Disconnect the connector and remove the coaxial cable.

How to disassemble Wileyfox Spark, Step 12/1 How to disassemble Wileyfox Spark, Step 12/2
Step 12

Remove the lower PCB with inter-board cable.

How to disassemble Wileyfox Spark, Step 13/1 How to disassemble Wileyfox Spark, Step 13/2 How to disassemble Wileyfox Spark, Step 13/3
Step 13

Parts are in the frame of the display module.

Detailed disassembly instructions of Wileyfox Spark in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 10 minutes in time.
Our manual is suitable for all models Wileyfox Spark released for markets in different countries.
