Disassembly/Repair of the mobile device Xiaomi Mi 5S Plus (Xiaomi Mi 5s Plus 2016070) with each step description and the required set of tools.

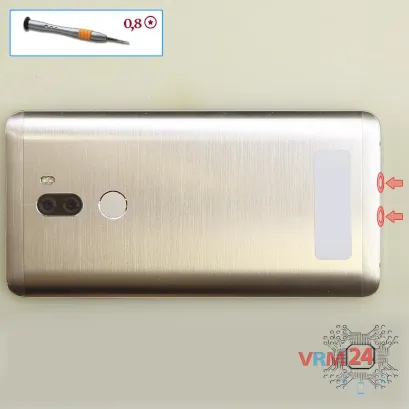

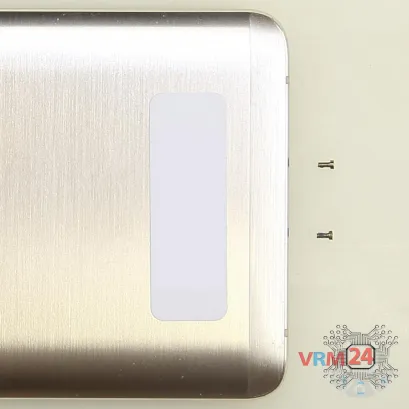

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive 2 screws out at the end of the phone.

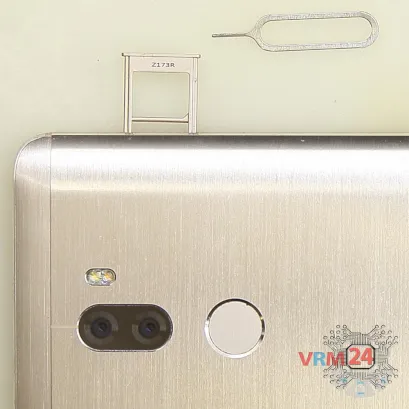

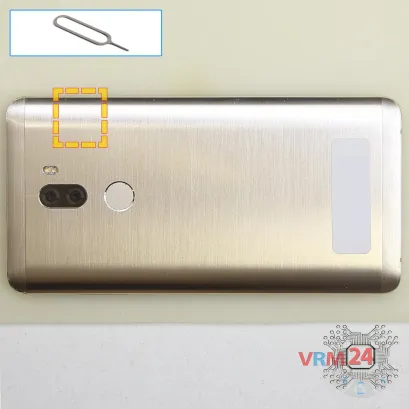

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM cards out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

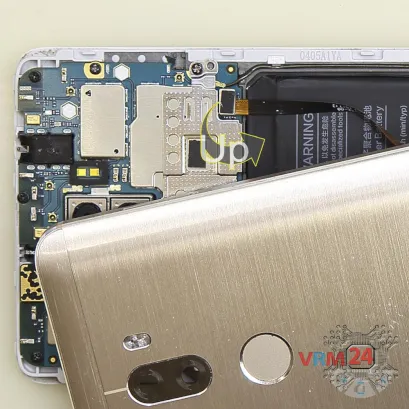

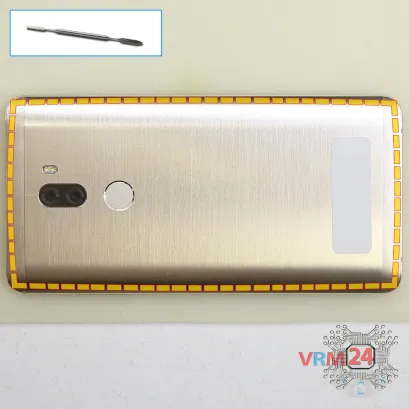

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

⚠️️ Pay attention to the fingerprint sensor cable located on the inside.

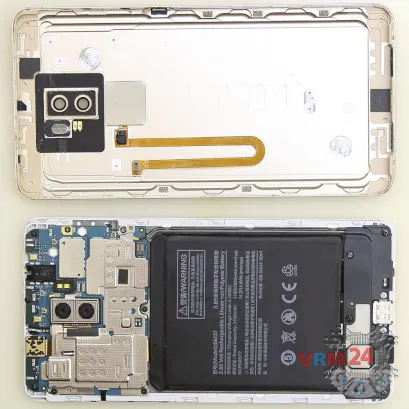

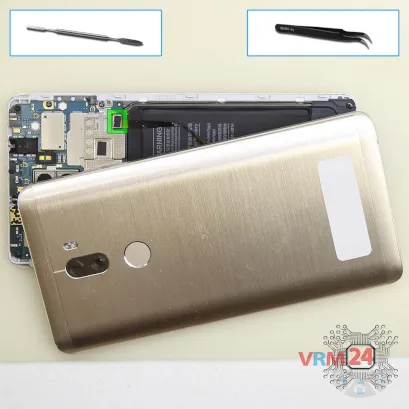

Pry up the fingerprint sensor cable connector and remove the back cover.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the four screws holding a large bracket.

Carefully remove the large bracket holding the connectors.

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The Xiaomi Mi 5S Plus model has a battery BM37 with 3700 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

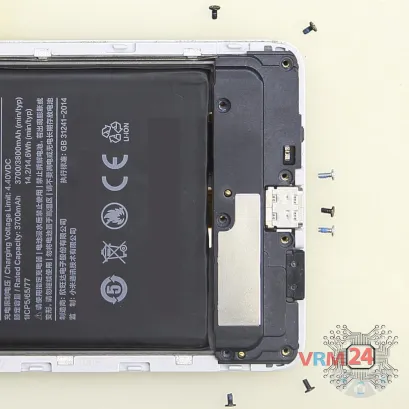

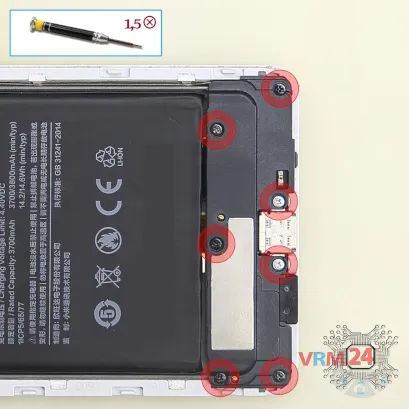

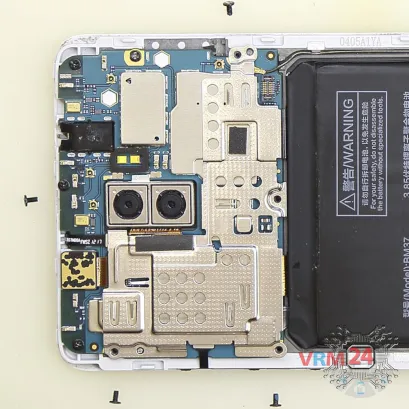

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the five black screws and two silver screws.

The screws are different: ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

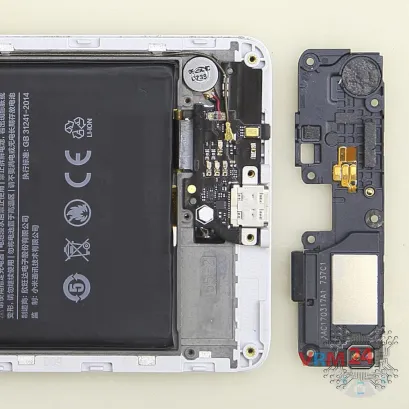

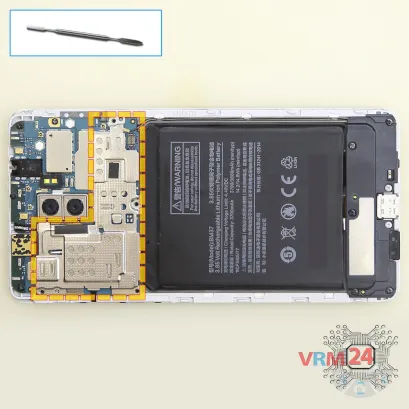

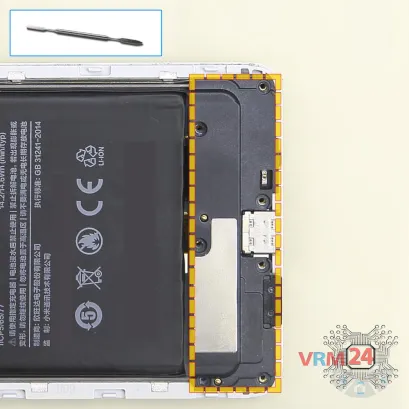

Pry over the edge and remove the loudspeaker assembly.

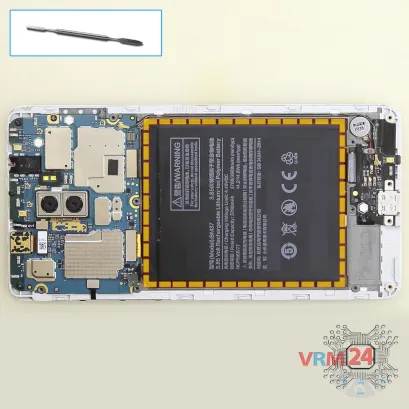

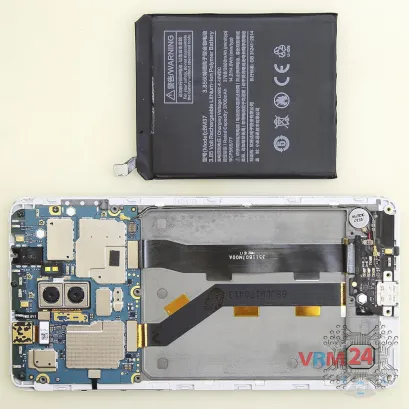

With extreme care, remove the battery because it is glued from the inside by the manufacturer.

Also, we need to remember or look in advance at the location of the flat cables under the battery, so as not to damage them.

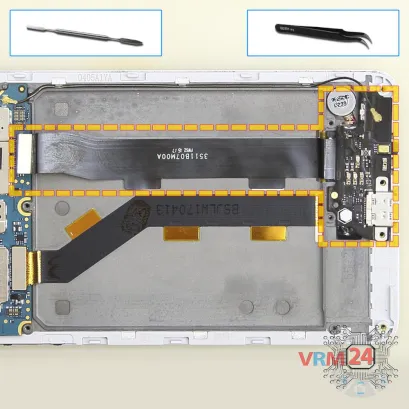

Disconnect the coaxial cable connector and vibration motor wires connector on the sub-board, inter-board cable connector on the motherboard.

⚠️️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

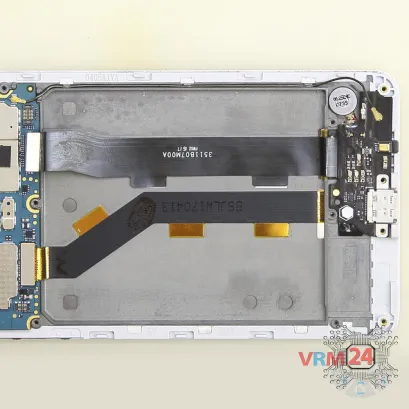

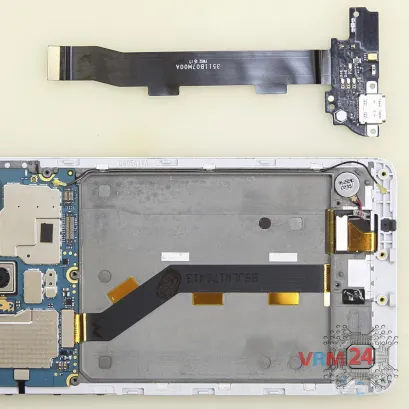

Peel back the inter-board cable and remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

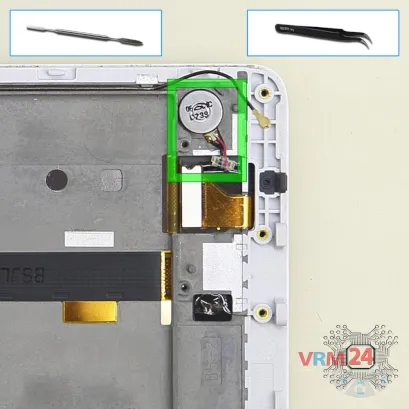

Pry at the bottom and remove the vibration motor.

⚠️️ Be careful! The vibration motor is glued a bit with adhesive.

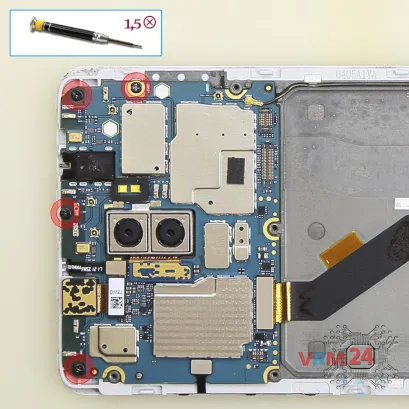

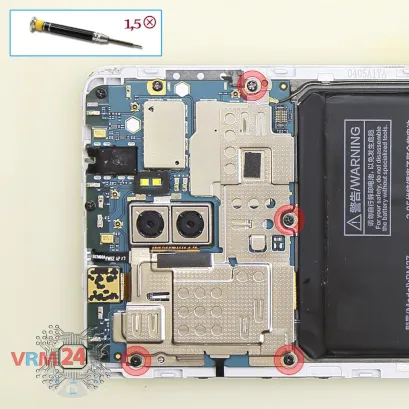

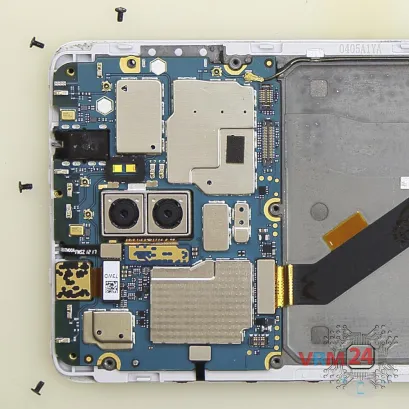

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the four screws securing the motherboard.

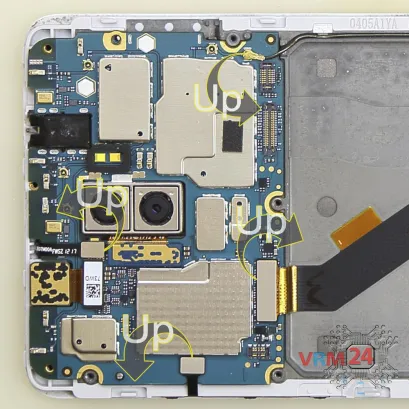

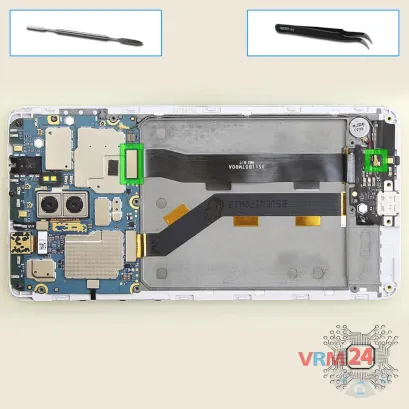

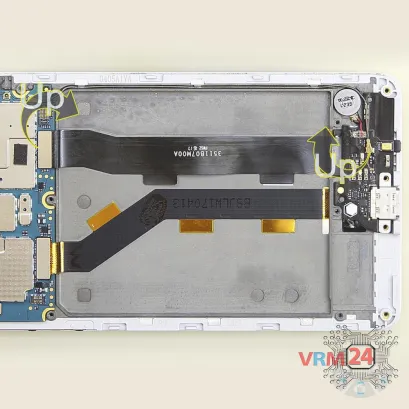

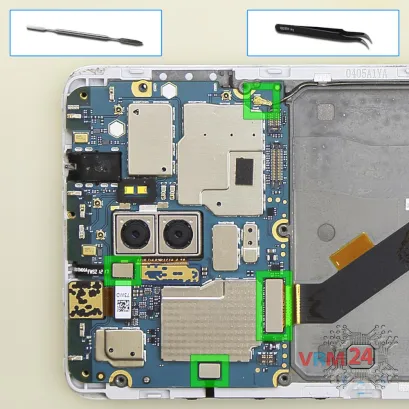

Pry up the connectors of the side buttons cable, display cable, touchscreen cable, and coaxial cable.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

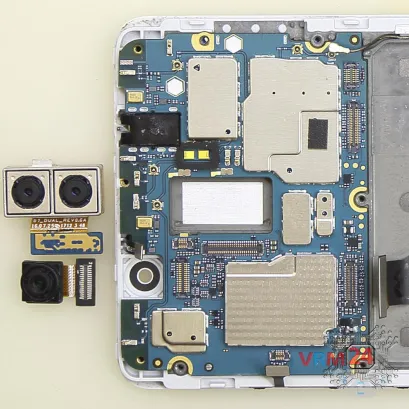

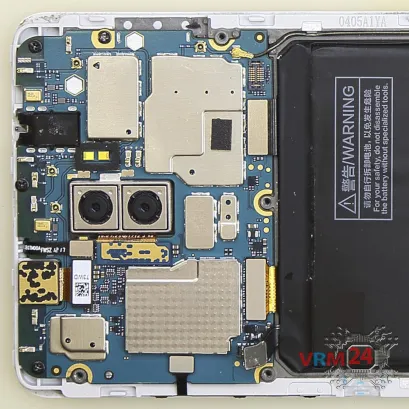

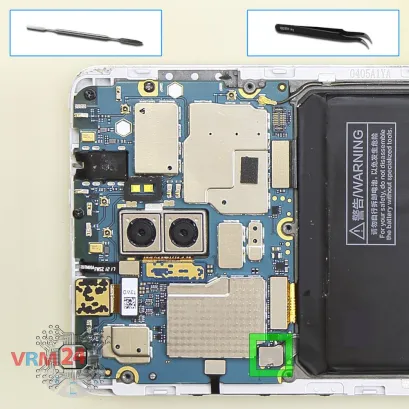

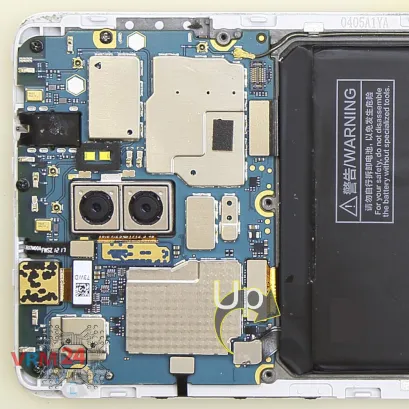

Disconnect connectors on the motherboard and remove the two rear cameras and one front (selfie) camera.

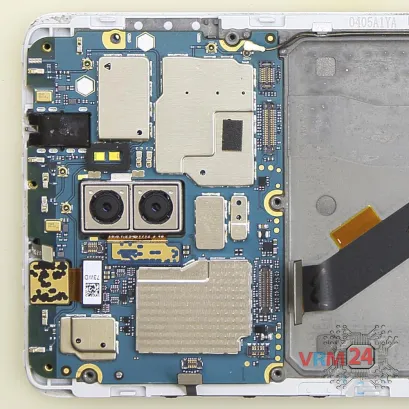

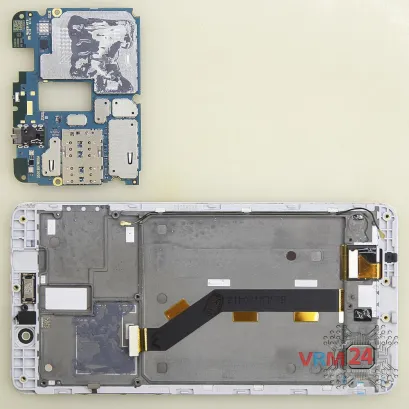

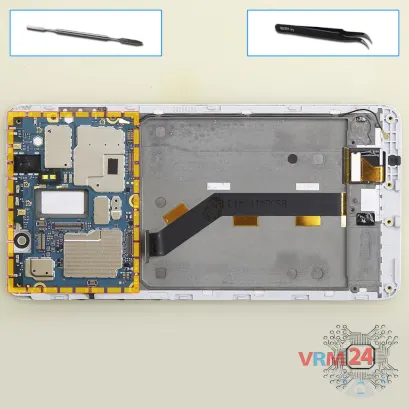

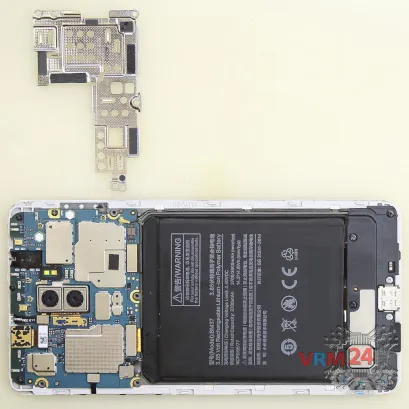

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

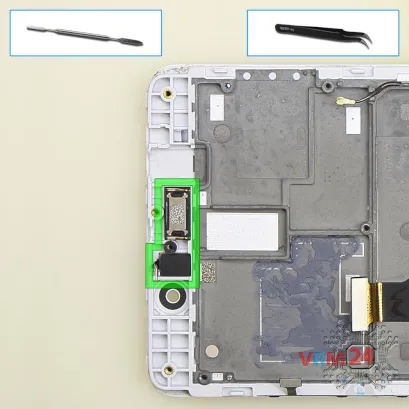

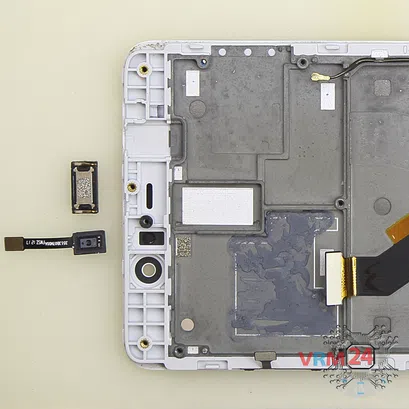

Pry at the bottom and remove the earpiece speaker and proximity sensor.

⚠️️ Be careful! The earpiece speaker is glued a bit with adhesive.

⚠️️ If we pry the speaker in the middle we may break the earpiece speaker in half.

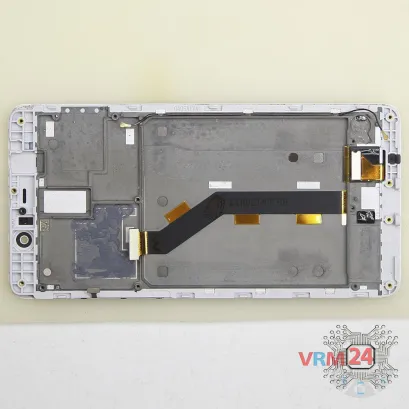

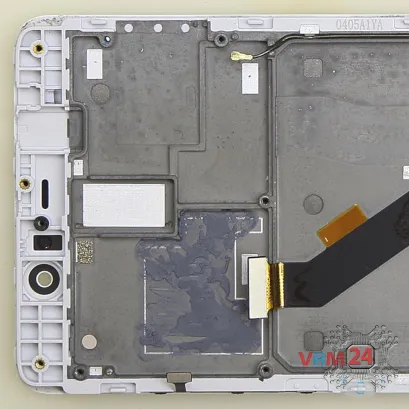

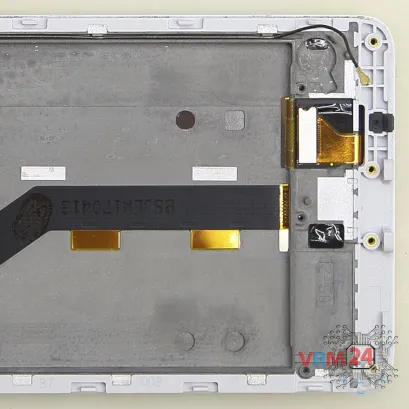

ℹ️️ In the display frame remained:
