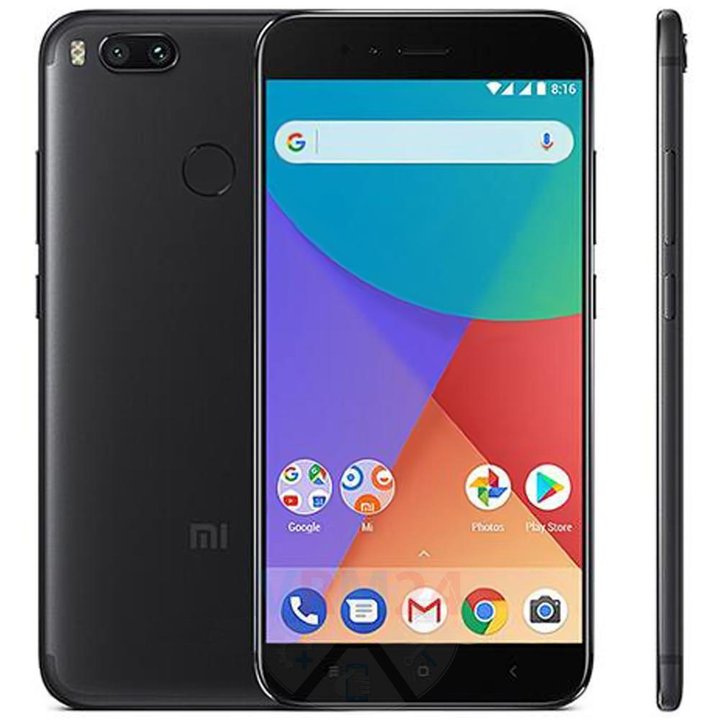

Xiaomi Mi A1
Xiaomi Mi A1
Teardown difficulty:
Easy
Duration:
13 min

Recommended tools

Screwdriver Five-point P0.8 Screwdriver Five-point P0.8
Screwdriver Phillips #000 Screwdriver Phillips #000
Opening tool Opening tool
Tweezers Tweezers

Disassembly of the mobile device Xiaomi Mi A1 (Xiaomi Mi A1 MDG2) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Xiaomi Mi A1, Step 1/1 How to disassemble Xiaomi Mi A1, Step 1/2

Step 1

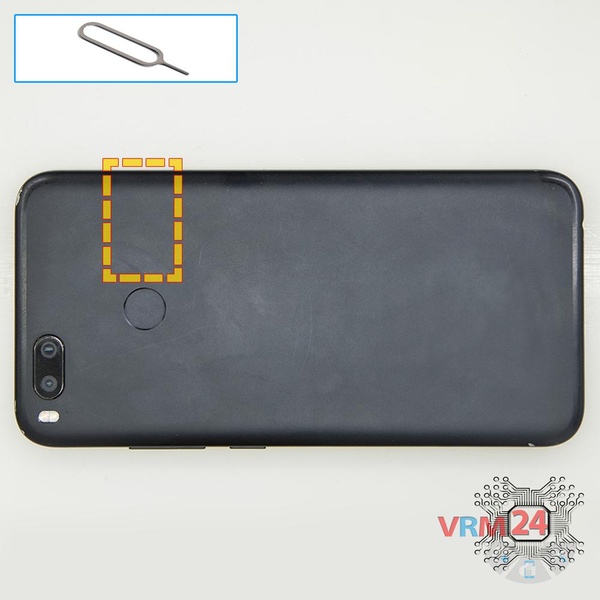

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Xiaomi Mi A1, Step 2/1 How to disassemble Xiaomi Mi A1, Step 2/2

Step 2

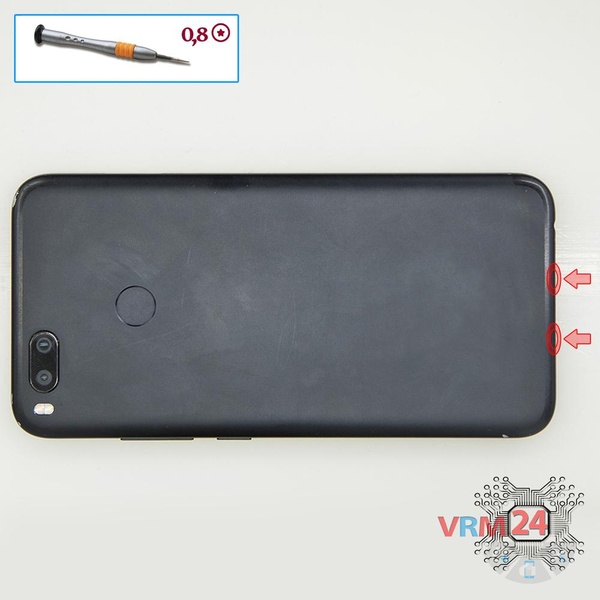

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 bolts on the end of the phone.

How to disassemble Xiaomi Mi A1, Step 3/1 How to disassemble Xiaomi Mi A1, Step 3/2

Step 3

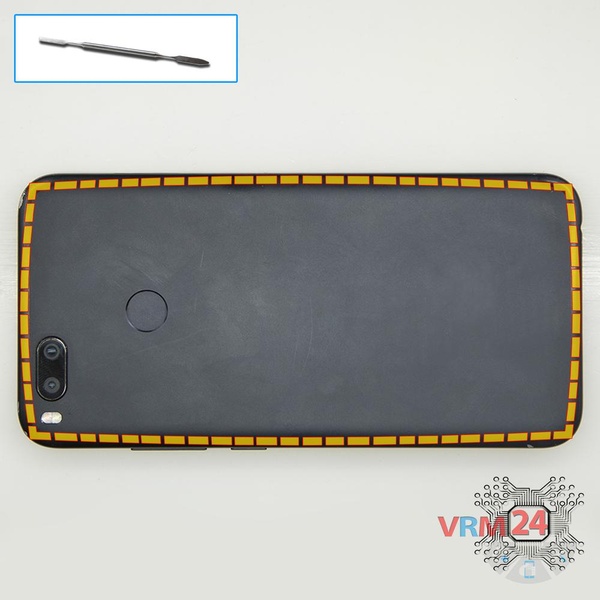

Open the back cover.

How to disassemble Xiaomi Mi A1, Step 4/1 How to disassemble Xiaomi Mi A1, Step 4/2 How to disassemble Xiaomi Mi A1, Step 4/3 How to disassemble Xiaomi Mi A1, Step 4/4

Step 4

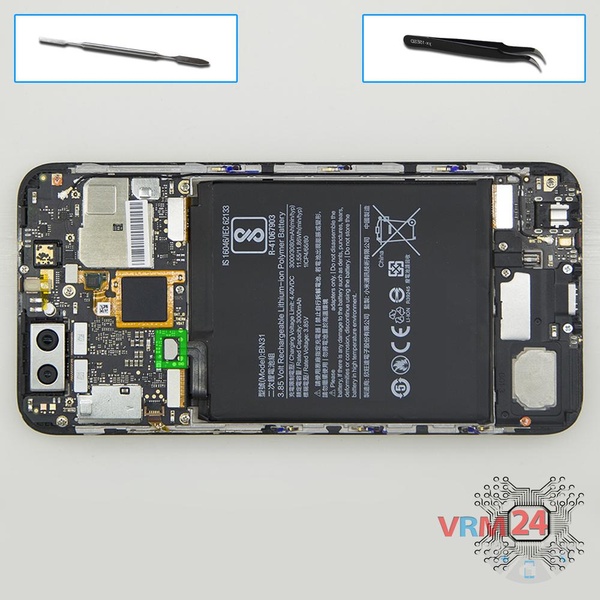

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Xiaomi Mi A1, Step 5/1 How to disassemble Xiaomi Mi A1, Step 5/2 How to disassemble Xiaomi Mi A1, Step 5/3

Step 5

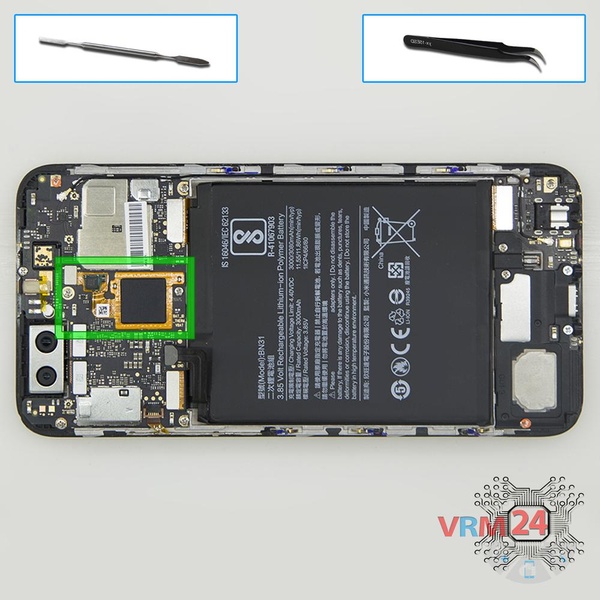

Pry up the connector and remove the fingerprint sensor.

How to disassemble Xiaomi Mi A1, Step 6/1 How to disassemble Xiaomi Mi A1, Step 6/2

Step 6

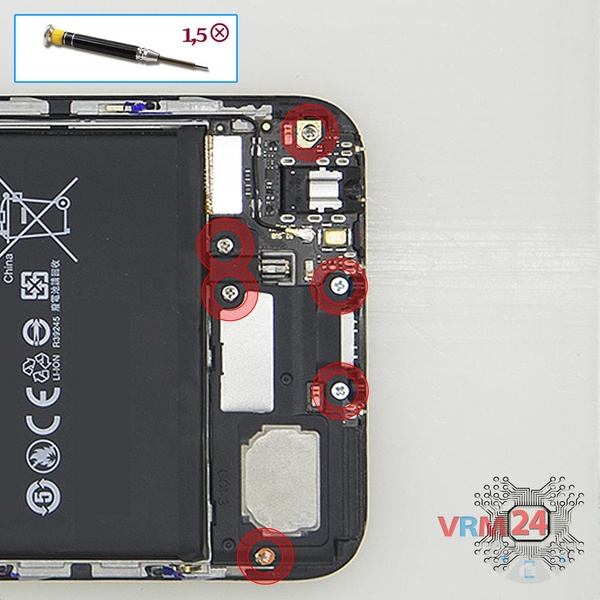

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts.

How to disassemble Xiaomi Mi A1, Step 7/1 How to disassemble Xiaomi Mi A1, Step 7/2 How to disassemble Xiaomi Mi A1, Step 7/3

Step 7

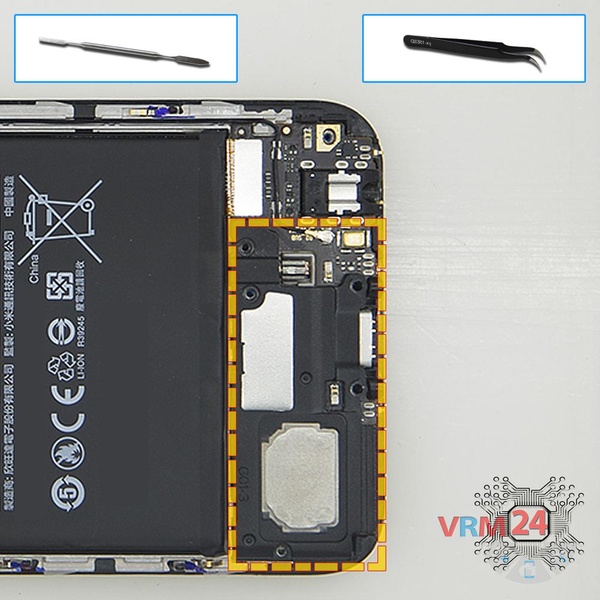

Pry and remove the buzzer (speaker) assembly.

How to disassemble Xiaomi Mi A1, Step 8/1 How to disassemble Xiaomi Mi A1, Step 8/2

Step 8

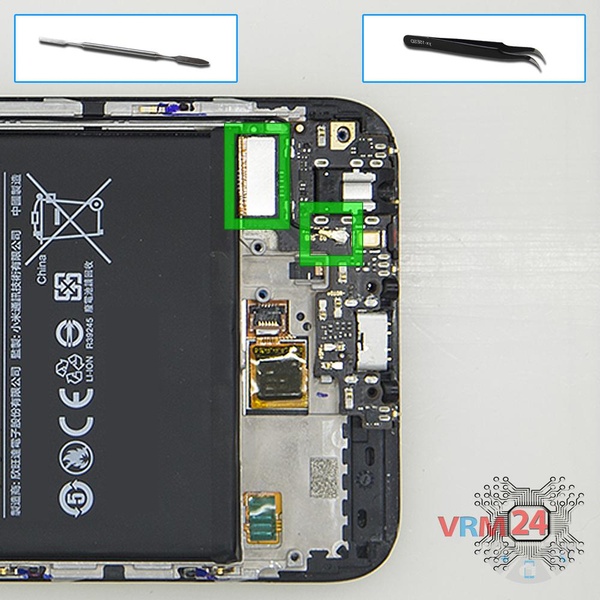

Disconnect connectors on the lower PCB and remove it.

How to disassemble Xiaomi Mi A1, Step 9/1 How to disassemble Xiaomi Mi A1, Step 9/2

Step 9

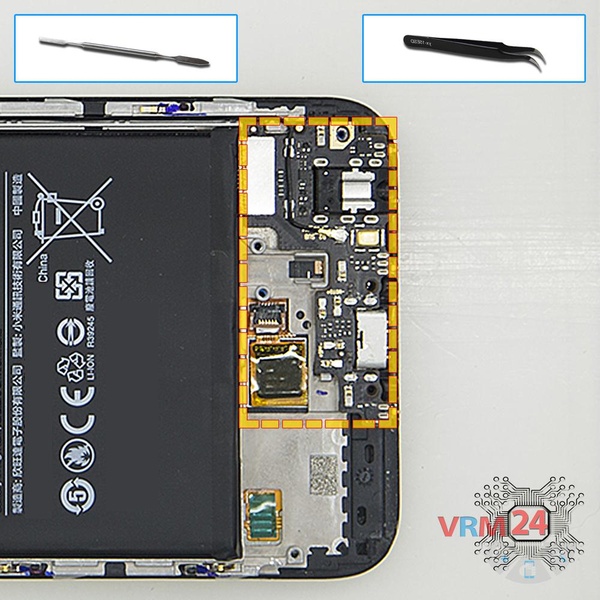

Remove the lower PCB.

How to disassemble Xiaomi Mi A1, Step 10/1 How to disassemble Xiaomi Mi A1, Step 10/2 How to disassemble Xiaomi Mi A1, Step 10/3

Step 10

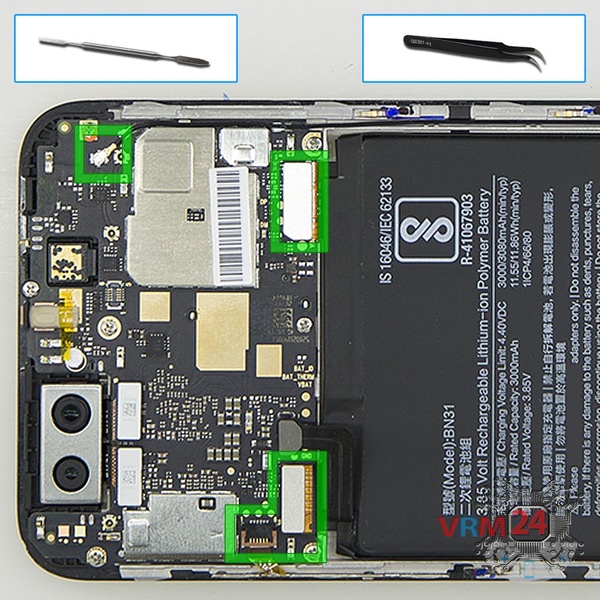

Disconnect connectors on the PCB.

How to disassemble Xiaomi Mi A1, Step 11/1 How to disassemble Xiaomi Mi A1, Step 11/2

Step 11

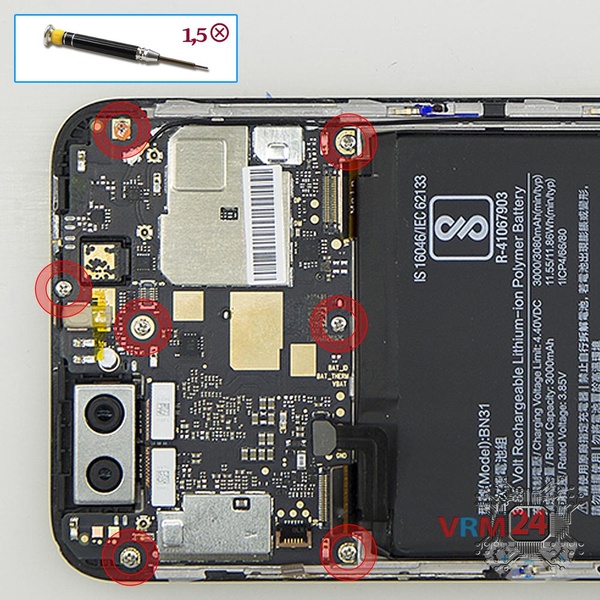

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the PCB.

How to disassemble Xiaomi Mi A1, Step 12/1 How to disassemble Xiaomi Mi A1, Step 12/2

Step 12

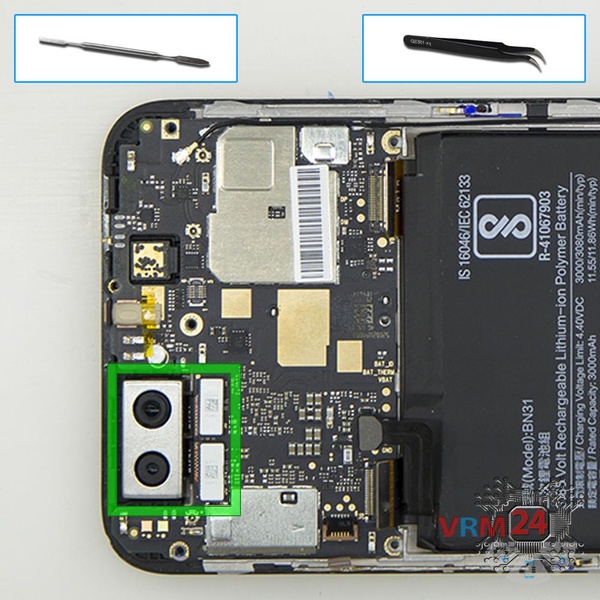

Disconnect the connectors on PCB, and remove the two main cameras.

How to disassemble Xiaomi Mi A1, Step 13/1 How to disassemble Xiaomi Mi A1, Step 13/2

Step 13

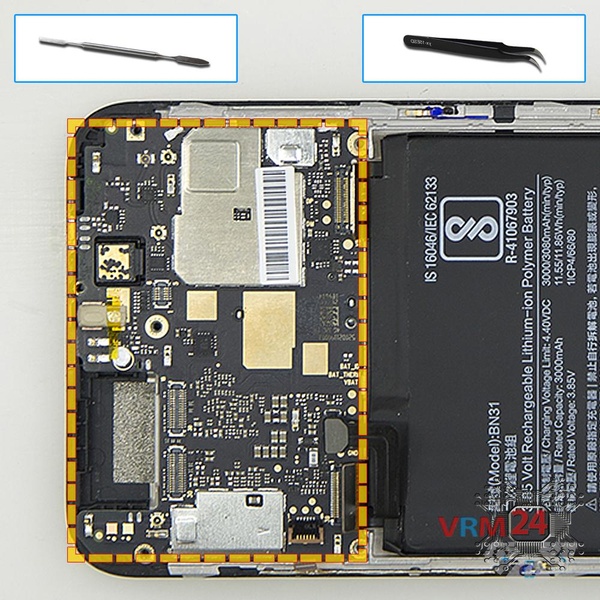

Remove the PCB.

How to disassemble Xiaomi Mi A1, Step 14/1 How to disassemble Xiaomi Mi A1, Step 14/2

Step 14

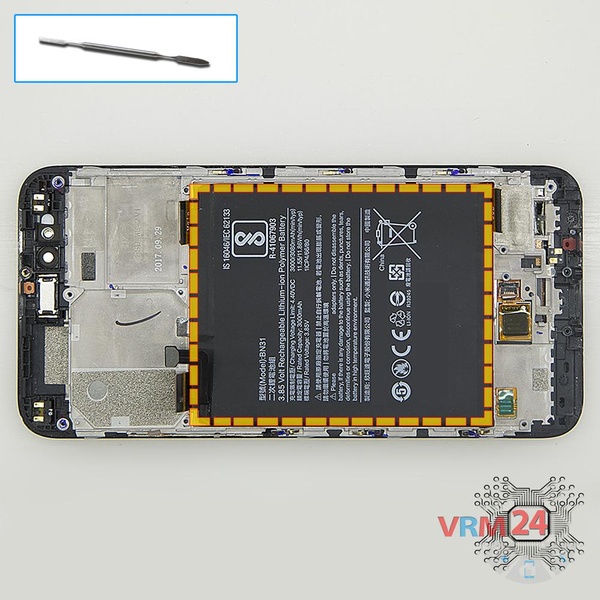

Remove the battery.

How to disassemble Xiaomi Mi A1, Step 15/1 How to disassemble Xiaomi Mi A1, Step 15/2 How to disassemble Xiaomi Mi A1, Step 15/3

Step 15

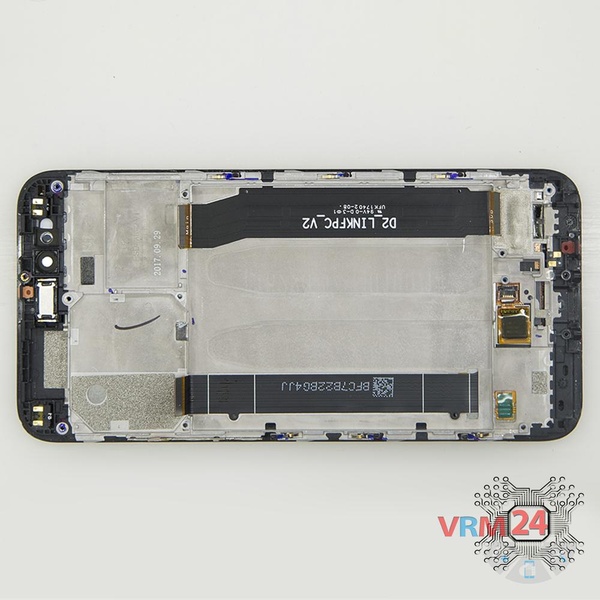

Parts are in the frame of the display module.

Detailed disassembly instructions of Xiaomi Mi A1 in the video, made by our mobile repair & service center:

#instructions #Xiaomi #Xiaomi Mi A1
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 13 minutes in time.
Our manual is suitable for all models Xiaomi Mi A1 — Xiaomi Mi A1 MDG2 released for markets in different countries.
