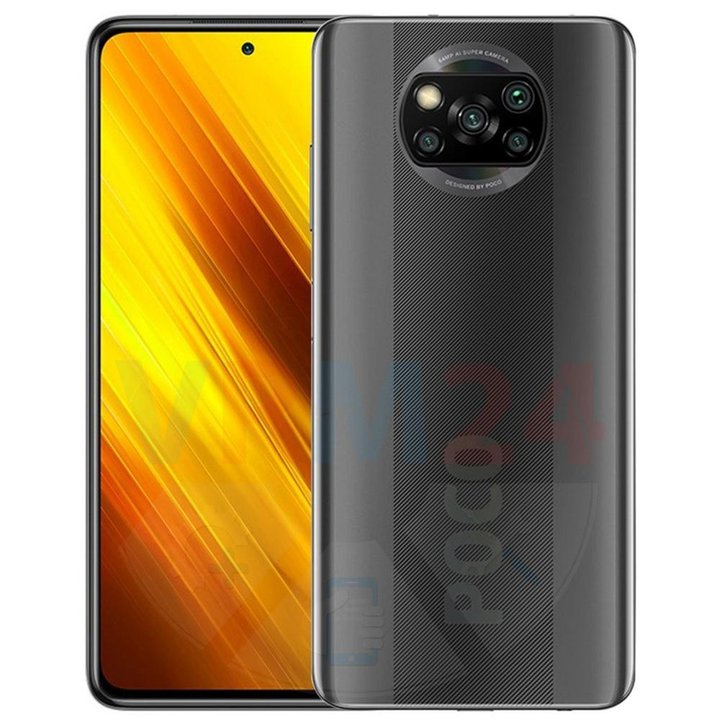

Disassembly/Repair of the mobile device Xiaomi POCO X3 (Xiaomi POCO X3 M2007J20CG) with each step description and the required set of tools.

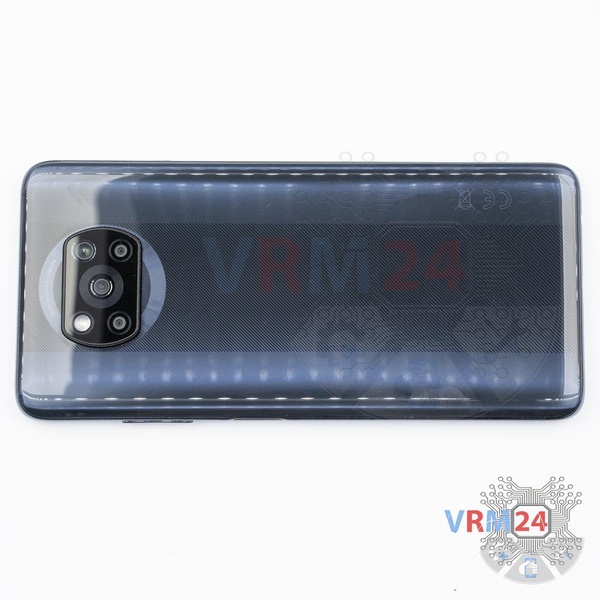

⚠️ Before disassembling, do not forget to turn your phone off.

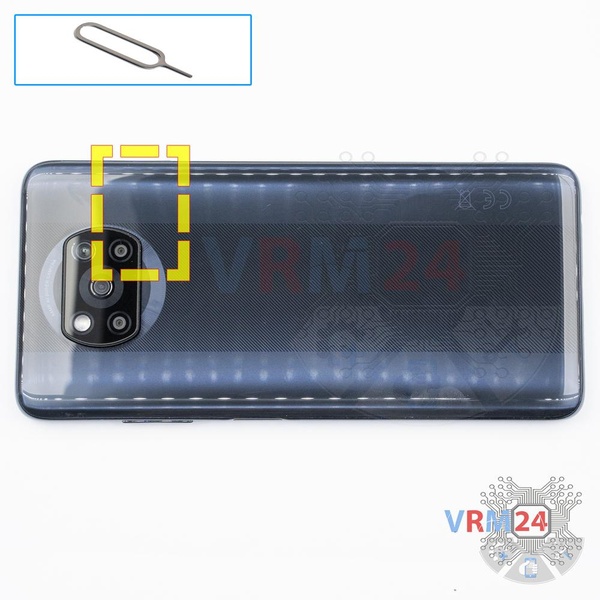

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

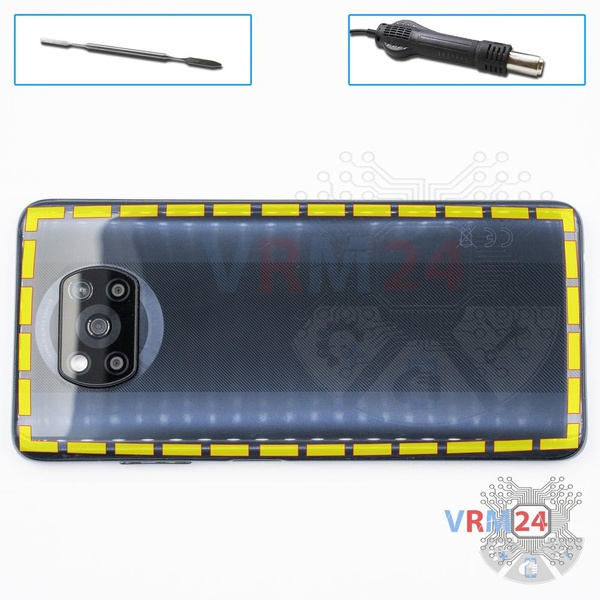

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided.

Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

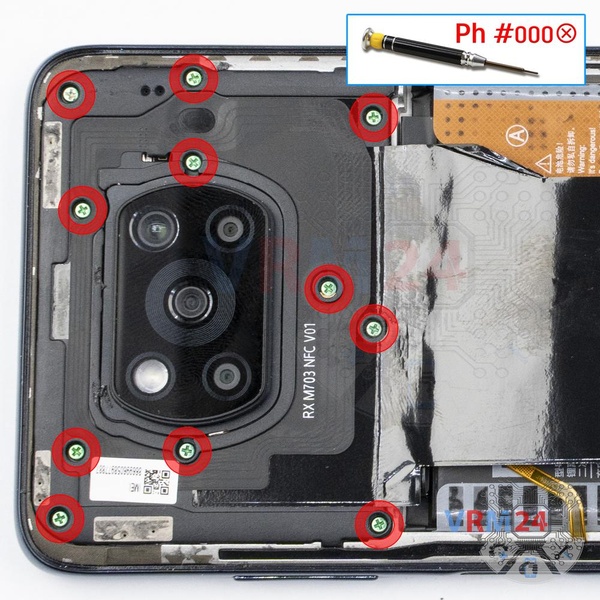

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 screws.

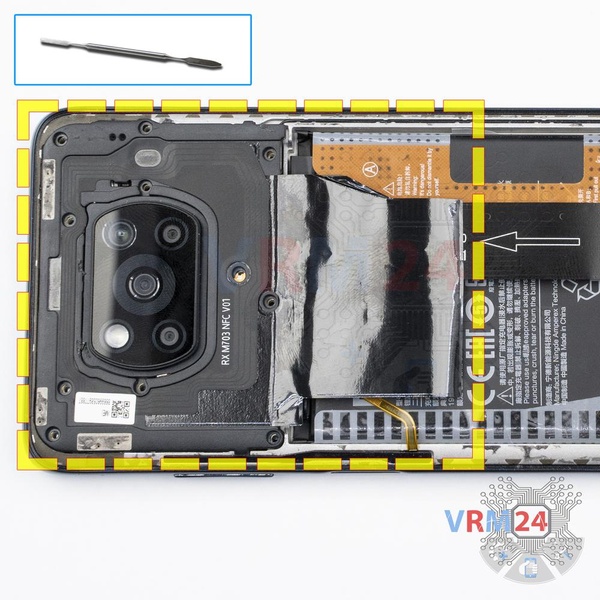

Remove the cover with antennas that protect the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.

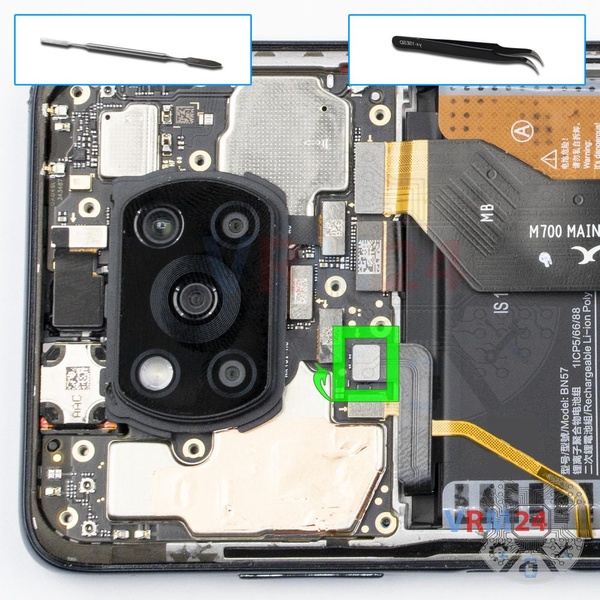

Disconnect the battery connector as soon as possible.

ℹ️️ The Xiaomi Poco X3 M2007J20CG model has a battery BN57 with 5160 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

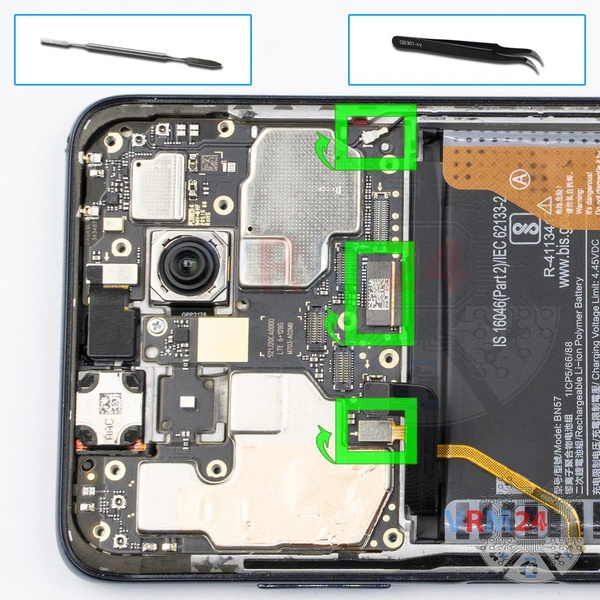

Disconnect the connectors and remove the assembly of three rear cameras.

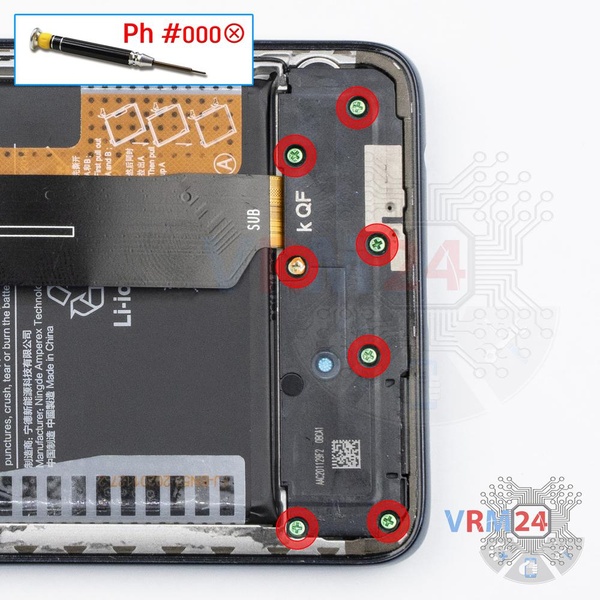

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 screws.

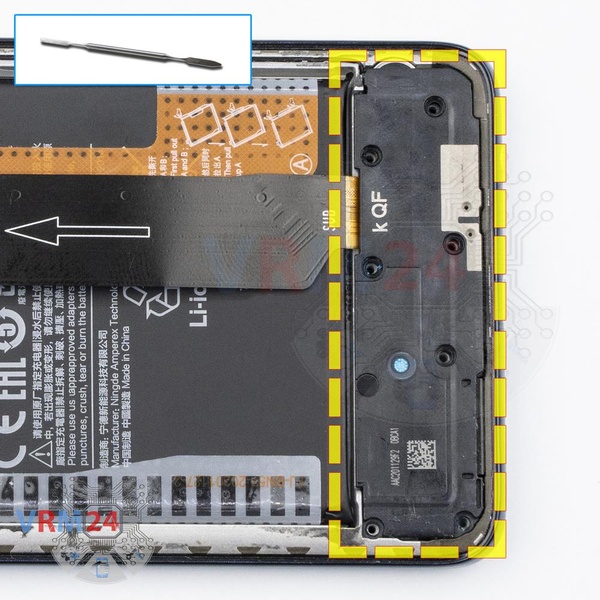

Remove the loudspeaker assembly with antennas.

Disconnect the coaxial cable connector, cable to the mainboard, on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

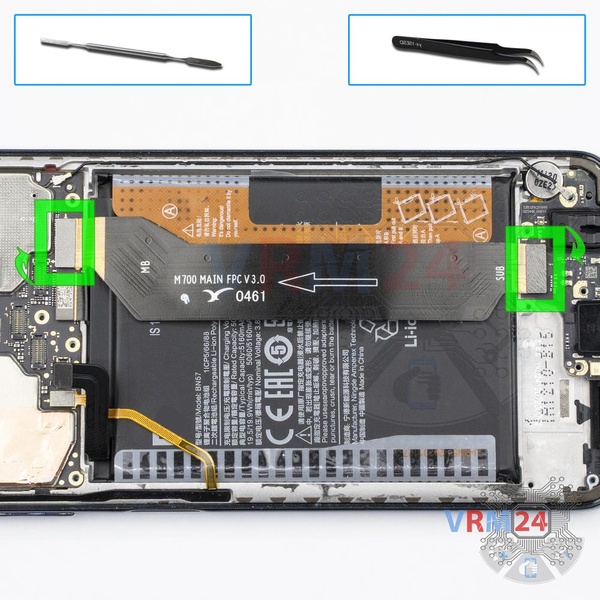

Carefully, preferably from the edge, disconnect the connectors and remove the inter-board cable connecting the mainboard to the daughterboard (also known as the sub-board).

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

ℹ️️ An arrow on the FFC cable (flexible flat cable) indicates its correct position.

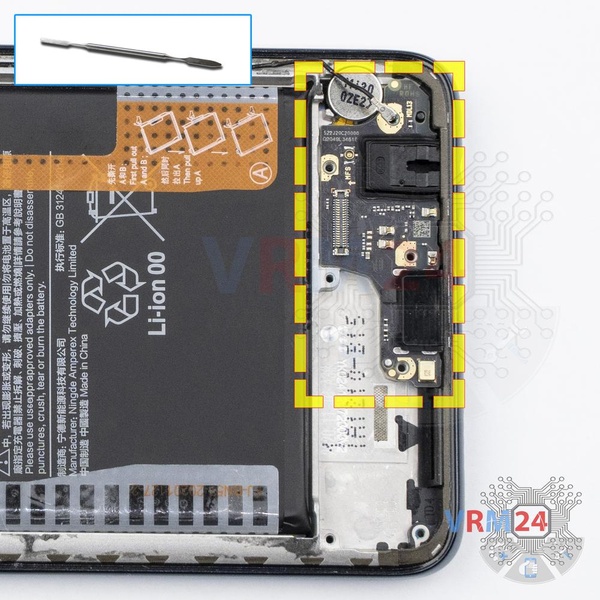

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹ️️ The board contains a charging port (Micro USB), headphone jack/socket, microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.

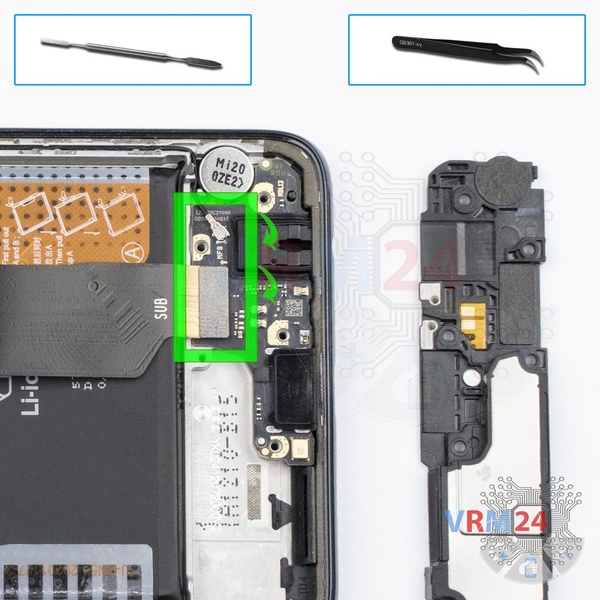

Pry up the connectors of power volume buttons cable, display module cable, and coaxial cable.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

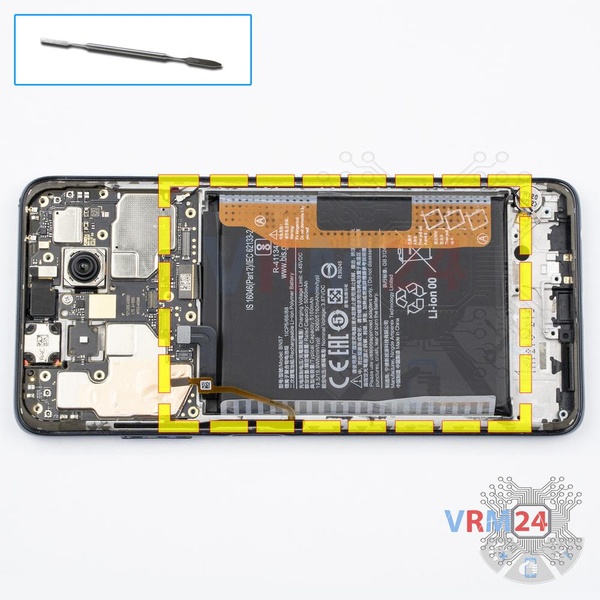

Carefully remove the battery. The dismantling manual is written on the brown tag. Please read it before dismantling, or watch our video down below.

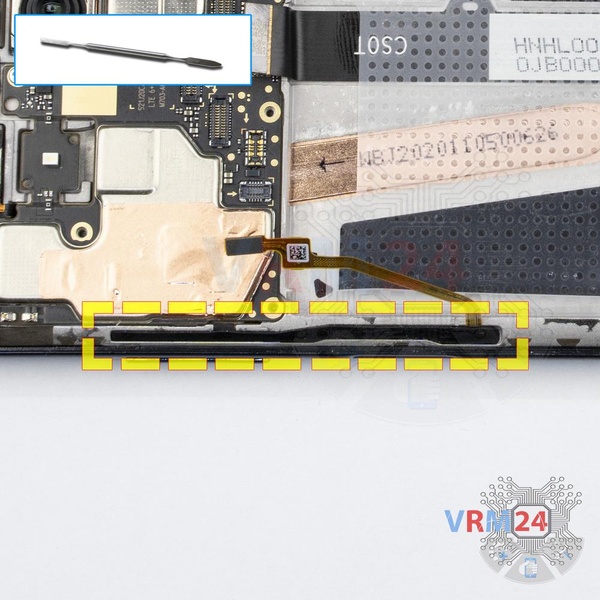

Carefully remove the gasket protecting the volume buttons and fingerprint sensor.

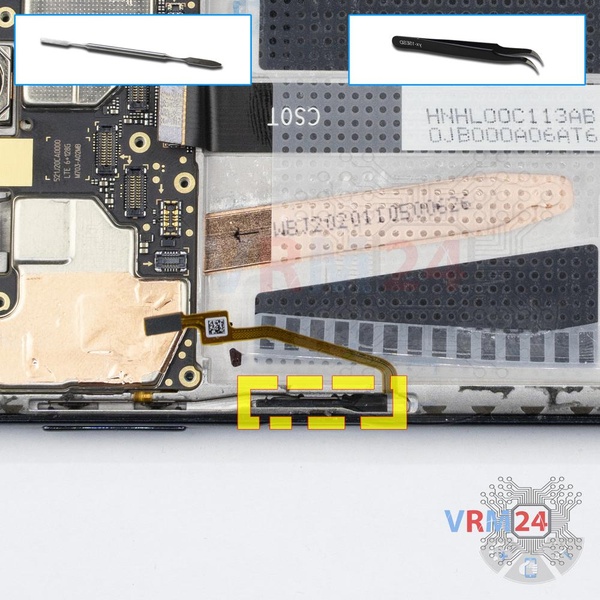

Carefully remove the fingerprint sensor holder.

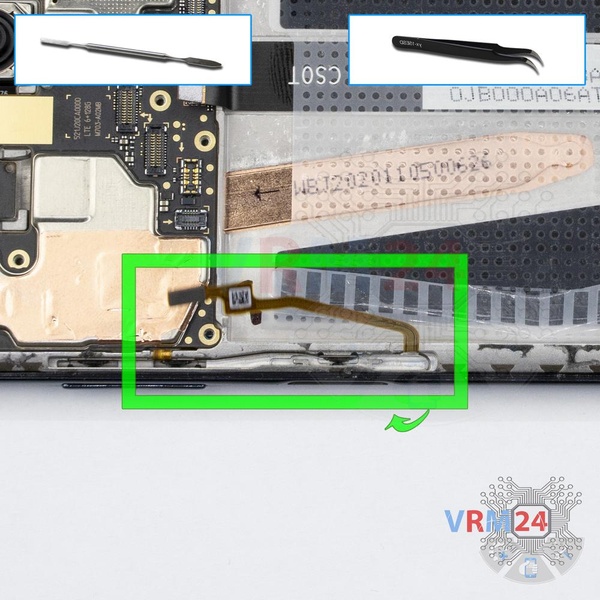

Carefully remove the fingerprint sensor.

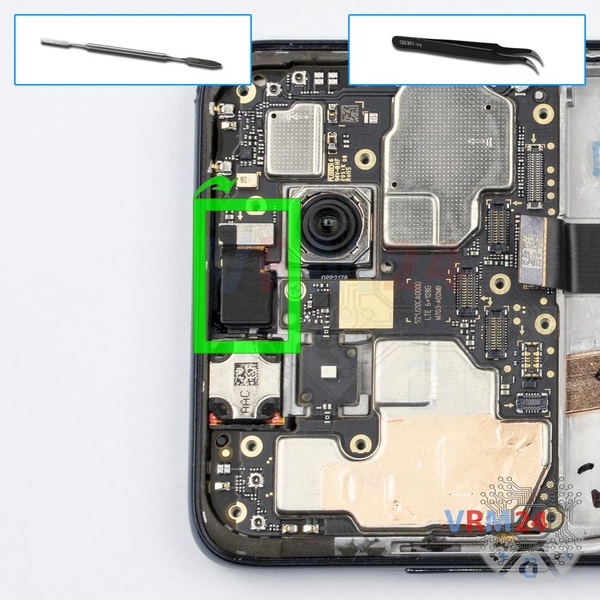

Pry up the connector and remove the front (selfie) camera.

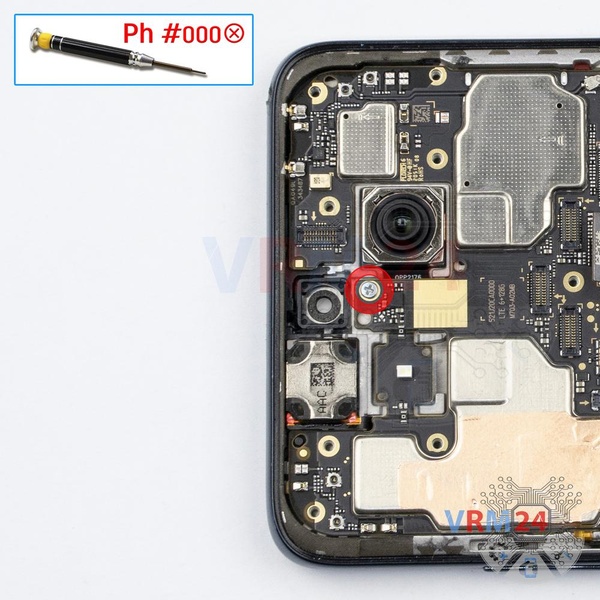

Using a screwdriver (Philips 1.5 mm PH000), unscrew one screw securing the motherboard.

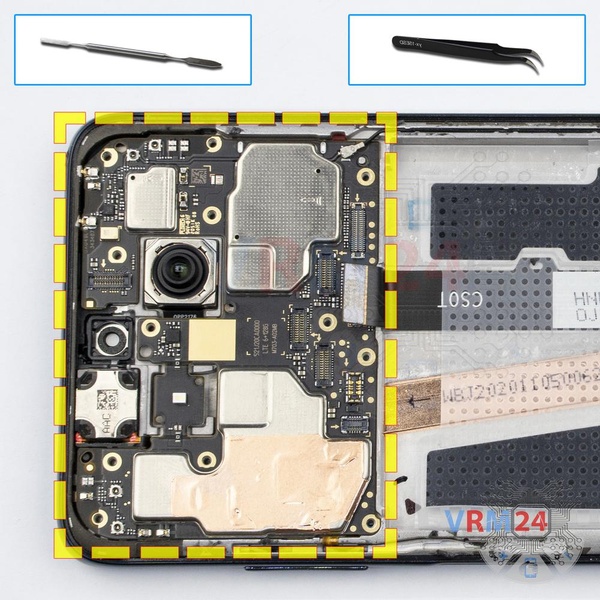

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

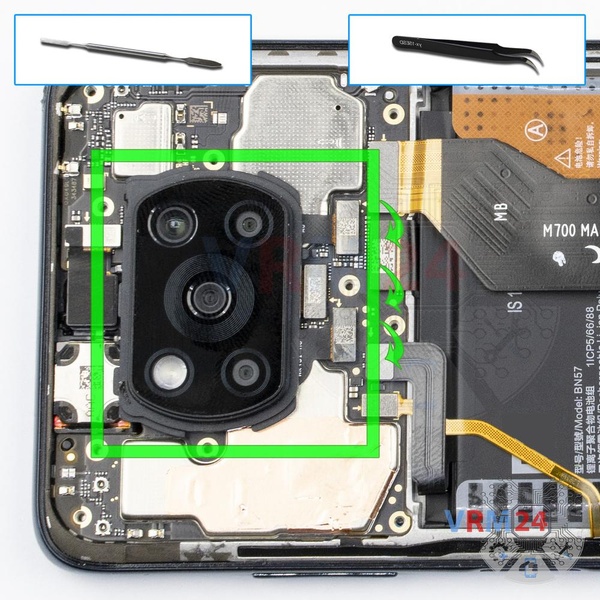

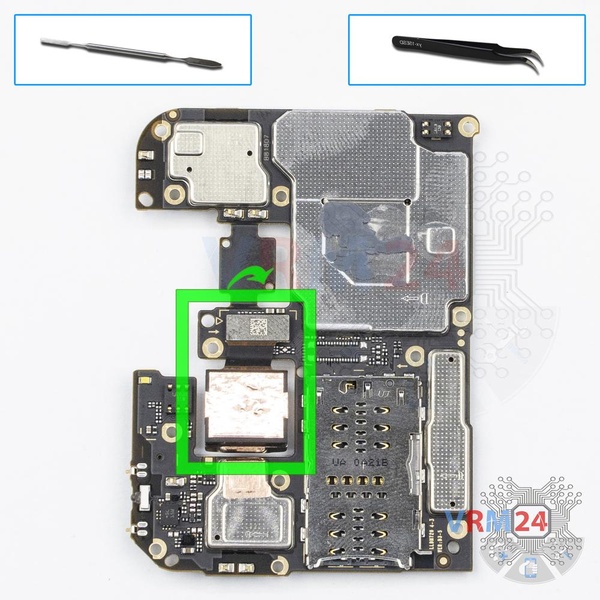

Pry up the connector and remove the rear camera.
