Disassembly/Repair of the mobile device Xiaomi Redmi Note 10 5G (Xiaomi Redmi Note 10 5G M2103K19G) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble Xiaomi Redmi Note 10 5G, Step 1/1

Step 1. Before disassembling!

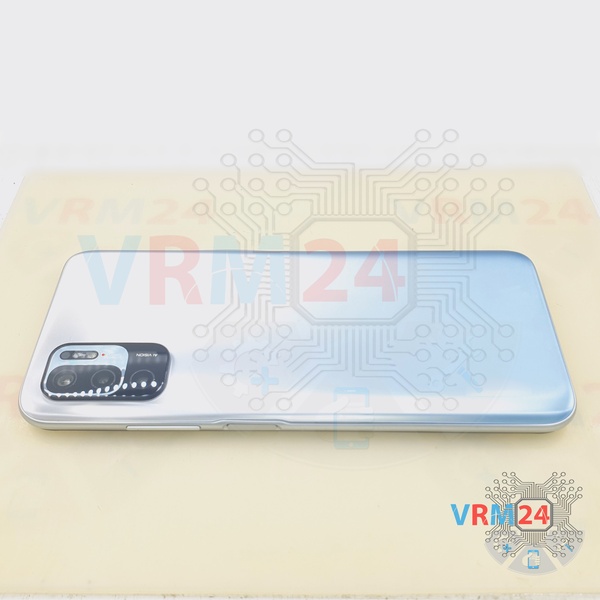

⚠️️ Before disassembling, do not forget to turn your phone off.


How to disassemble Xiaomi Redmi Note 10 5G, Step 2/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 2/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 2/3 How to disassemble Xiaomi Redmi Note 10 5G, Step 2/4

Step 2. Remove the tray

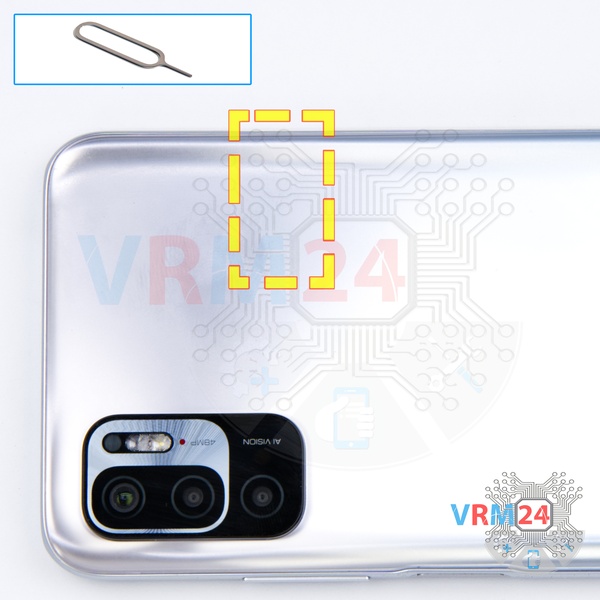

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Xiaomi Redmi Note 10 5G, Step 3/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 3/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 3/3 How to disassemble Xiaomi Redmi Note 10 5G, Step 3/4 How to disassemble Xiaomi Redmi Note 10 5G, Step 3/5

Step 3. Open the back cover

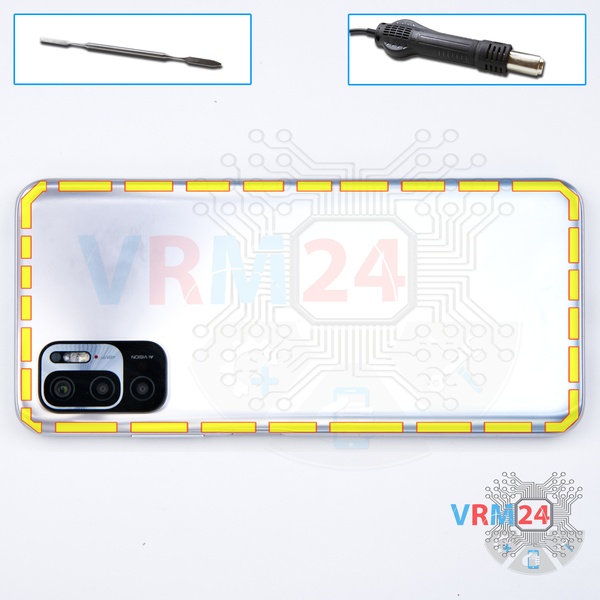

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Xiaomi Redmi Note 10 5G, Step 4/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 4/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 4/3

Step 4. Unscrew the screws

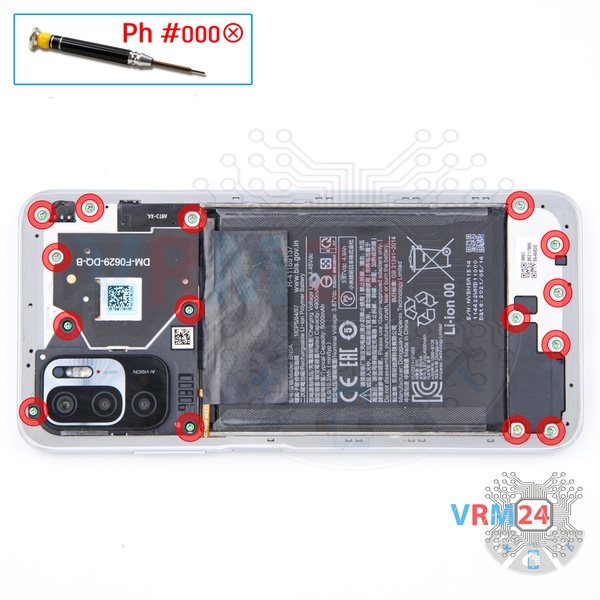

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 screws.


How to disassemble Xiaomi Redmi Note 10 5G, Step 5/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 5/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 5/3

Step 5. Open the cover

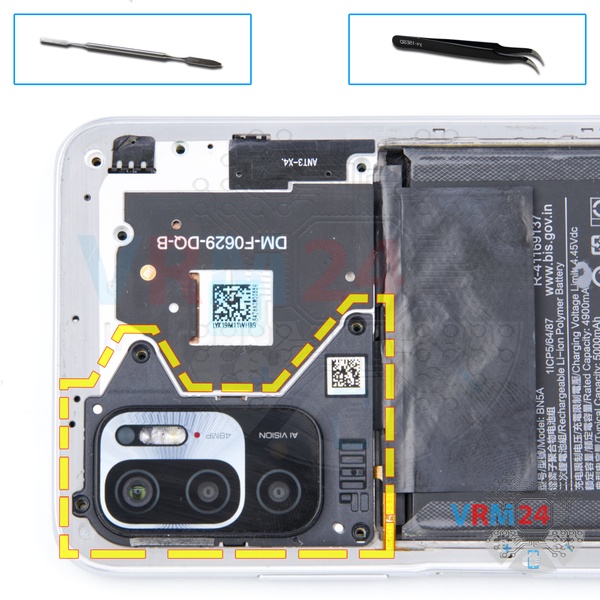

Pry carefully up the edge and remove the cover for cameras.


How to disassemble Xiaomi Redmi Note 10 5G, Step 6/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 6/2

Step 6. Unscrew the screws

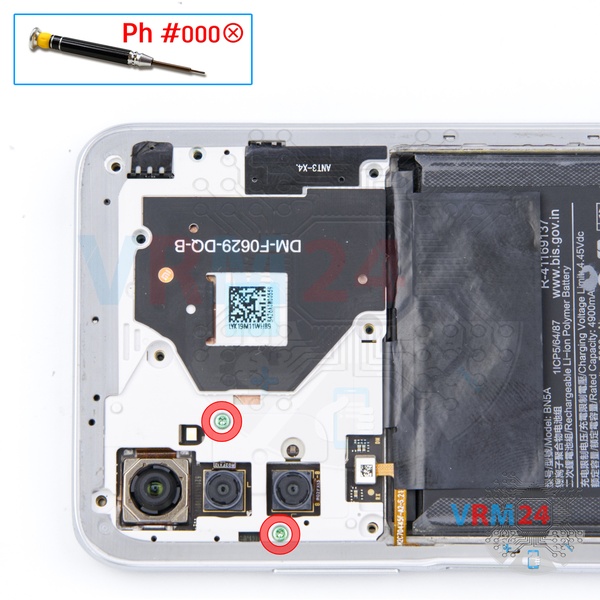

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws holding the middle cover.


How to disassemble Xiaomi Redmi Note 10 5G, Step 7/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 7/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 7/3

Step 7. Disconnect the connector

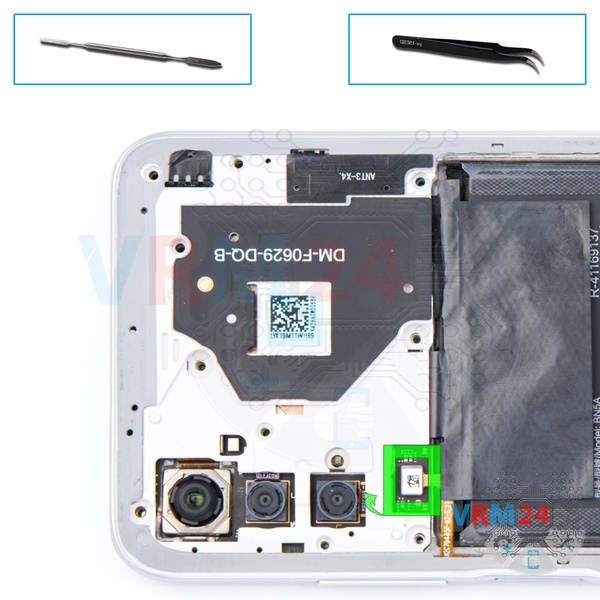

Pry up the fingerprint sensor cable connector.

⚠️️Try to use non-metal or plastic tools to avoid short-circuits because the smartphone is still battery-powered.


How to disassemble Xiaomi Redmi Note 10 5G, Step 8/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 8/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 8/3 How to disassemble Xiaomi Redmi Note 10 5G, Step 8/4

Step 8. Open the middle cover

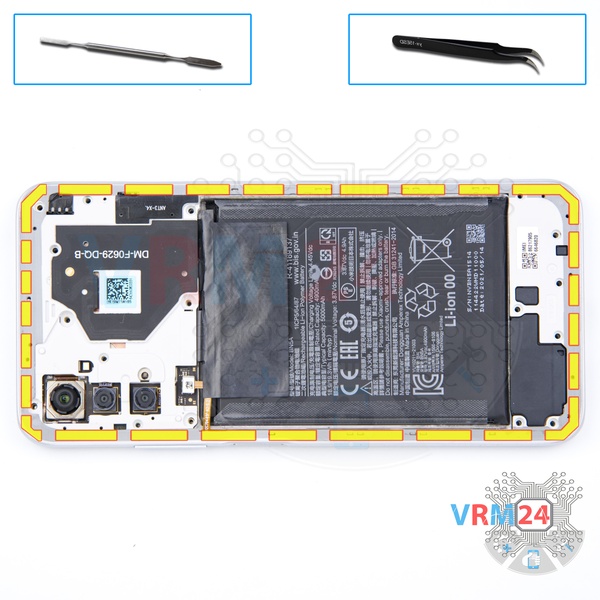

Pry up along the edges. Move an opening tool along the edge detaching the clips/fasteners and remove the middle cover with antenna pads and tracks. The middle cover protects the printed circuit board (PCB).

Try to lift the cover by the edges and don't push anything too far inside, so as not to accidentally break or short-circuit anything on the circuit board.


How to disassemble Xiaomi Redmi Note 10 5G, Step 9/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 9/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 9/3

Step 9. Disconnect the battery connector

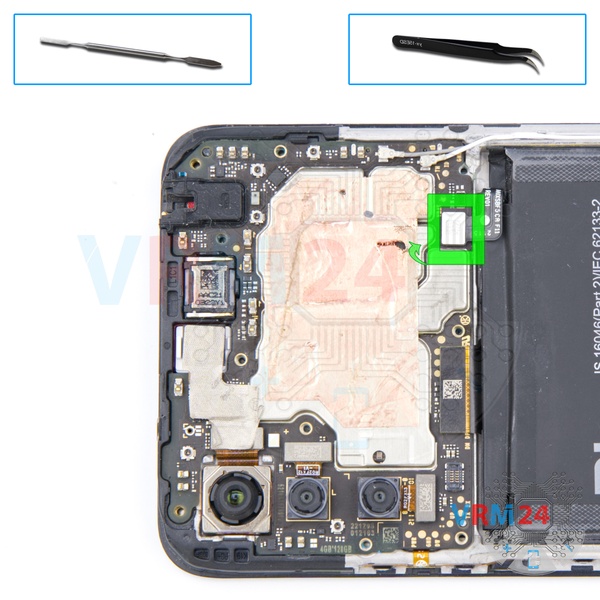

Disconnect the battery connector as soon as possible. It it better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The Xiaomi Redmi Note 10 5G model has a battery BN5A with 5000 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Xiaomi Redmi Note 10 5G, Step 10/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 10/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 10/3

Step 10. Remove the loudspeaker

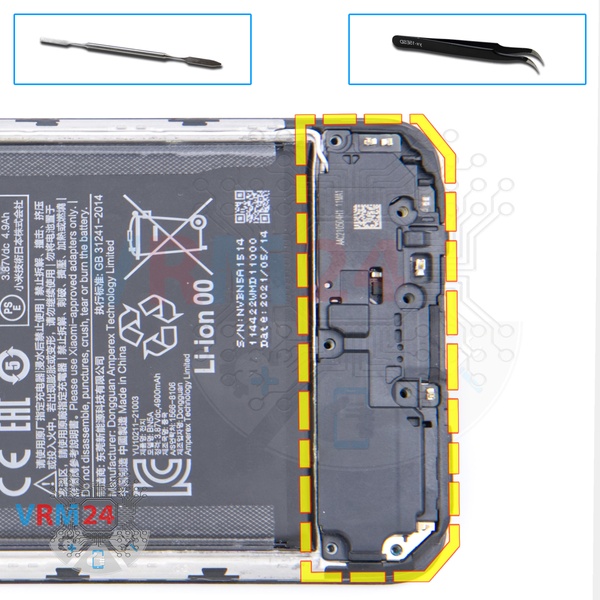

Pry up along the edge, and remove the cover with a loudspeaker.


How to disassemble Xiaomi Redmi Note 10 5G, Step 11/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 11/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 11/3 How to disassemble Xiaomi Redmi Note 10 5G, Step 11/4

Step 11. Disconnect the connectors

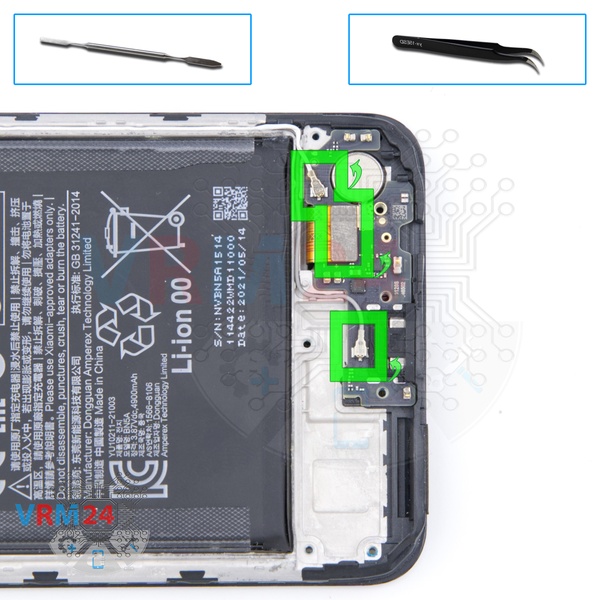

Disconnect connectors of two coaxial cables, inter-board sub-screen cable on the daughterboard.

⚠️️ Do not pull on the cable or pry it with a sharp tool. The connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Xiaomi Redmi Note 10 5G, Step 12/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 12/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 12/3 How to disassemble Xiaomi Redmi Note 10 5G, Step 12/4

Step 12. Remove the daughterboard

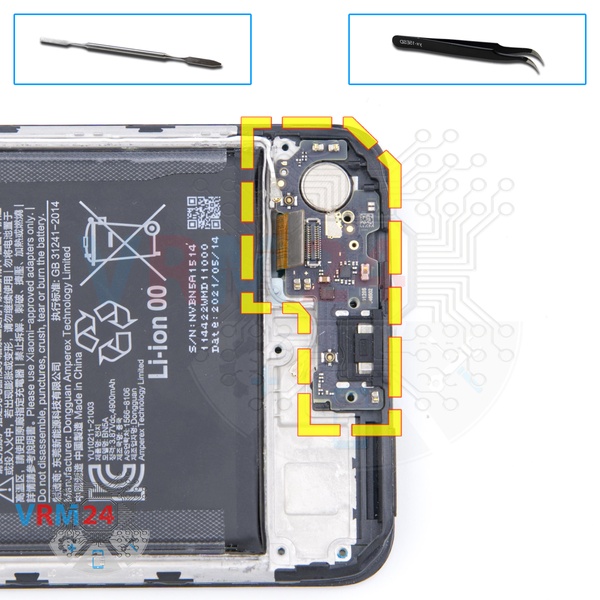

Remove the sub-board. It may be glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Xiaomi Redmi Note 10 5G, Step 13/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 13/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 13/3 How to disassemble Xiaomi Redmi Note 10 5G, Step 13/4 How to disassemble Xiaomi Redmi Note 10 5G, Step 13/5 How to disassemble Xiaomi Redmi Note 10 5G, Step 13/6

Step 13. Remove the cameras

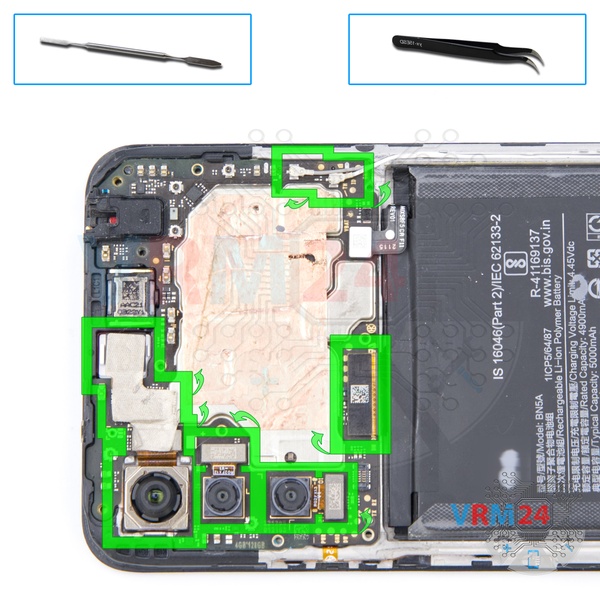

Pry up the connectors and remove three rear cameras and one front (selfie) camera. Disconnect the connectors of the display module cable, two coaxial cables.

⚠️️️ Be careful when removing the cables from the connectors. The cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Xiaomi Redmi Note 10 5G, Step 14/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 14/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 14/3

Step 14. Remove the motherboard

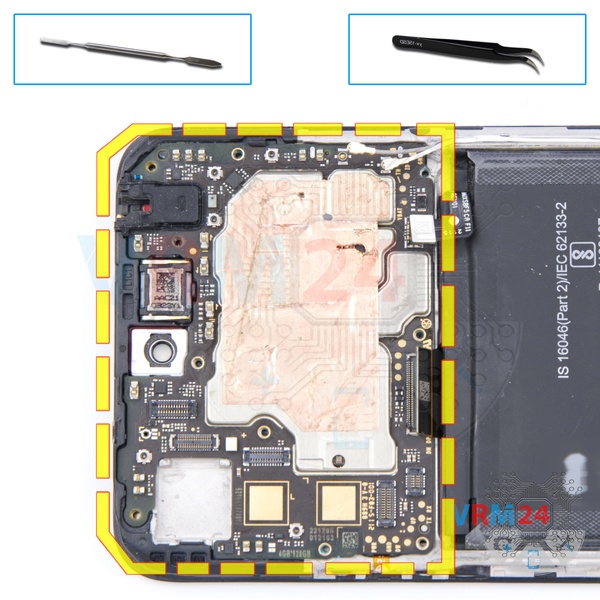

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi Redmi Note 10 5G, Step 15/1 How to disassemble Xiaomi Redmi Note 10 5G, Step 15/2 How to disassemble Xiaomi Redmi Note 10 5G, Step 15/3

Step 15. In the display frame remained

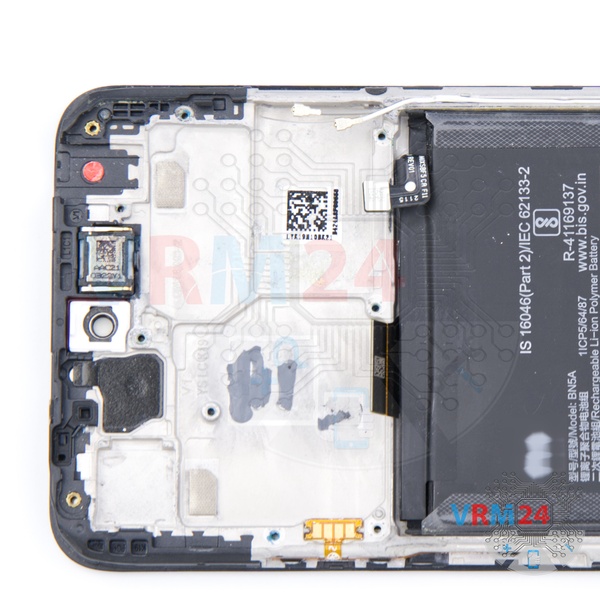

ℹ️️️ In the display frame remained: the earpiece speaker, battery, vibration motor and two coaxial cables.

Detailed disassembly instructions of Xiaomi Redmi Note 10 5G in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about minutes in time. Our manual is suitable for all models Xiaomi Redmi Note 10 5G — Xiaomi Redmi Note 10 5G M2103K19G released for markets in different countries.
