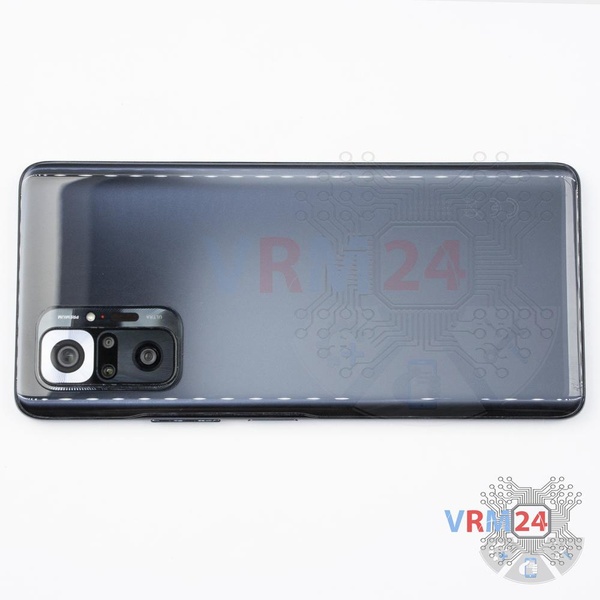

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 2/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 2/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 2/3 How to disassemble Xiaomi Redmi Note 10 Pro, Step 2/4 How to disassemble Xiaomi Redmi Note 10 Pro, Step 2/5 How to disassemble Xiaomi Redmi Note 10 Pro, Step 2/6

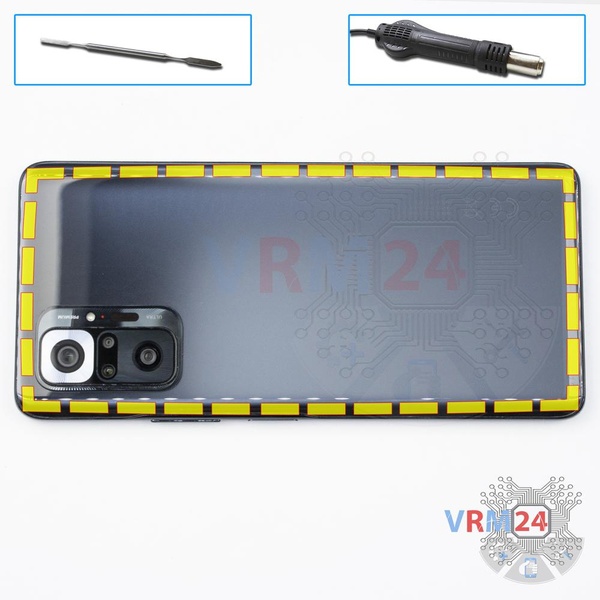

Step 2. Open the back cover

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 3/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 3/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 3/3 How to disassemble Xiaomi Redmi Note 10 Pro, Step 3/4

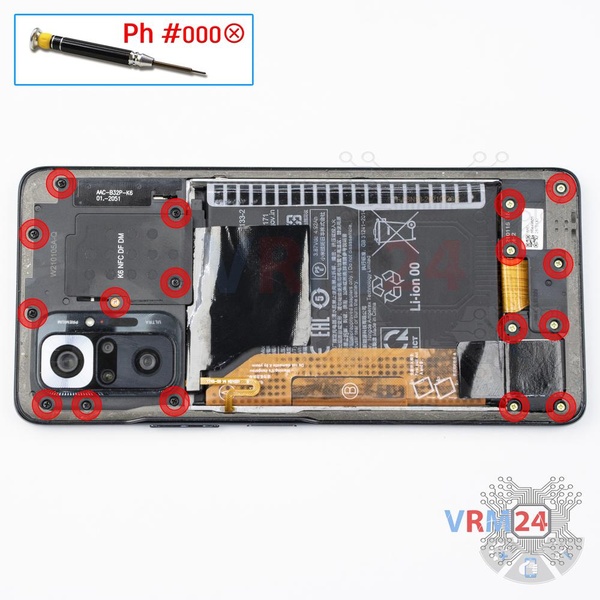

Step 3. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 long screws and 8 short screws at the phone's upper part.

⚠️ Try not to touch the camera. The camera is quite fragile!

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 4/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 4/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 4/3

Step 4. Open the middle cover

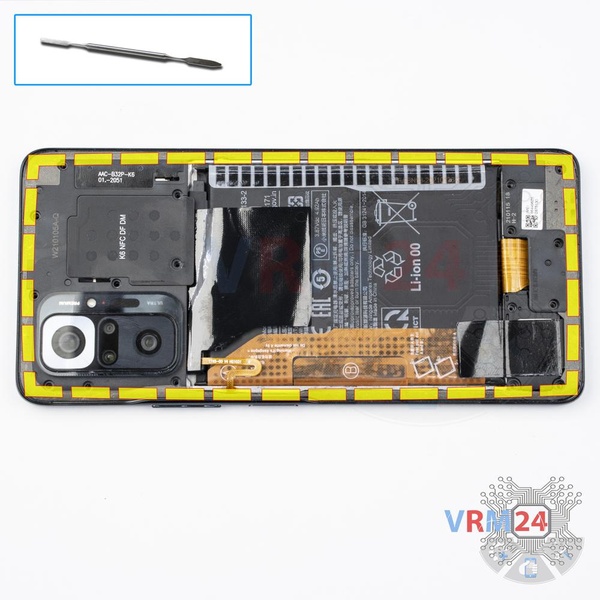

Open the middle cover with antennas. Try to lift the cover by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCBs.

⚠️ Be careful with the fingerprint sensor on the middle cover and its cable. The cable connects the sensor with the motherboard.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 5/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 5/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 5/3

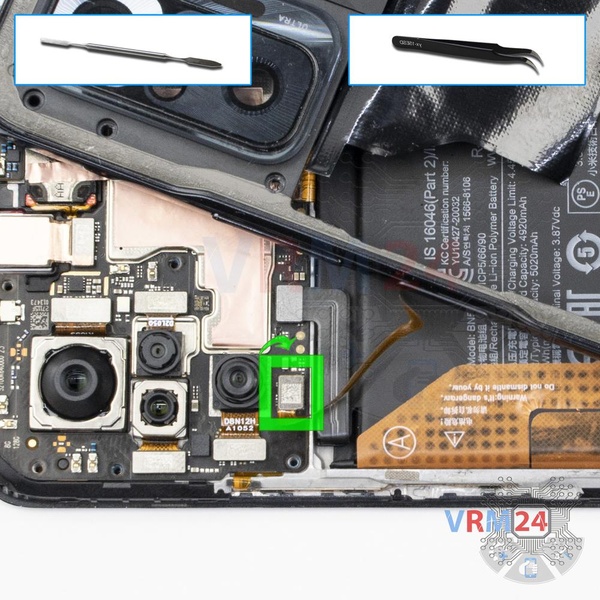

Step 5. Disconnect the connector

Disconnect the fingerprint sensor connector and remove the middle cover.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 6/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 6/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 6/3

Step 6. Disconnect the battery connector

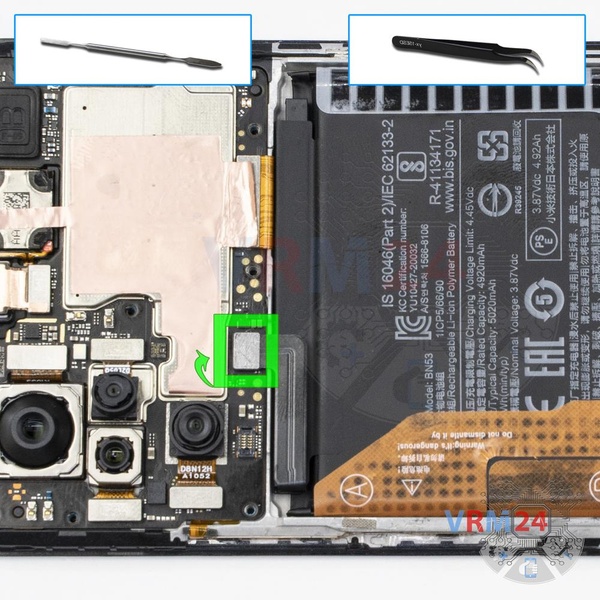

Disconnect the battery connector as soon as possible.

ℹ️️ The Xiaomi Redmi Note 10 Pro M2101K6G model has a battery BN53 with 5020 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 7/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 7/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 7/3 How to disassemble Xiaomi Redmi Note 10 Pro, Step 7/4

Step 7. Remove the loudspeaker

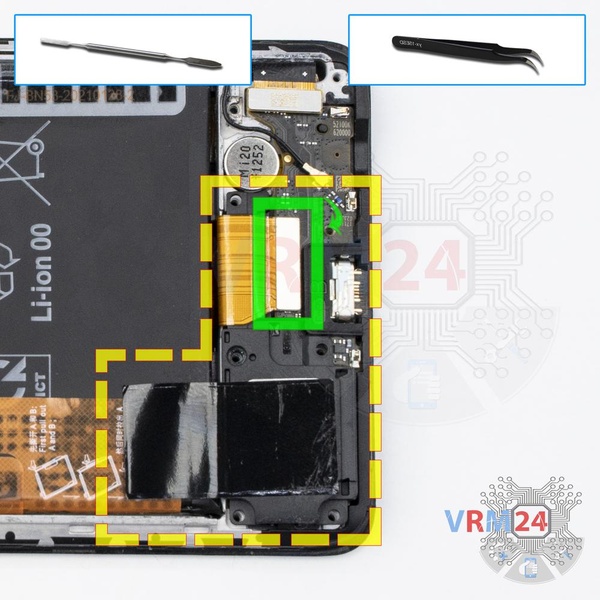

Pry up the connector and remove the loudspeaker.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 8/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 8/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 8/3

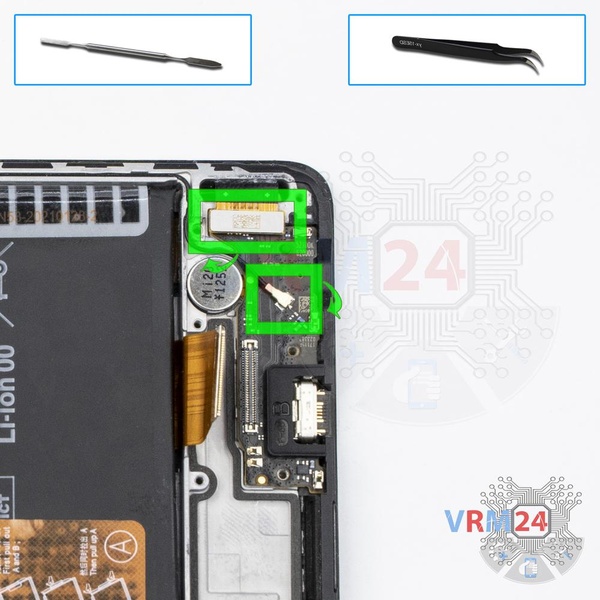

Step 8. Disconnect the connectors

Disconnect the coaxial cable connector, inter-board sub-screen cable on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Xiaomi Redmi Note 10 Pro, Step 9/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 9/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 9/3

Step 9. Remove the daughterboard

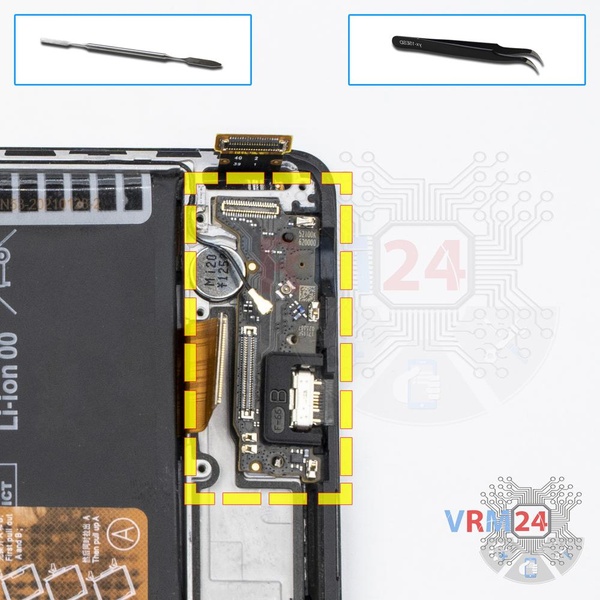

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹ️️ The sub-board contains a charging port (Micro USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 10/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 10/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 10/3 How to disassemble Xiaomi Redmi Note 10 Pro, Step 10/4 How to disassemble Xiaomi Redmi Note 10 Pro, Step 10/5

Step 10. Remove the battery

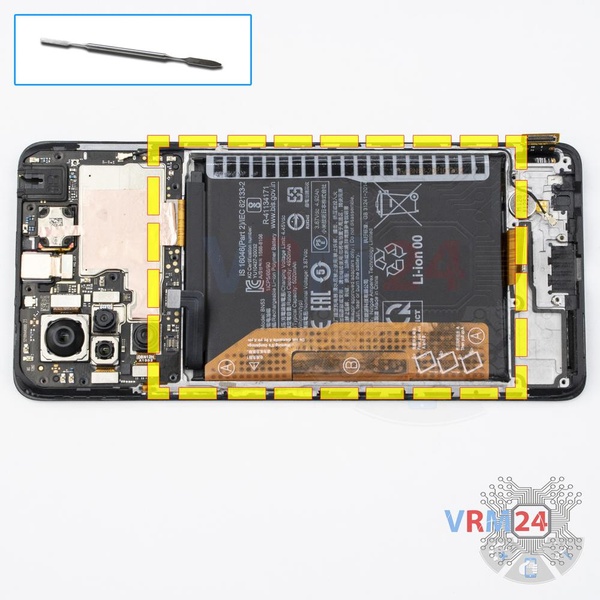

Please remove the battery with extreme care because it is glued from the inside by the manufacturer.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 11/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 11/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 11/3 How to disassemble Xiaomi Redmi Note 10 Pro, Step 11/4 How to disassemble Xiaomi Redmi Note 10 Pro, Step 11/5

Step 11. Disconnect the connectors

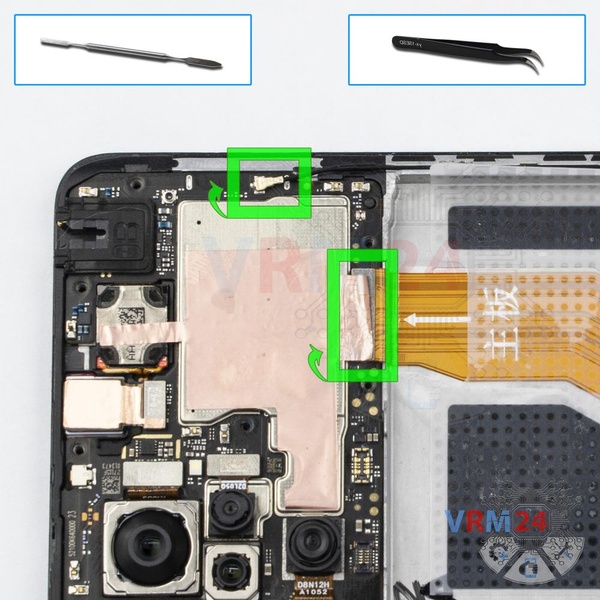

Pry up the connectors of the inter-board cable, and coaxial cable.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 12/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 12/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 12/3 How to disassemble Xiaomi Redmi Note 10 Pro, Step 12/4 How to disassemble Xiaomi Redmi Note 10 Pro, Step 12/5

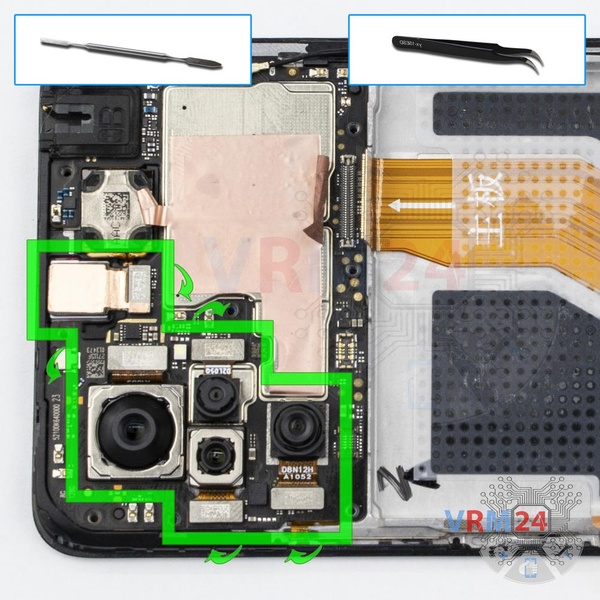

Step 12. Remove the cameras

Pry up the connectors and remove four rear cameras and one front (selfie) camera.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 13/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 13/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 13/3

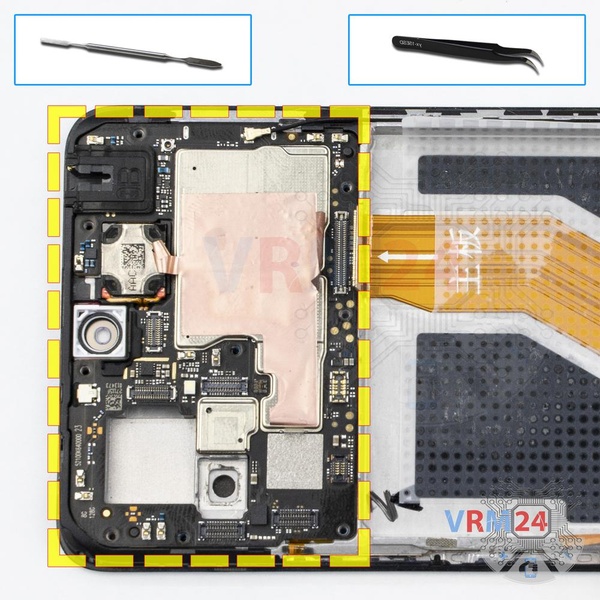

Step 13. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi Redmi Note 10 Pro, Step 14/1 How to disassemble Xiaomi Redmi Note 10 Pro, Step 14/2 How to disassemble Xiaomi Redmi Note 10 Pro, Step 14/3

Step 14. In the display frame remained

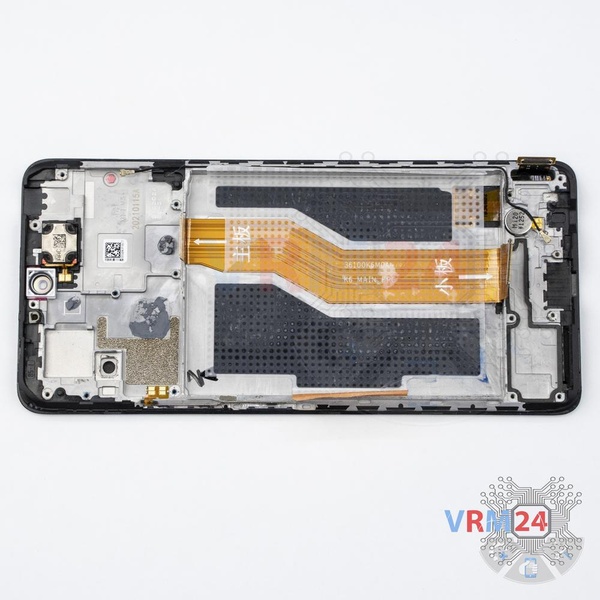

ℹ️️ In the display frame remained: the earpiece speaker, coaxial cable, inter-board cable and vibration motor.
