Step 1. Before disassembling!

⚠️️ Before disassembling, do not forget to turn your phone off.


How to disassemble Xiaomi Redmi Note 11S, Step 2/1 How to disassemble Xiaomi Redmi Note 11S, Step 2/2 How to disassemble Xiaomi Redmi Note 11S, Step 2/3 How to disassemble Xiaomi Redmi Note 11S, Step 2/4

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Xiaomi Redmi Note 11S, Step 3/1 How to disassemble Xiaomi Redmi Note 11S, Step 3/2

Step 3. Open the back cover

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often the most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Xiaomi Redmi Note 11S, Step 4/1 How to disassemble Xiaomi Redmi Note 11S, Step 4/2 How to disassemble Xiaomi Redmi Note 11S, Step 4/3 How to disassemble Xiaomi Redmi Note 11S, Step 4/4

Step 4. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 screws.


How to disassemble Xiaomi Redmi Note 11S, Step 5/1 How to disassemble Xiaomi Redmi Note 11S, Step 5/2 How to disassemble Xiaomi Redmi Note 11S, Step 5/3

Step 5. Open the cover

Pry over the edge to open the cameras cover. This cover protects the lenses of rear cameras. Also, the cover is hiding two screws.


How to disassemble Xiaomi Redmi Note 11S, Step 6/1 How to disassemble Xiaomi Redmi Note 11S, Step 6/2 How to disassemble Xiaomi Redmi Note 11S, Step 6/3

Step 6. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two screws.


How to disassemble Xiaomi Redmi Note 11S, Step 7/1 How to disassemble Xiaomi Redmi Note 11S, Step 7/2

Step 7. Disconnect the connector

Disconnect the fingerprint sensor connector. It is better to use a non-metal or plastic tool to avoid any damage, because the motherboard is still powered by the battery.


How to disassemble Xiaomi Redmi Note 11S, Step 8/1 How to disassemble Xiaomi Redmi Note 11S, Step 8/2 How to disassemble Xiaomi Redmi Note 11S, Step 8/3 How to disassemble Xiaomi Redmi Note 11S, Step 8/4 How to disassemble Xiaomi Redmi Note 11S, Step 8/5 How to disassemble Xiaomi Redmi Note 11S, Step 8/6

Step 8. Open the middle cover

We have to put the cameras cover in the middle frame to protect the cameras when we begin opening the middle cover . Move an opening tool along the edge, detach the clips, and remove the middle cover with fingerprint sensor and antenna pads and tracks. The middle cover protects the printed circuit boards (PCB).

Try to lift the cover by the edges and don't push anything too far inside, so as not to accidentally break or short-circuit anything on the circuit board.


How to disassemble Xiaomi Redmi Note 11S, Step 9/1 How to disassemble Xiaomi Redmi Note 11S, Step 9/2 How to disassemble Xiaomi Redmi Note 11S, Step 9/3

Step 9. Disconnect the battery connector

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The Xiaomi Redmi Note 11s 2201117SG model has a battery BN5D with 5000 mAh capacity (aka rechargeable battery).


How to disassemble Xiaomi Redmi Note 11S, Step 10/1 How to disassemble Xiaomi Redmi Note 11S, Step 10/2 How to disassemble Xiaomi Redmi Note 11S, Step 10/3

Step 10. Remove the loudspeaker

Remove the cover with a loudspeaker.


How to disassemble Xiaomi Redmi Note 11S, Step 11/1 How to disassemble Xiaomi Redmi Note 11S, Step 11/2 How to disassemble Xiaomi Redmi Note 11S, Step 11/3

Step 11. Disconnect the connectors

Disconnect the coaxial cable connector, cable to the display module, and inter-board sub-screen cable.

⚠️️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Xiaomi Redmi Note 11S, Step 12/1 How to disassemble Xiaomi Redmi Note 11S, Step 12/2 How to disassemble Xiaomi Redmi Note 11S, Step 12/3 How to disassemble Xiaomi Redmi Note 11S, Step 12/4

Step 12. Remove the daughterboard

Remove the sub-board. It may be glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Xiaomi Redmi Note 11S, Step 13/1 How to disassemble Xiaomi Redmi Note 11S, Step 13/2 How to disassemble Xiaomi Redmi Note 11S, Step 13/3 How to disassemble Xiaomi Redmi Note 11S, Step 13/4 How to disassemble Xiaomi Redmi Note 11S, Step 13/5

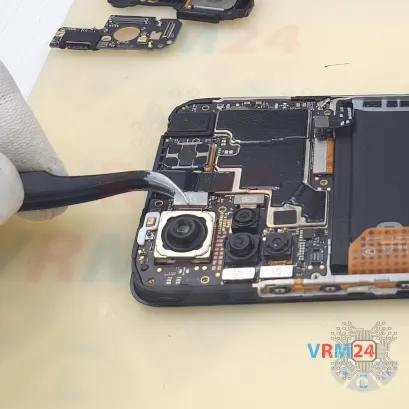

Step 13. Remove the cameras

Pry up the connectors of the inter-board cable and coaxial cable. Also, disconnect the connectors, remove four rear cameras and one front (selfie) camera.


How to disassemble Xiaomi Redmi Note 11S, Step 14/1 How to disassemble Xiaomi Redmi Note 11S, Step 14/2 How to disassemble Xiaomi Redmi Note 11S, Step 14/3

Step 14. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks. Be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi Redmi Note 11S, Step 15/1 How to disassemble Xiaomi Redmi Note 11S, Step 15/2 How to disassemble Xiaomi Redmi Note 11S, Step 15/3

Step 15. In the display frame remained

ℹ️️ In the display frame remained: the earpiece speaker, side buttons, coaxial cable, battery, and vibration motor.

Detailed disassembly instructions of Xiaomi Redmi Note 11S in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about minutes in time. Our manual is suitable for all models Xiaomi Redmi Note 11S — Xiaomi Redmi Note 11S 2201117SG released for markets in different countries.
