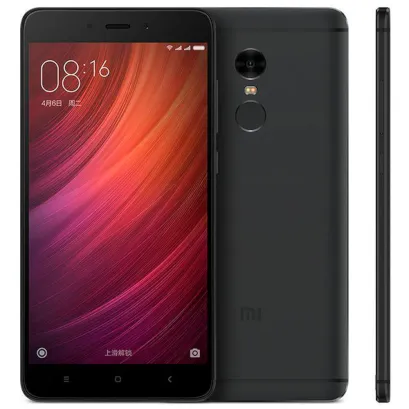

Disassembly of the mobile device Xiaomi RedMi Note 4X with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble Xiaomi RedMi Note 4X, Step 1/1 How to disassemble Xiaomi RedMi Note 4X, Step 1/2

Step 1. Remove the tray

Use an ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Xiaomi RedMi Note 4X, Step 2/1 How to disassemble Xiaomi RedMi Note 4X, Step 2/2

Step 2. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.


How to disassemble Xiaomi RedMi Note 4X, Step 3/1 How to disassemble Xiaomi RedMi Note 4X, Step 3/2 How to disassemble Xiaomi RedMi Note 4X, Step 3/3

Step 3. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The Xiaomi Redmi Note 4X model has a battery BN43 with 4000 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Xiaomi RedMi Note 4X, Step 4/1 How to disassemble Xiaomi RedMi Note 4X, Step 4/2

Step 4. Remove the fingerprint sensor

Disconnect the connector and remove the fingerprint sensor.


How to disassemble Xiaomi RedMi Note 4X, Step 5/1 How to disassemble Xiaomi RedMi Note 4X, Step 5/2

Step 5. Remove the battery

Carefully remove the battery.


How to disassemble Xiaomi RedMi Note 4X, Step 6/1 How to disassemble Xiaomi RedMi Note 4X, Step 6/2

Step 6. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 screws.


How to disassemble Xiaomi RedMi Note 4X, Step 7/1 How to disassemble Xiaomi RedMi Note 4X, Step 7/2

Step 7. Remove the loudspeaker

Remove the loudspeaker assembly with antennas.


How to disassemble Xiaomi RedMi Note 4X, Step 8/1 How to disassemble Xiaomi RedMi Note 4X, Step 8/2

Step 8. Unscrew one screw

Using a screwdriver (Philips 1.5 mm PH000), unscrew one screw securing the sub-board.


How to disassemble Xiaomi RedMi Note 4X, Step 9/1 How to disassemble Xiaomi RedMi Note 4X, Step 9/2 How to disassemble Xiaomi RedMi Note 4X, Step 9/3 How to disassemble Xiaomi RedMi Note 4X, Step 9/4

Step 9. Disconnect the connectors

Disconnect the coaxial cable connector, cable to the mainboard, and remove the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Xiaomi RedMi Note 4X, Step 10/1 How to disassemble Xiaomi RedMi Note 4X, Step 10/2

Step 10. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 4 screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Xiaomi RedMi Note 4X, Step 11/1 How to disassemble Xiaomi RedMi Note 4X, Step 11/2

Step 11. Open the cover

Remove the cover with antennas that protect the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.


How to disassemble Xiaomi RedMi Note 4X, Step 12/1 How to disassemble Xiaomi RedMi Note 4X, Step 12/2

Step 12. Remove the main camera

Pry up the connector on the motherboard and remove the main camera.


How to disassemble Xiaomi RedMi Note 4X, Step 13/1 How to disassemble Xiaomi RedMi Note 4X, Step 13/2 How to disassemble Xiaomi RedMi Note 4X, Step 13/3

Step 13. Disconnect the connectors

Pry up the connectors of power volume buttons cable, display module cable, touchscreen sensor cable, inter-board cable, and coaxial cable.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Xiaomi RedMi Note 4X, Step 14/1 How to disassemble Xiaomi RedMi Note 4X, Step 14/2

Step 14. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 5 screws.


How to disassemble Xiaomi RedMi Note 4X, Step 15/1 How to disassemble Xiaomi RedMi Note 4X, Step 15/2

Step 15. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi RedMi Note 4X, Step 16/1 How to disassemble Xiaomi RedMi Note 4X, Step 16/2

Step 16. Remove the earpiece speaker

Carefully remove the earpiece speaker and coaxial cable.


How to disassemble Xiaomi RedMi Note 4X, Step 17/1 How to disassemble Xiaomi RedMi Note 4X, Step 17/2 How to disassemble Xiaomi RedMi Note 4X, Step 17/3

Step 17. In the display frame remained

Parts in the frame of the display module.

Detailed disassembly instructions of Xiaomi RedMi Note 4X in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 10 minutes in time. Our manual is suitable for all models Xiaomi RedMi Note 4X released for markets in different countries.
