Step 1. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠ī¸ī¸ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Xiaomi Redmi Pro, Step 2/1 How to disassemble Xiaomi Redmi Pro, Step 2/2

Step 2. Unscrew the screws

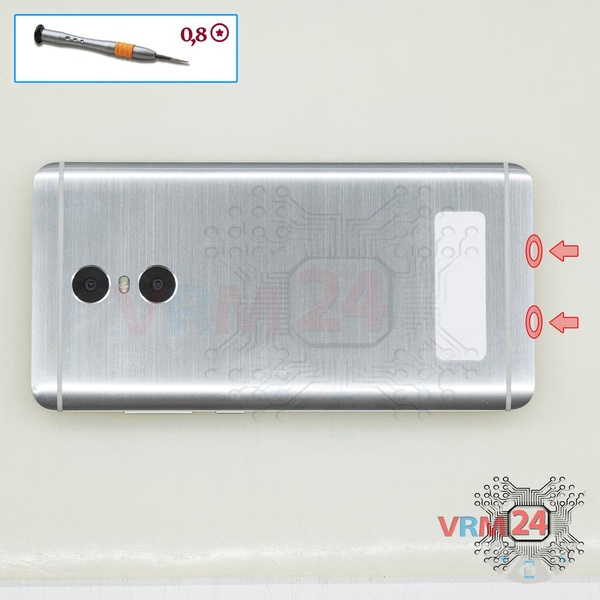

Using a screwdriver (precision star-shaped 0.8 mm aka Pentalobe), unscrew/drive the two screws out at the end of the phone.


How to disassemble Xiaomi Redmi Pro, Step 3/1 How to disassemble Xiaomi Redmi Pro, Step 3/2

Step 3. Open the back cover

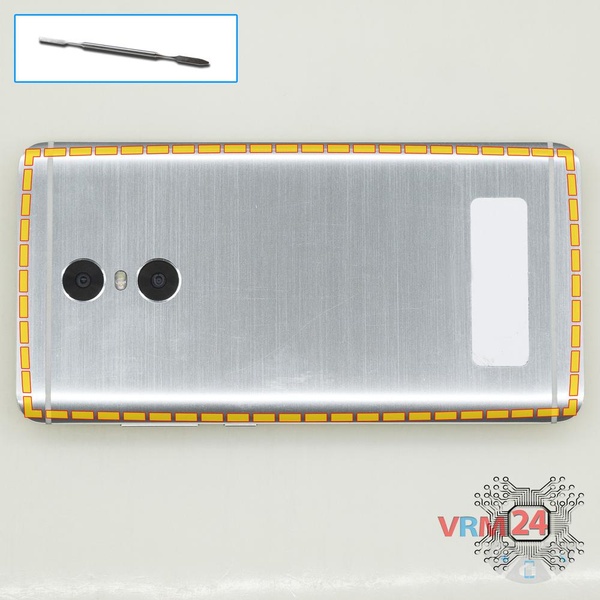

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠ī¸ī¸ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.


How to disassemble Xiaomi Redmi Pro, Step 4/1 How to disassemble Xiaomi Redmi Pro, Step 4/2

Step 4. Unscrew the screws

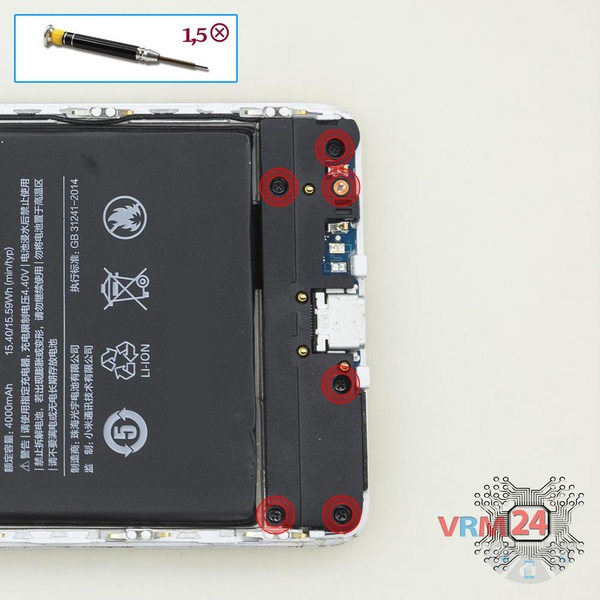

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the six screws.


How to disassemble Xiaomi Redmi Pro, Step 5/1 How to disassemble Xiaomi Redmi Pro, Step 5/2

Step 5. Remove the loudspeaker

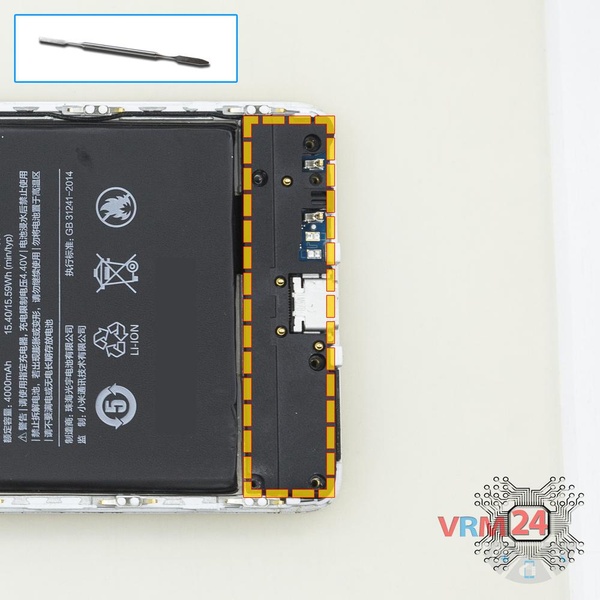

Pry over the edge and remove the loudspeaker assembly.


How to disassemble Xiaomi Redmi Pro, Step 6/1 How to disassemble Xiaomi Redmi Pro, Step 6/2

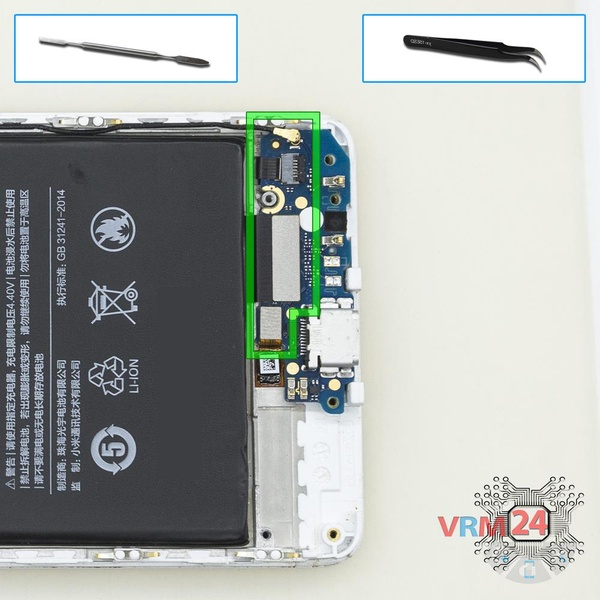

Step 6. Disconnect the connectors

Disconnect the connectors of the coaxial cable, inter-board cable, cable to the navigation buttons, fingerprint sensor button cable.

⚠ī¸ī¸ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Xiaomi Redmi Pro, Step 7/1 How to disassemble Xiaomi Redmi Pro, Step 7/2

Step 7. Remove the daughterboard

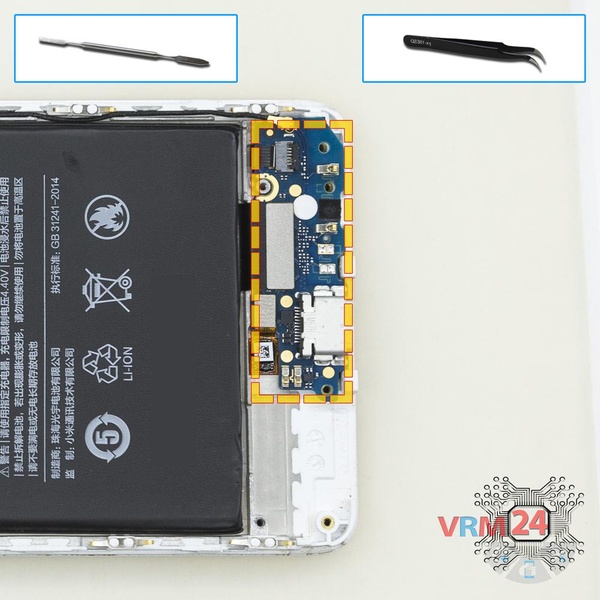

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹī¸ī¸ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, and an antenna unit.

⚠ī¸ī¸ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Xiaomi Redmi Pro, Step 8/1 How to disassemble Xiaomi Redmi Pro, Step 8/2

Step 8. Unscrew the screws

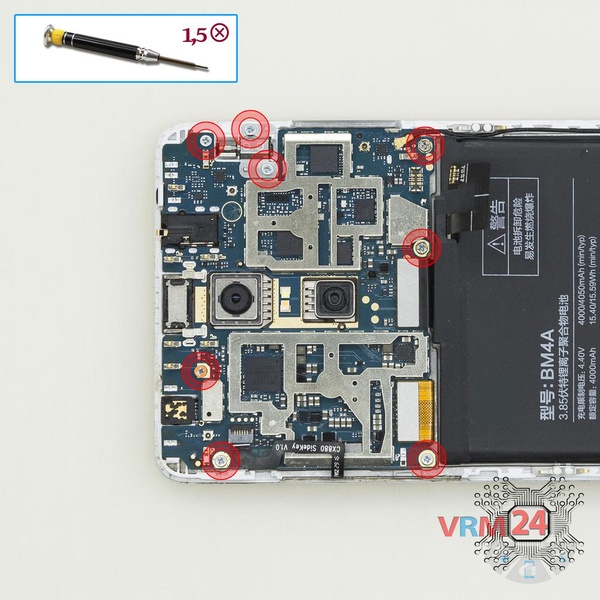

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the eight screws.


How to disassemble Xiaomi Redmi Pro, Step 9/1 How to disassemble Xiaomi Redmi Pro, Step 9/2

Step 9. Disconnect the connectors

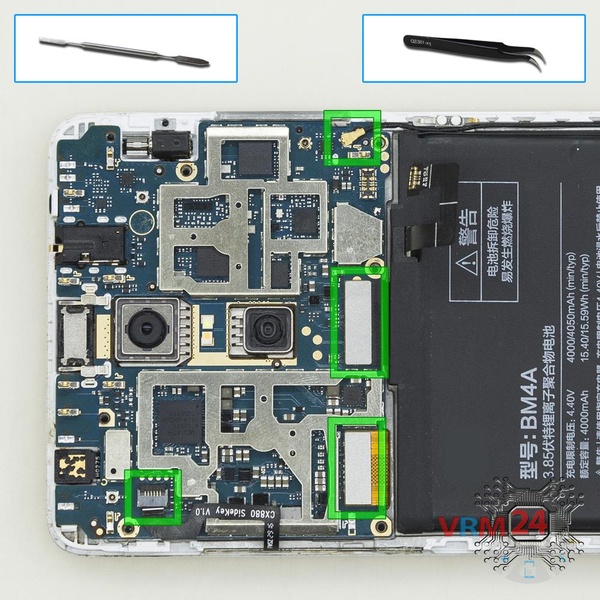

Pry up the connectors of the side buttons cable, display module cable, inter-board cable, and coaxial cable.

⚠ī¸ī¸ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Xiaomi Redmi Pro, Step 10/1 How to disassemble Xiaomi Redmi Pro, Step 10/2

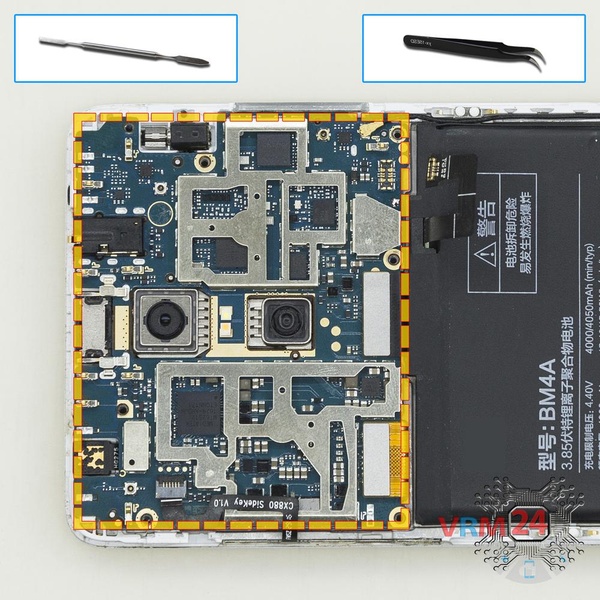

Step 10. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠ī¸ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi Redmi Pro, Step 11/1 How to disassemble Xiaomi Redmi Pro, Step 11/2 How to disassemble Xiaomi Redmi Pro, Step 11/3

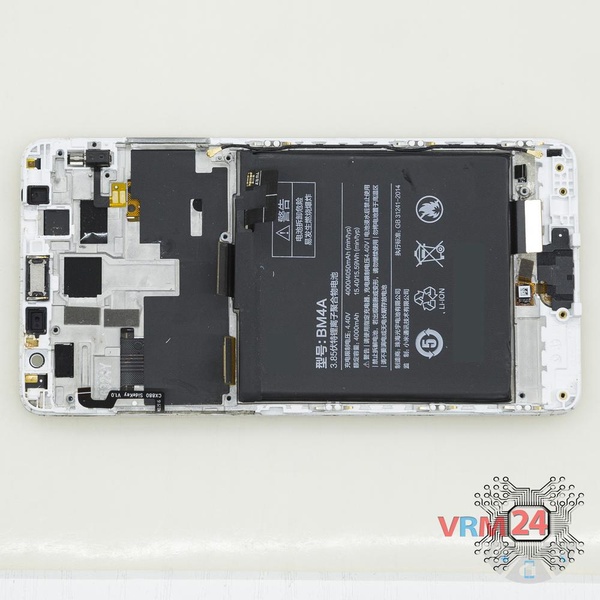

Step 11. In the display frame remained

ℹī¸ī¸ In the display frame remained: the earpiece speaker, battery, vibration motor, coaxial cable.

Detailed disassembly instructions of Xiaomi Redmi Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 9 minutes in time. Our manual is suitable for all models Xiaomi Redmi Pro released for markets in different countries.
