Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Disassembly/Repair of the mobile device ZTE Blade A510 with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble ZTE Blade A510, Step 1/1 How to disassemble ZTE Blade A510, Step 1/2

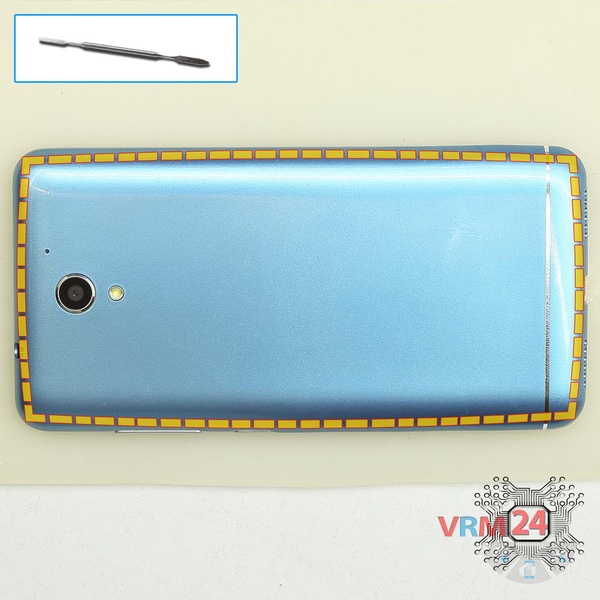

Step 1. Open the back cover

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.


How to disassemble ZTE Blade A510, Step 2/1 How to disassemble ZTE Blade A510, Step 2/2

Step 2. Unscrew the screws

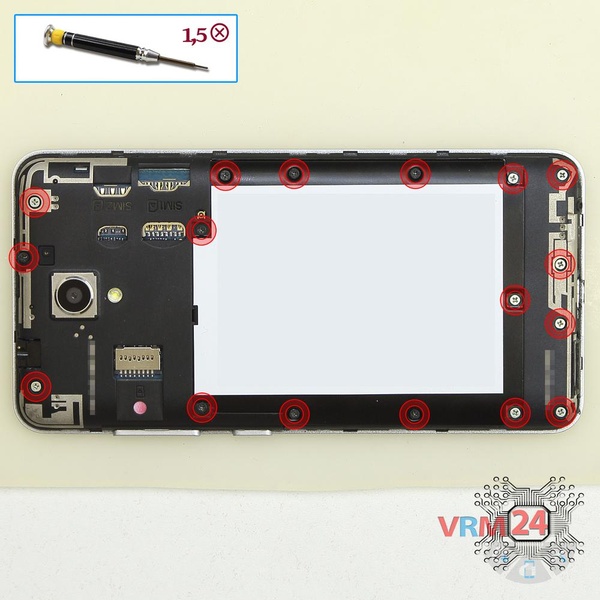

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew 17 screws. There are nine long silver screws and eight short black screws.

If the screws are different: ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble ZTE Blade A510, Step 3/1 How to disassemble ZTE Blade A510, Step 3/2

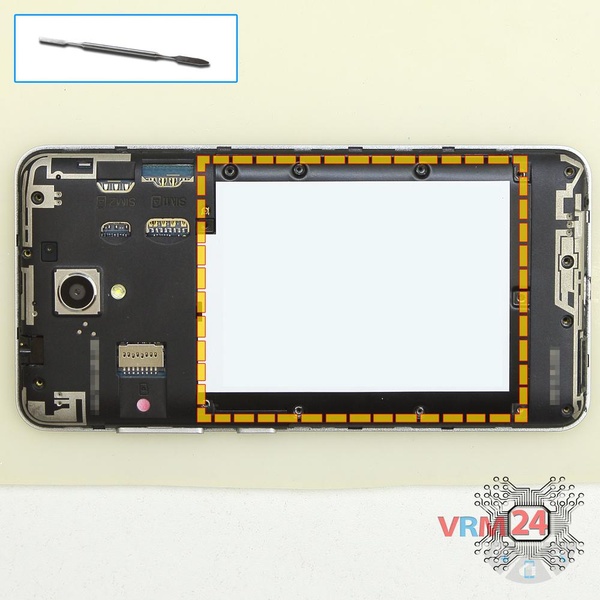

Step 3. Open the cover

Pry carefully and open the cover.


How to disassemble ZTE Blade A510, Step 4/1 How to disassemble ZTE Blade A510, Step 4/2

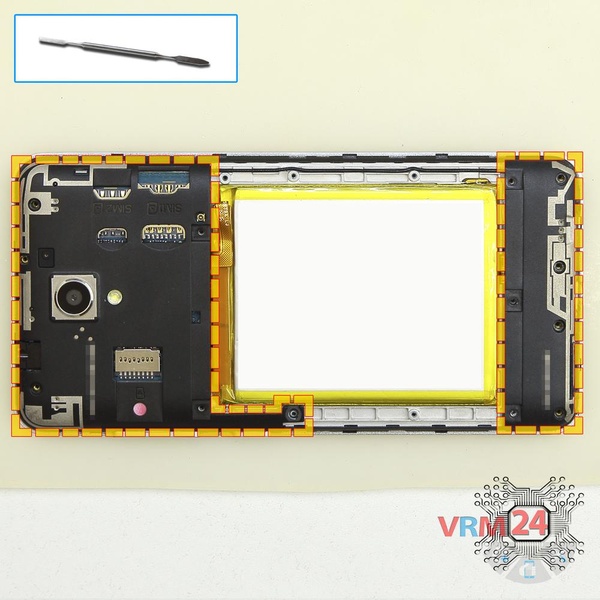

Step 4. Open the covers

Pry over the edges and remove the covers with antenna tracks and a loudspeaker.


How to disassemble ZTE Blade A510, Step 5/1 How to disassemble ZTE Blade A510, Step 5/2 How to disassemble ZTE Blade A510, Step 5/3 How to disassemble ZTE Blade A510, Step 5/4

Step 5. Remove the battery

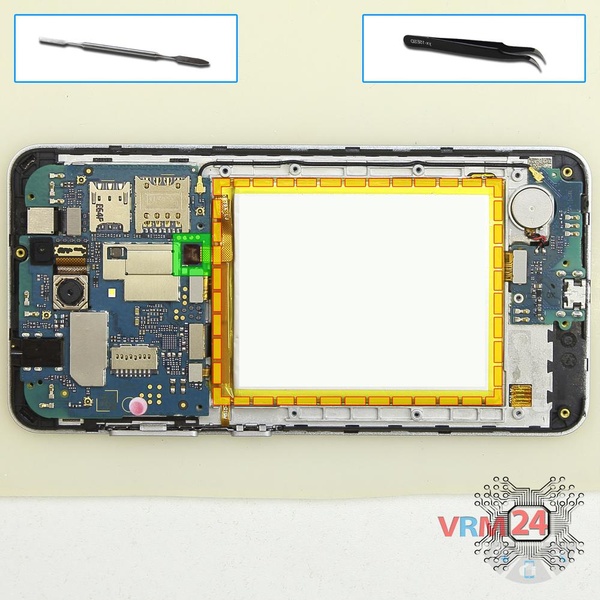

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The ZTE Blade A510 model has a battery Li3822T43P8h725640 with 2200 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

With extreme care, remove the battery because it is glued from the inside by the manufacturer.


How to disassemble ZTE Blade A510, Step 6/1 How to disassemble ZTE Blade A510, Step 6/2

Step 6. Remove the coaxial cable

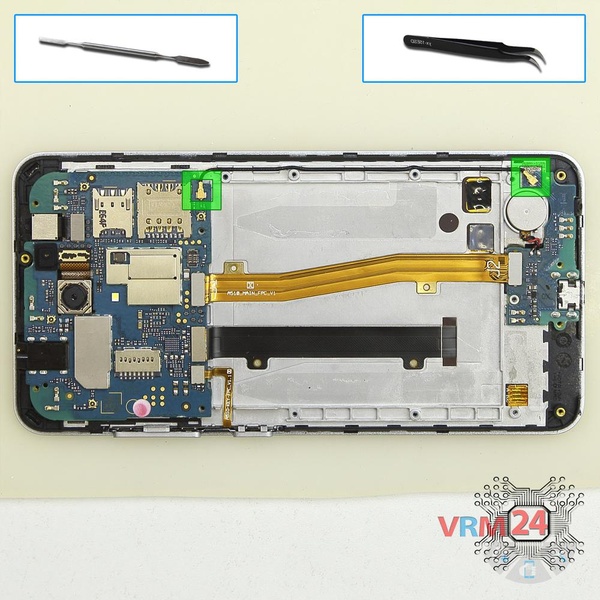

Pry up the connectors and detach the coaxial cable.


How to disassemble ZTE Blade A510, Step 7/1 How to disassemble ZTE Blade A510, Step 7/2 How to disassemble ZTE Blade A510, Step 7/3

Step 7. Remove the daughterboard

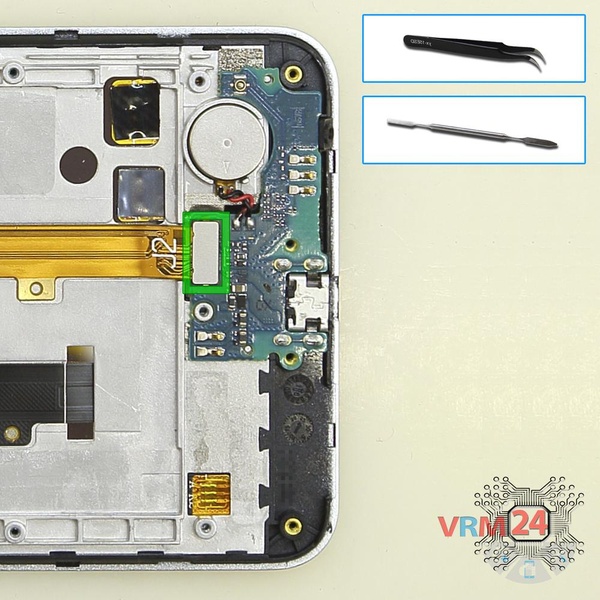

Disconnect the inter-board cable connector.

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro USB), microphone, vibration motor, spring contacts for the speaker, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble ZTE Blade A510, Step 8/1 How to disassemble ZTE Blade A510, Step 8/2

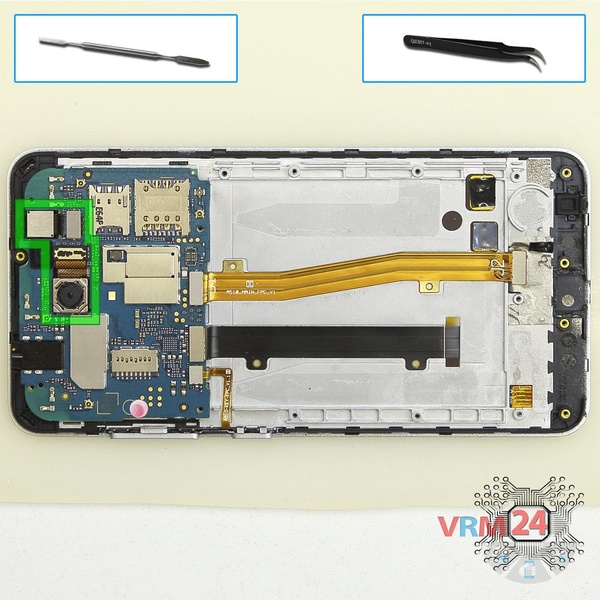

Step 8. Remove the cameras

Disconnect connectors on the motherboard and remove the main and front (selfie) cameras.


How to disassemble ZTE Blade A510, Step 9/1 How to disassemble ZTE Blade A510, Step 9/2 How to disassemble ZTE Blade A510, Step 9/3

Step 9. Disconnect the connectors

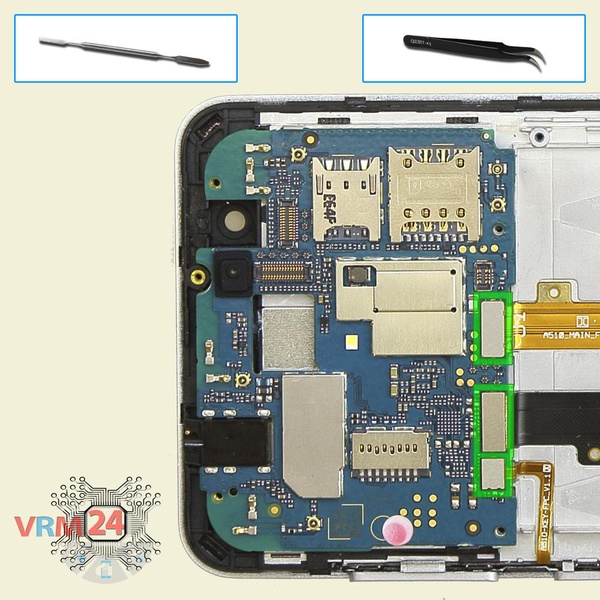

Pry up the connectors of the side buttons cable, display module cable, inter-board cable.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble ZTE Blade A510, Step 10/1 How to disassemble ZTE Blade A510, Step 10/2

Step 10. Remove the motherboard

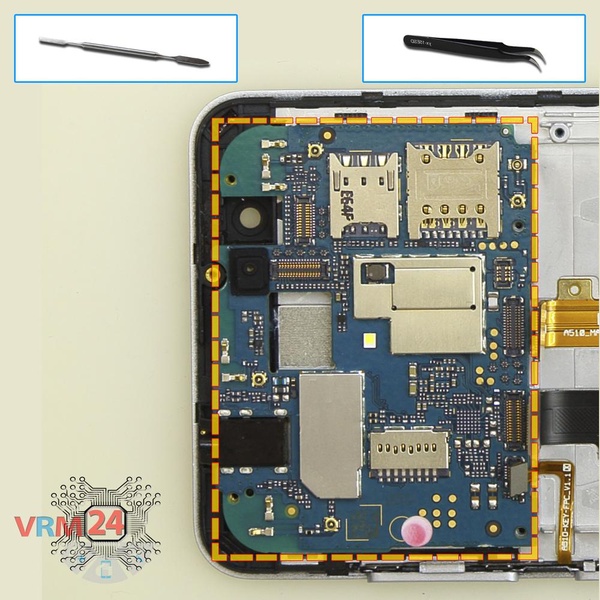

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble ZTE Blade A510, Step 11/1 How to disassemble ZTE Blade A510, Step 11/2

Step 11. Remove the earpiece speaker

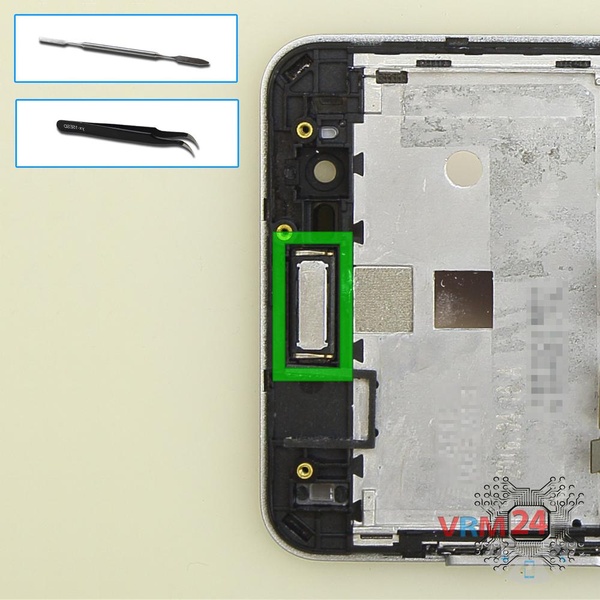

Pry at the bottom and remove the earpiece speaker.

⚠️️ Be careful! The earpiece speaker is glued a bit with adhesive.

⚠️️ If we pry the speaker in the middle we may break the earpiece speaker in half.


How to disassemble ZTE Blade A510, Step 12/1 How to disassemble ZTE Blade A510, Step 12/2 How to disassemble ZTE Blade A510, Step 12/3

Step 12. In the display frame remained

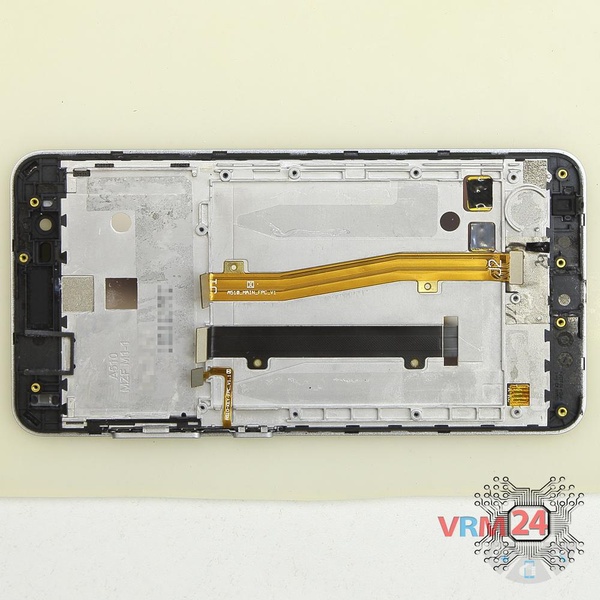

ℹ️️ In the display frame remained:

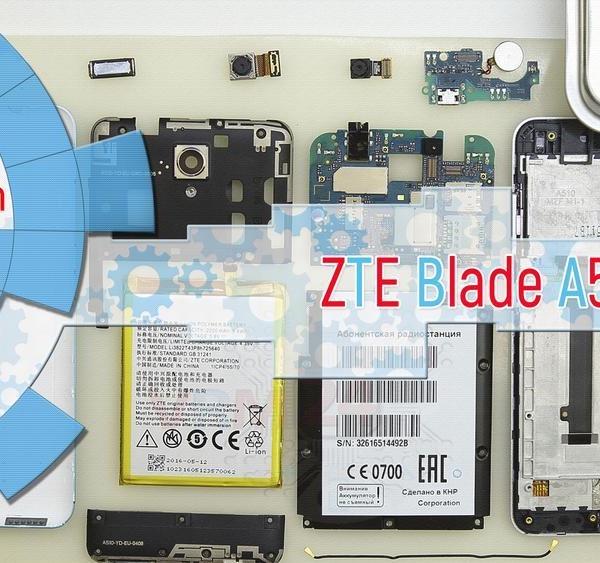

Detailed disassembly instructions of ZTE Blade A510 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has easy complexity and takes about 6 minutes in time. Our manual is suitable for all models ZTE Blade A510 released for markets in different countries.
