Teardown difficulty:
Easy
Duration:
10 min

Recommended tools

Disassembly of the mobile device ZTE Blade A7 Vita with each step description and the required set of tools.

Load more

Specialist in content creation, distribution and content management.


How to disassemble ZTE Blade A7 Vita, Step 1/1

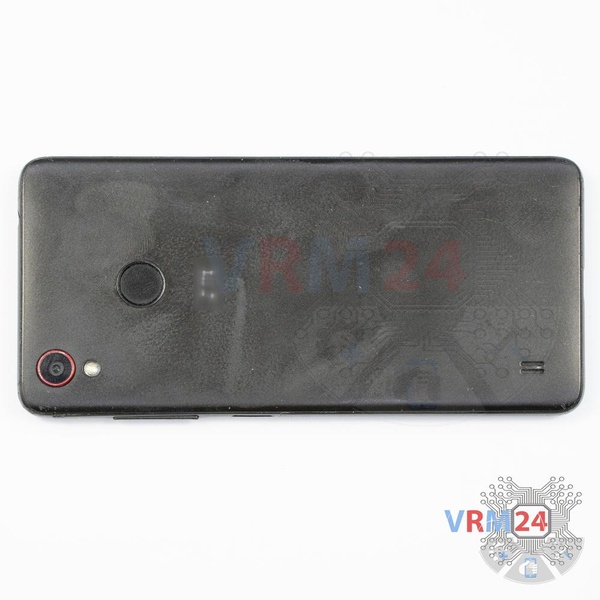

Step 1. Before disassembling!

⚠️ Before disassembling, do not forget to turn your phone off.

How to disassemble ZTE Blade A7 Vita, Step 2/1 How to disassemble ZTE Blade A7 Vita, Step 2/2

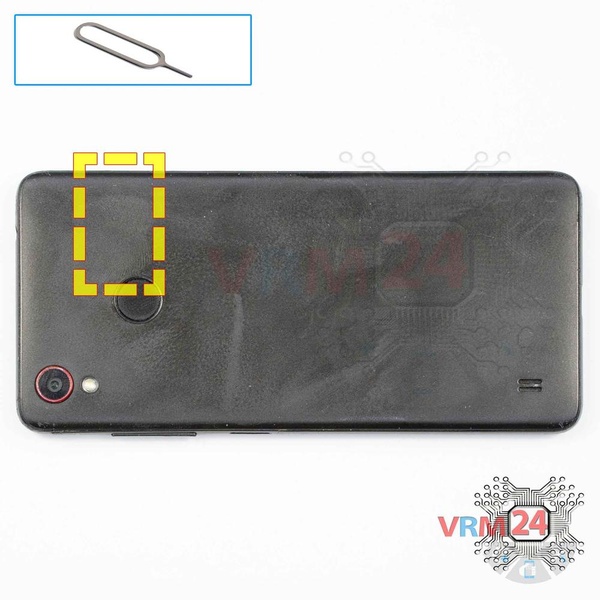

Step 2. Remove the tray

Use the Key tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

ℹ️️ Remember the location for the SIM and Memory card (Micro SD) trays so that nothing is confused when reassembling.

⚠️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

How to disassemble ZTE Blade A7 Vita, Step 3/1 How to disassemble ZTE Blade A7 Vita, Step 3/2 How to disassemble ZTE Blade A7 Vita, Step 3/3

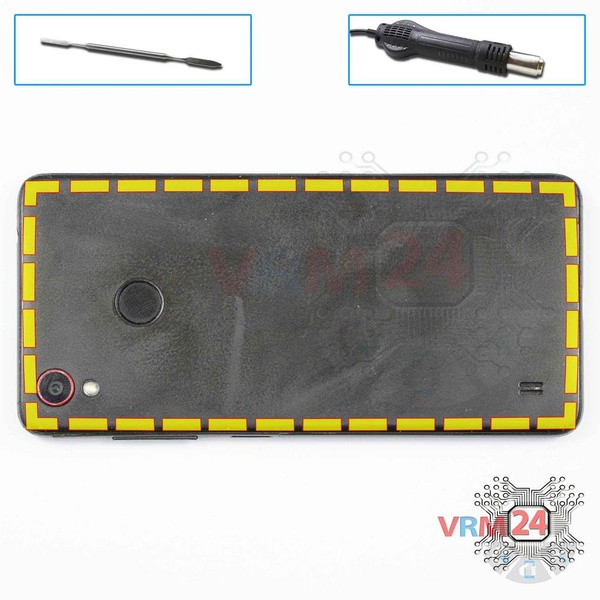

Step 3. Open the back cover

⚠️ Pay attention to the cover is glued with adhesive tape on the upper and bottom parts to the middle covers.

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

⚠️ Look in advance in the picture for the cables’ location for inter-board, touchscreen, display, buttons (if any) under the cover to not damage them accidentally.

⚠️ Pay attention to the fingerprint sensor cable glued to the back cover from the inside.

How to disassemble ZTE Blade A7 Vita, Step 4/1 How to disassemble ZTE Blade A7 Vita, Step 4/2 How to disassemble ZTE Blade A7 Vita, Step 4/3 How to disassemble ZTE Blade A7 Vita, Step 4/4

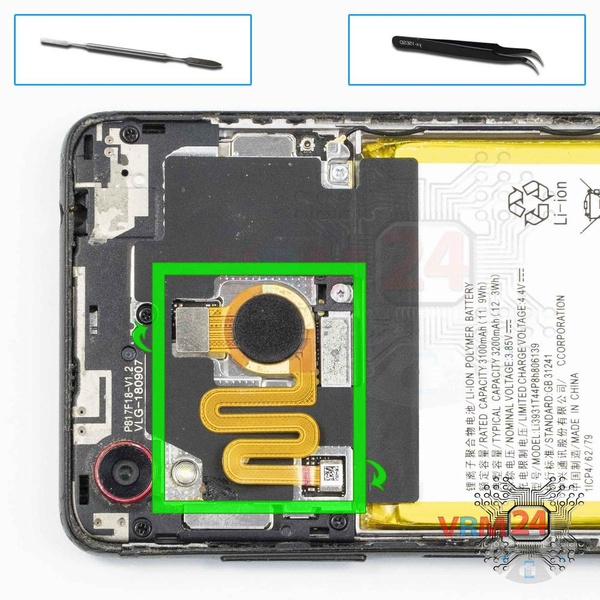

Step 4. Remove the fingerprint sensor

Disconnect the connector and remove the fingerprint sensor.

How to disassemble ZTE Blade A7 Vita, Step 5/1 How to disassemble ZTE Blade A7 Vita, Step 5/2 How to disassemble ZTE Blade A7 Vita, Step 5/3

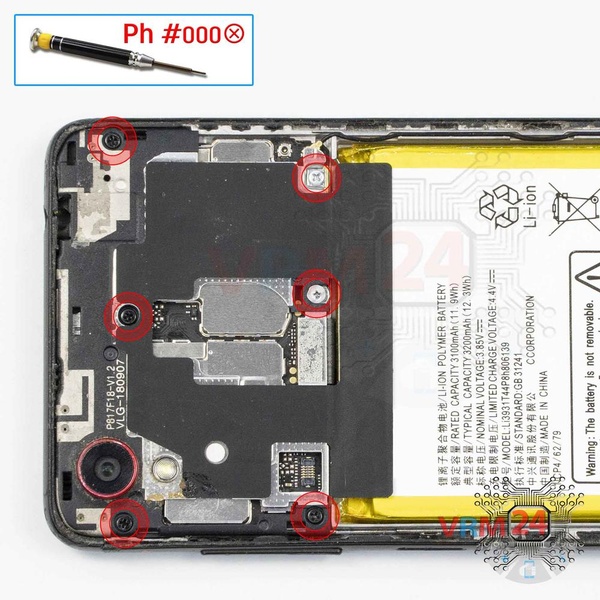

Step 5. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 6 screws.

ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

How to disassemble ZTE Blade A7 Vita, Step 6/1 How to disassemble ZTE Blade A7 Vita, Step 6/2 How to disassemble ZTE Blade A7 Vita, Step 6/3

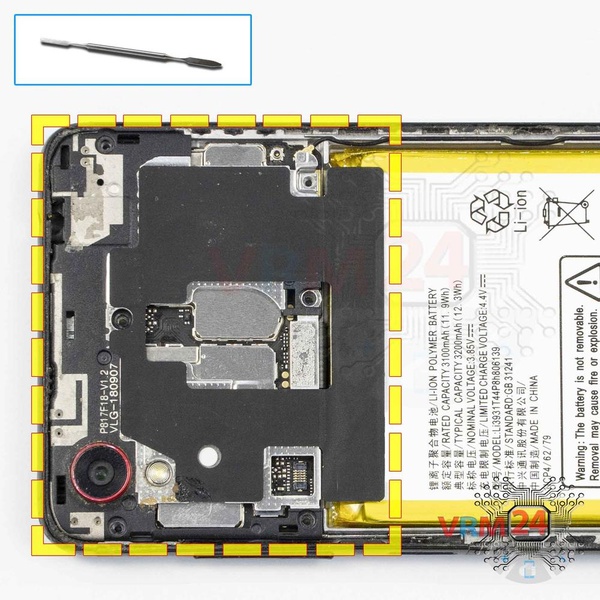

Step 6. Open the cover

Remove the cover with antennas that protect the printed circuit board (PCB). Try to lift the covers by the edges and not push anything between them to not accidentally touch or short-circuit anything on the PCB.

ℹ️️ On the upper cover, you can see the metalized coating on the plastic in the form of tracks and contact pads. These are Wi-Fi, Bluetooth, and GPS antennas.

⚠️ It is crucial while reassembling, checking the spring contacts on the board, and the contact pads on the cover match and touch. Otherwise, signal loss or signal may be quite weak.

How to disassemble ZTE Blade A7 Vita, Step 7/1 How to disassemble ZTE Blade A7 Vita, Step 7/2 How to disassemble ZTE Blade A7 Vita, Step 7/3

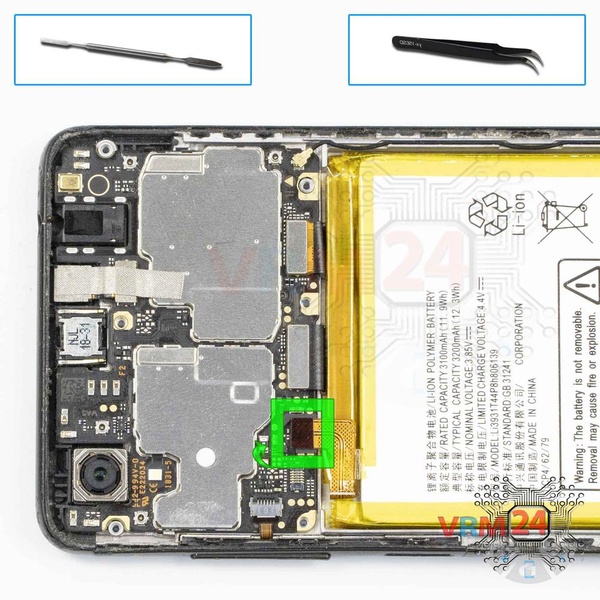

Step 7. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹ️️ The ZTE Blade A7 Vita model has a battery Li3931T44P8h806139 with 3200 mAh capacity (aka rechargeable battery).

⚠️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly. Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.

How to disassemble ZTE Blade A7 Vita, Step 8/1 How to disassemble ZTE Blade A7 Vita, Step 8/2 How to disassemble ZTE Blade A7 Vita, Step 8/3

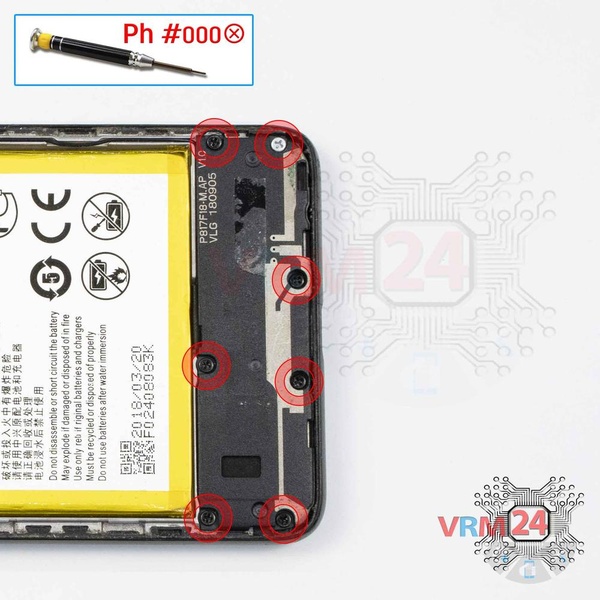

Step 8. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 screws.

How to disassemble ZTE Blade A7 Vita, Step 9/1 How to disassemble ZTE Blade A7 Vita, Step 9/2 How to disassemble ZTE Blade A7 Vita, Step 9/3

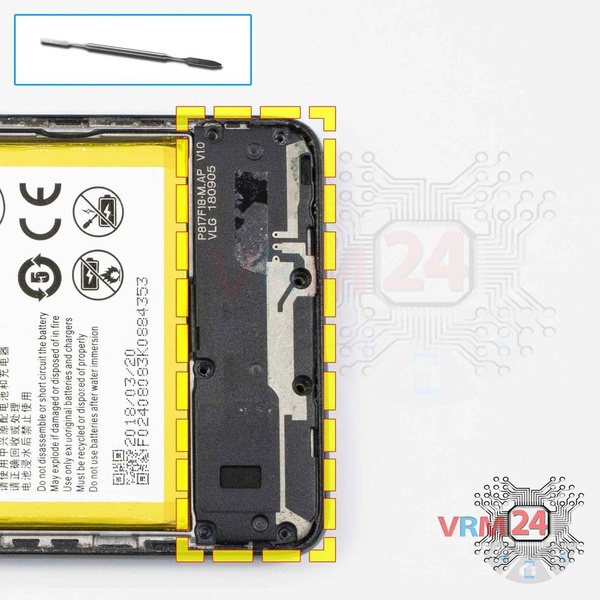

Step 9. Remove the loudspeaker

Remove the loudspeaker assembly with antennas and a loudspeaker.

How to disassemble ZTE Blade A7 Vita, Step 10/1 How to disassemble ZTE Blade A7 Vita, Step 10/2

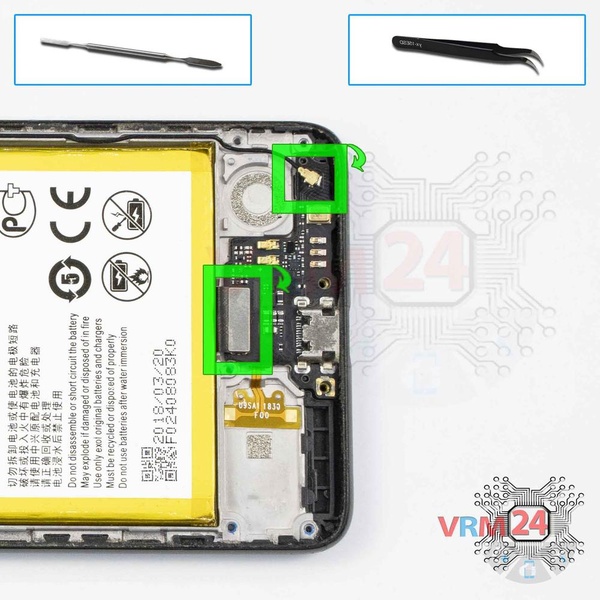

Step 10. Disconnect the connectors

Disconnect the coaxial cable connector and inter-board sub-screen cable on the daughterboard.

⚠️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

How to disassemble ZTE Blade A7 Vita, Step 11/1 How to disassemble ZTE Blade A7 Vita, Step 11/2 How to disassemble ZTE Blade A7 Vita, Step 11/3

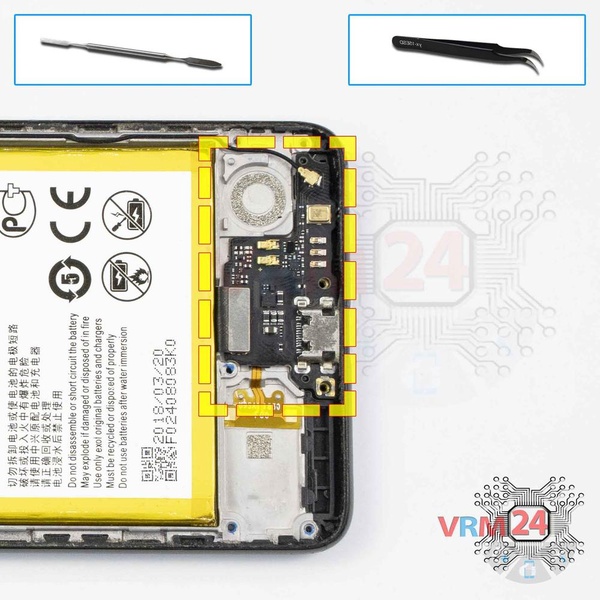

Step 11. Remove the daughterboard

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the board can be heated a bit.

ℹ️️ The board contains a charging port (Micro USB), microphone, spring contacts for the speaker, and an antenna unit.

⚠️ It is not necessary to insert the tool under the board when removing the sub-board. Internal components could be damaged.

How to disassemble ZTE Blade A7 Vita, Step 12/1 How to disassemble ZTE Blade A7 Vita, Step 12/2

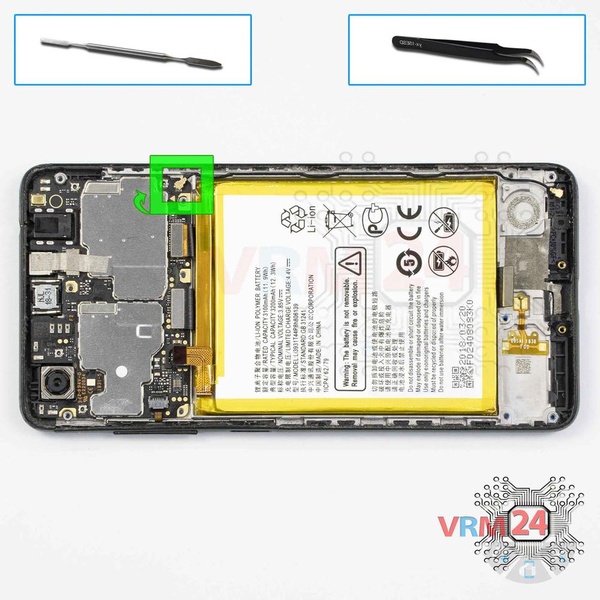

Step 12. Remove the coaxial cable

Disconnect the connector and remove the coaxial cable.

How to disassemble ZTE Blade A7 Vita, Step 13/1 How to disassemble ZTE Blade A7 Vita, Step 13/2 How to disassemble ZTE Blade A7 Vita, Step 13/3

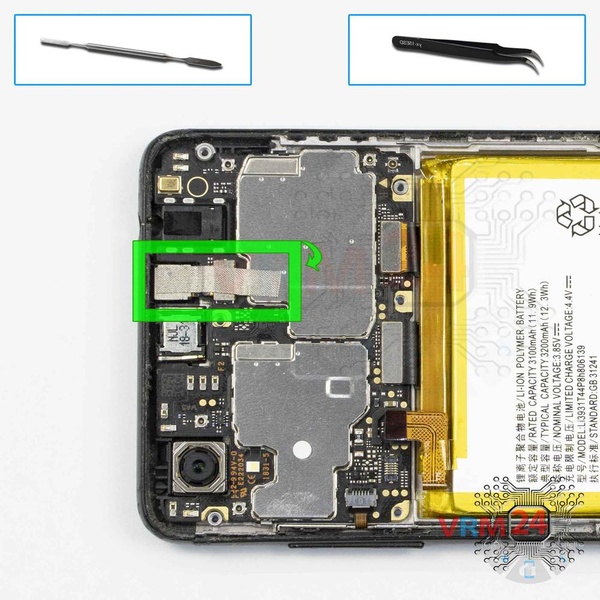

Step 13. Remove the front camera

Disconnect the connector and remove the front (selfie) camera.

How to disassemble ZTE Blade A7 Vita, Step 14/1 How to disassemble ZTE Blade A7 Vita, Step 14/2 How to disassemble ZTE Blade A7 Vita, Step 14/3

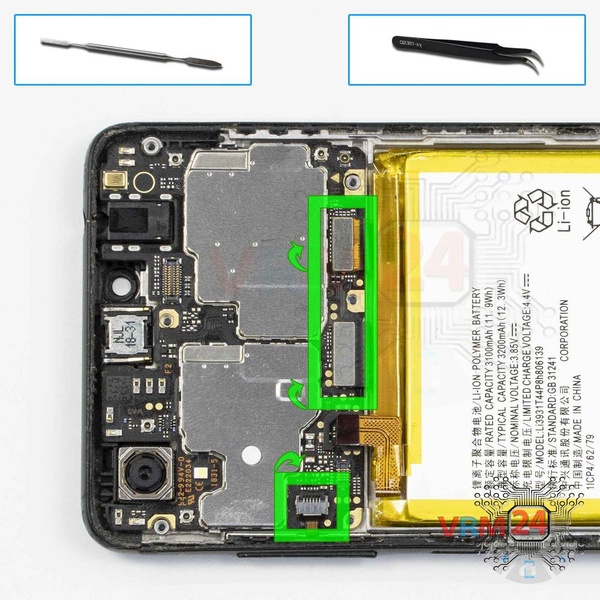

Step 14. Disconnect the connectors

Pry up the connectors of power volume buttons cable, display module cable, inter-board cable.

⚠️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

How to disassemble ZTE Blade A7 Vita, Step 15/1 How to disassemble ZTE Blade A7 Vita, Step 15/2 How to disassemble ZTE Blade A7 Vita, Step 15/3

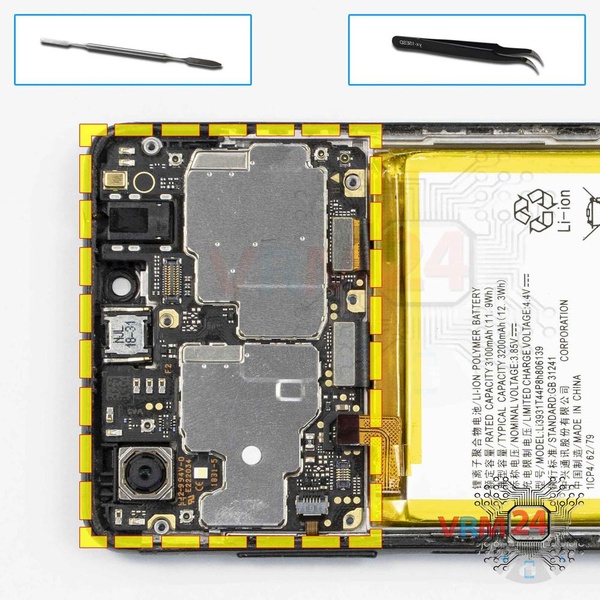

Step 15. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

How to disassemble ZTE Blade A7 Vita, Step 16/1 How to disassemble ZTE Blade A7 Vita, Step 16/2 How to disassemble ZTE Blade A7 Vita, Step 16/3

Step 16. Remove the rear camera

Disconnect the connector and remove the rear camera.

Detailed disassembly instructions of ZTE Blade A7 Vita in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Load more

Disassembling\Repair has easy complexity and takes about 10 minutes in time. Our manual is suitable for all models ZTE Blade A7 Vita released for markets in different countries.
