Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Disassembly of the mobile device ZTE Blade V2 Lite (ZTE Blade V2 Lite A450) with each step description and the required set of tools.


Specialist in content creation, distribution and content management.


How to disassemble ZTE Blade V2 Lite, Step 1/1 How to disassemble ZTE Blade V2 Lite, Step 1/2
Step 1

Open the back cover.

How to disassemble ZTE Blade V2 Lite, Step 2/1 How to disassemble ZTE Blade V2 Lite, Step 2/2

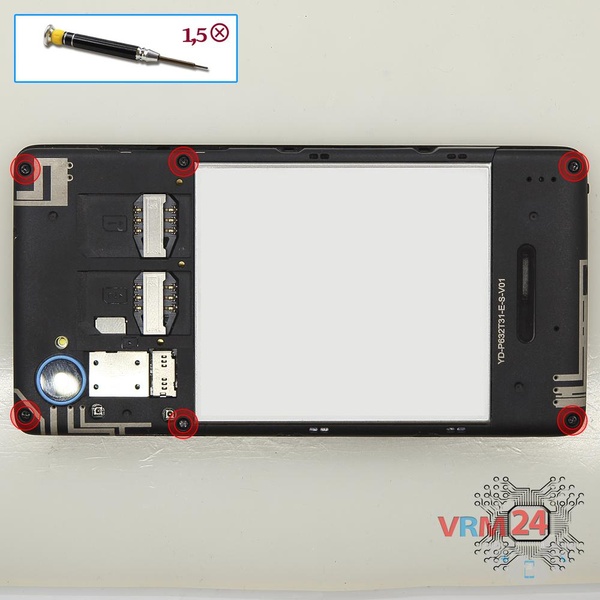

Step 2

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the frame of the phone.

How to disassemble ZTE Blade V2 Lite, Step 3/1 How to disassemble ZTE Blade V2 Lite, Step 3/2

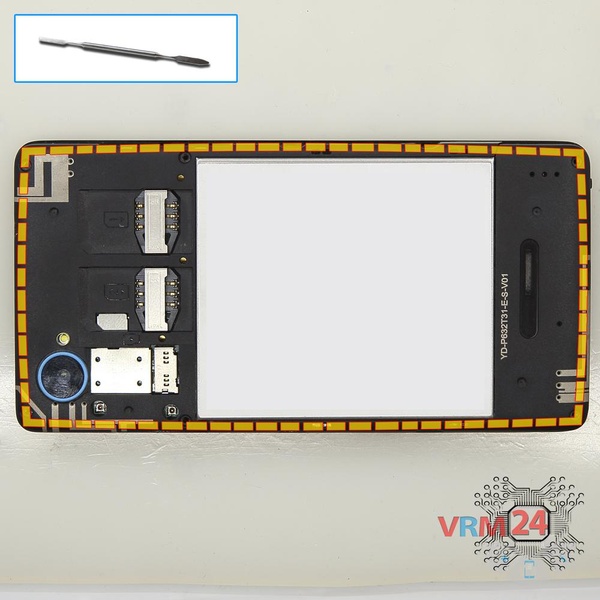

Step 3

Pry and remove the middle cover.

How to disassemble ZTE Blade V2 Lite, Step 4/1

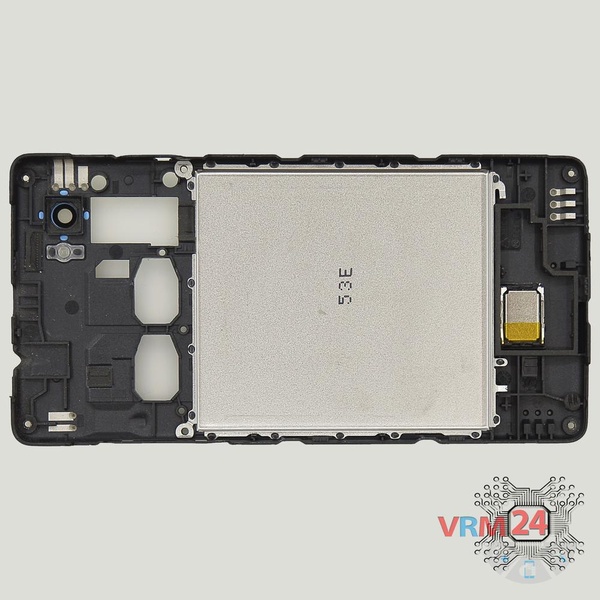

Step 4

The middle frame with a buzzer (speaker).

How to disassemble ZTE Blade V2 Lite, Step 5/1 How to disassemble ZTE Blade V2 Lite, Step 5/2 How to disassemble ZTE Blade V2 Lite, Step 5/3

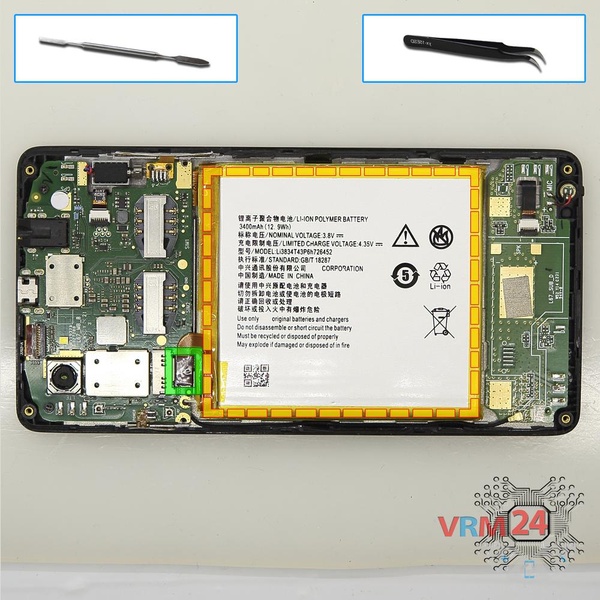

Step 5

Disconnect the connector on PCB and remove the battery.

How to disassemble ZTE Blade V2 Lite, Step 6/1 How to disassemble ZTE Blade V2 Lite, Step 6/2 How to disassemble ZTE Blade V2 Lite, Step 6/3

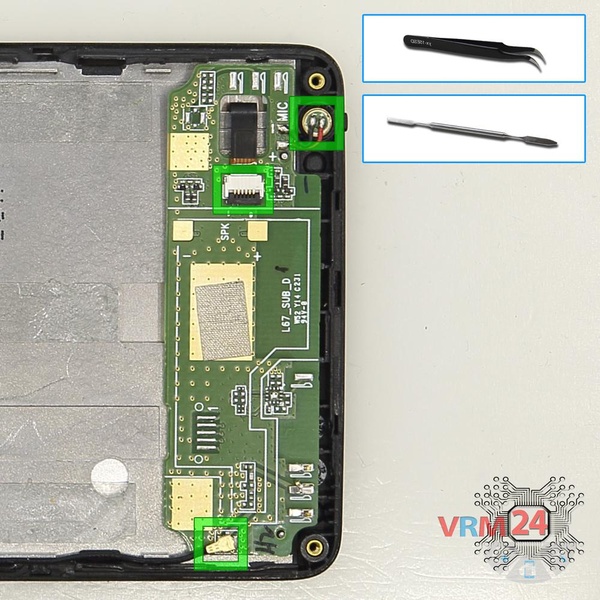

Step 6

Disconnect the connectors on PCB and pry up the microphone.

How to disassemble ZTE Blade V2 Lite, Step 7/1 How to disassemble ZTE Blade V2 Lite, Step 7/2

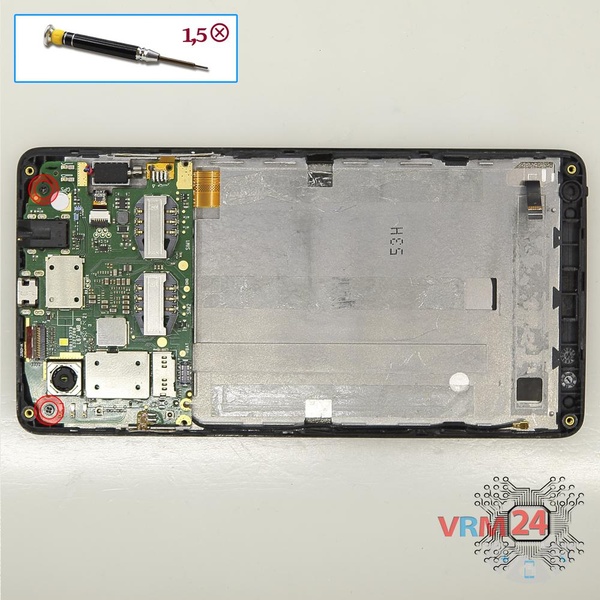

Step 7

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble ZTE Blade V2 Lite, Step 8/1 How to disassemble ZTE Blade V2 Lite, Step 8/2

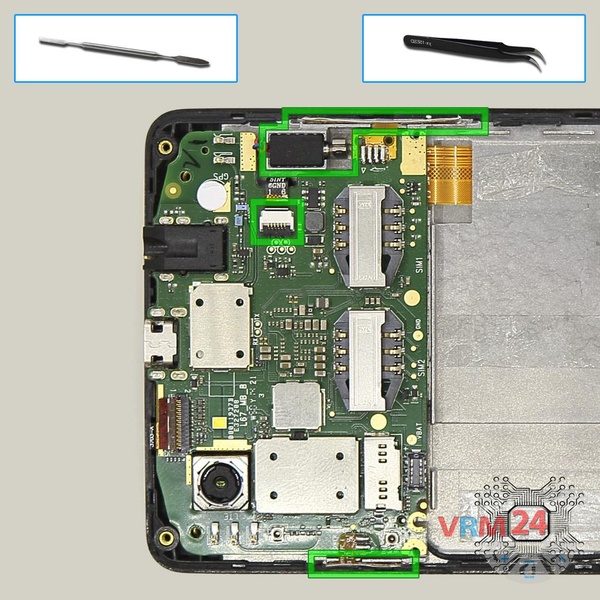

Step 8

Disconnect the connectors on PCB and pry up the vibration motor & power & volume buttons flex cables.

How to disassemble ZTE Blade V2 Lite, Step 9/1 How to disassemble ZTE Blade V2 Lite, Step 9/2

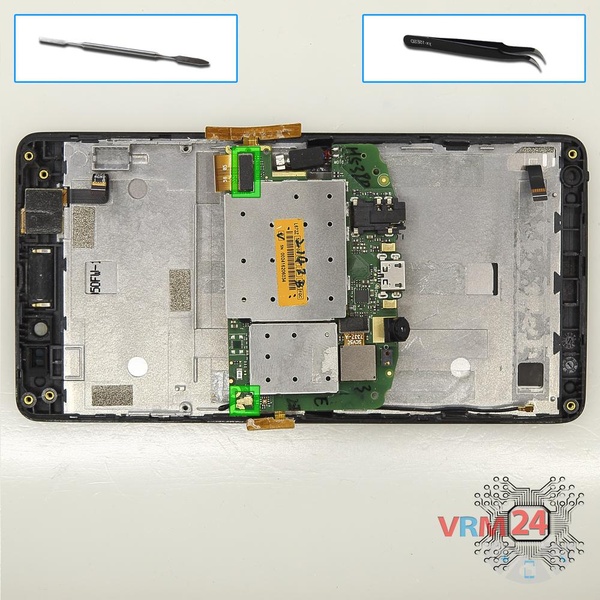

Step 9

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble ZTE Blade V2 Lite, Step 10/1 How to disassemble ZTE Blade V2 Lite, Step 10/2 How to disassemble ZTE Blade V2 Lite, Step 10/3
Step 10

Parts are in the frame of the display module.

Detailed disassembly instructions of ZTE Blade V2 Lite in the video, made by our mobile repair & service center:


Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models ZTE Blade V2 Lite — ZTE Blade V2 Lite A450 released for markets in different countries.
