Alcatel OT A7 5090Y
Alcatel OT A7 5090Y
Teardown difficulty:
Easy
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

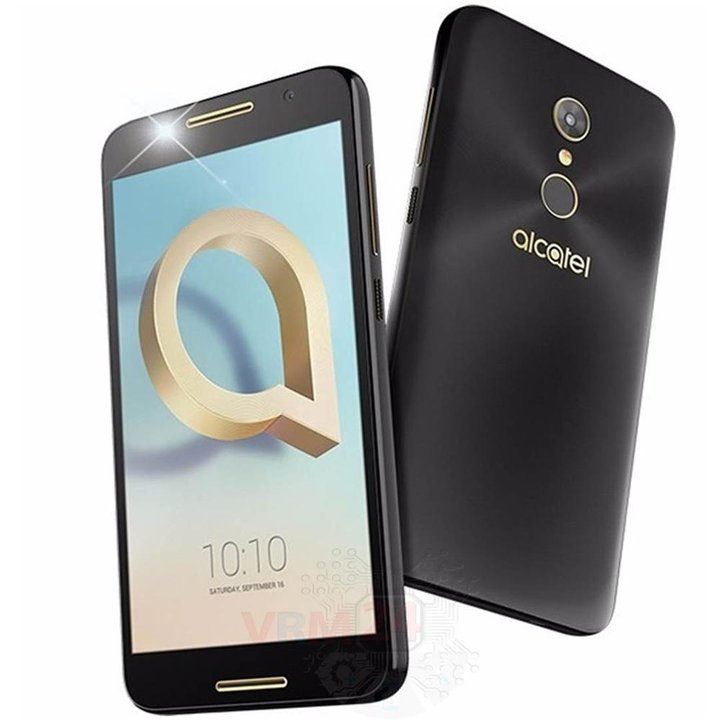

Disassembly/Repair of the mobile device Alcatel OT A7 5090Y (Alcatel OneTouch A7) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT A7 5090Y, Step 1/1 How to disassemble Alcatel OT A7 5090Y, Step 1/2

Step 1.

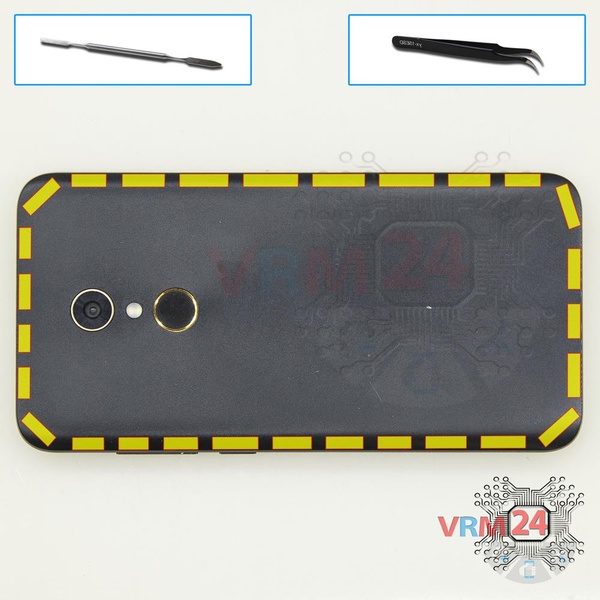

Open the back cover.
How to disassemble Alcatel OT A7 5090Y, Step 2/1 How to disassemble Alcatel OT A7 5090Y, Step 2/2

Step 2.

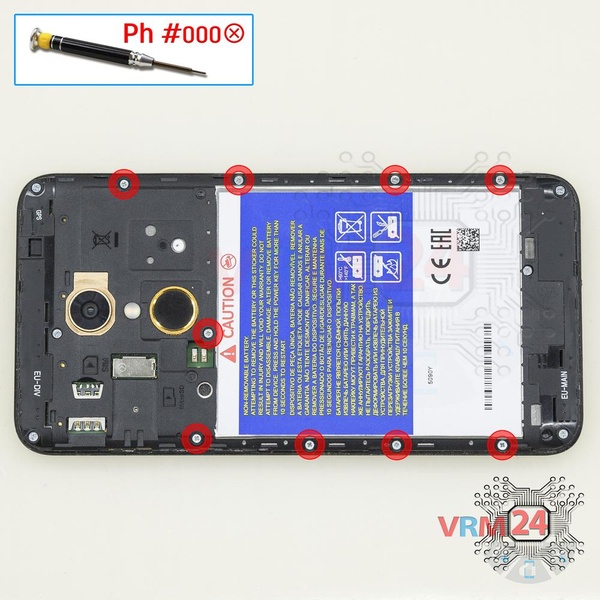

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 short screws.
How to disassemble Alcatel OT A7 5090Y, Step 3/1 How to disassemble Alcatel OT A7 5090Y, Step 3/2

Step 3.

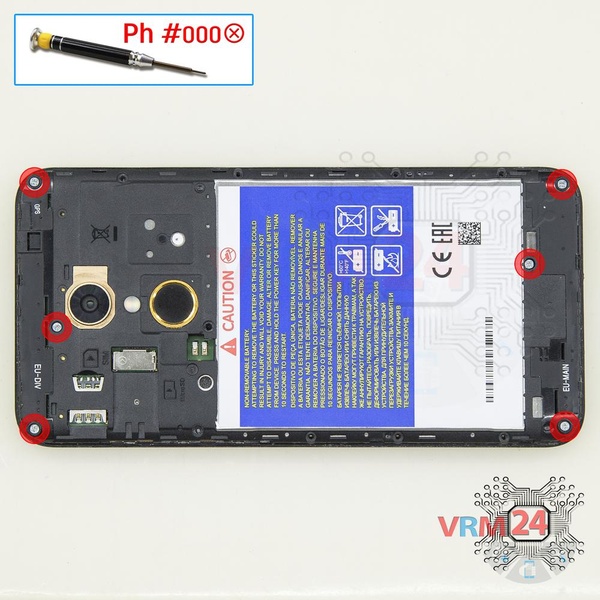

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 long screws.
How to disassemble Alcatel OT A7 5090Y, Step 4/1 How to disassemble Alcatel OT A7 5090Y, Step 4/2

Step 4.

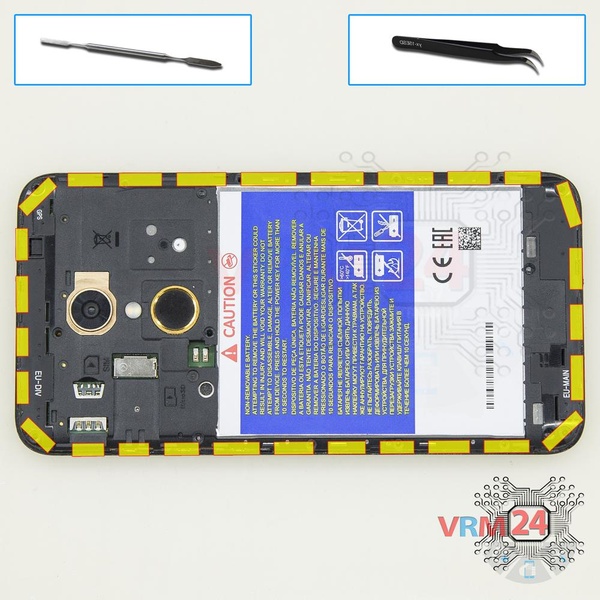

Open the middle cover.
How to disassemble Alcatel OT A7 5090Y, Step 5/1 How to disassemble Alcatel OT A7 5090Y, Step 5/2

Step 5.

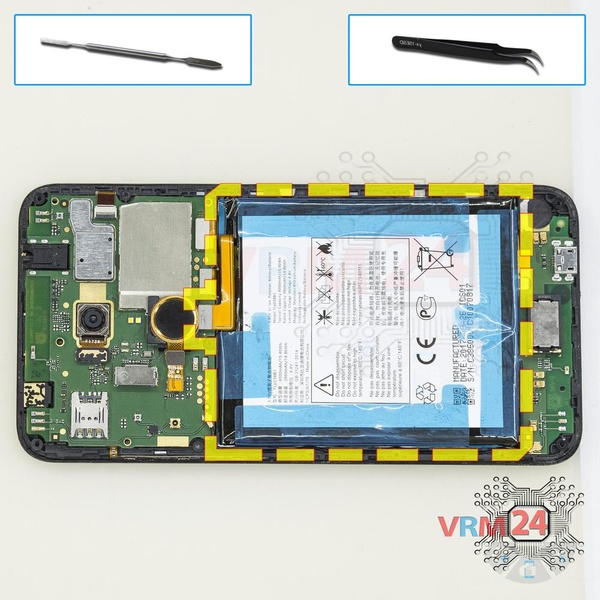

Disconnect the connector on PCB and remove the battery. The battery model of Alcatel OneTouch A7 is Tlp038B1.

How to disassemble Alcatel OT A7 5090Y, Step 6/1 How to disassemble Alcatel OT A7 5090Y, Step 6/2

Step 6.

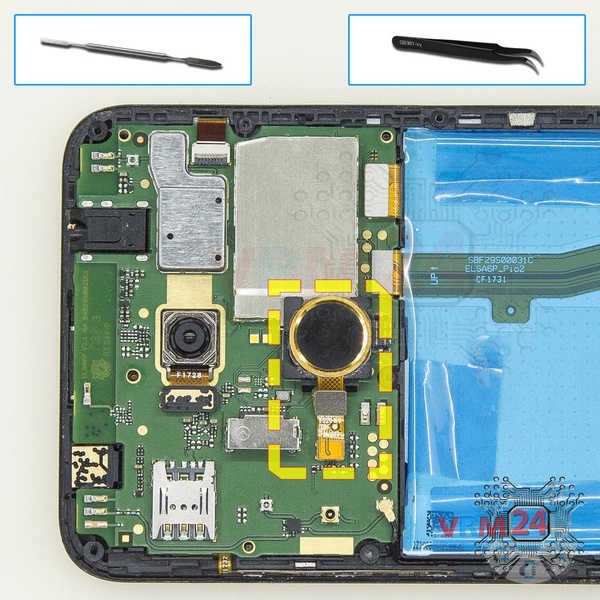

Pry up the connector and remove the fingerprint sensor.
How to disassemble Alcatel OT A7 5090Y, Step 7/1 How to disassemble Alcatel OT A7 5090Y, Step 7/2

Step 7.

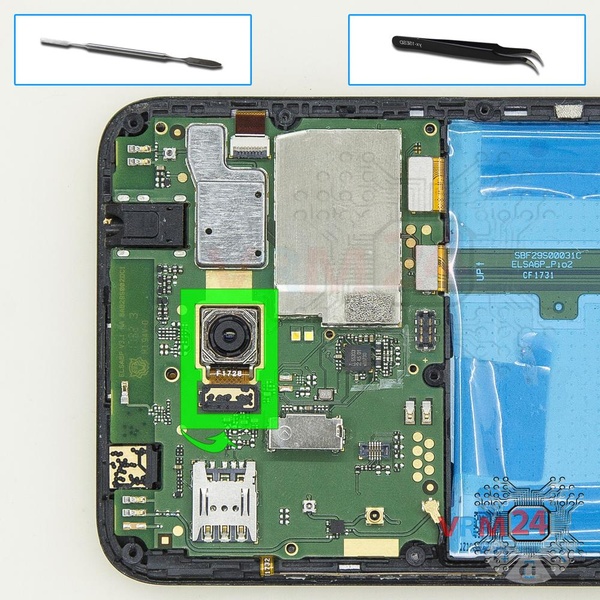

Disconnect the connector on PCB, and remove the main camera.
How to disassemble Alcatel OT A7 5090Y, Step 8/1 How to disassemble Alcatel OT A7 5090Y, Step 8/2

Step 8.

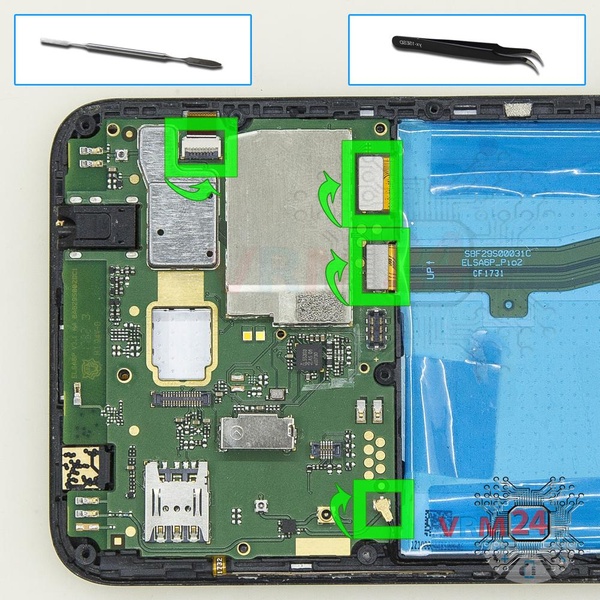

Disconnect connectors on the PCB.
How to disassemble Alcatel OT A7 5090Y, Step 9/1 How to disassemble Alcatel OT A7 5090Y, Step 9/2

Step 9.

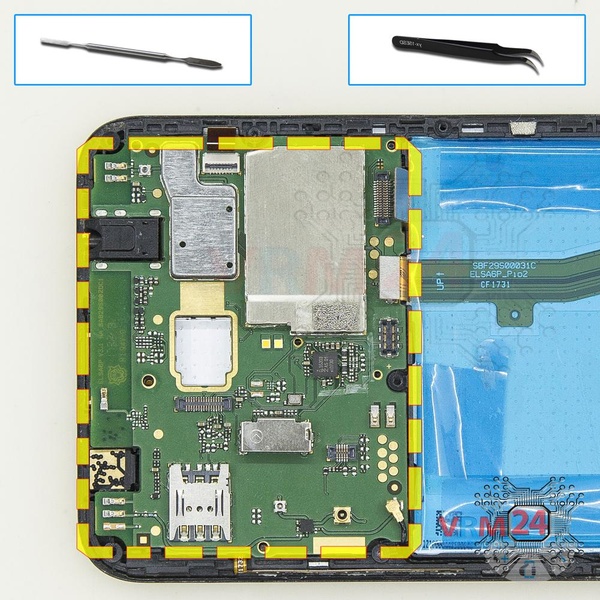

Remove the PCB.
How to disassemble Alcatel OT A7 5090Y, Step 10/1 How to disassemble Alcatel OT A7 5090Y, Step 10/2

Step 10.

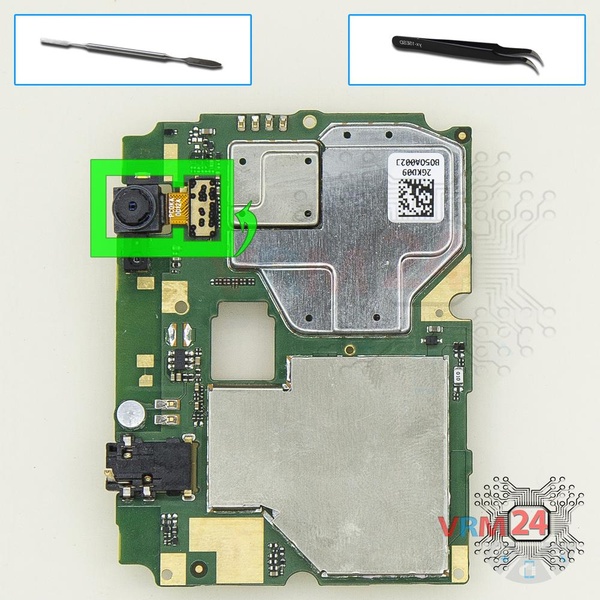

Disconnect the connector on PCB, and remove the front (selfie) camera.
How to disassemble Alcatel OT A7 5090Y, Step 11/1 How to disassemble Alcatel OT A7 5090Y, Step 11/2 How to disassemble Alcatel OT A7 5090Y, Step 11/3

Step 11.

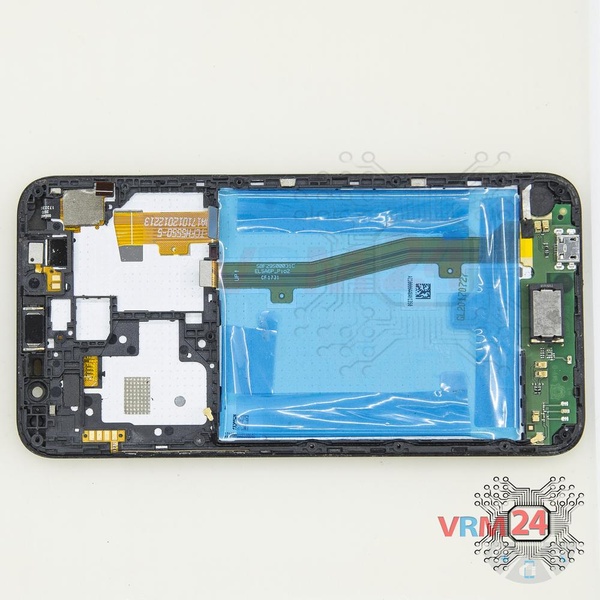

Parts are in the frame of the display module.

Detailed disassembly instructions of Alcatel OT A7 5090Y in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT A7 5090Y
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Alcatel OT A7 5090Y — Alcatel OneTouch A7 released for markets in different countries.
