Alcatel OT PIXI 4 4034D
Alcatel OT PIXI 4 4034D
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT PIXI 4 4034D (Alcatel OneTouch Pixi 4 4034D) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Alcatel OT PIXI 4 4034D, Step 1/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 1/2

Step 1.

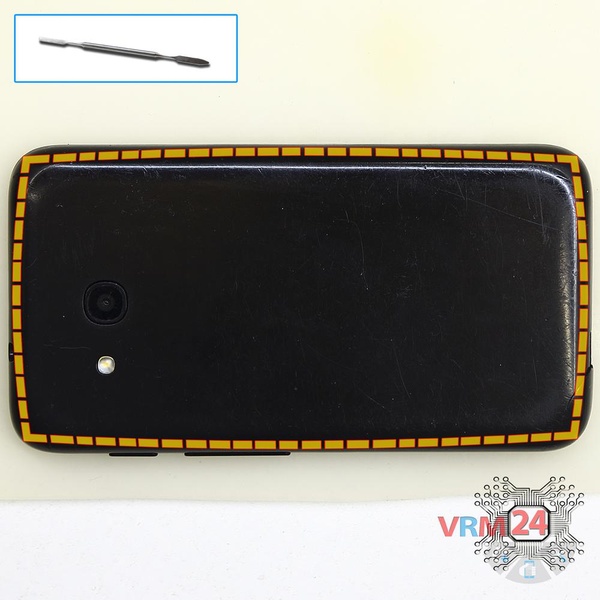

Open the back cover.

How to disassemble Alcatel OT PIXI 4 4034D, Step 2/1

Step 2.

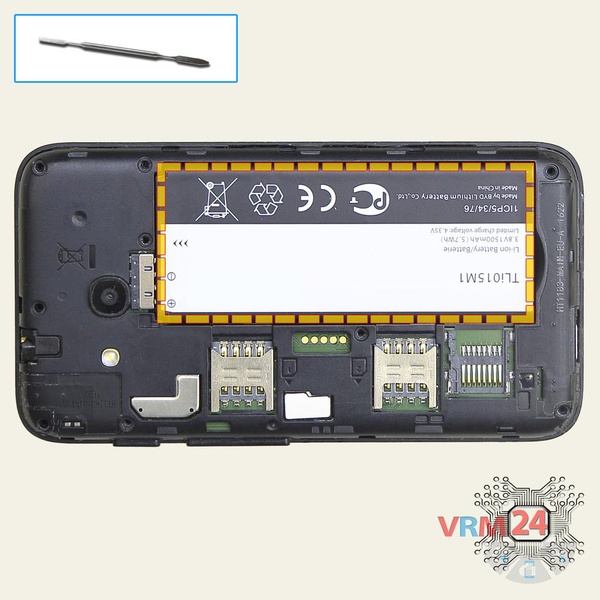

Lift and remove the battery.

How to disassemble Alcatel OT PIXI 4 4034D, Step 3/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 3/2

Step 3.

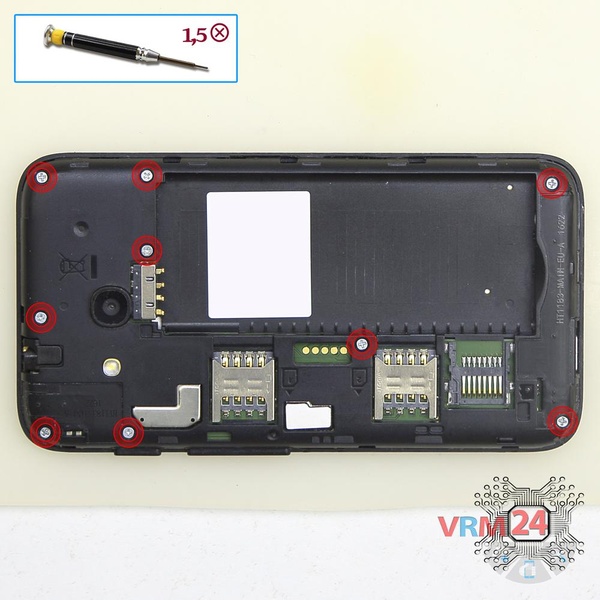

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 bolts in the frame of the phone.

How to disassemble Alcatel OT PIXI 4 4034D, Step 4/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 4/2

Step 4.

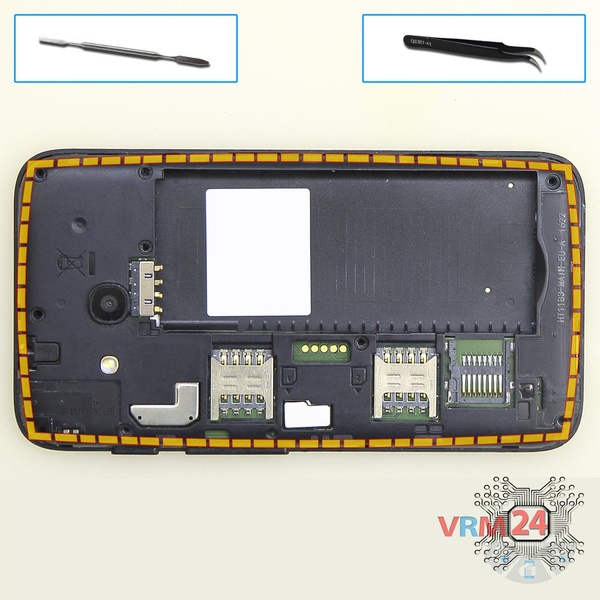

Pry and remove the middle frame and the volume and power buttons.

How to disassemble Alcatel OT PIXI 4 4034D, Step 5/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 5/2

Step 5.

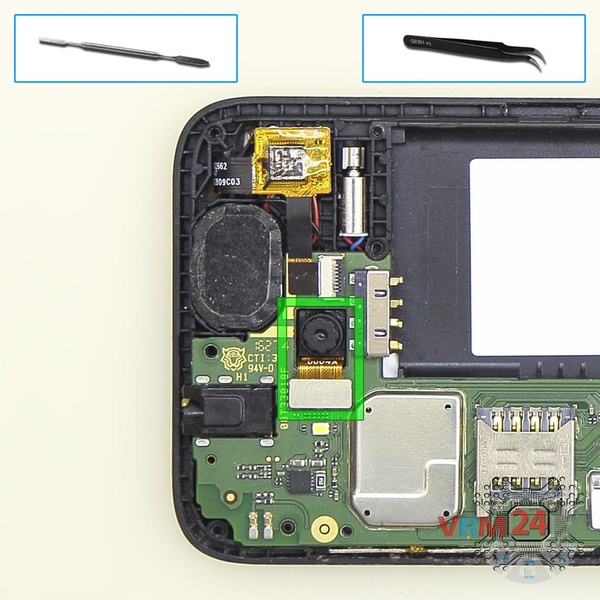

Disconnect the connector on PCB and remove the main camera.

How to disassemble Alcatel OT PIXI 4 4034D, Step 6/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 6/2 How to disassemble Alcatel OT PIXI 4 4034D, Step 6/3 How to disassemble Alcatel OT PIXI 4 4034D, Step 6/4 How to disassemble Alcatel OT PIXI 4 4034D, Step 6/5

Step 6.

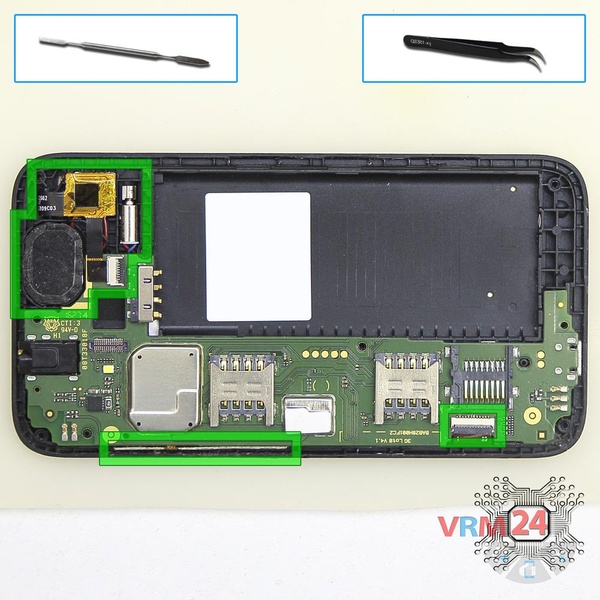

Disconnect the connectors on the PCB. Pry the vibrator and speaker in the display module.

How to disassemble Alcatel OT PIXI 4 4034D, Step 7/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 7/2

Step 7.

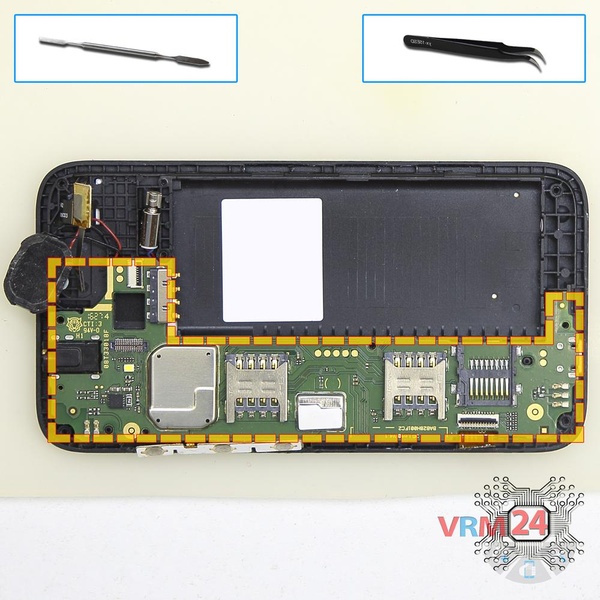

Remove the PCB.

How to disassemble Alcatel OT PIXI 4 4034D, Step 8/1 How to disassemble Alcatel OT PIXI 4 4034D, Step 8/2 How to disassemble Alcatel OT PIXI 4 4034D, Step 8/3

Step 8.

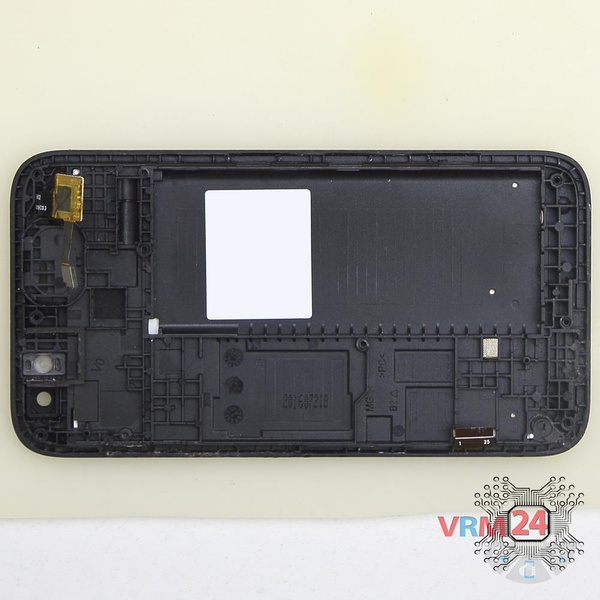

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT PIXI 4 4034D in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT PIXI 4 4034D
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Alcatel OT PIXI 4 4034D — Alcatel OneTouch Pixi 4 4034D released for markets in different countries.
