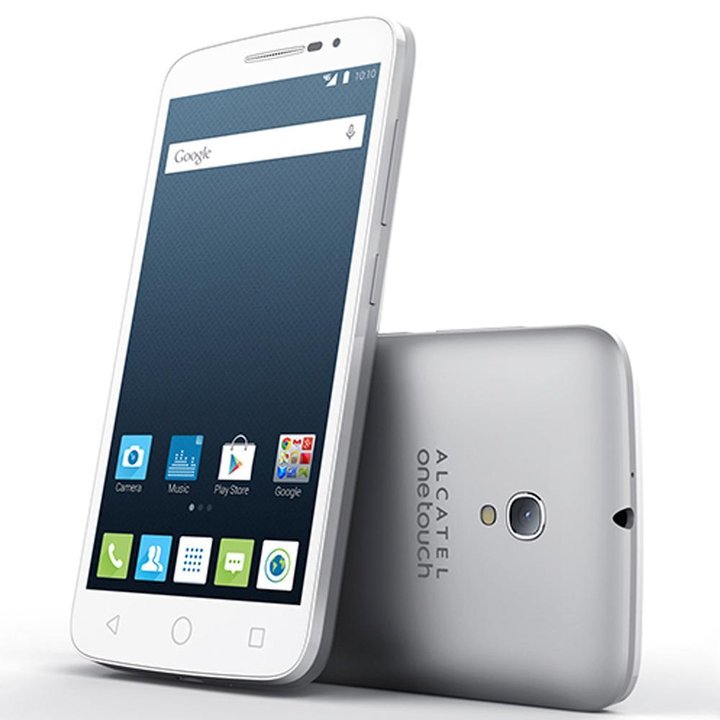

Alcatel OT POP 2 Premium 7044X
Alcatel OT POP 2 Premium 7044X
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT POP 2 Premium 7044X (Alcatel OneTouch Pop 2 Premium) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 1/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 1/2

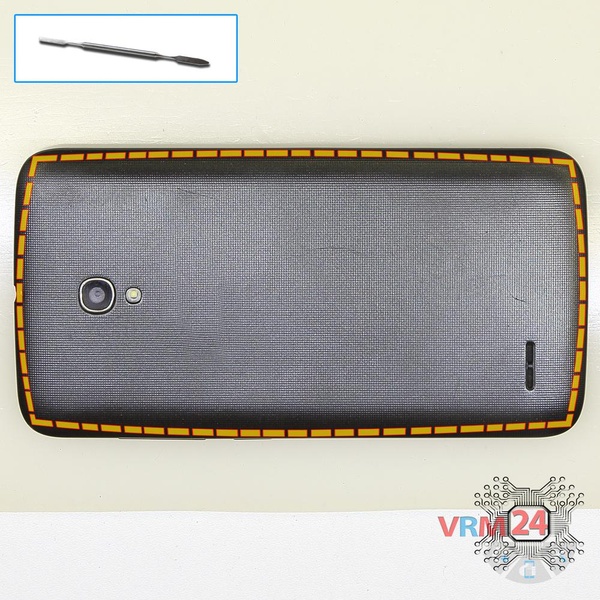

Step 1.

Open the back cover.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 2/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 2/2

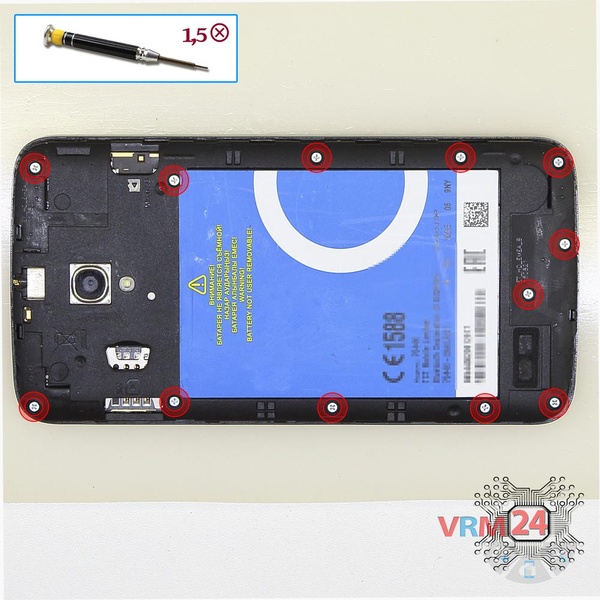

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 3/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 3/2

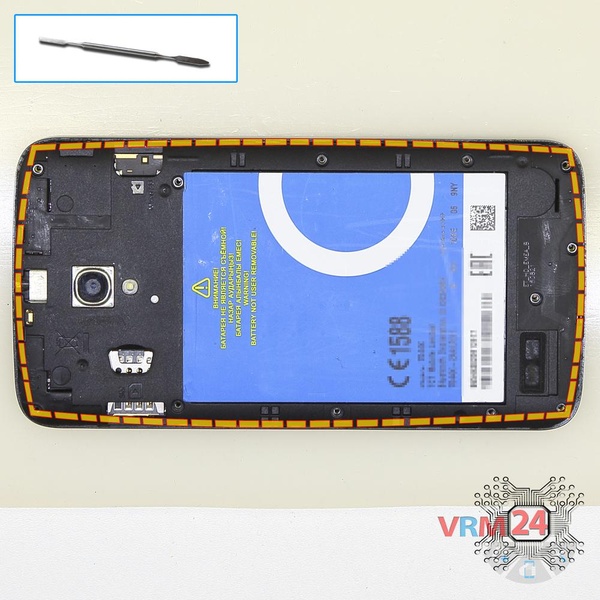

Step 3.

Pry and remove the middle frame.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 4/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 4/2 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 4/3 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 4/4 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 4/5

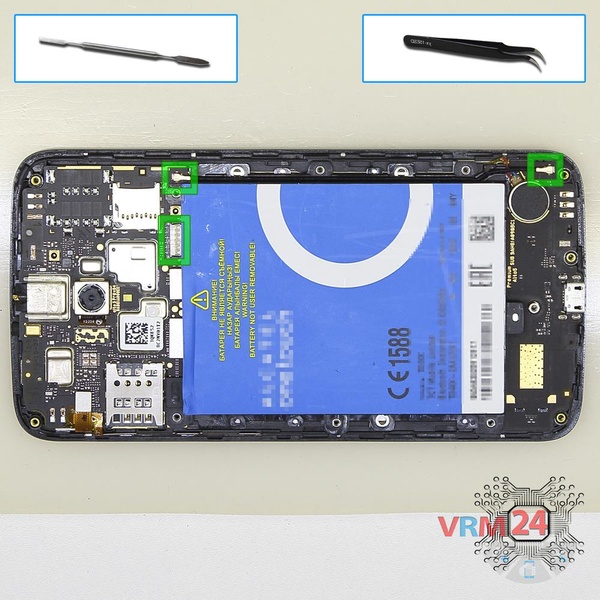

Step 4.

Disconnect the battery connector on the PCB, at the same time disconnect the coaxial cable connectors and remove the battery and cable.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 5/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 5/2 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 5/3

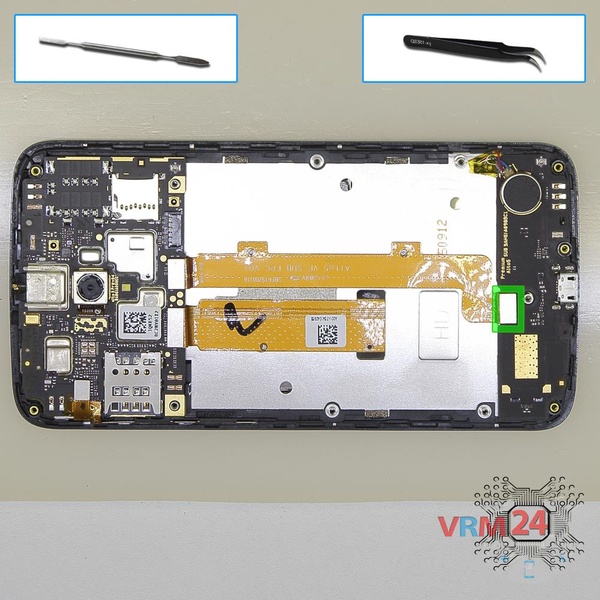

Step 5.

Disconnect the connector on the lower PCB and remove it.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 6/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 6/2

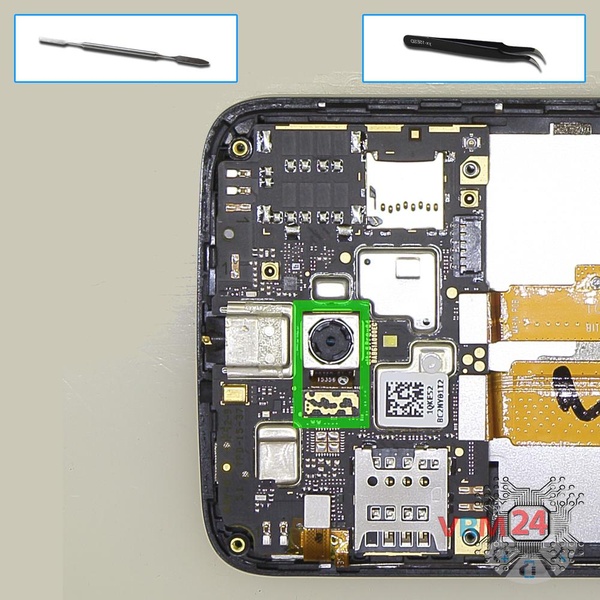

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 7/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 7/2 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 7/3

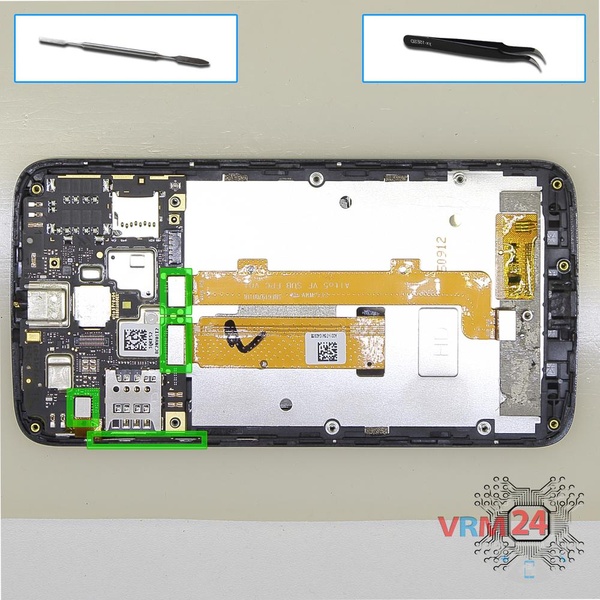

Step 7.

Disconnect connectors on the PCB.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 8/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 8/2

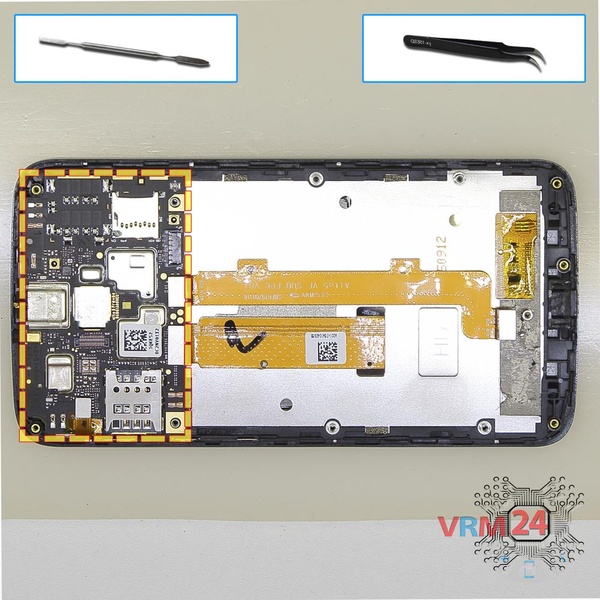

Step 8.

Remove the PCB.

How to disassemble Alcatel OT POP 2 Premium 7044X, Step 9/1 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 9/2 How to disassemble Alcatel OT POP 2 Premium 7044X, Step 9/3

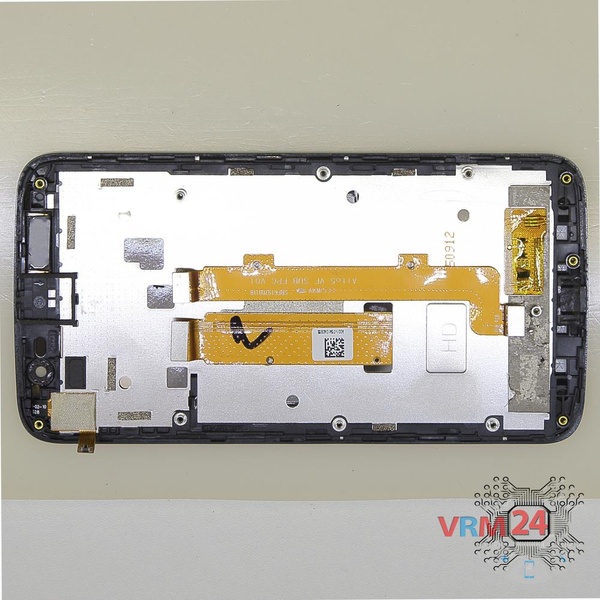

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT POP 2 Premium 7044X in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT POP 2 Premium 7044X
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Alcatel OT POP 2 Premium 7044X — Alcatel OneTouch Pop 2 Premium released for markets in different countries.
