Alcatel OT S7 7045Y
Alcatel OT S7 7045Y
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT S7 7045Y (Alcatel OneTouch S7) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Alcatel OT S7 7045Y, Step 1/1 How to disassemble Alcatel OT S7 7045Y, Step 1/2

Step 1.

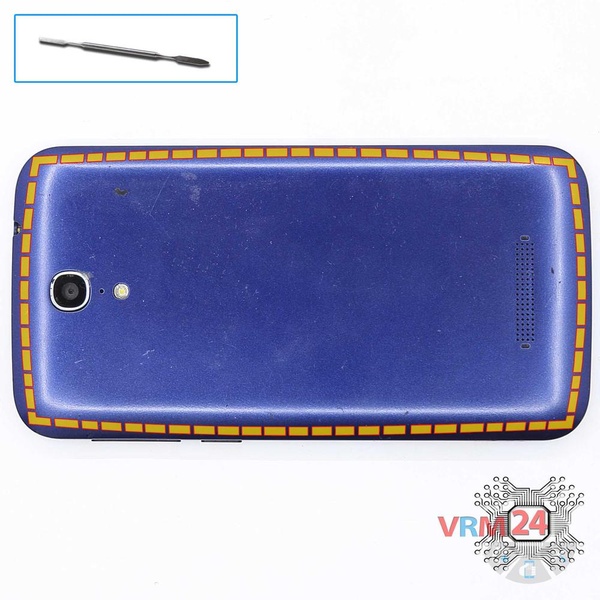

Open the back cover.

How to disassemble Alcatel OT S7 7045Y, Step 2/1 How to disassemble Alcatel OT S7 7045Y, Step 2/2

Step 2.

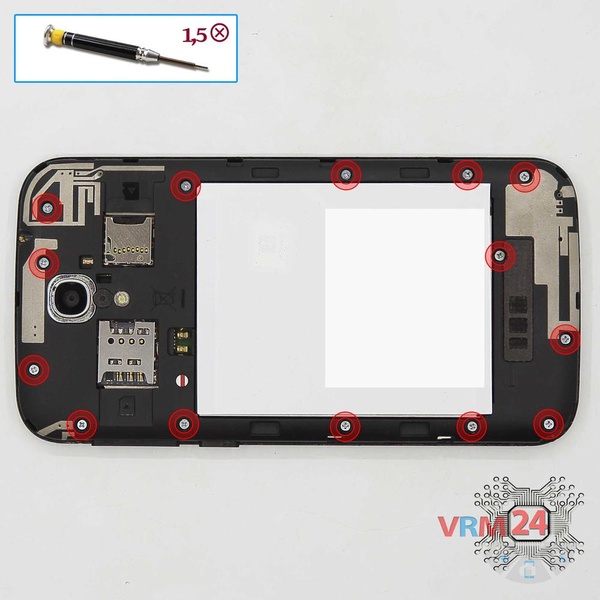

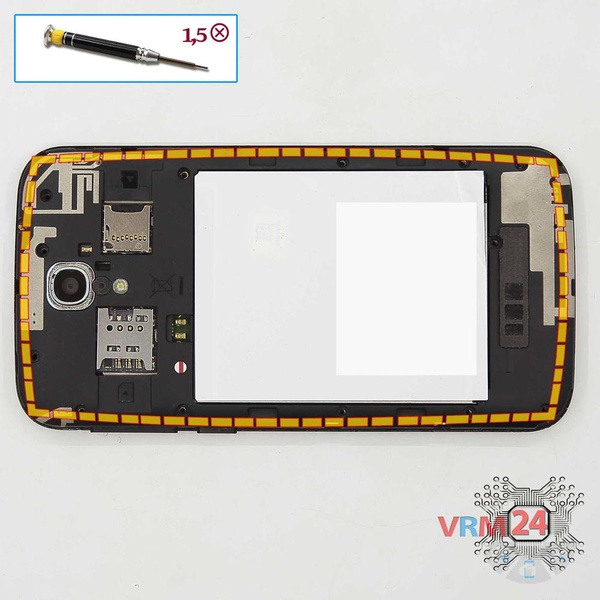

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.

How to disassemble Alcatel OT S7 7045Y, Step 3/1 How to disassemble Alcatel OT S7 7045Y, Step 3/2

Step 3.

Disconnect the middle frame and the volume and power buttons.

How to disassemble Alcatel OT S7 7045Y, Step 4/1 How to disassemble Alcatel OT S7 7045Y, Step 4/2

Step 4.

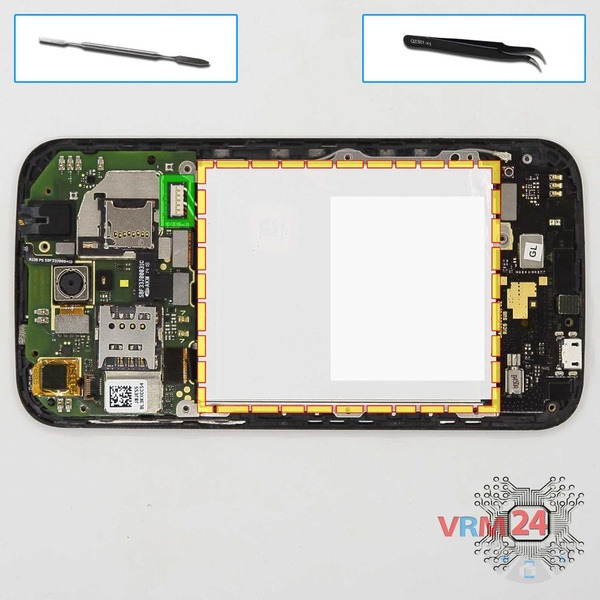

Disconnect connector on the PCB and remove the battery.

How to disassemble Alcatel OT S7 7045Y, Step 5/1 How to disassemble Alcatel OT S7 7045Y, Step 5/2 How to disassemble Alcatel OT S7 7045Y, Step 5/3 How to disassemble Alcatel OT S7 7045Y, Step 5/4

Step 5.

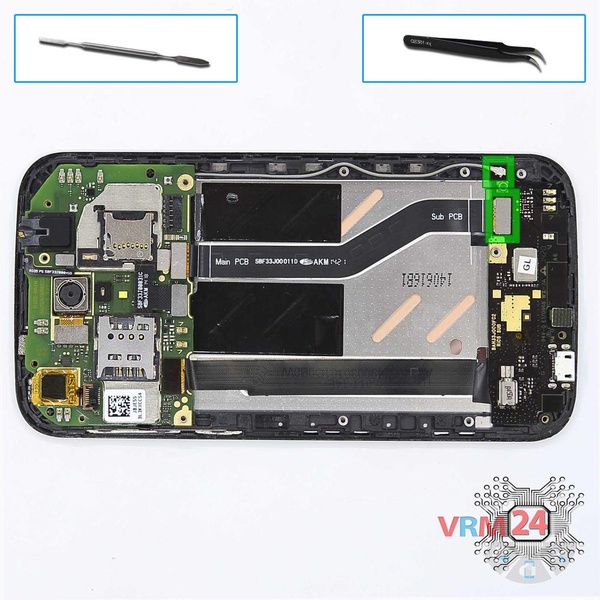

Disconnect connectors on the lower PCB and remove it.

How to disassemble Alcatel OT S7 7045Y, Step 6/1 How to disassemble Alcatel OT S7 7045Y, Step 6/2

Step 6.

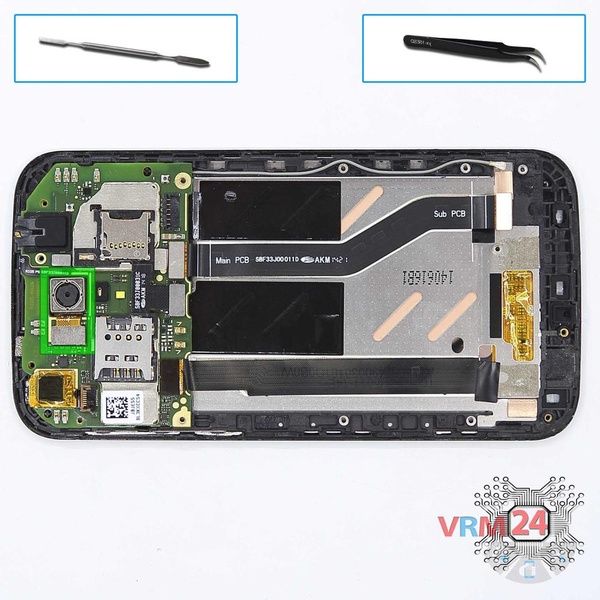

Disconnect connector on the PCB and remove the main camera.

How to disassemble Alcatel OT S7 7045Y, Step 7/1 How to disassemble Alcatel OT S7 7045Y, Step 7/2

Step 7.

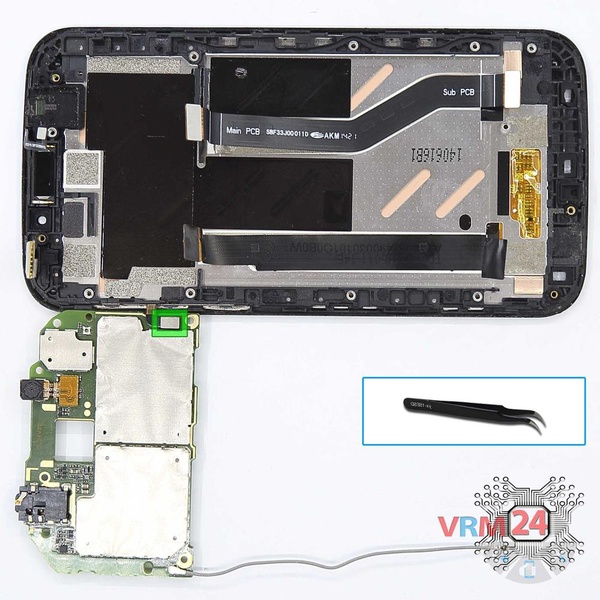

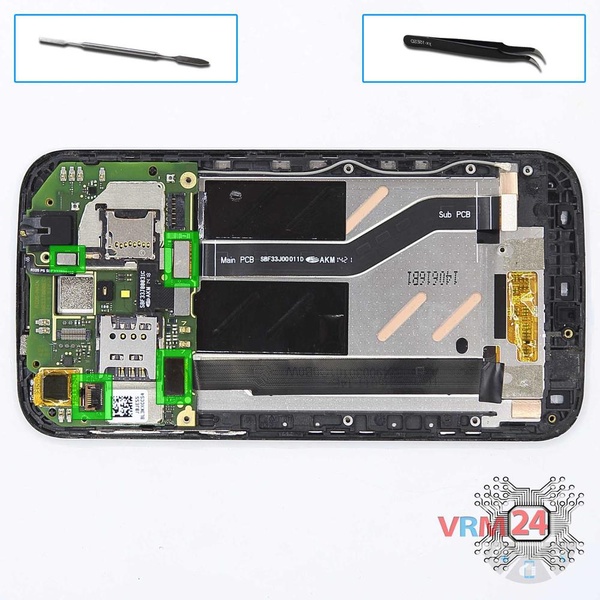

Disconnect the connectors on the main PCB and turn it over.

How to disassemble Alcatel OT S7 7045Y, Step 8/1 How to disassemble Alcatel OT S7 7045Y, Step 8/2 How to disassemble Alcatel OT S7 7045Y, Step 8/3

Step 8.

Disconnect the connector power & volume buttons on the PCB and remove the board.

How to disassemble Alcatel OT S7 7045Y, Step 9/1 How to disassemble Alcatel OT S7 7045Y, Step 9/2

Step 9.

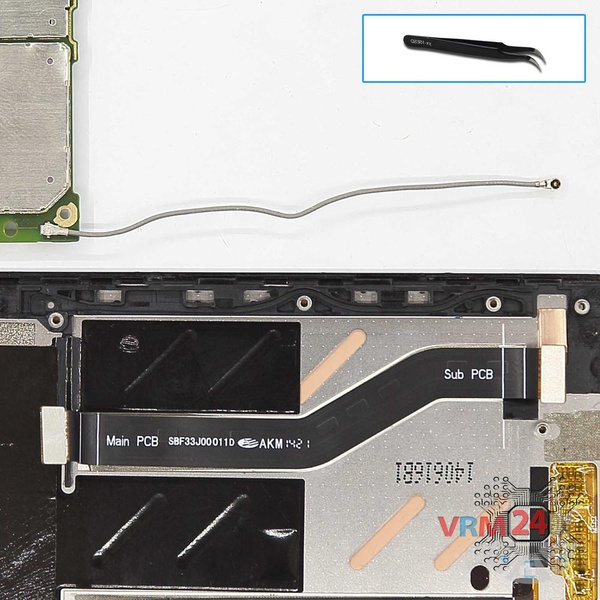

Disconnect connectors & remove the inter-board FFC (flexible flat cable) and coaxial cable.

How to disassemble Alcatel OT S7 7045Y, Step 10/1 How to disassemble Alcatel OT S7 7045Y, Step 10/2 How to disassemble Alcatel OT S7 7045Y, Step 10/3

Step 10.

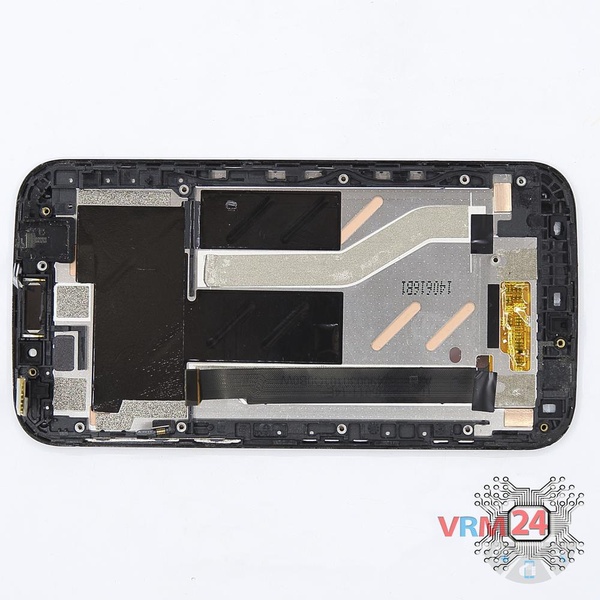

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT S7 7045Y in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT S7 7045Y
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Alcatel OT S7 7045Y — Alcatel OneTouch S7 released for markets in different countries.
