Alcatel OT Scribe HD 8008D
Alcatel OT Scribe HD 8008D
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT Scribe HD 8008D (Alcatel OneTouch Scribe HD) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Alcatel OT Scribe HD 8008D, Step 1/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 1/2

Step 1.

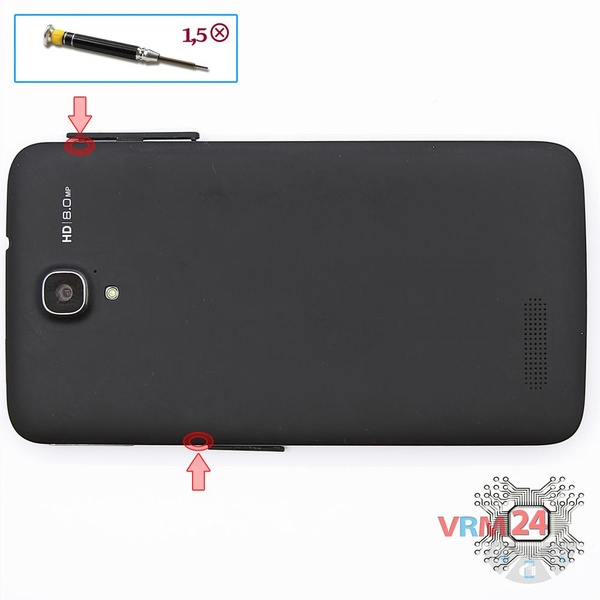

Using tweezers, open plugs of the SIM and Micro SD card slots. Also, unscrew the 2 bolts securing the back cover with a screwdriver (Phillips 1.5 mm PH000).

How to disassemble Alcatel OT Scribe HD 8008D, Step 2/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 2/2

Step 2.

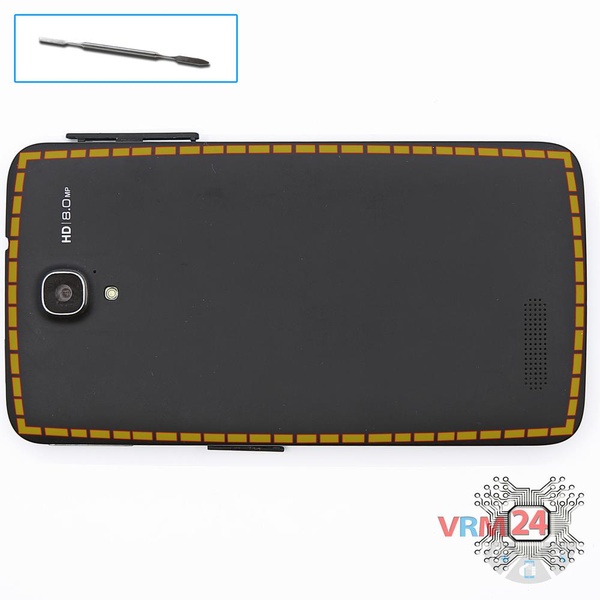

Open the back cover.

How to disassemble Alcatel OT Scribe HD 8008D, Step 3/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 3/2 How to disassemble Alcatel OT Scribe HD 8008D, Step 3/3

Step 3.

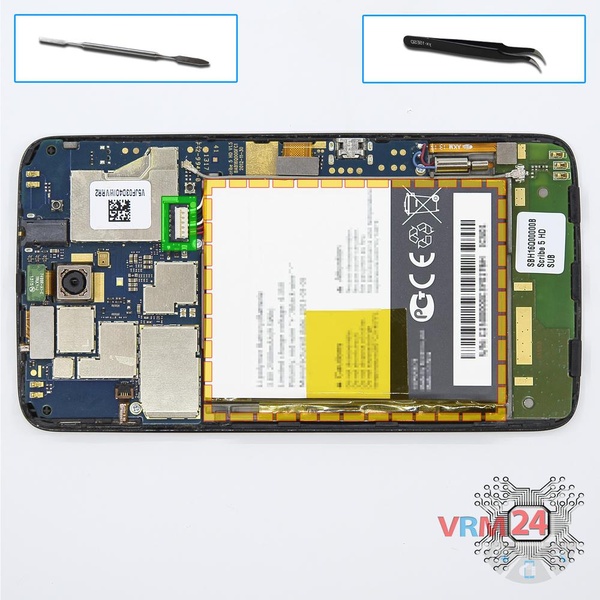

Disconnect connector on the PCB and remove the battery.

How to disassemble Alcatel OT Scribe HD 8008D, Step 4/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 4/2 How to disassemble Alcatel OT Scribe HD 8008D, Step 4/3

Step 4.

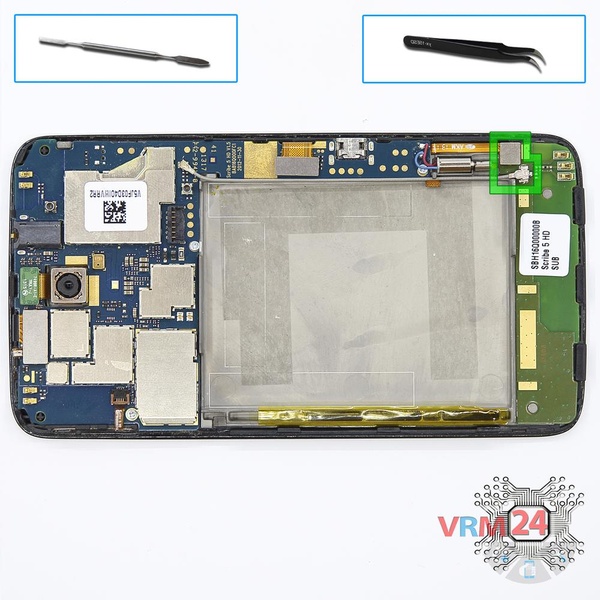

Disconnect connectors on the lower PCB and remove it.

How to disassemble Alcatel OT Scribe HD 8008D, Step 5/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 5/2

Step 5.

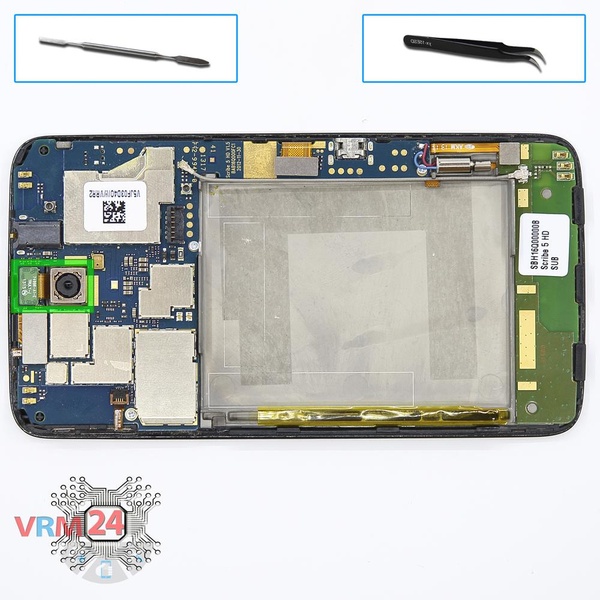

Disconnect connector on the PCB and remove the main camera.

How to disassemble Alcatel OT Scribe HD 8008D, Step 6/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 6/2

Step 6.

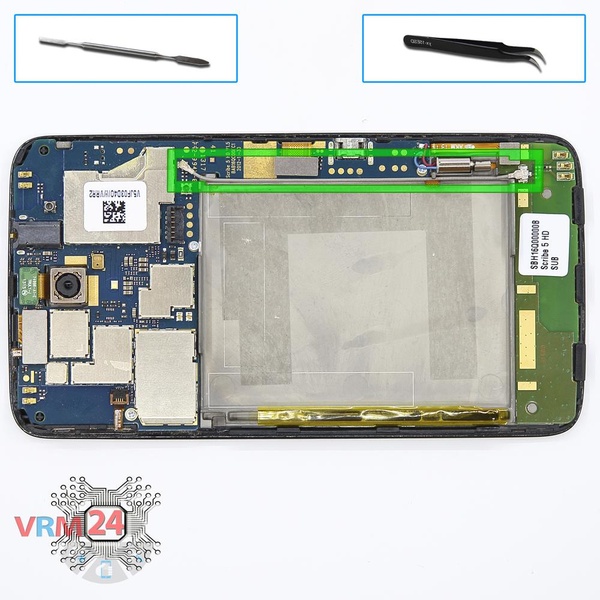

Disconnect the connectors and remove the coaxial cable.

How to disassemble Alcatel OT Scribe HD 8008D, Step 7/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 7/2 How to disassemble Alcatel OT Scribe HD 8008D, Step 7/3

Step 7.

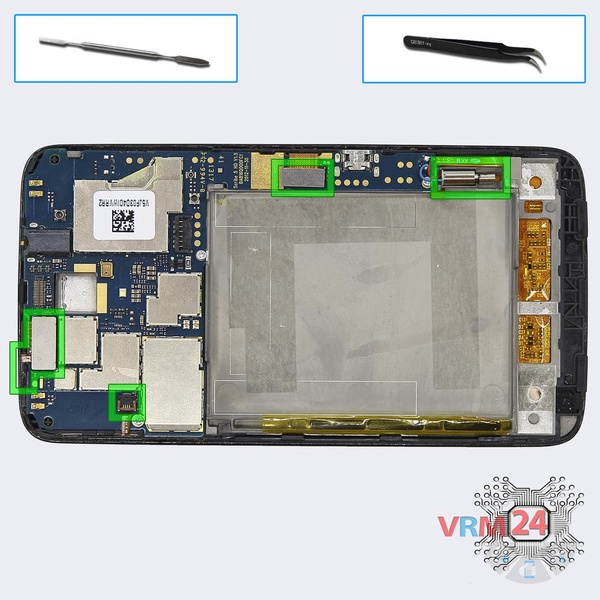

Disconnect connectors on the PCB.

How to disassemble Alcatel OT Scribe HD 8008D, Step 8/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 8/2

Step 8.

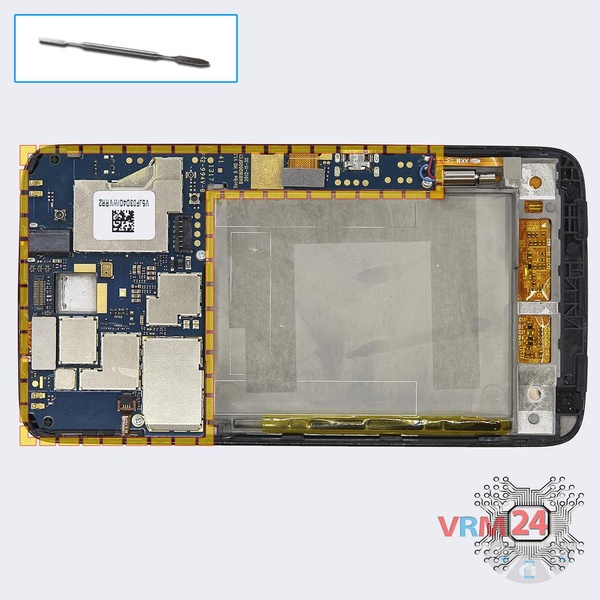

Remove the PCB.

How to disassemble Alcatel OT Scribe HD 8008D, Step 9/1 How to disassemble Alcatel OT Scribe HD 8008D, Step 9/2 How to disassemble Alcatel OT Scribe HD 8008D, Step 9/3

Step 9.

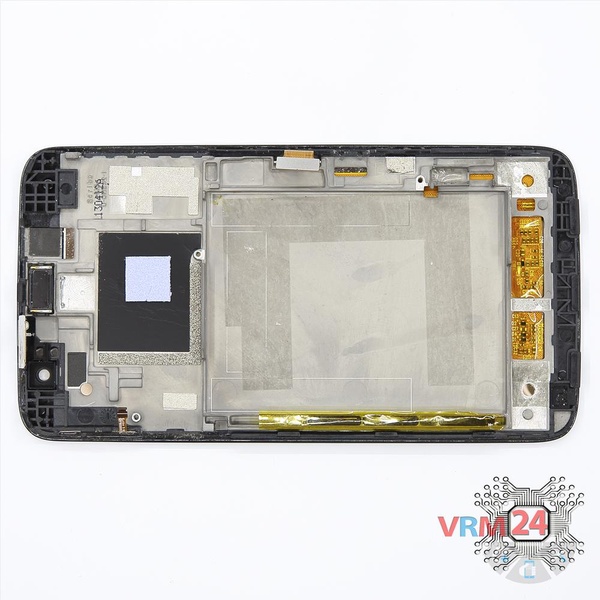

Parts in the frame of the display module.

Detailed disassembly instructions of Alcatel OT Scribe HD 8008D in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Alcatel #Alcatel OT Scribe HD 8008D
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Alcatel OT Scribe HD 8008D — Alcatel OneTouch Scribe HD released for markets in different countries.
