Alcatel OT View 5040X
Alcatel OT View 5040X
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Alcatel OT View 5040X (Alcatel OneTouch View) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Alcatel OT View 5040X, Step 1/1 How to disassemble Alcatel OT View 5040X, Step 1/2

Step 1.

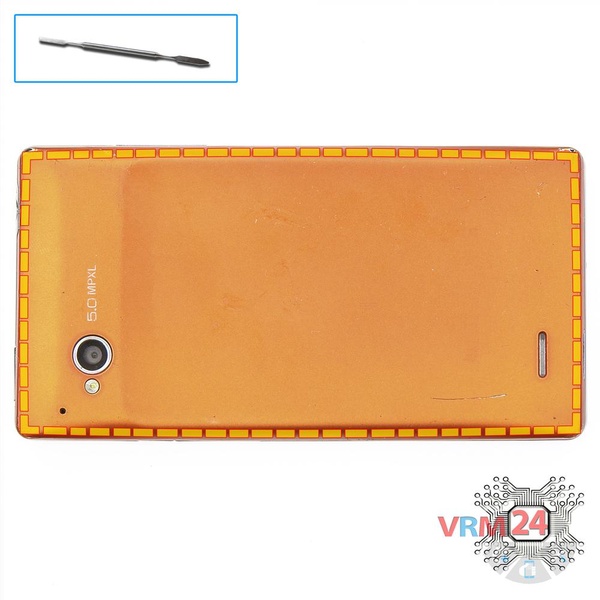

Open the back cover.

How to disassemble Alcatel OT View 5040X, Step 2/1 How to disassemble Alcatel OT View 5040X, Step 2/2

Step 2.

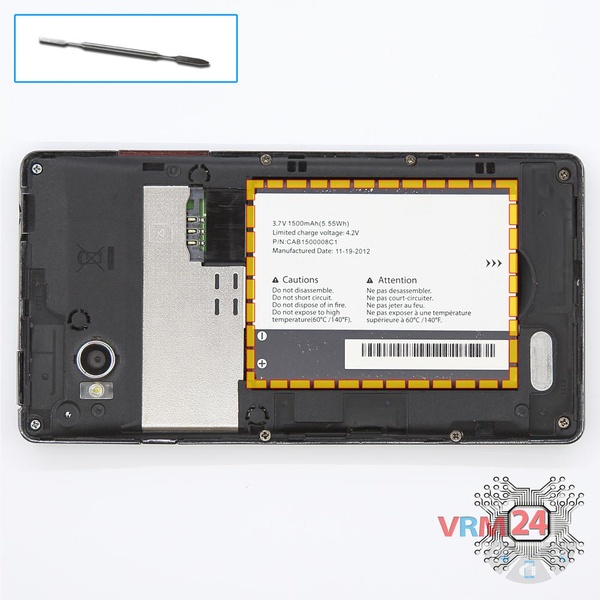

Lift and remove the battery.

How to disassemble Alcatel OT View 5040X, Step 3/1 How to disassemble Alcatel OT View 5040X, Step 3/2

Step 3.

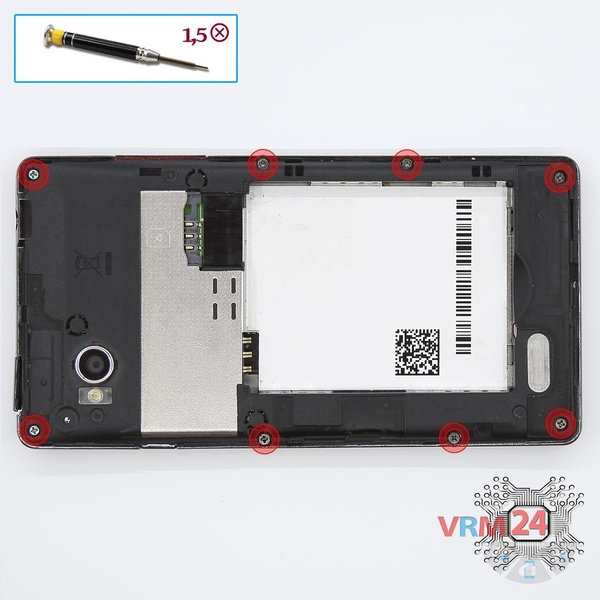

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Alcatel OT View 5040X, Step 4/1 How to disassemble Alcatel OT View 5040X, Step 4/2

Step 4.

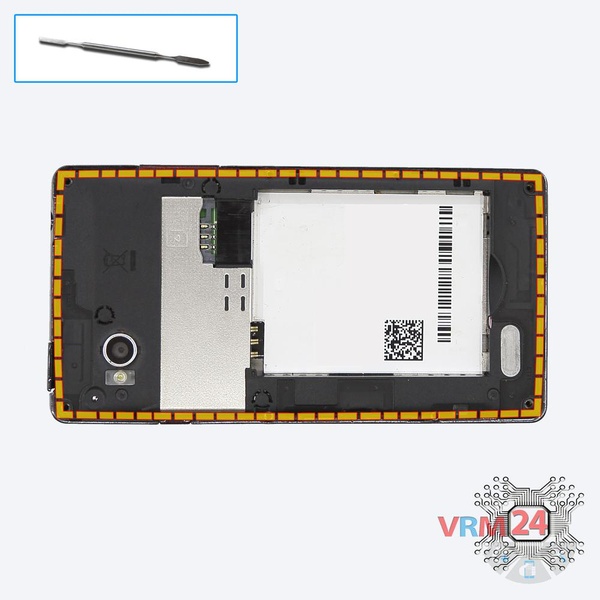

Pry and remove the middle frame with vibrator and speaker (buzzer).

How to disassemble Alcatel OT View 5040X, Step 5/1 How to disassemble Alcatel OT View 5040X, Step 5/2

Step 5.

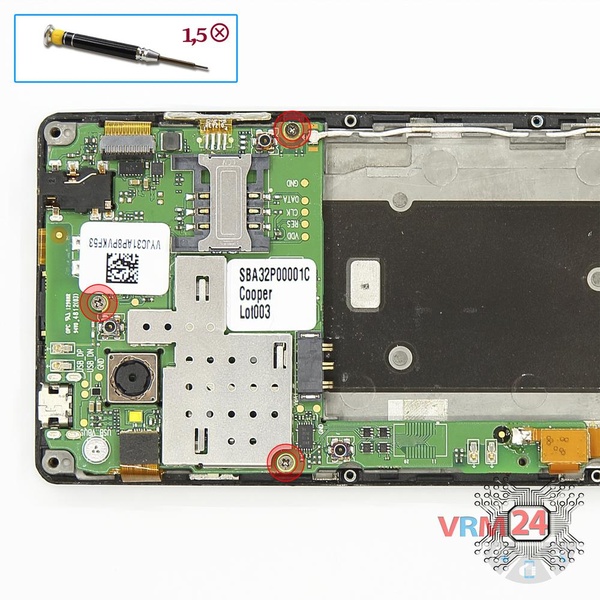

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Alcatel OT View 5040X, Step 6/1 How to disassemble Alcatel OT View 5040X, Step 6/2 How to disassemble Alcatel OT View 5040X, Step 6/3 How to disassemble Alcatel OT View 5040X, Step 6/4

Step 6.

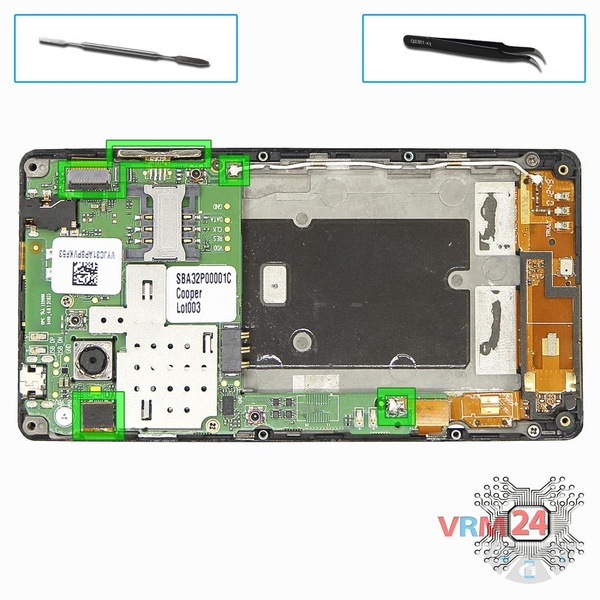

Disconnect connectors on the PCB.

How to disassemble Alcatel OT View 5040X, Step 7/1 How to disassemble Alcatel OT View 5040X, Step 7/2

Step 7.

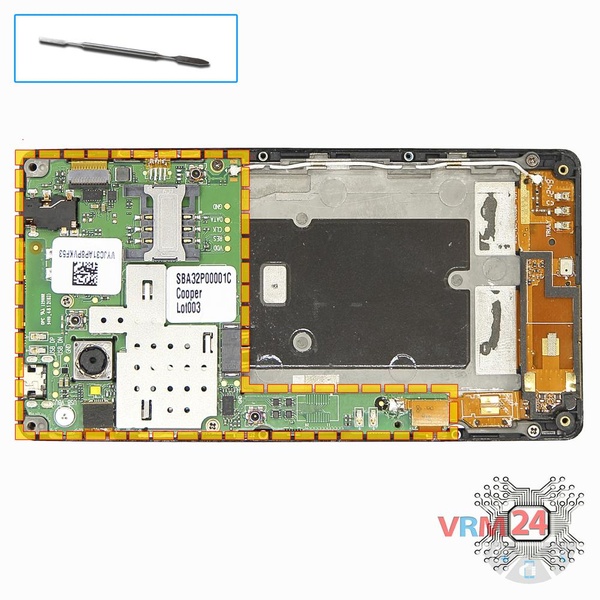

Remove the PCB.

How to disassemble Alcatel OT View 5040X, Step 8/1 How to disassemble Alcatel OT View 5040X, Step 8/2

Step 8.

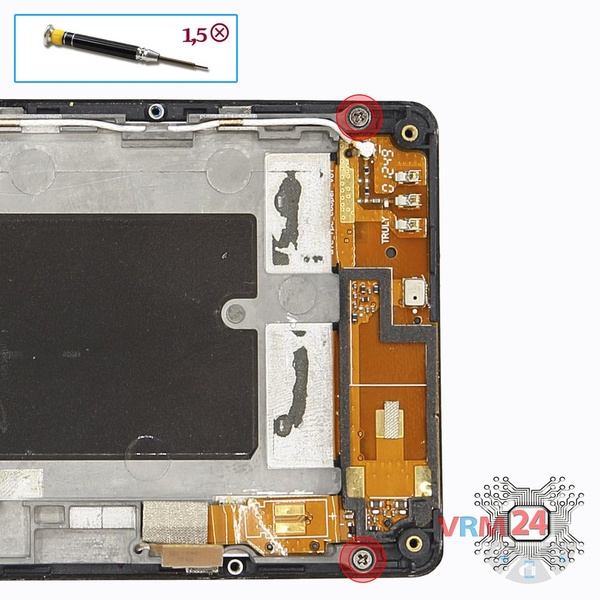

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower part.

How to disassemble Alcatel OT View 5040X, Step 9/1 How to disassemble Alcatel OT View 5040X, Step 9/2 How to disassemble Alcatel OT View 5040X, Step 9/3

Step 9.

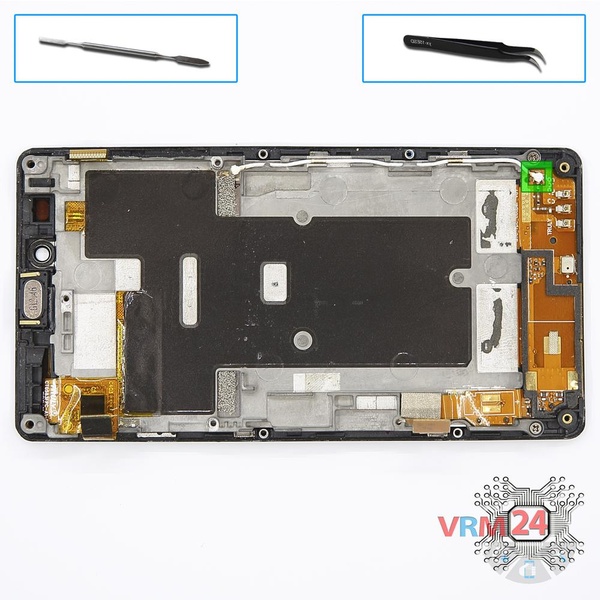

Disconnect the connector of the coaxial cable and remove the frame holding the display.

How to disassemble Alcatel OT View 5040X, Step 10/1 How to disassemble Alcatel OT View 5040X, Step 10/2

Step 10.

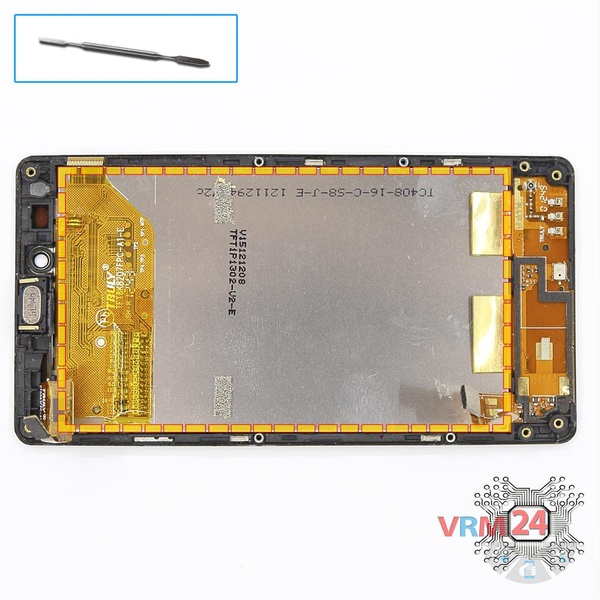

Unstick the fixing stickers and remove the display.

How to disassemble Alcatel OT View 5040X, Step 11/1

Step 11.

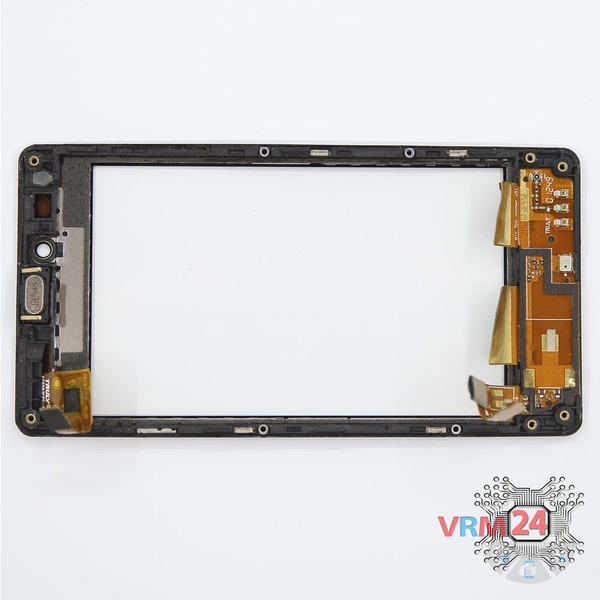

Frame with touch screen and ear speaker.

Detailed disassembly instructions of Alcatel OT View 5040X in the video, made by our mobile repair & service center:
