Fly IQ4516 Tornado Slim Octa
Fly IQ4516 Tornado Slim Octa
Teardown difficulty:
Moderate
Duration:
6 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Fly IQ4516 Tornado Slim Octa with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 1/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 1/2

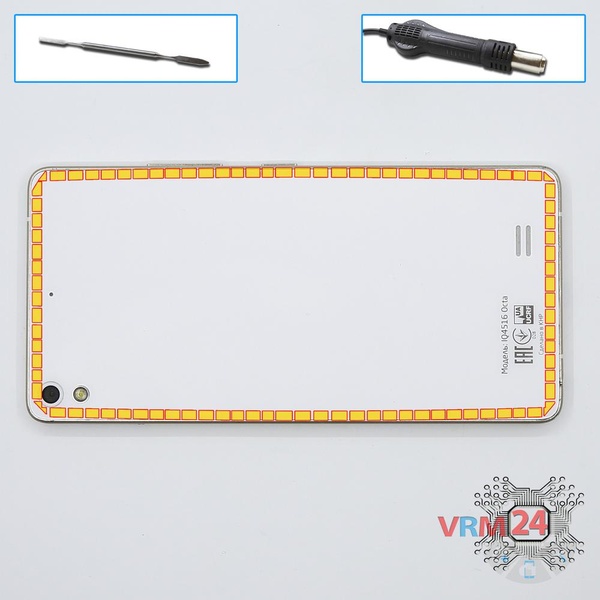

Step 1.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 2/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 2/2

Step 2.

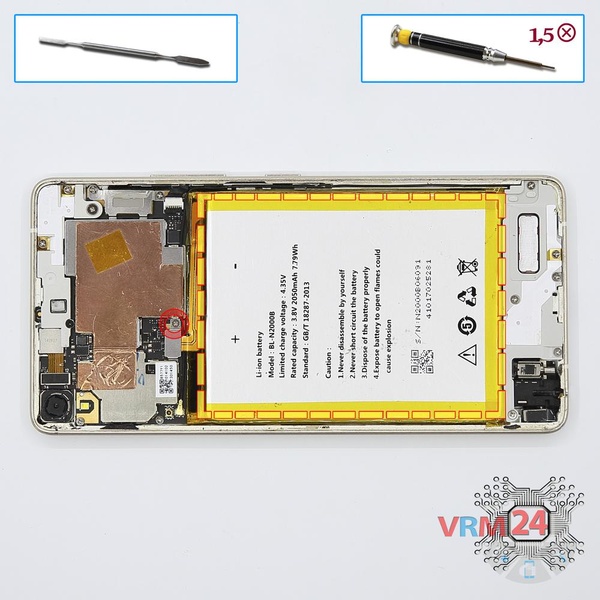

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the bolt securing the connector and remove the battery.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 3/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 3/2

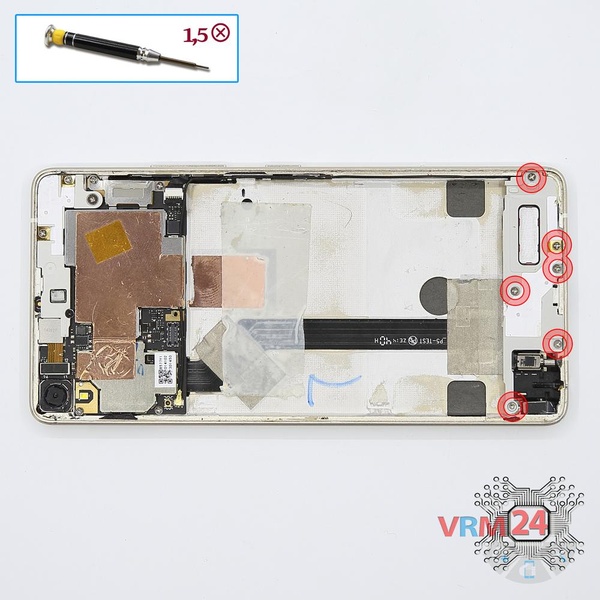

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the lower part.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 4/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 4/2 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 4/3

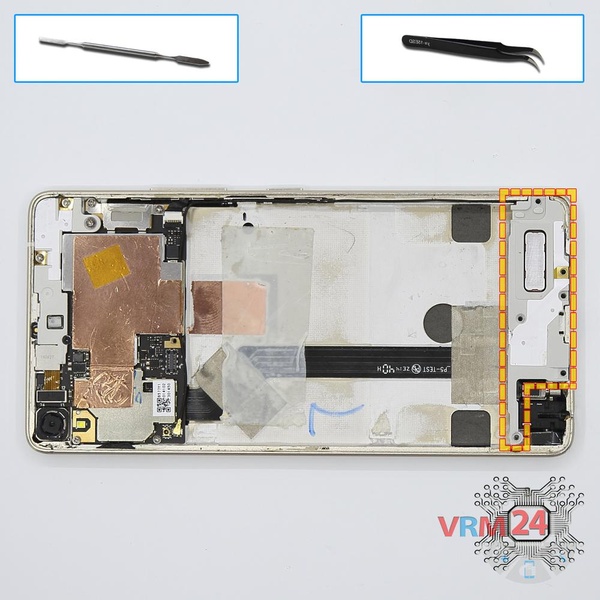

Step 4.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 5/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 5/2

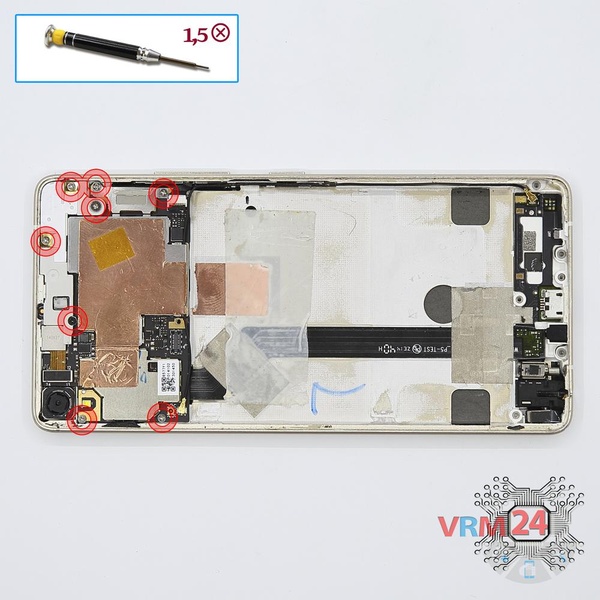

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the PCB.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 6/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 6/2 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 6/3

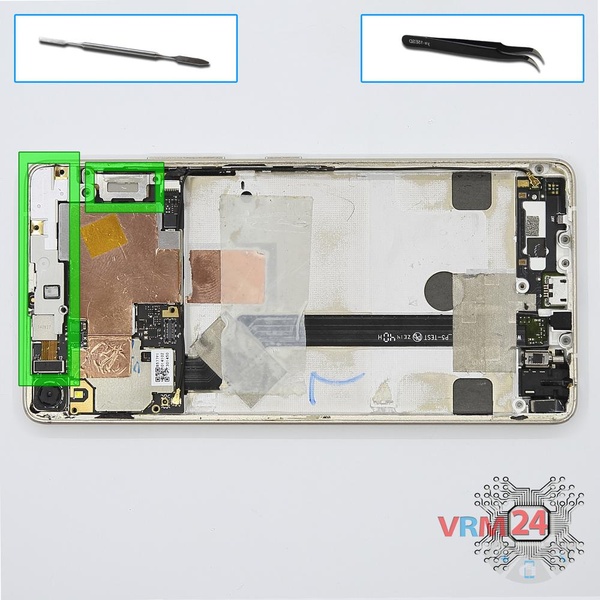

Step 6.

Remove the brackets and front (selfie) cameras.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 7/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 7/2 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 7/3

Step 7.

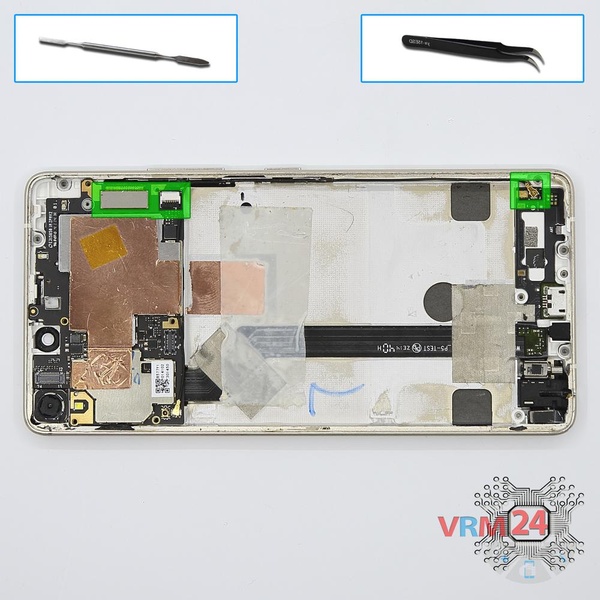

Disconnect connectors on the PCB and connector of coaxial cable on the lower PCB.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 8/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 8/2 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 8/3

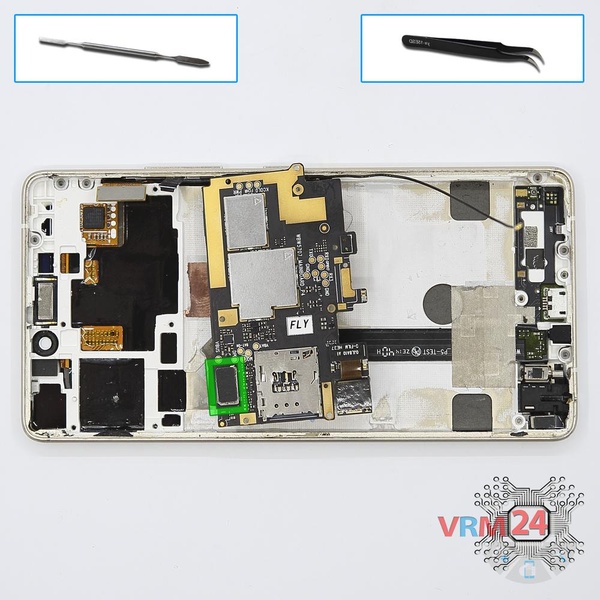

Step 8.

Turn over PCB, disconnect the connector of the inter-board cable from the inside and remove the board.

How to disassemble Fly IQ4516 Tornado Slim Octa, Step 9/1 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 9/2 How to disassemble Fly IQ4516 Tornado Slim Octa, Step 9/3

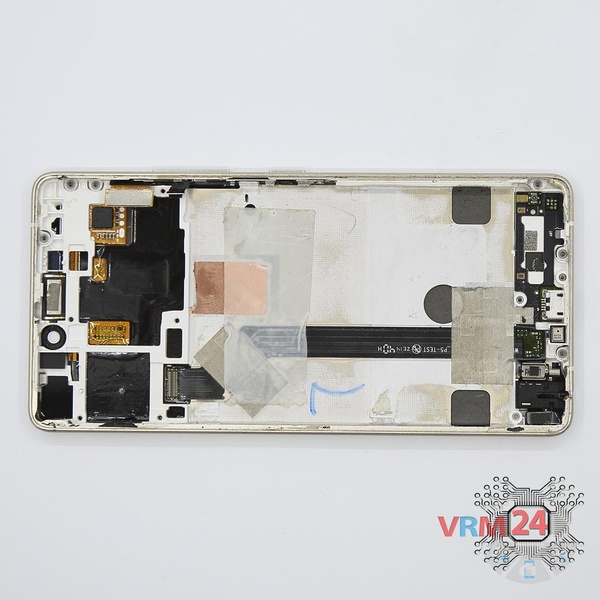

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Fly IQ4516 Tornado Slim Octa in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Fly #Fly IQ4516 Tornado Slim Octa
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Fly IQ4516 Tornado Slim Octa released for markets in different countries.
