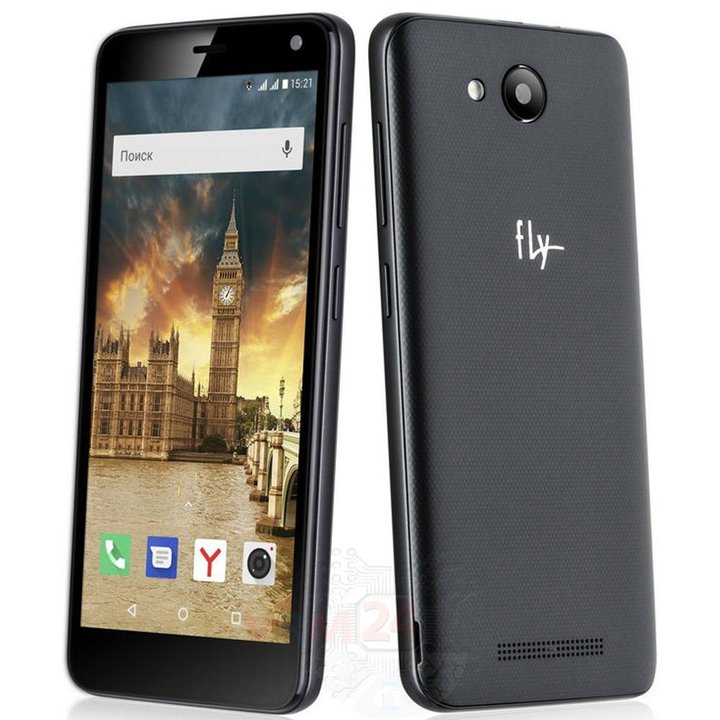

Fly Life Compact 4G
Fly Life Compact 4G
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Fly Life Compact 4G with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Fly Life Compact 4G, Step 1/1 How to disassemble Fly Life Compact 4G, Step 1/2

Step 1.

Open the back cover.

How to disassemble Fly Life Compact 4G, Step 2/1 How to disassemble Fly Life Compact 4G, Step 2/2

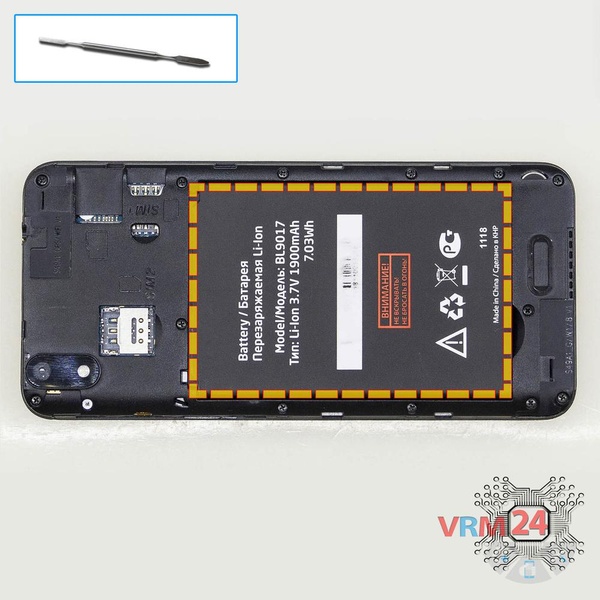

Step 2.

Lift and remove the battery. The battery model of Fly Life Compact 4G is BL6435.

How to disassemble Fly Life Compact 4G, Step 3/1 How to disassemble Fly Life Compact 4G, Step 3/2

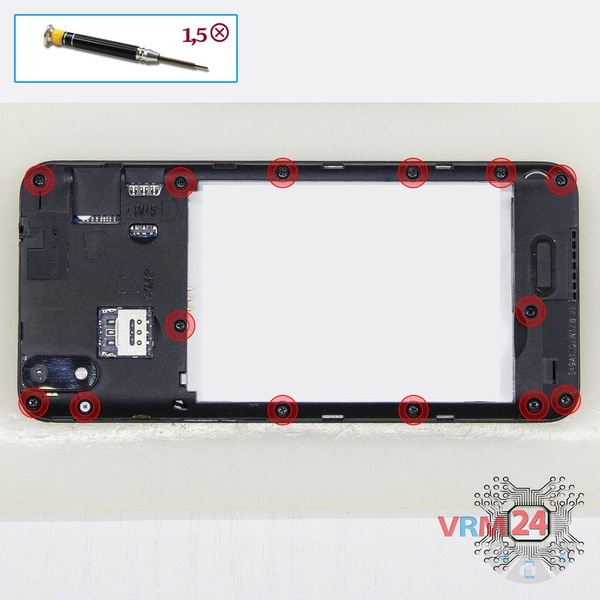

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.

How to disassemble Fly Life Compact 4G, Step 4/1 How to disassemble Fly Life Compact 4G, Step 4/2

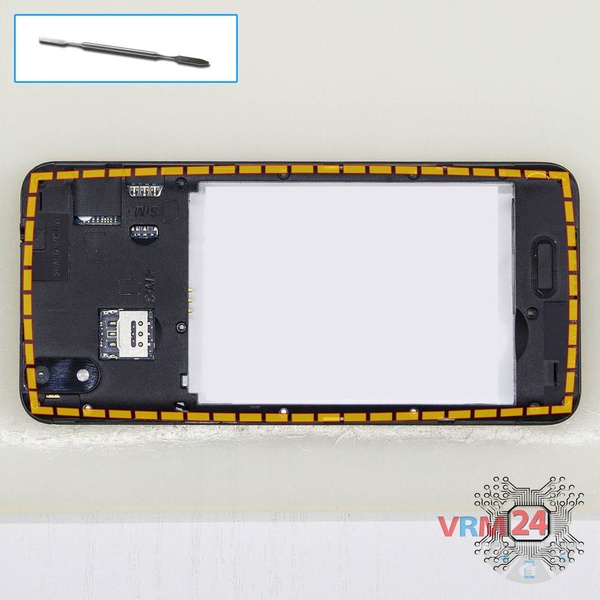

Step 4.

Pry and remove the middle frame.

How to disassemble Fly Life Compact 4G, Step 5/1 How to disassemble Fly Life Compact 4G, Step 5/2

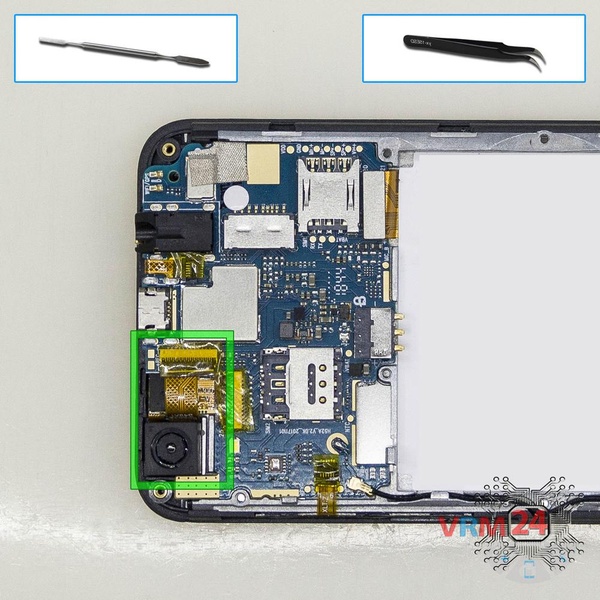

Step 5.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Fly Life Compact 4G, Step 6/1 How to disassemble Fly Life Compact 4G, Step 6/2

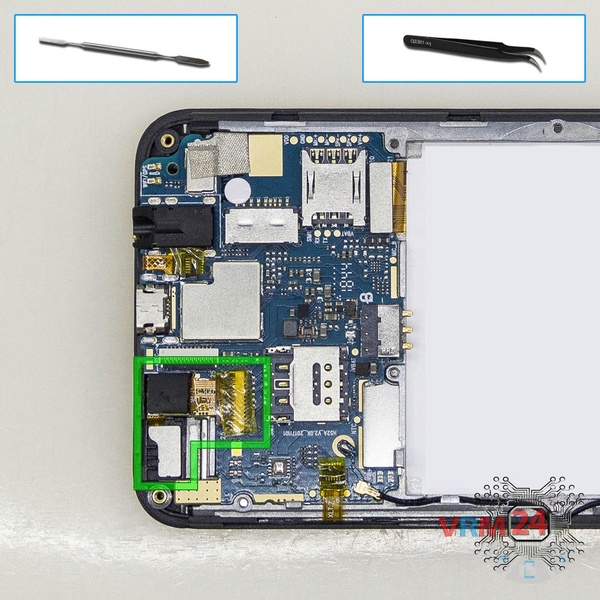

Step 6.

Pry up the connector and remove the cable with front (selfie) camera and proximity sensor.

How to disassemble Fly Life Compact 4G, Step 7/1 How to disassemble Fly Life Compact 4G, Step 7/2 How to disassemble Fly Life Compact 4G, Step 7/3

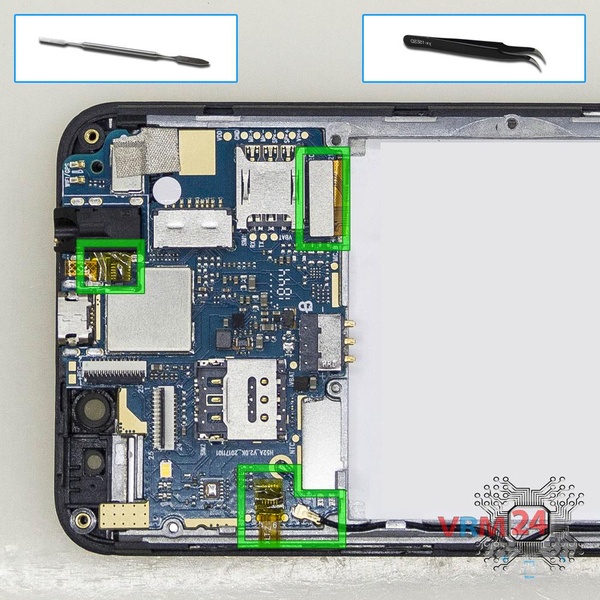

Step 7.

Disconnect connectors on the PCB.

How to disassemble Fly Life Compact 4G, Step 8/1 How to disassemble Fly Life Compact 4G, Step 8/2

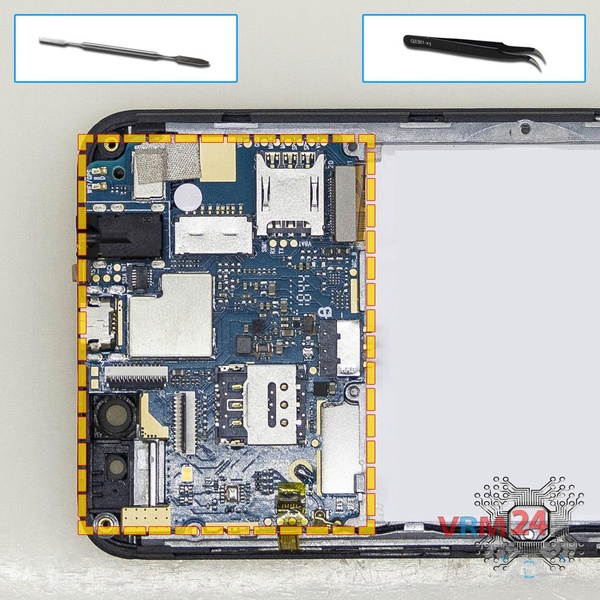

Step 8.

Remove the PCB.

How to disassemble Fly Life Compact 4G, Step 9/1 How to disassemble Fly Life Compact 4G, Step 9/2 How to disassemble Fly Life Compact 4G, Step 9/3

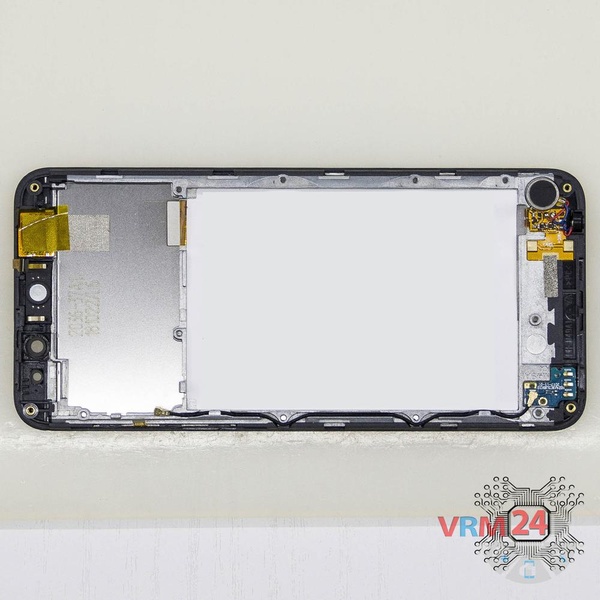

Step 9.

Parts are in the frame of the display module.

Detailed disassembly instructions of Fly Life Compact 4G in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Fly #Fly Life Compact 4G
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Fly Life Compact 4G released for markets in different countries.
